Wheel Hub: Testing and Inspection

Wheel Hub: On-Vehicle Inspection and Service
Make sure the mounting conditions (looseness, backlash) of each component and component status (wear, damage) are normal.

WHEEL BEARING INSPECTION

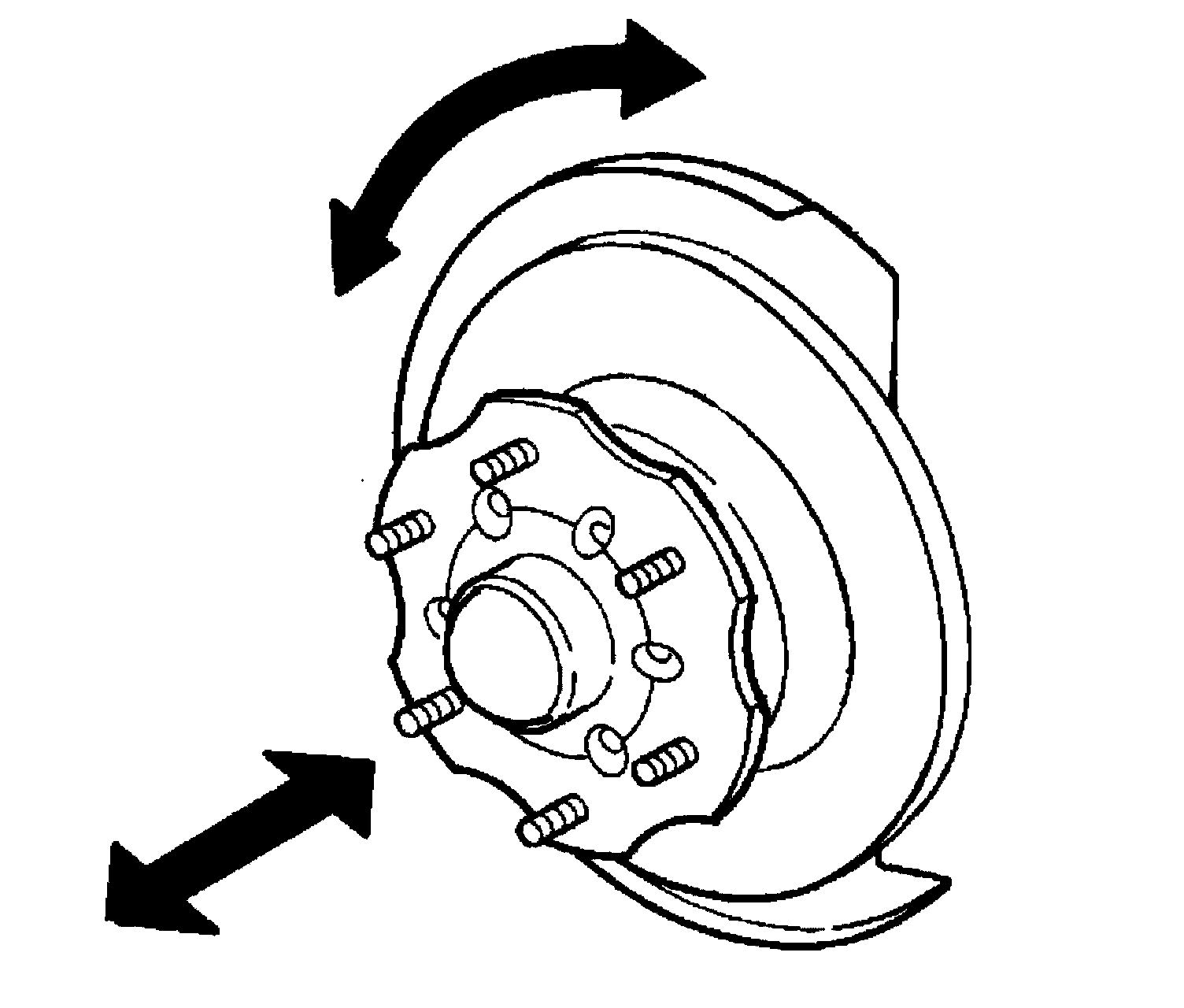

^ Move wheel hub in the axial direction by hand. Make sure there is no looseness of wheel bearing.





Axial end play limit: 0.05 mm (0.002 in) or less

^ Rotate wheel hub and make sure there is no unusual noise or other irregular conditions. If there are any irregular conditions, replace wheel hub and bearing assembly.
