Pantograph Jack

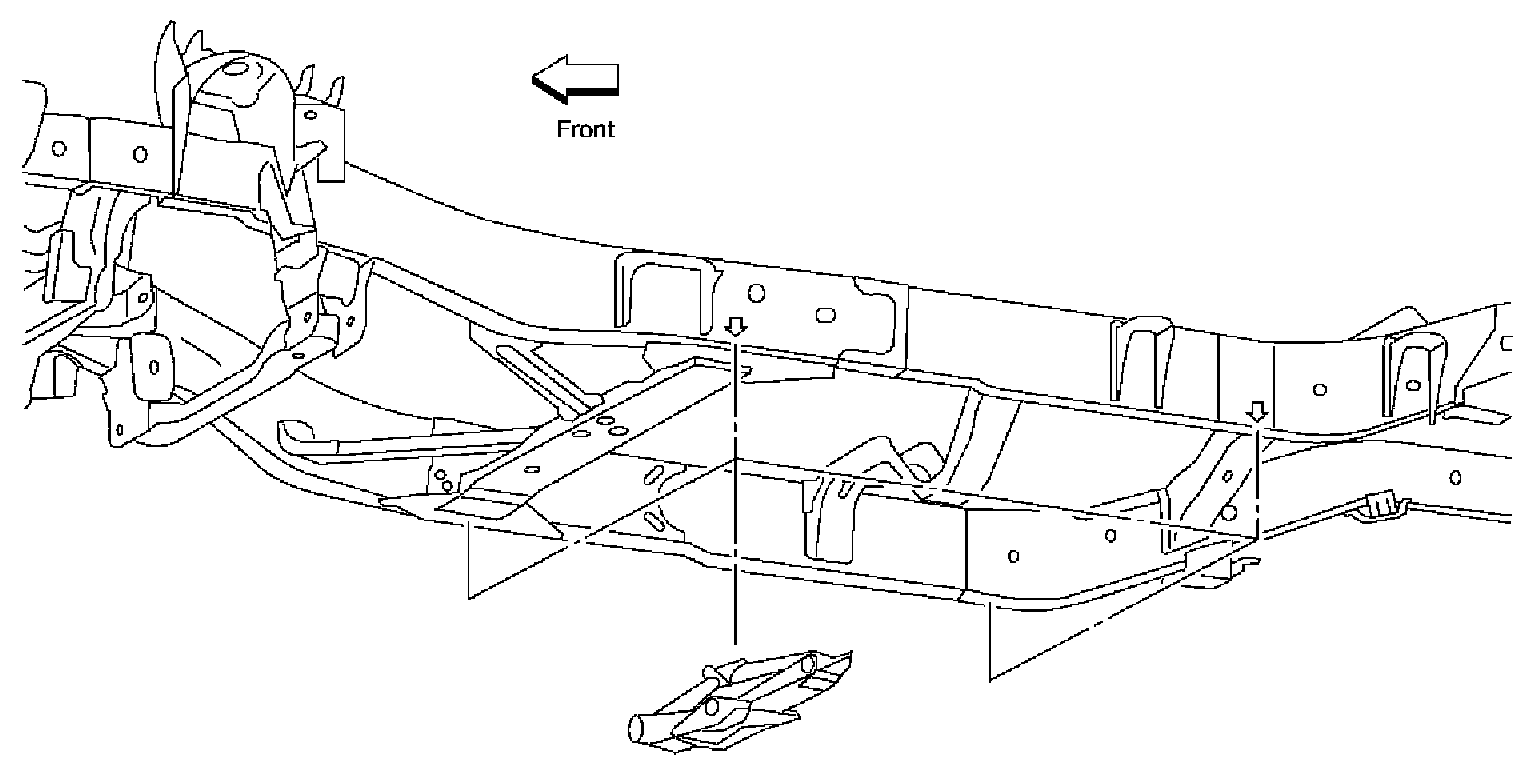

Lifting Point

Pantograph Jack

WARNING:
- Never get under the vehicle while it is supported only by the jack. Always use safety stands to support the frame when you have to get under the vehicle.
- Place wheel chocks at both front and back of the wheels on the ground.
