Changing Differential Gear Oil [R180A]

Changing Differential Gear Oil [R180A]

DRAINING
1. Stop the engine.

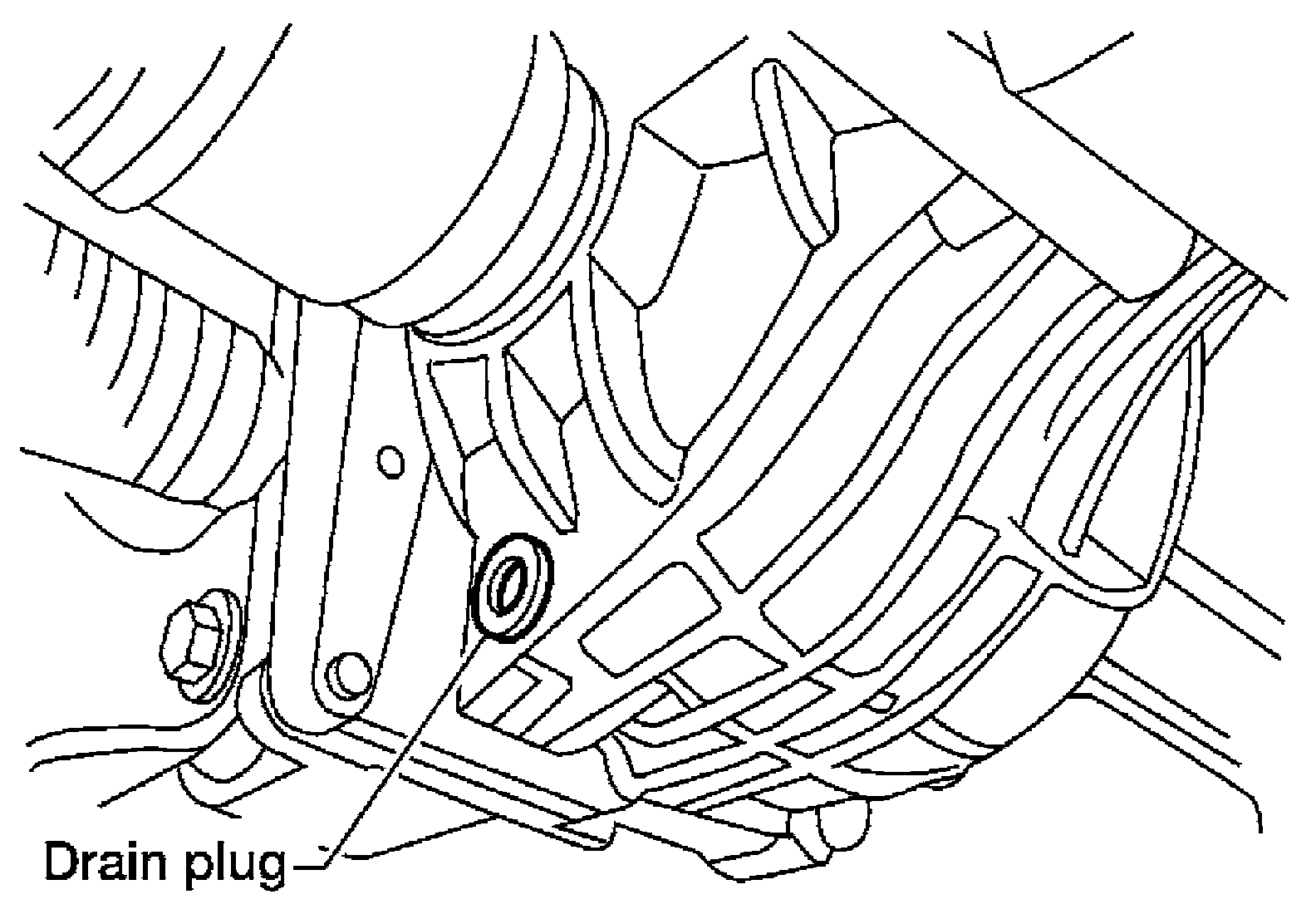

2. Remove the drain plug and gasket from the front final drive assembly to drain the differential gear oil.






3. Install the drain plug with a new gasket to the front final drive assembly. Tighten to the specified torque. Refer to [Front Final Drive: Disassembly and Assembly].

CAUTION: Do not reuse gasket.

FILLING

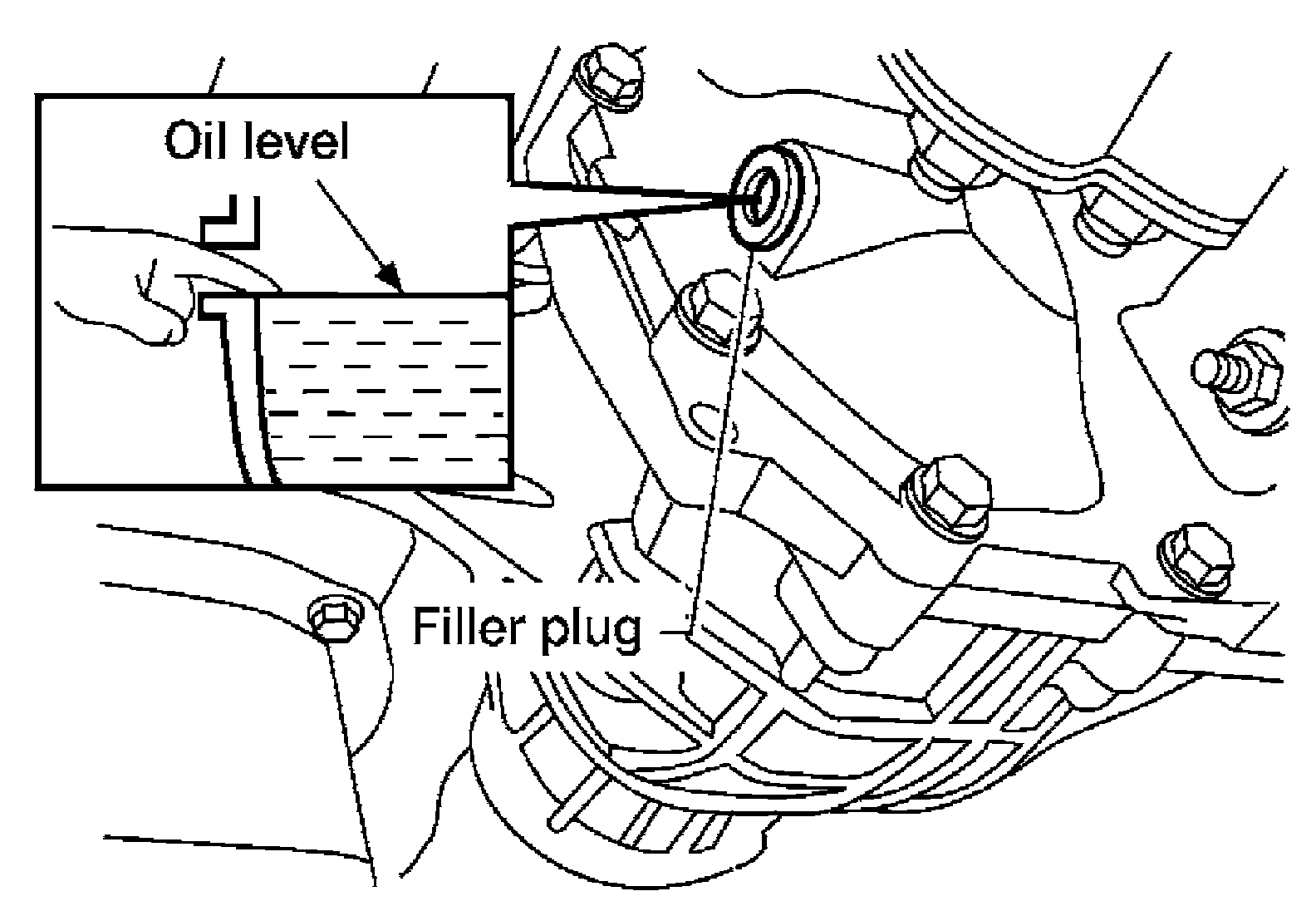

1. Remove the filler plug and gasket from the front final drive assembly.






2. Fill the front final drive assembly with new differential gear oil until the level reaches the specified level near the filler plug hole.

Differential gear oil grade and capacity : Refer to [Recommended Fluids and Lubricants].

3. Install the filler plug with a new gasket on it to the front final drive assembly. Tighten to the specified torque. Refer to [Front Final Drive: Disassembly and Assembly].

CAUTION: Do not reuse gasket.
