Engine Room Harness (RH View)

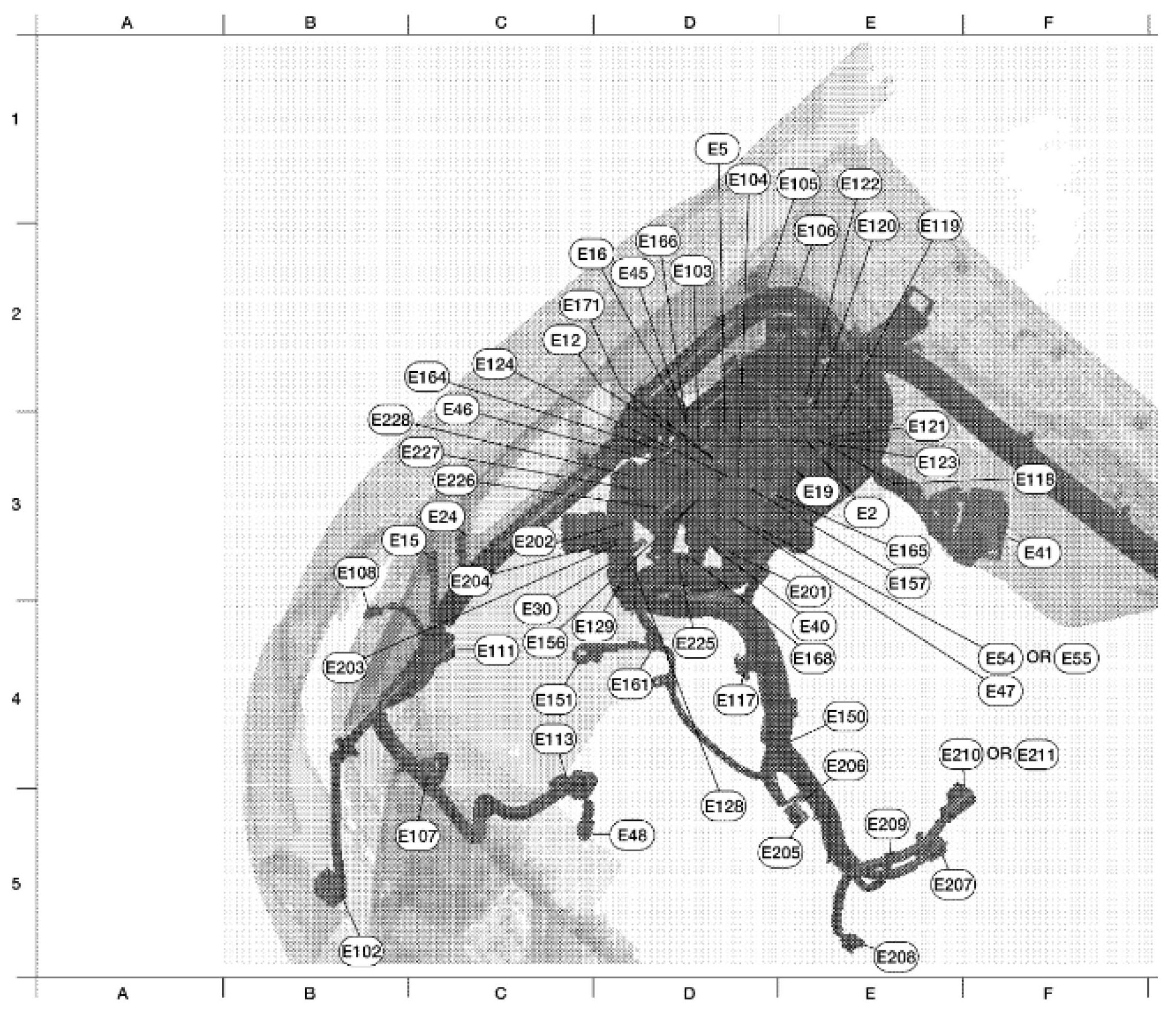

ENGINE ROOM HARNESS (RH VIEW)

Engine Wire Harness (RH View):






Engine Room Harness (RH View) Index

Engine Wire Harness (RH View) Index:
