Engine Room Harness (Passenger Compartment)

ENGINE ROOM HARNESS (PASSENGER COMPARTMENT)

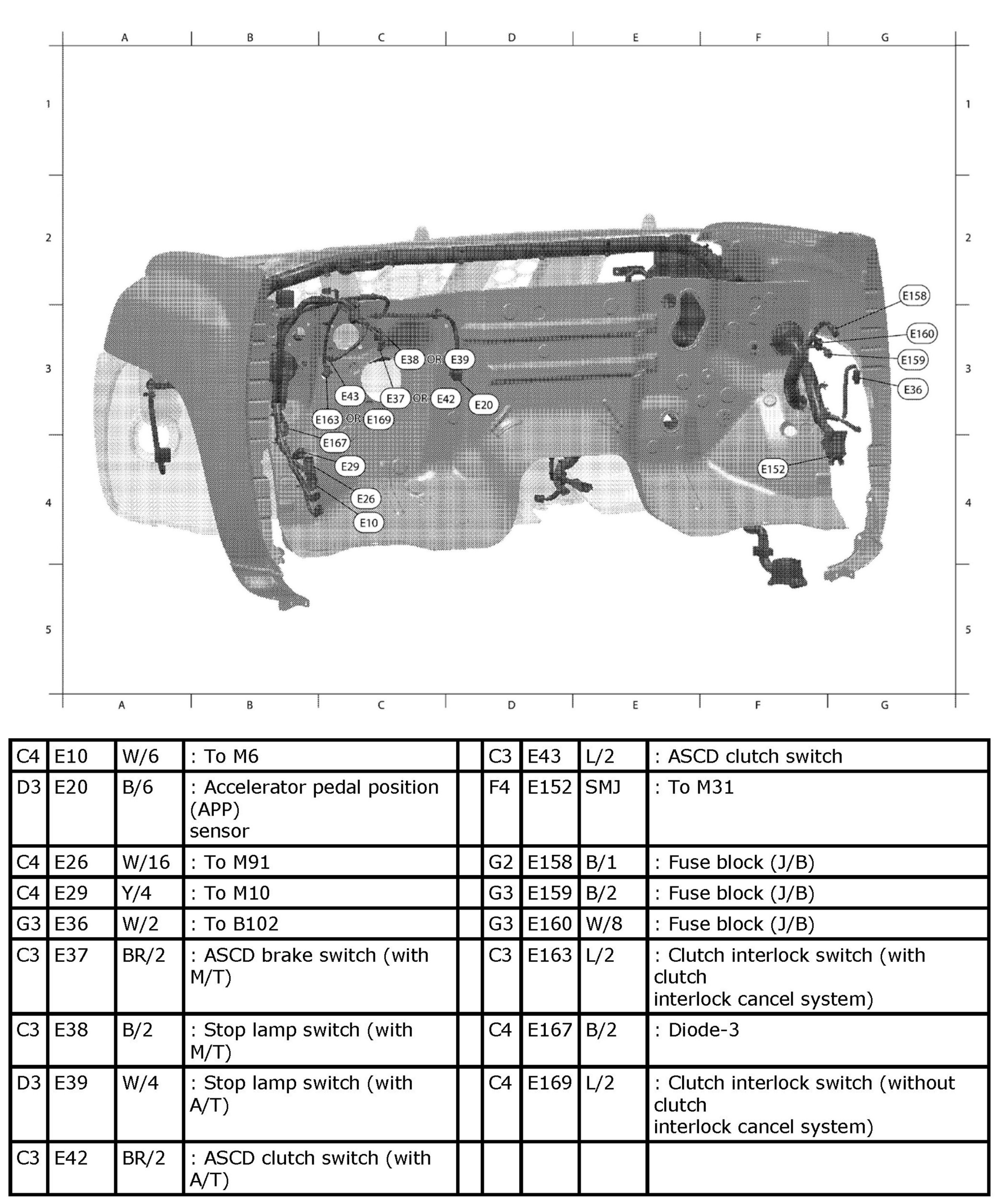

Engine Room Harnesss (Passenger Compartment):
