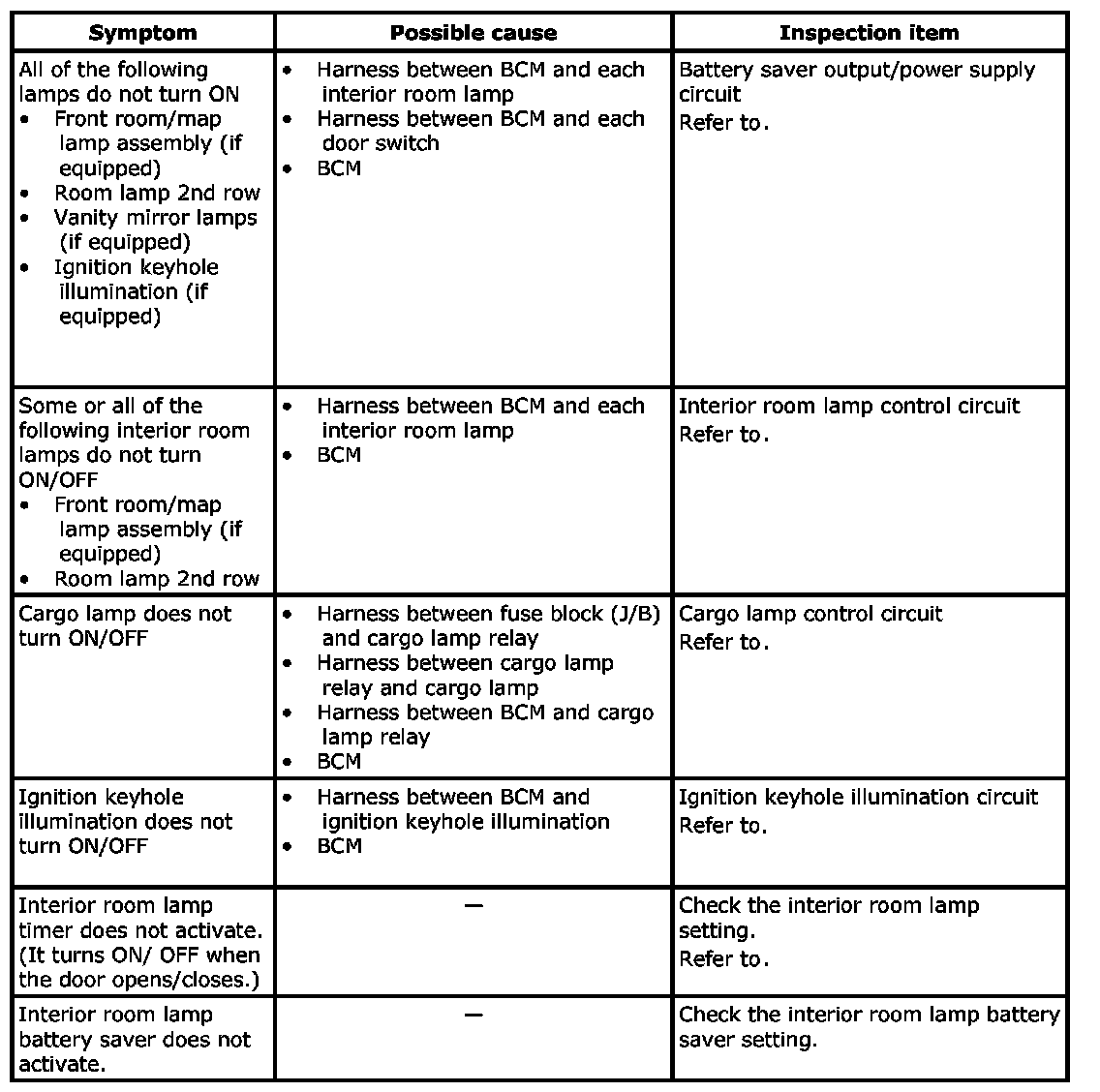

Interior Lighting System Symptoms: Symptom Table [With Power Door Locks]

Interior Lighting System Symptoms: Symptom Table [With Power Door Locks]

CAUTION: Perform"DTC check" with SDT before the symptom diagnosis. Perform the trouble diagnosis if any DTC is detected.
