Exterior Lighting System

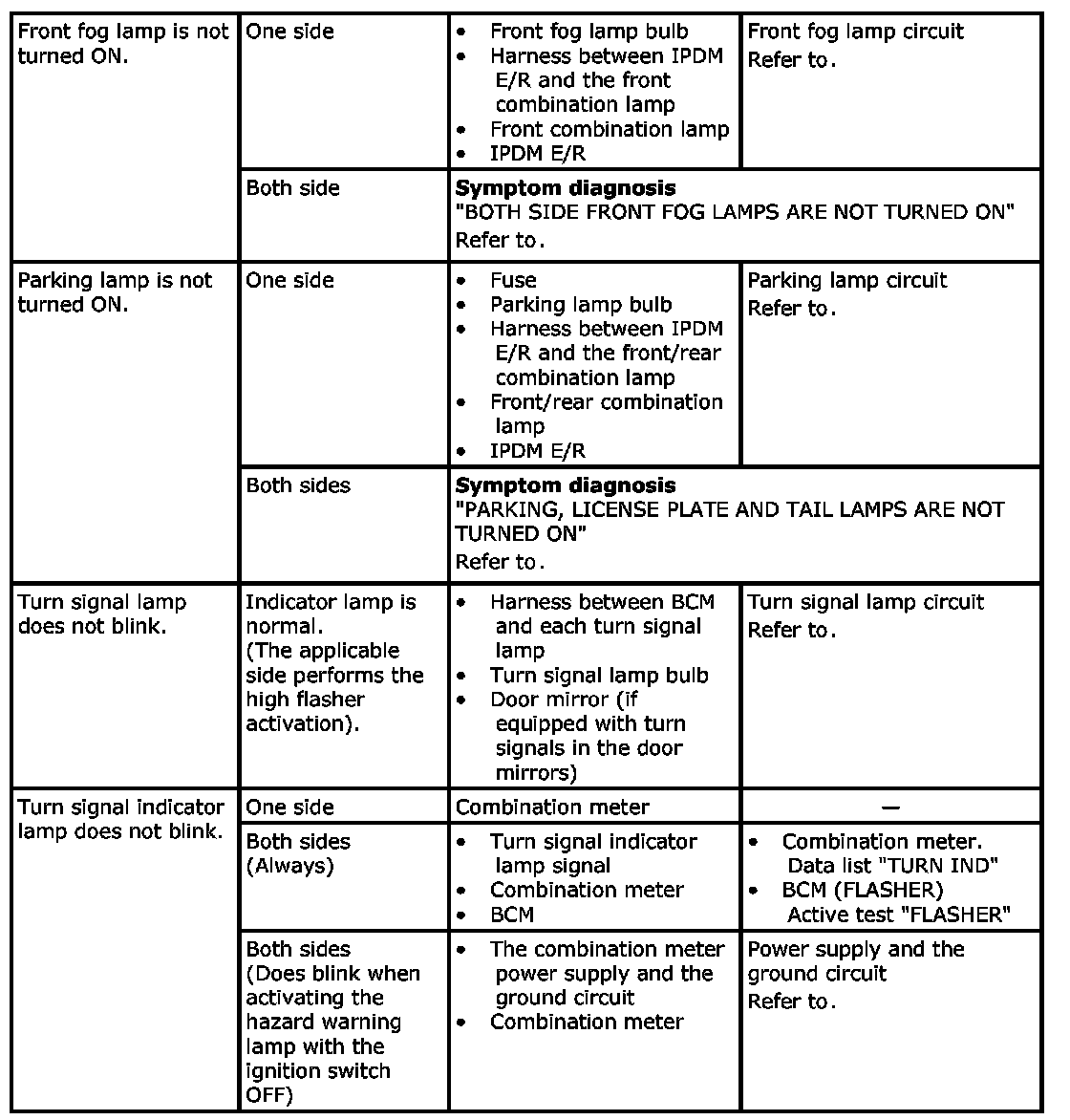

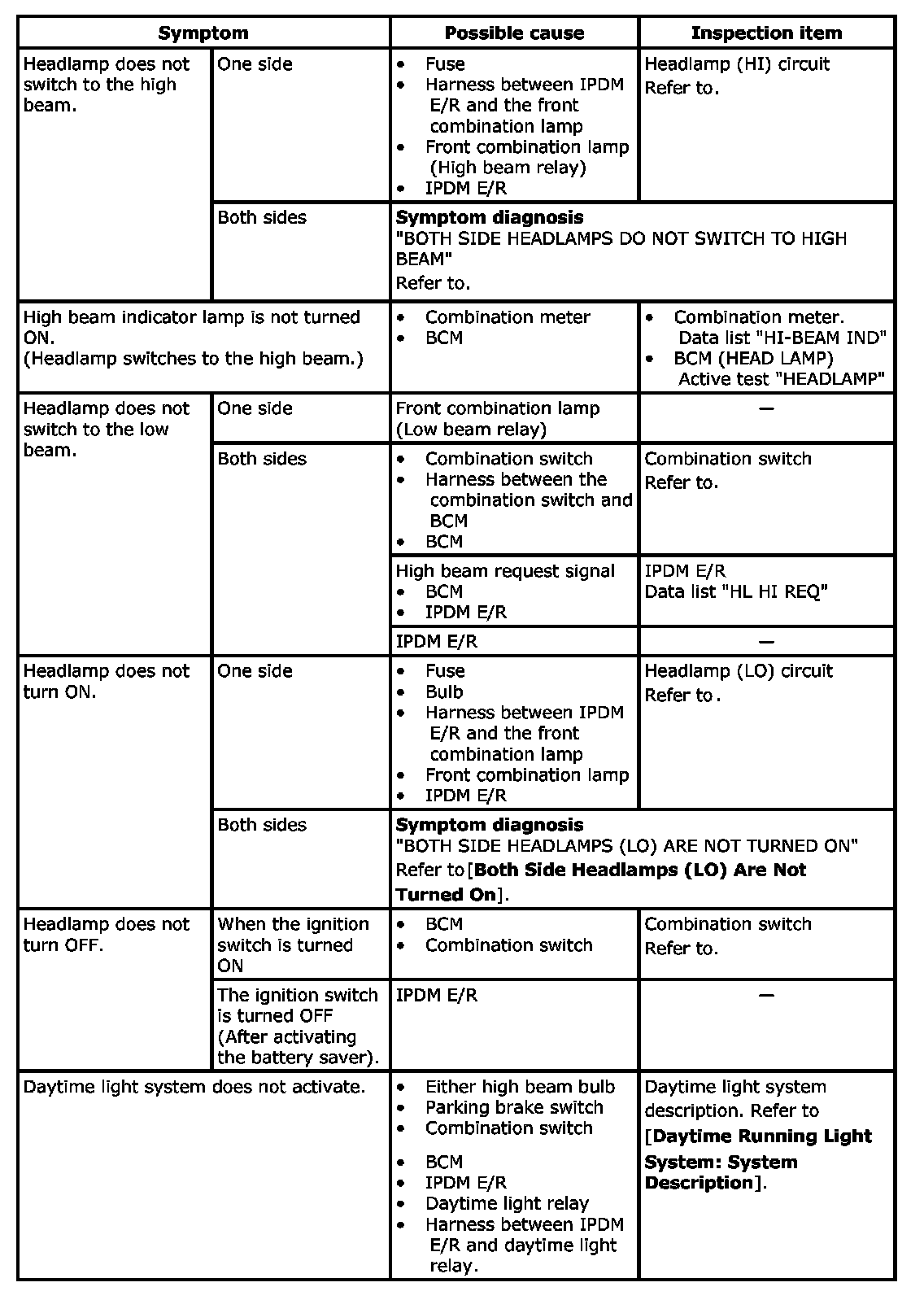

Exterior Lighting System Symptoms: Symptom Table

CAUTION: Perform"DTC check" with SDT before the symptom diagnosis. Perform the trouble diagnosis if any DTC is detected.
