STD Function

SDT Function (IPDM E/R)

APPLICATION ITEM

SDT performs the following functions via CAN communication with IPDM E/R.







DTC Check

Refer to [DTC Index: IPDM E/R]. U Trouble Code Descriptions

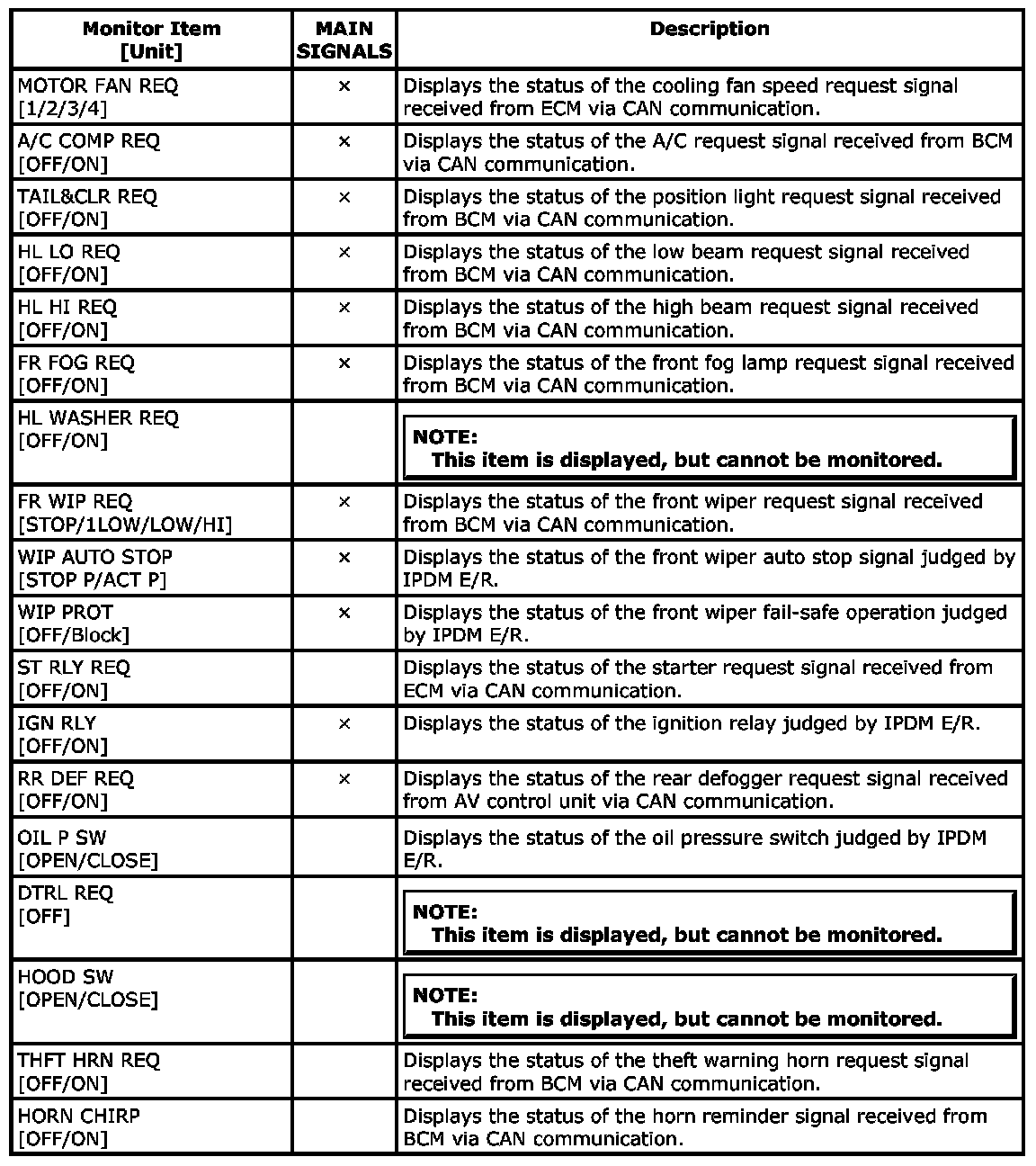

Data List

Monitor item







Active Test

Test item
