Ignition Keyhole Illumination Control Circuit Check [With Power Door Locks]

Ignition Keyhole Illumination Control Circuit Check [with Power Door Locks]

Description

Controls the ignition keyhole illumination (ground side) to turn the ignition keyhole illumination ON and OFF.

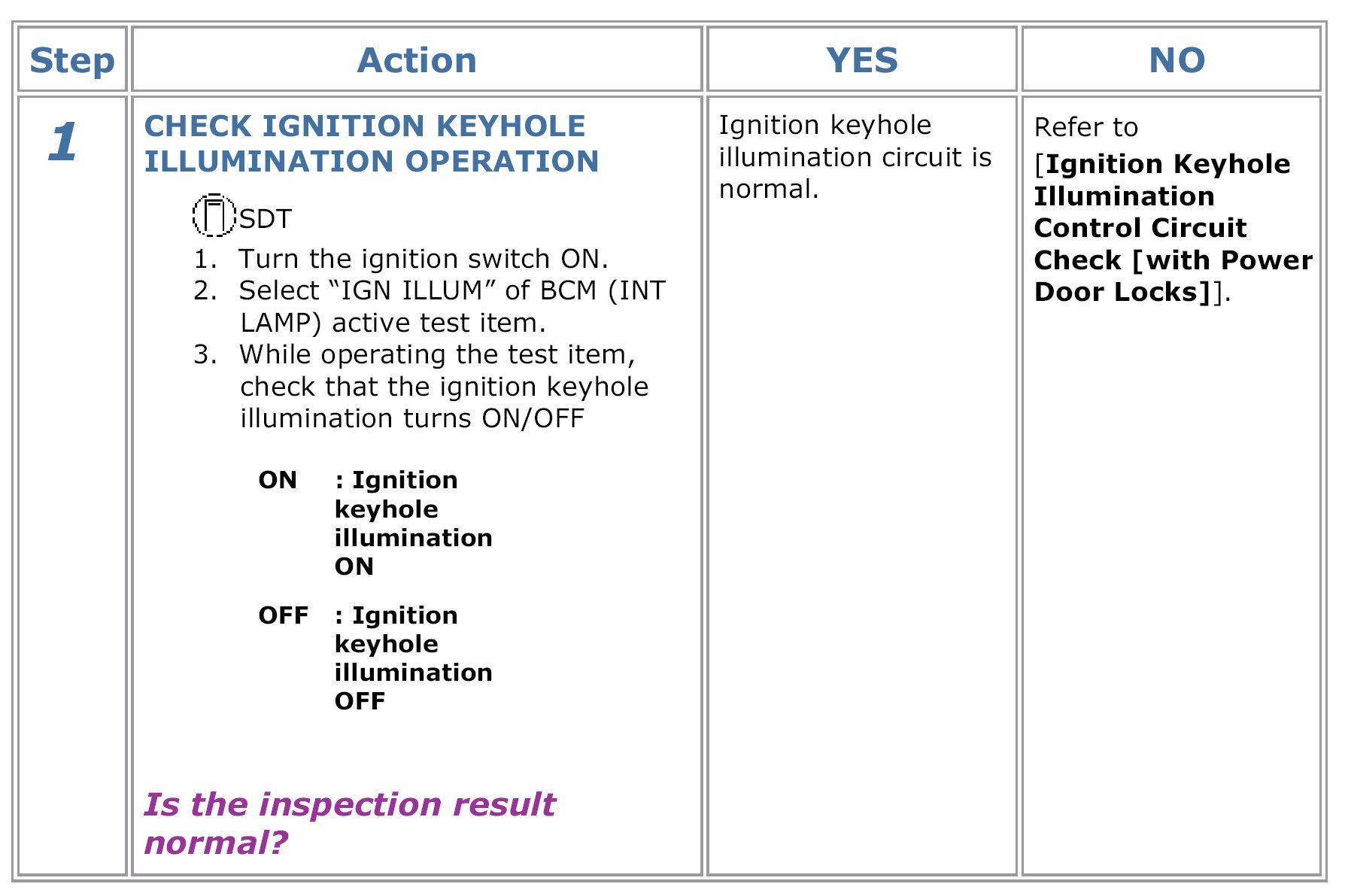

Component Function Check

CAUTION:
Before performing the diagnosis, check that the following is normal.
- Battery saver output/power supply circuit
- Ignition keyhole illumination bulb

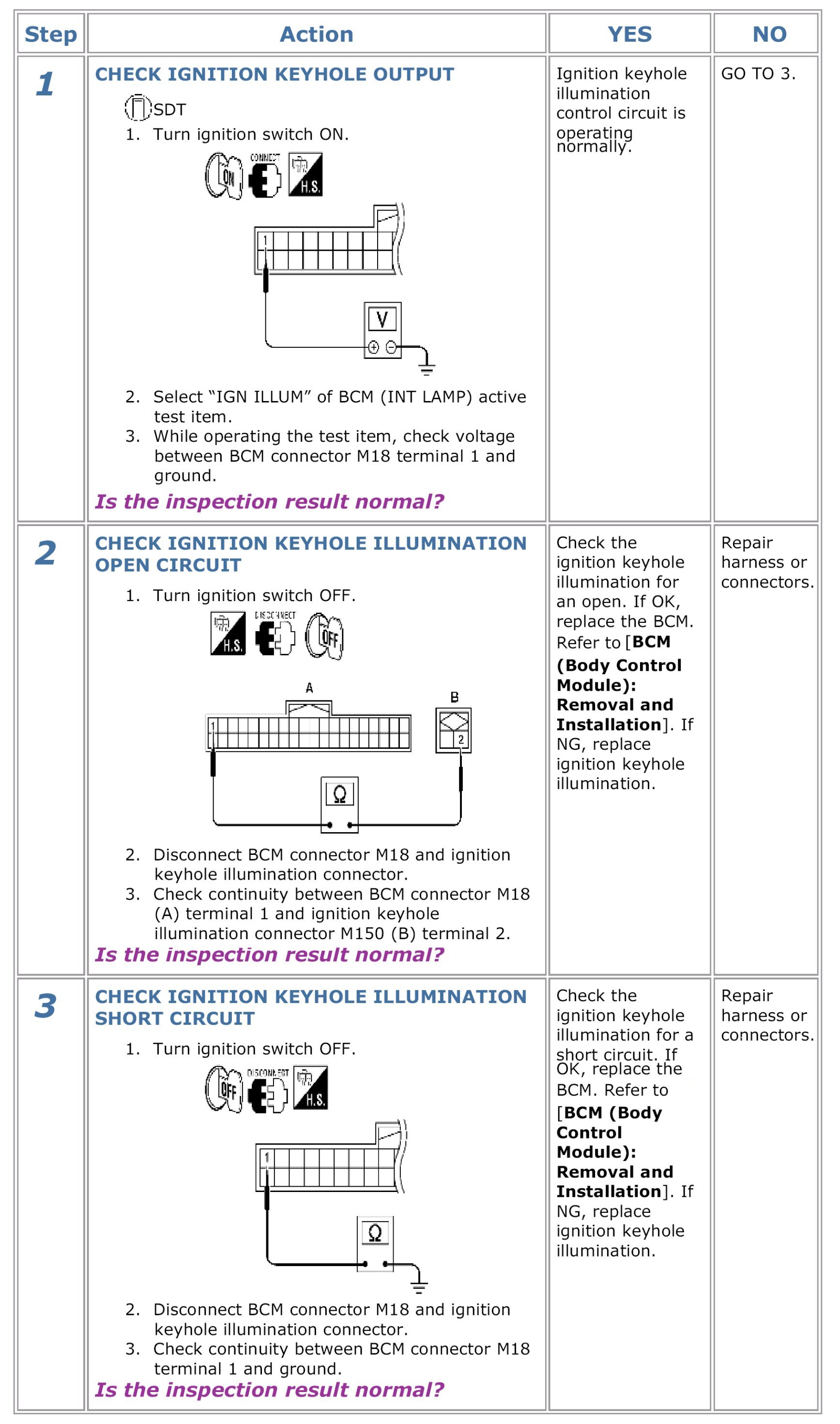

Diagnosis Procedure
