Headlamp (HI) Circuit Check
Headlamp (HI) Circuit CheckDescription
The IPDM E/R (intelligent power distribution module engine room) controls the headlamp high relay based on inputs from the BCM via the CAN communication lines. When the headlamp high relay is energized, power flows through fuses 34 and 35, located in the IPDM E/R. Power then flows to the front combination lamps to the headlamp high beam.

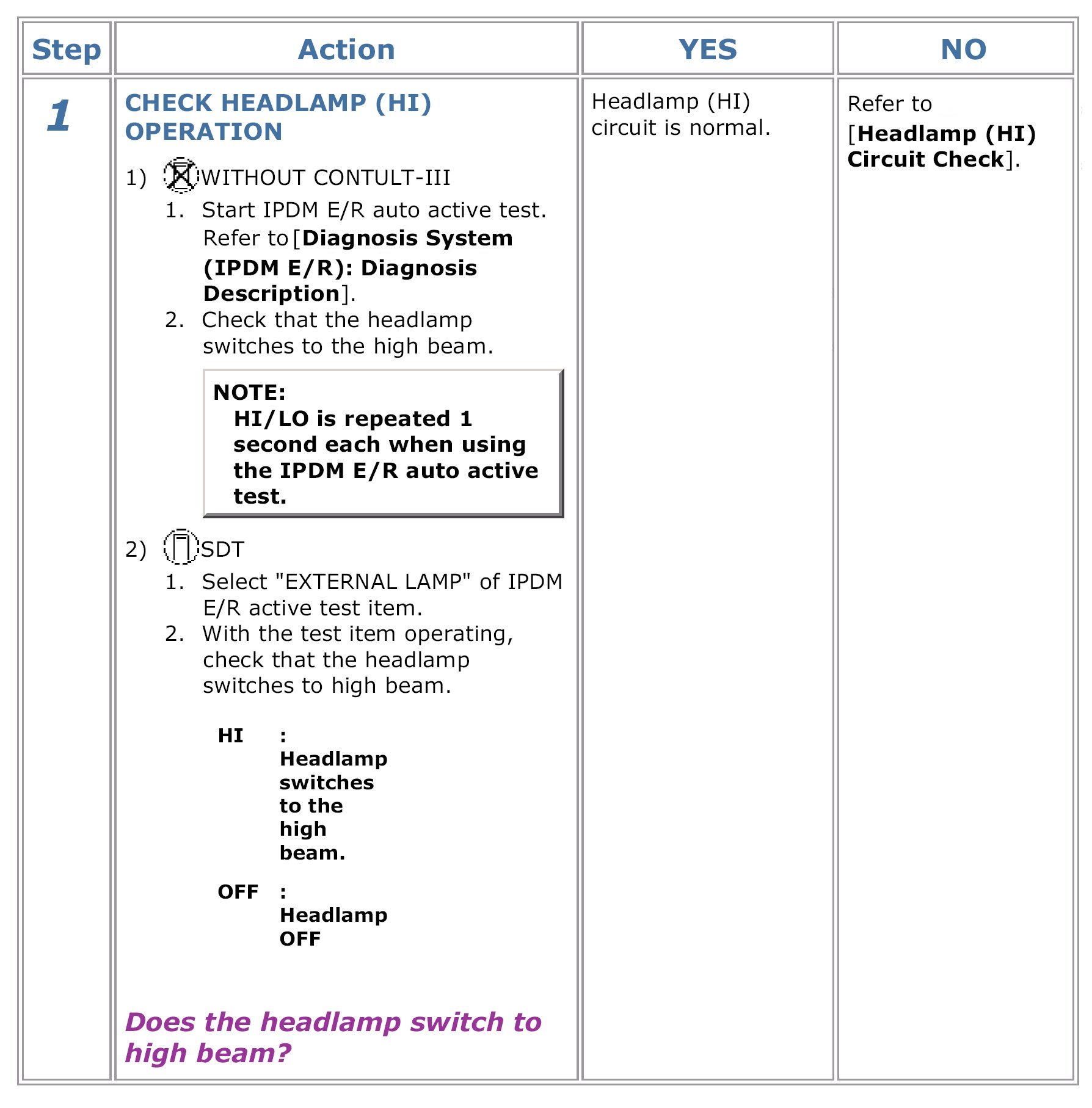

Component Function Check

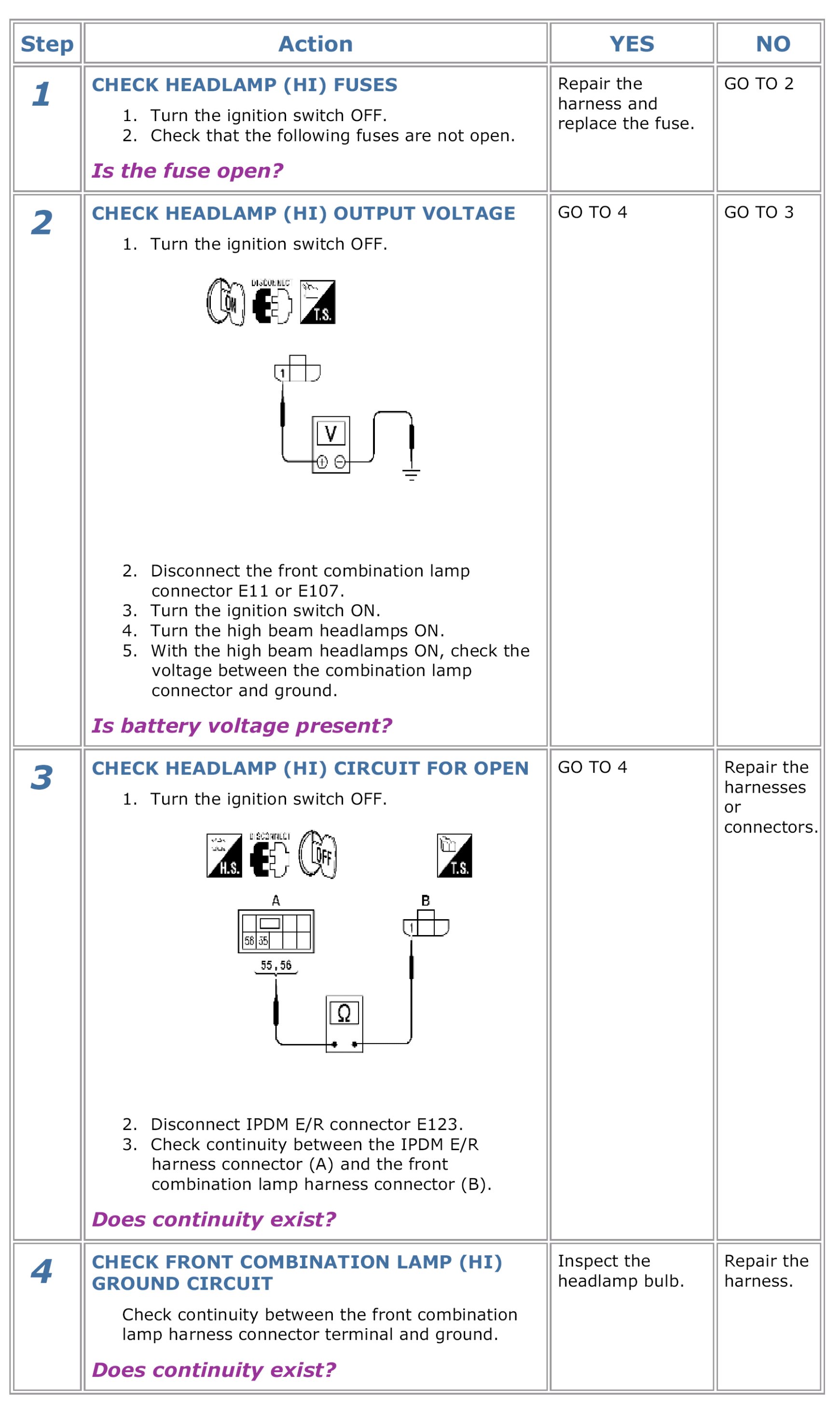

Diagnosis Procedure
