Cargo Lamp Control Circuit Check [Without Power Door Locks]

Cargo Lamp Control Circuit Check [without Power Door Locks]

Description

Refer to"Description" in [Cargo Lamp Control Circuit Check [with Power Door Locks]].

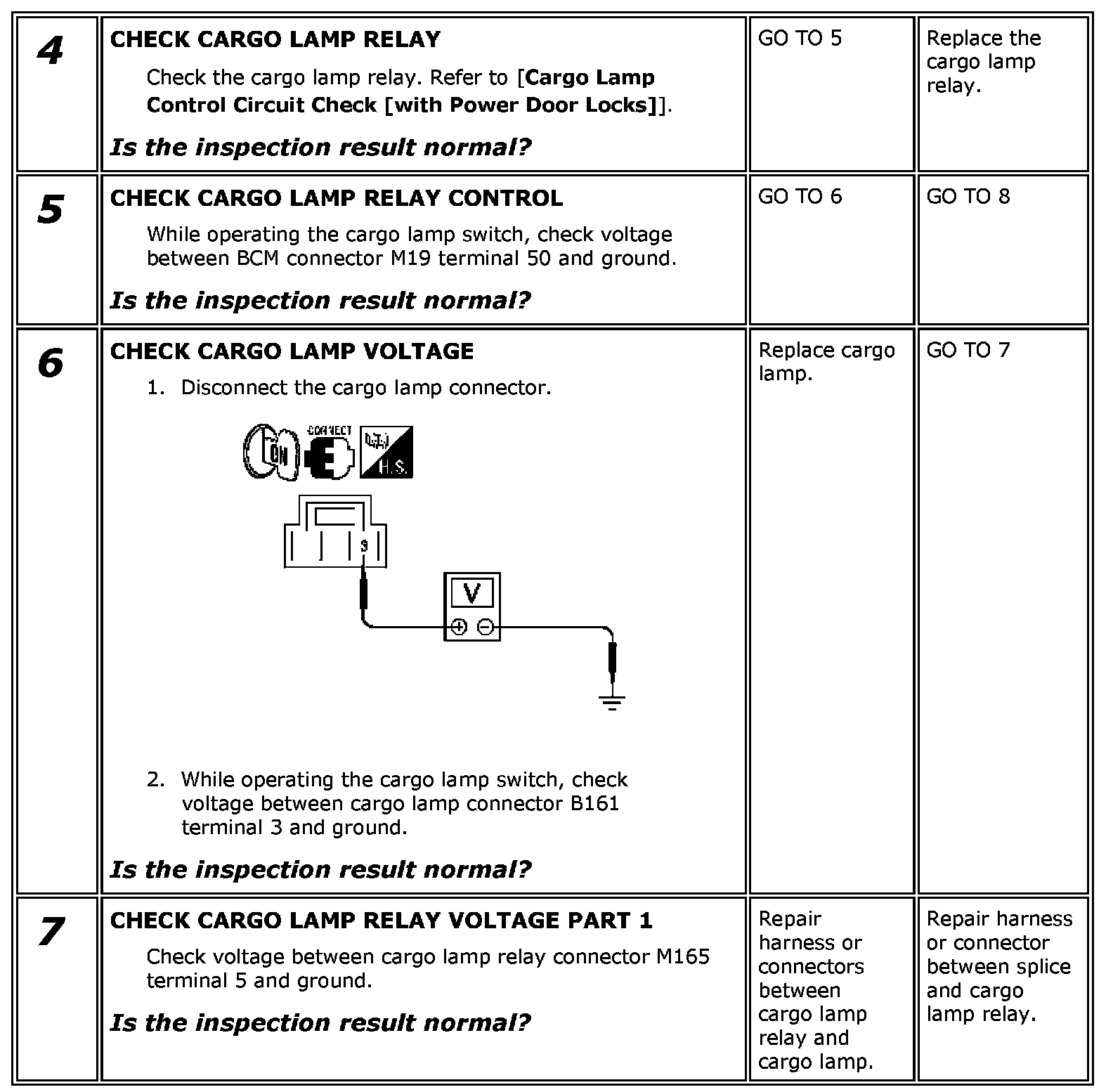

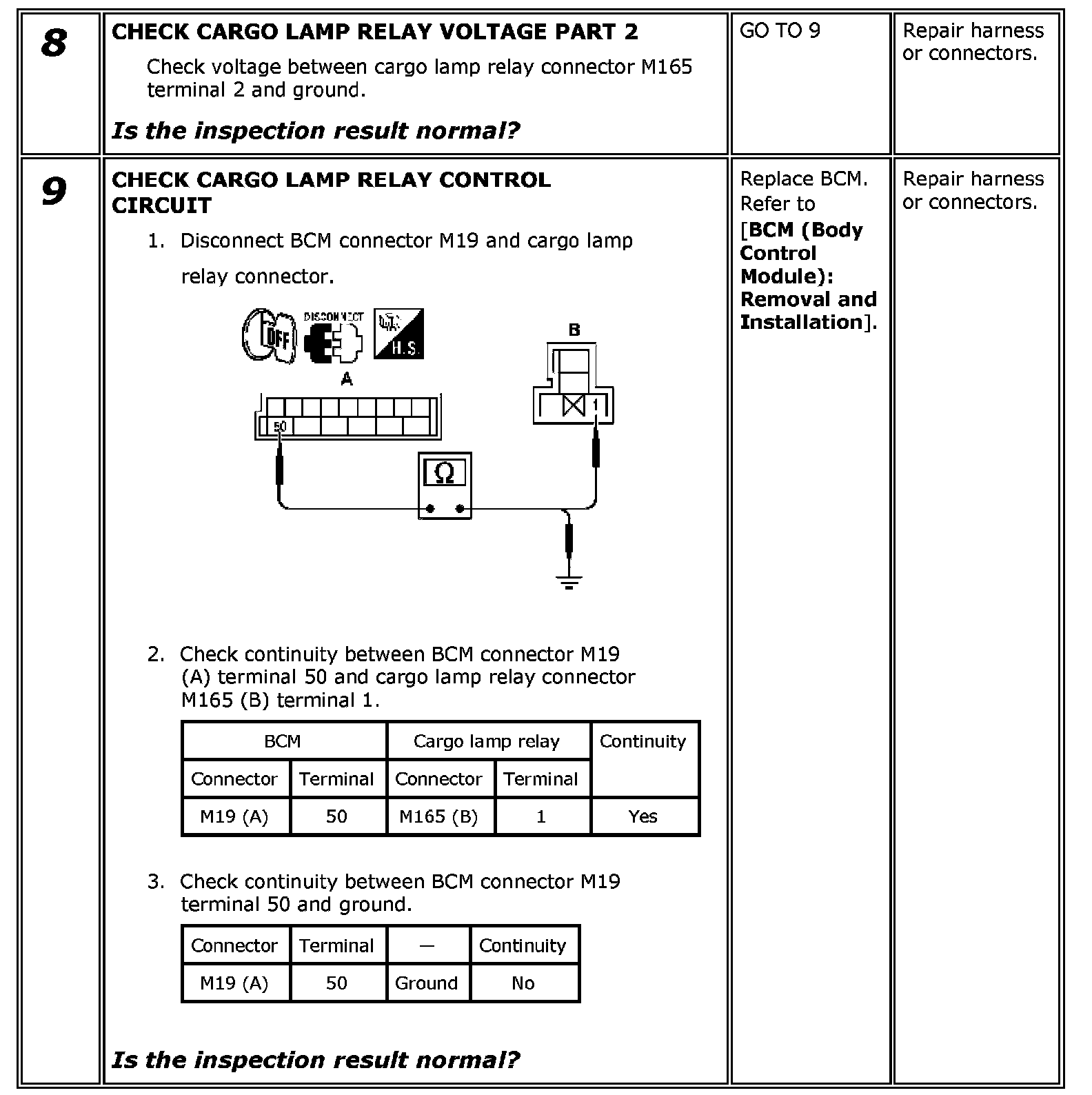

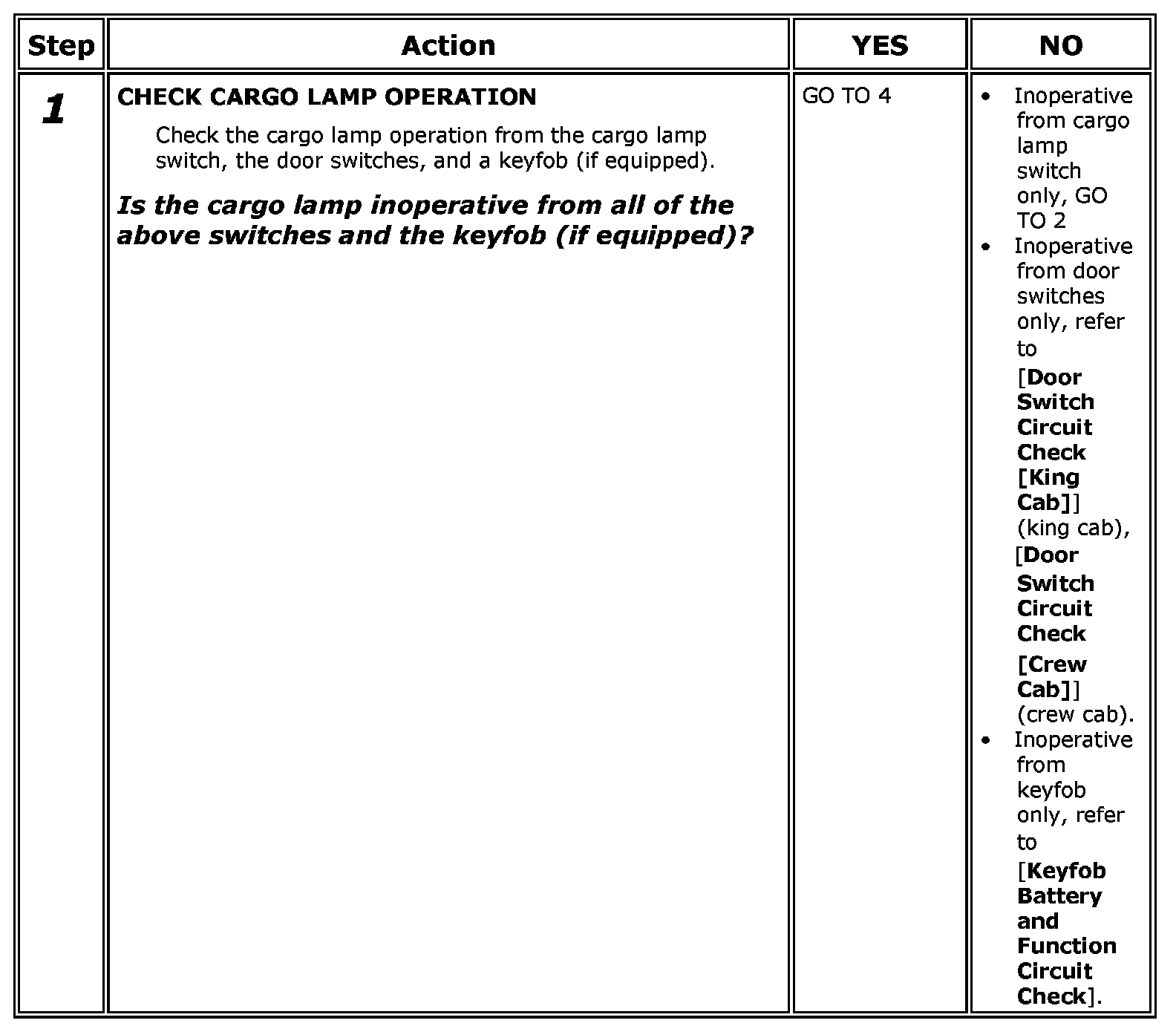

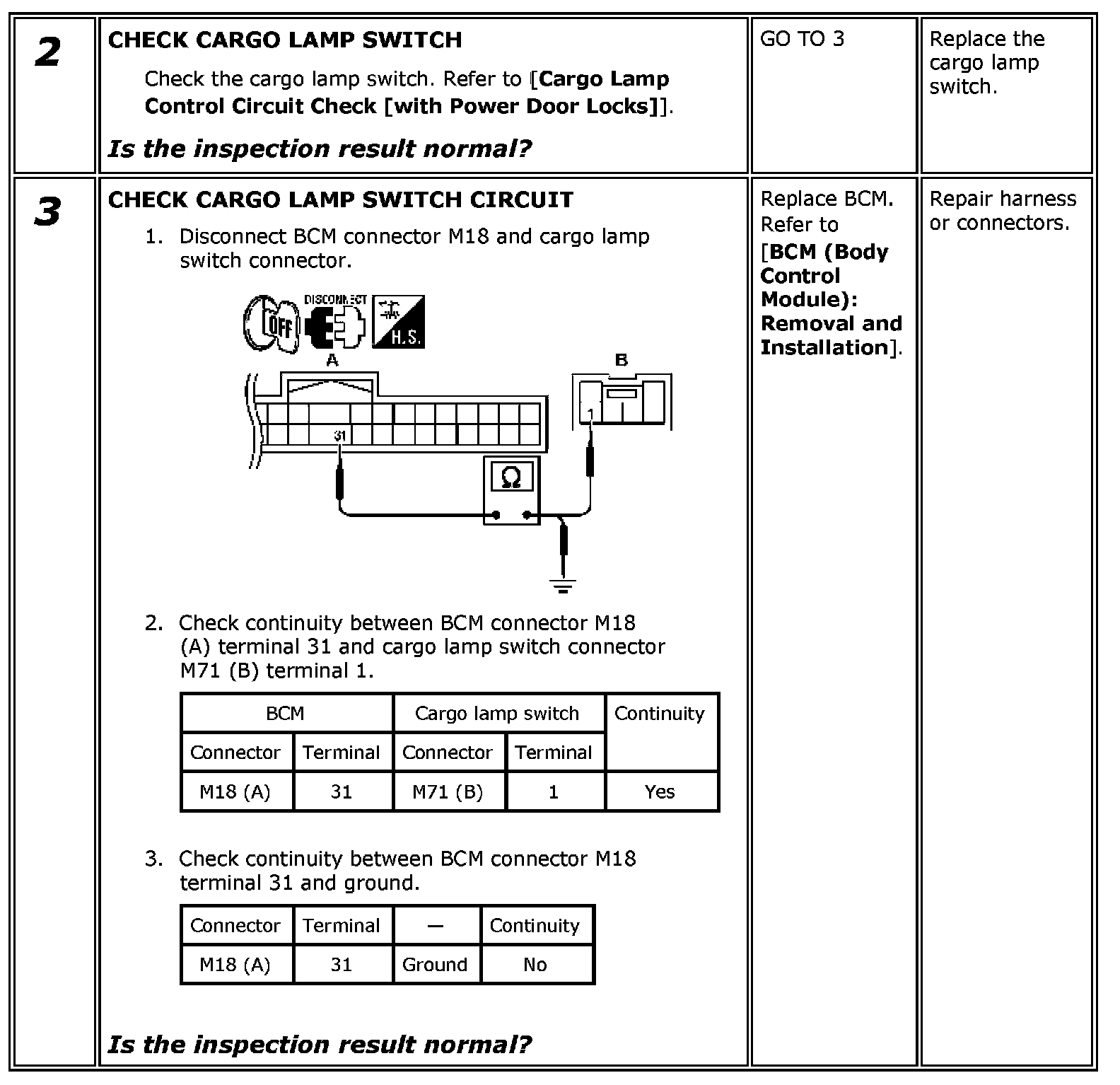

Diagnosis Procedure

CAUTION:
Before performing the diagnosis, check that the following is normal.
- Fuse
- Cargo lamp bulb
















Component Inspection

Refer to"Component Inspection" in [Cargo Lamp Control Circuit Check [with Power Door Locks]].
