Cargo Lamp Control Circuit Check [With Power Door Locks]

Cargo Lamp Control Circuit Check [with Power Door Locks]

Description

Controls the cargo lamp relay coil (ground side) to turn the cargo lamp ON and OFF.

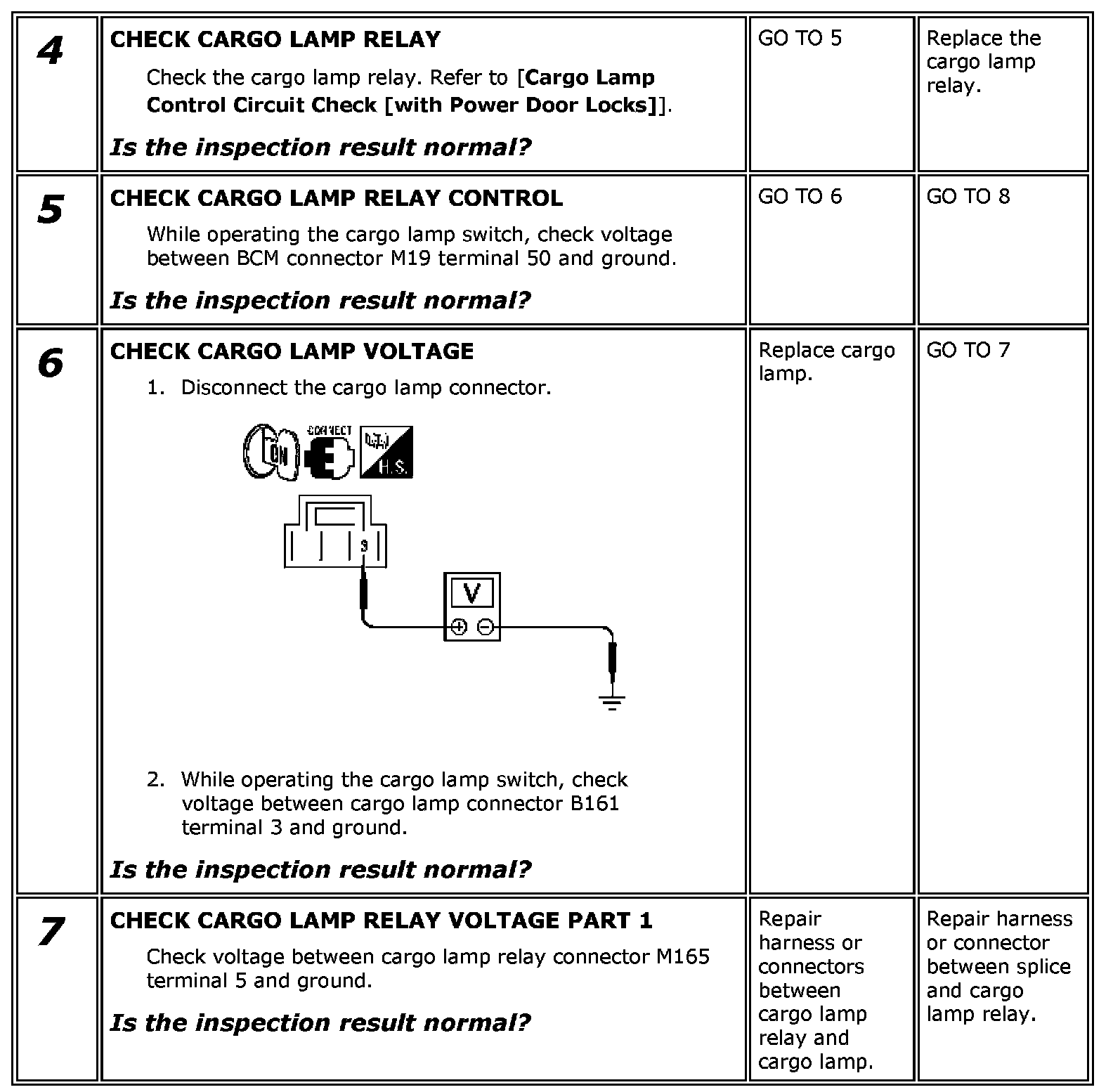

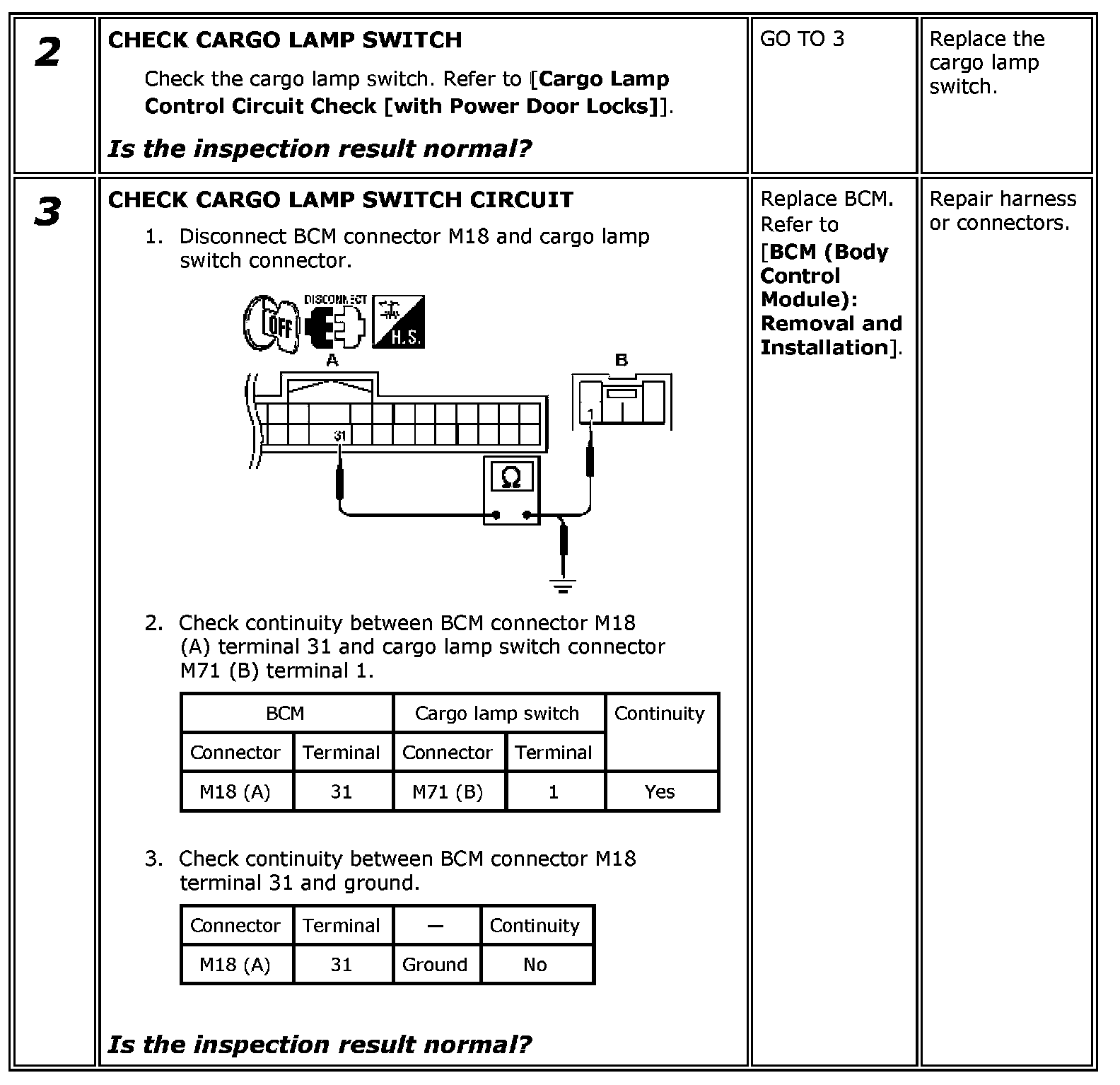

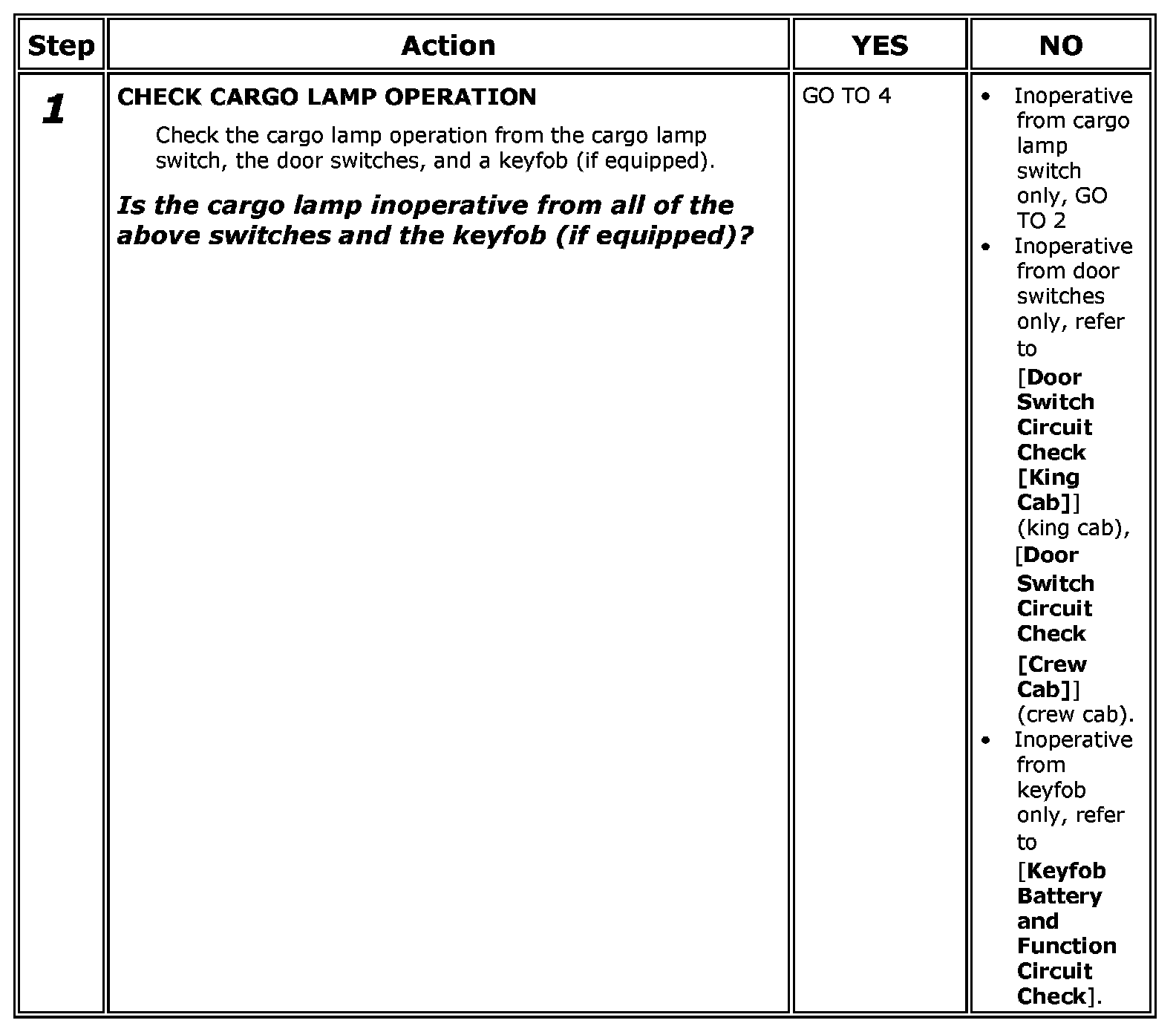

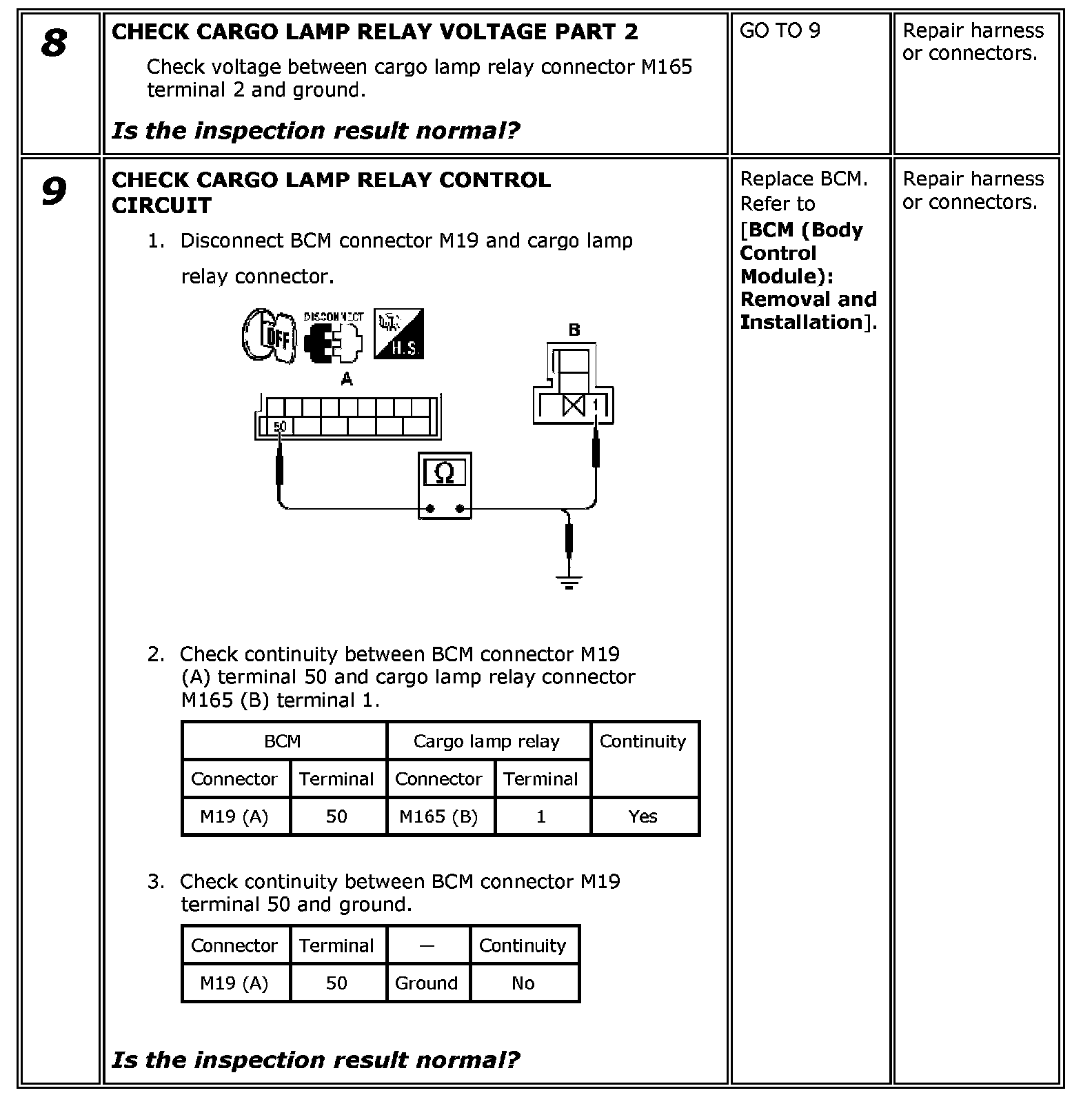

Diagnosis Procedure

CAUTION:
Before performing the diagnosis, check that the following is normal.
- Fuse
- Cargo lamp bulb
















Component Inspection

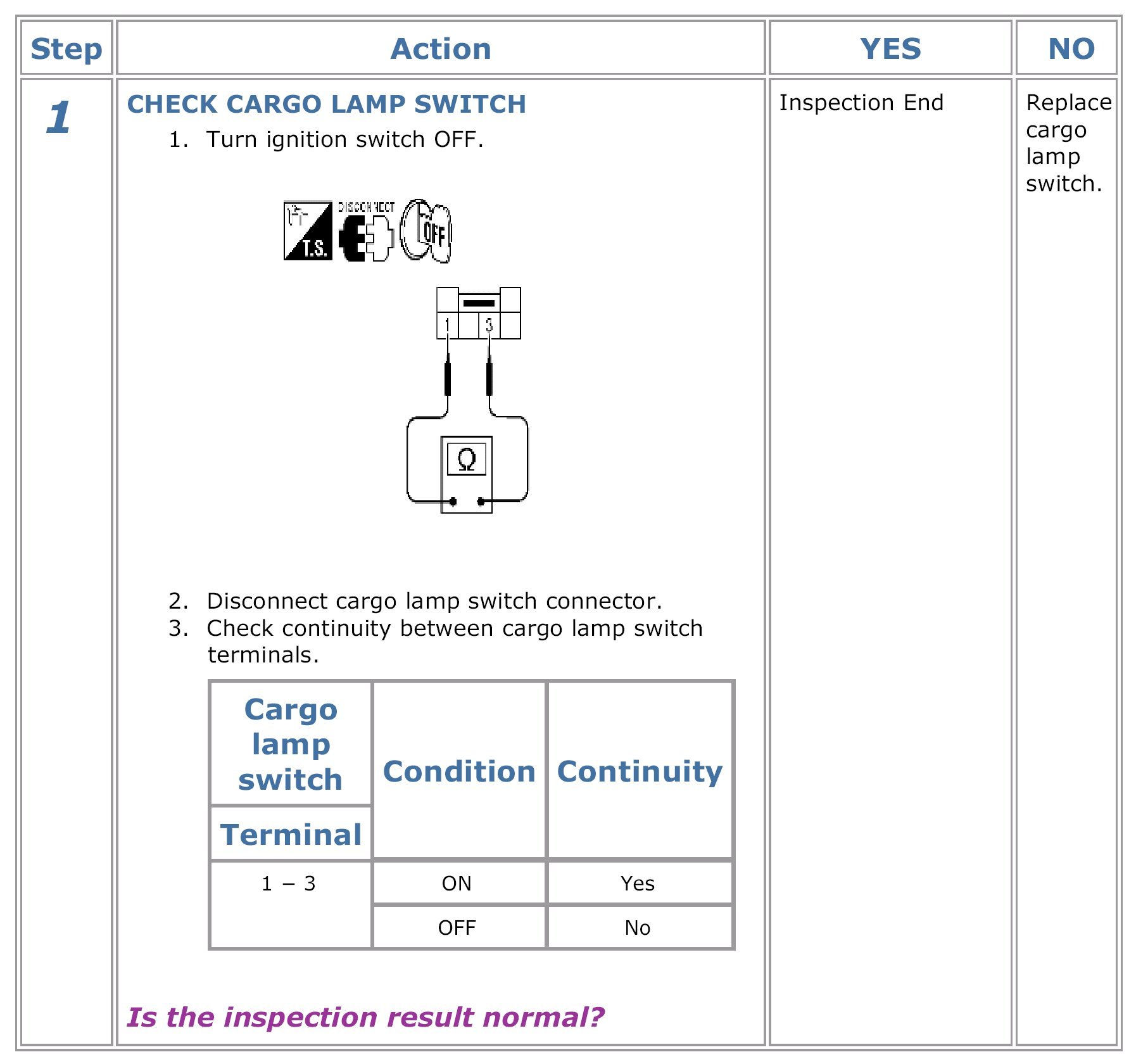

CARGO LAMP SWITCH

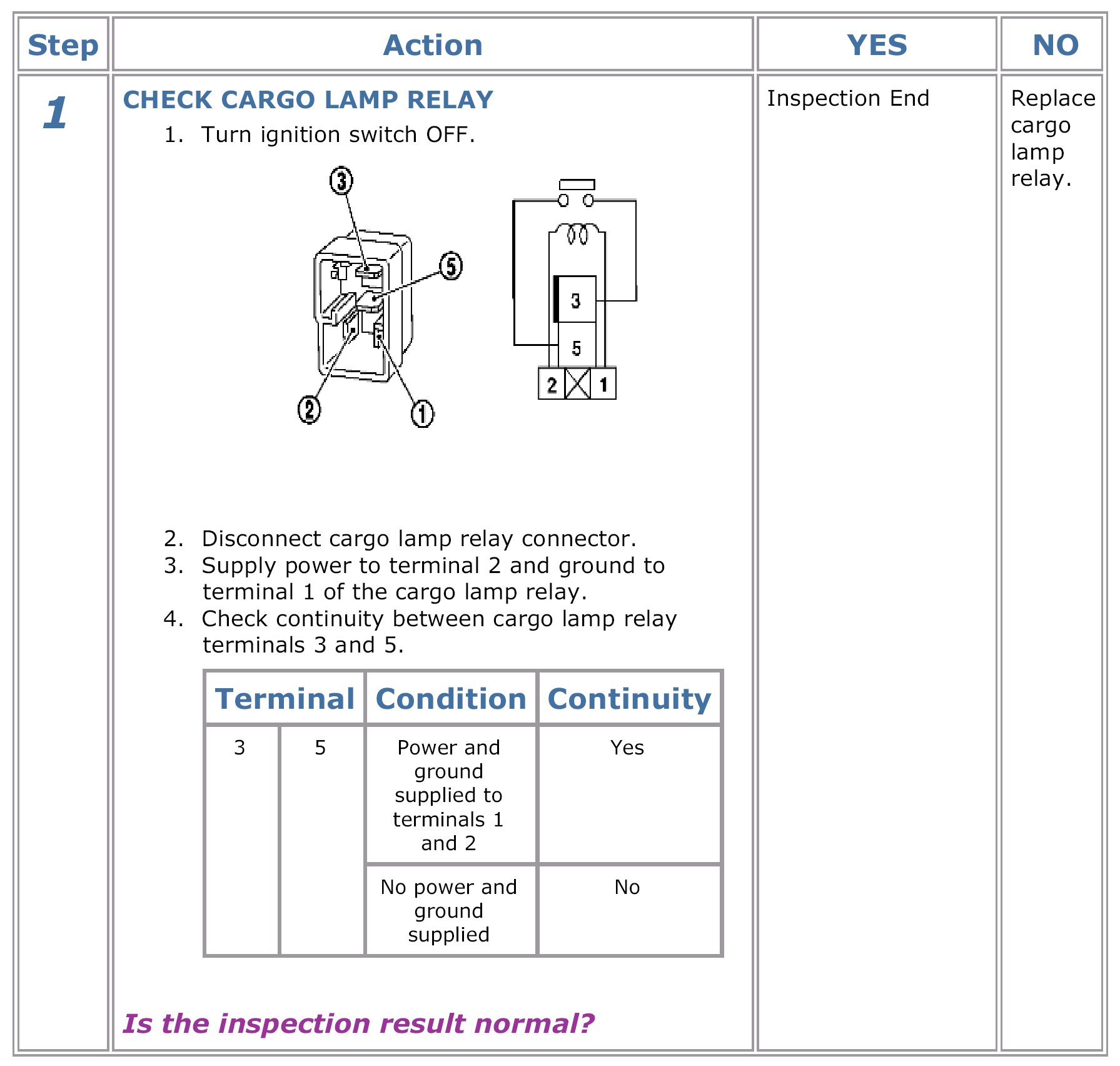

CARGO LAMP RELAY
