MAP LAMP

Removal

The map lamp is replaced as part of the overhead console assembly. Refer to [Headlining: Removal and Installation].







Installation

Installation is in the reverse order of removal.

Bulb Replacement

1. Disconnect the negative battery terminal.

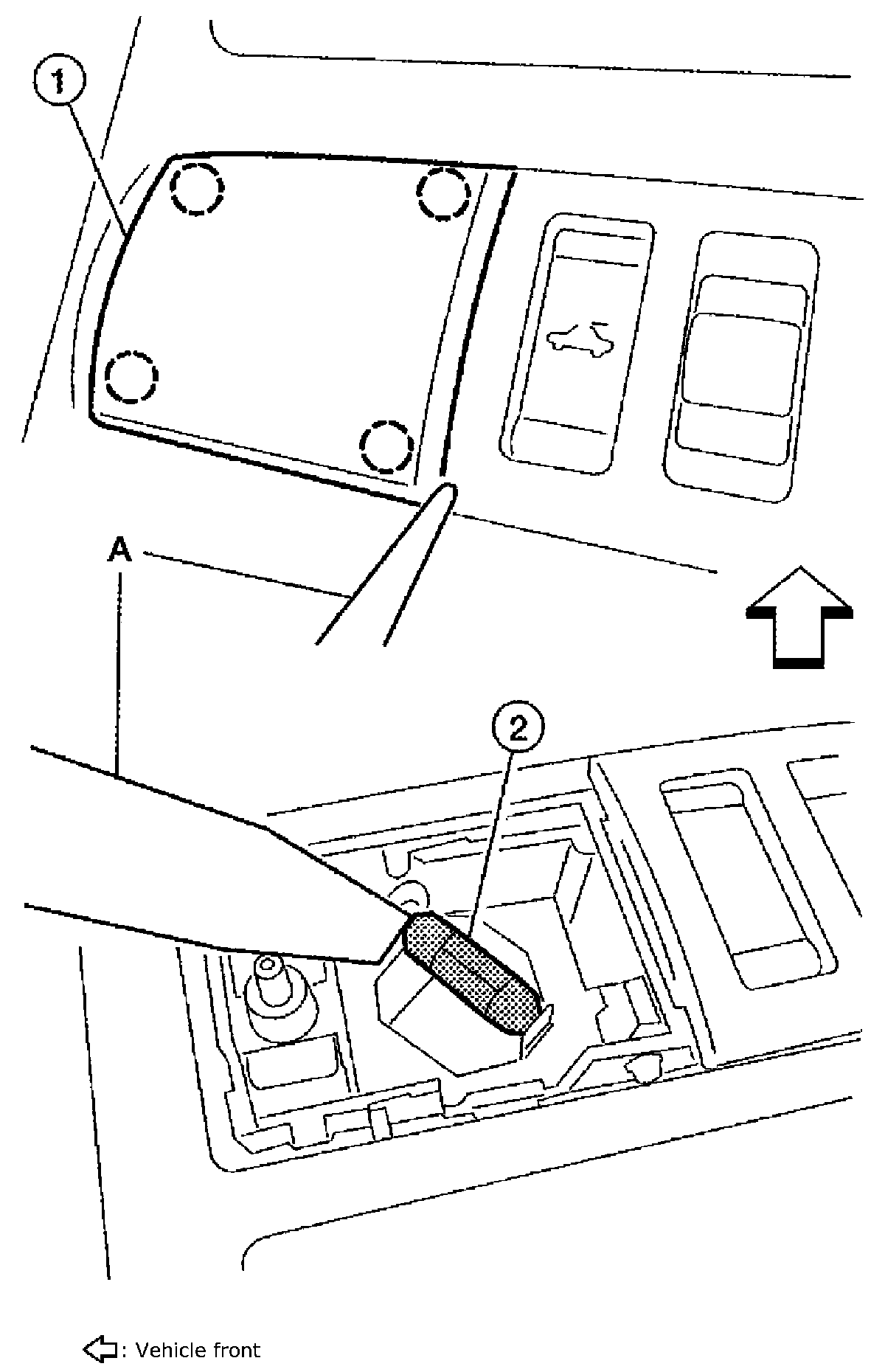

2. Using a suitable tool (A), remove map lamp lens (1).







CAUTION: Wrap a cloth around tool to protect the housing and lens.

3. Release one side of the bulb (2) from the tab, then pull straight downward to remove.

Map lamp bulb: 12V - 8W
