Horn: Testing and Inspection

Horn Function Circuit Check

Description

Perform answer-back for each operation with horn.

Component Function Check

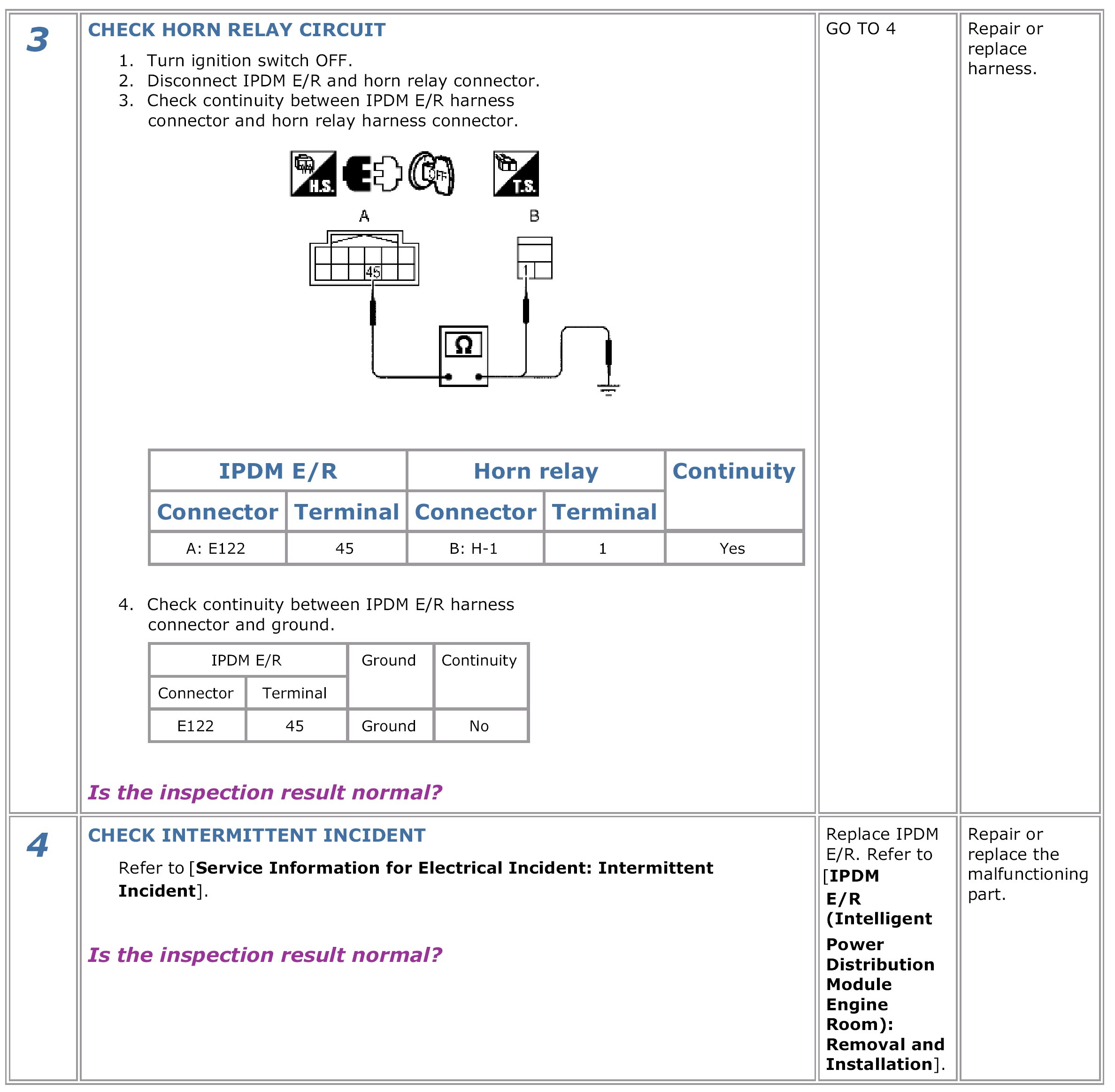

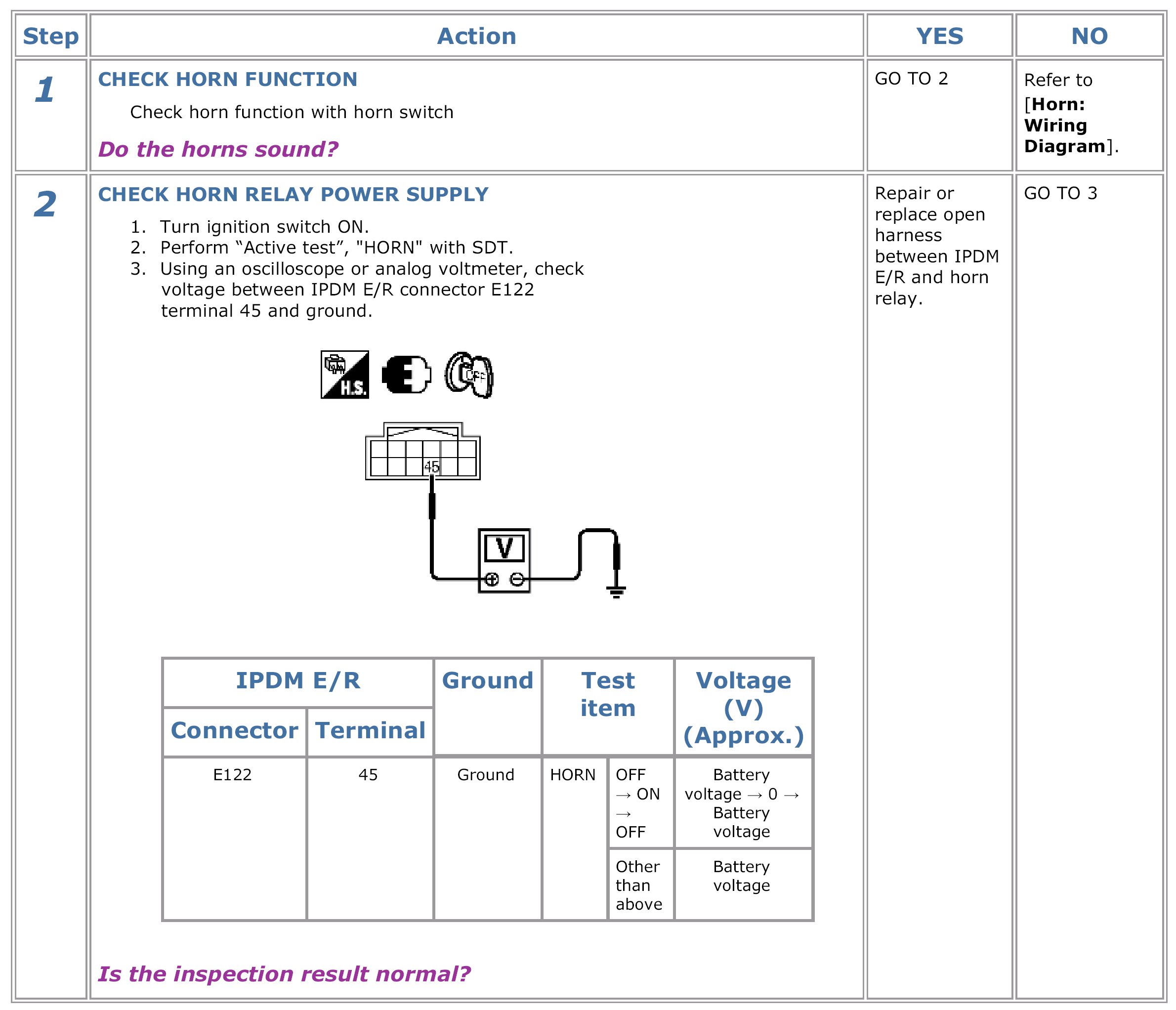

Diagnosis Procedure
