ROOM LAMP

Removal

1. Disconnect the negative battery terminal.

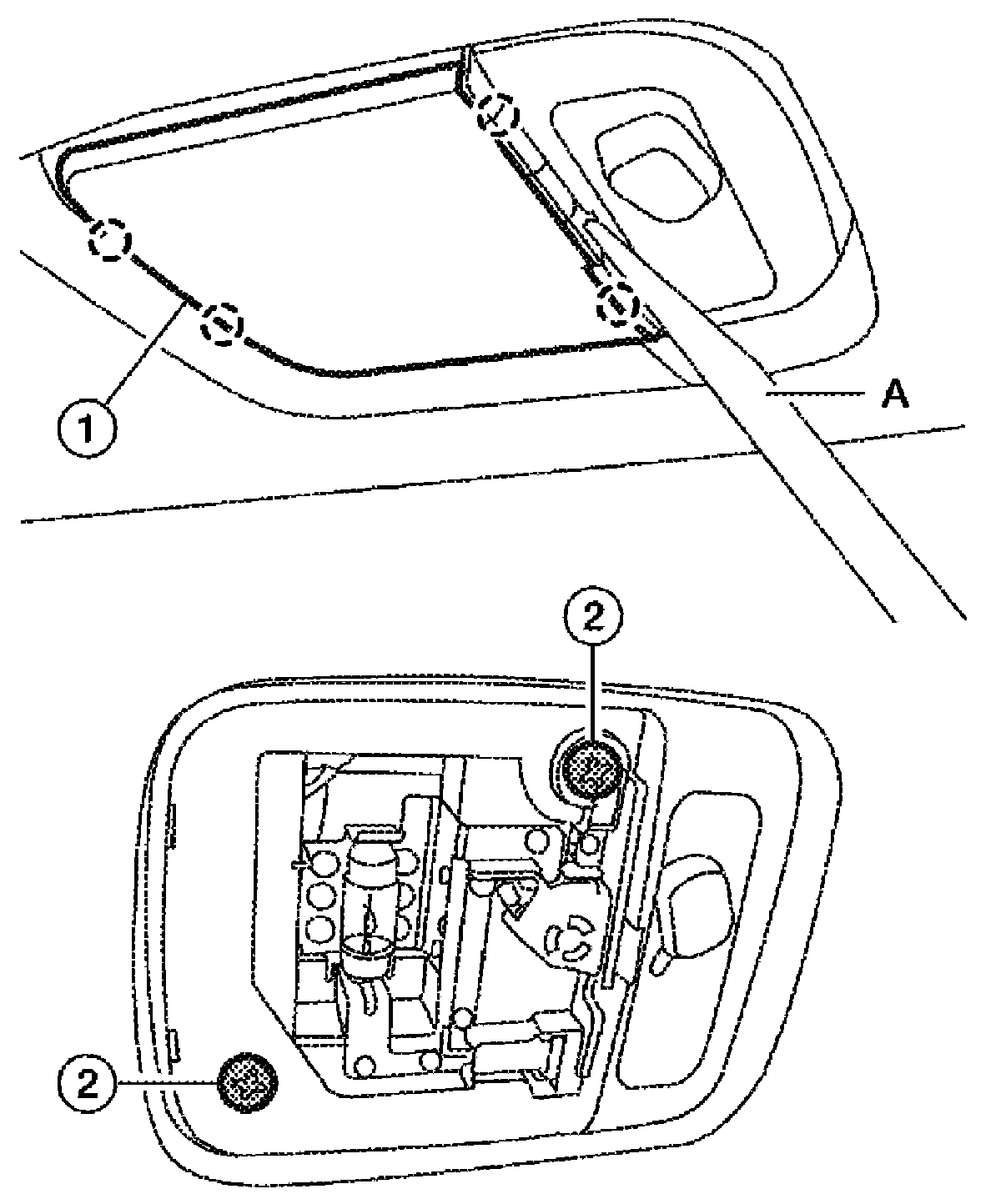

2. Using a suitable tool (A), release the pawls and remove the room lamp lens (1).

CAUTION: Wrap a cloth around tool to protect the housing and lens.

3. Remove room lamp screws (2).
4. Disconnect the connector, then remove room lamp.

Installation

Installation is in the reverse order of removal.

Bulb Replacement

1. Disconnect the negative battery terminal.
2. Using a suitable tool, release the pawls and remove the room lamp lens.

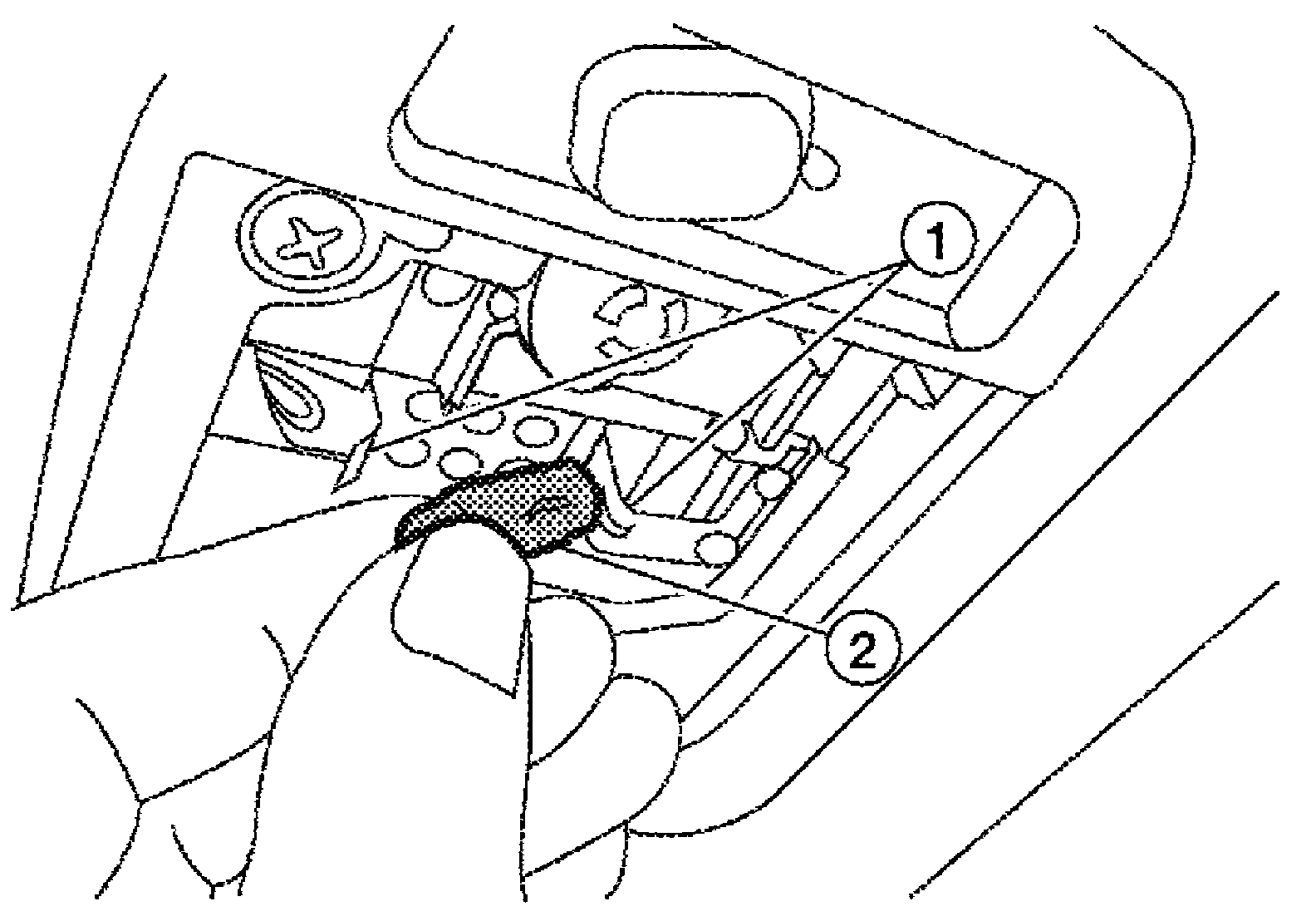

3. Release the room lamp bulb retainers (1), then pull bulb (2) straight out to remove.







Room lamp bulb: 12V - 8W
