With Power Door Locks

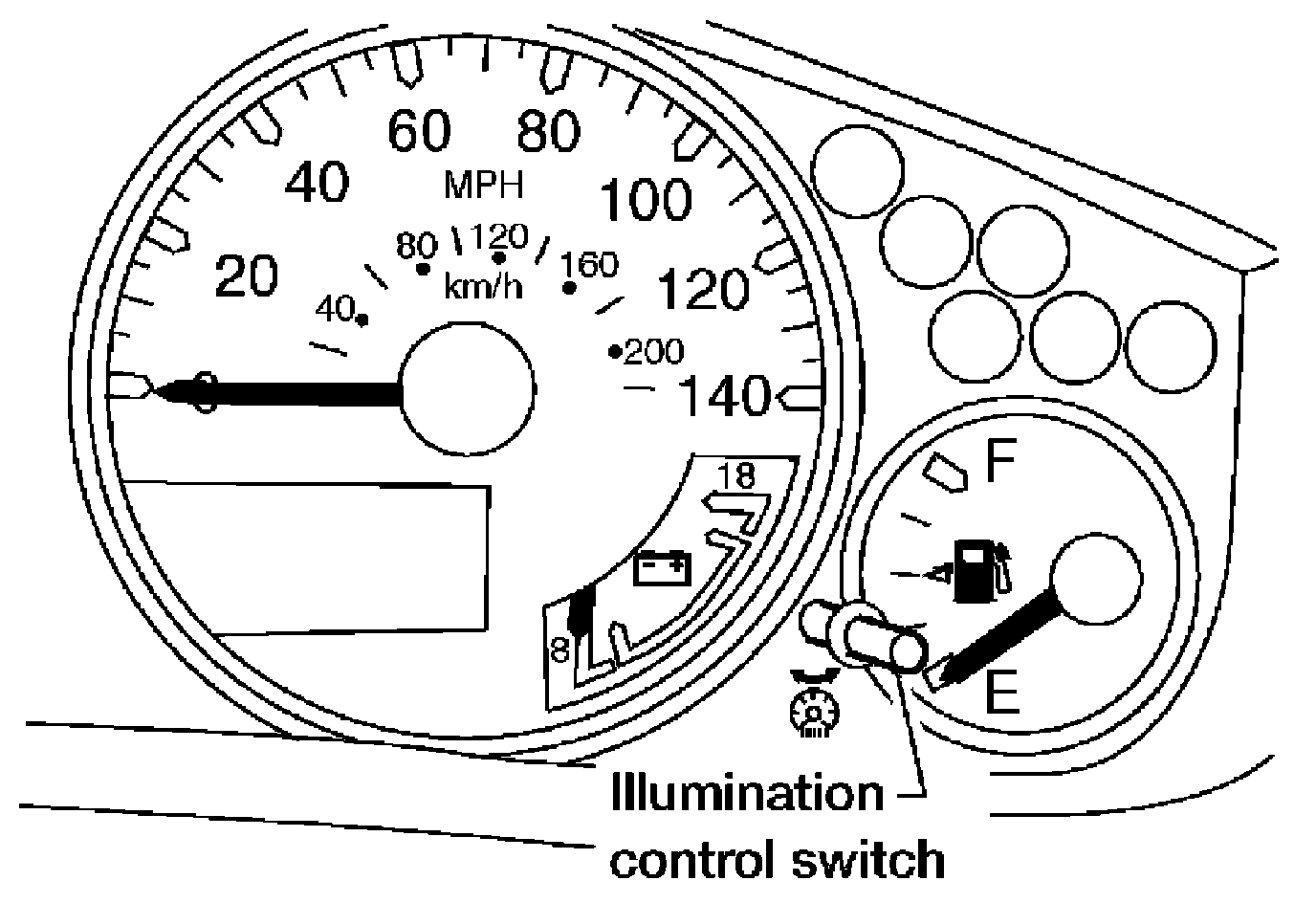

ILLUMINATION CONTROL SWITCH

Removal

The illumination control switch is replaced as a part of the combination meter assembly. Refer to [Combination Meter: Removal and Installation].







Installation

Installation is in the reverse order of removal.
