Without Power Door Locks

GLOVE BOX LAMP

Removal

1. Remove lower instrument panel RH and glove box. Refer to [Instrument Panel Assembly: Removal and Installation].

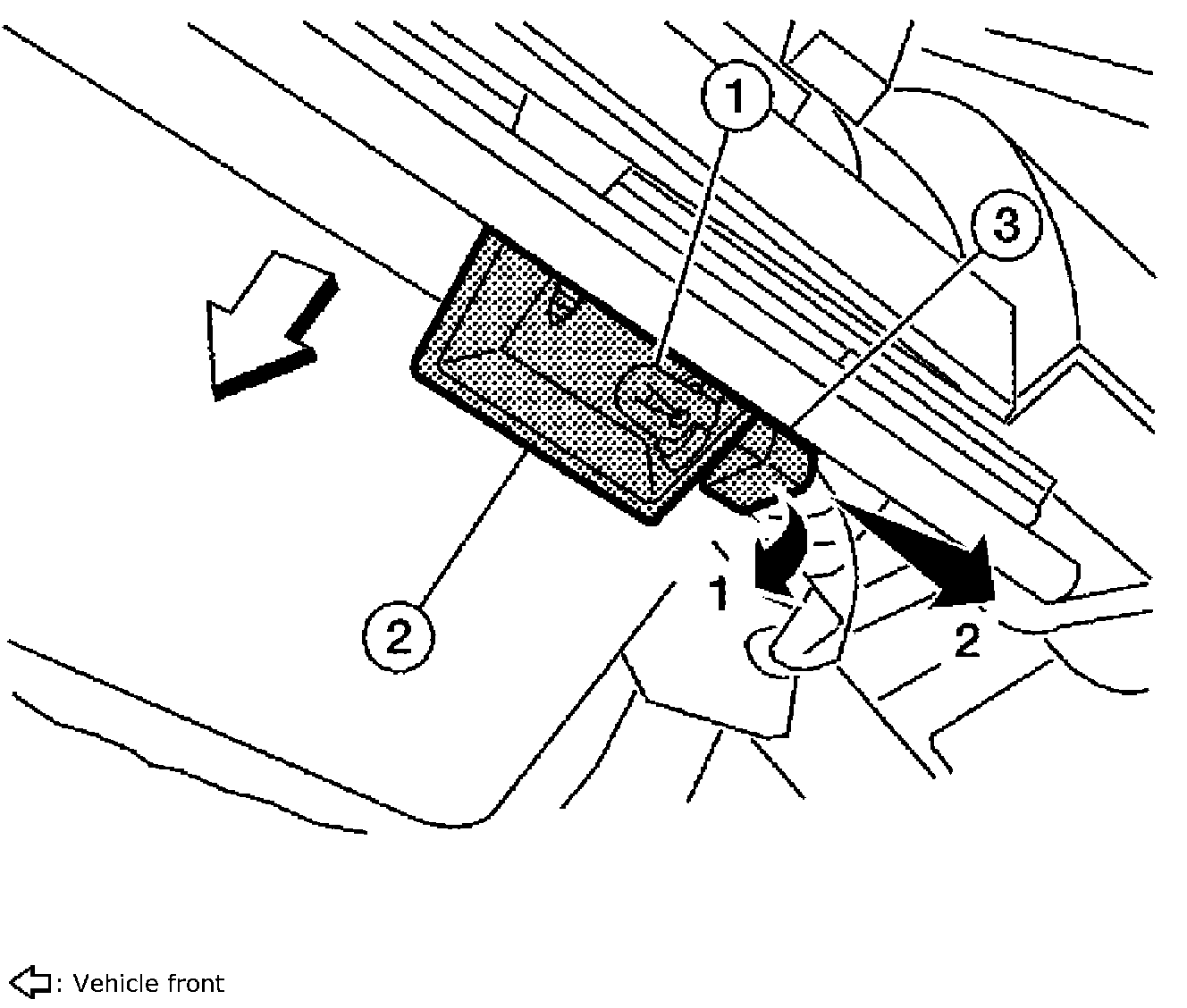

2. Rotate glove box lamp socket (3) with bulb (1) counterclockwise, then pull away from lamp shield (2) on steering member to remove.







Installation

Installation is in the reverse order of removal.

Bulb Replacement

1. Disconnect the negative battery terminal.
2. Remove glove box lamp.

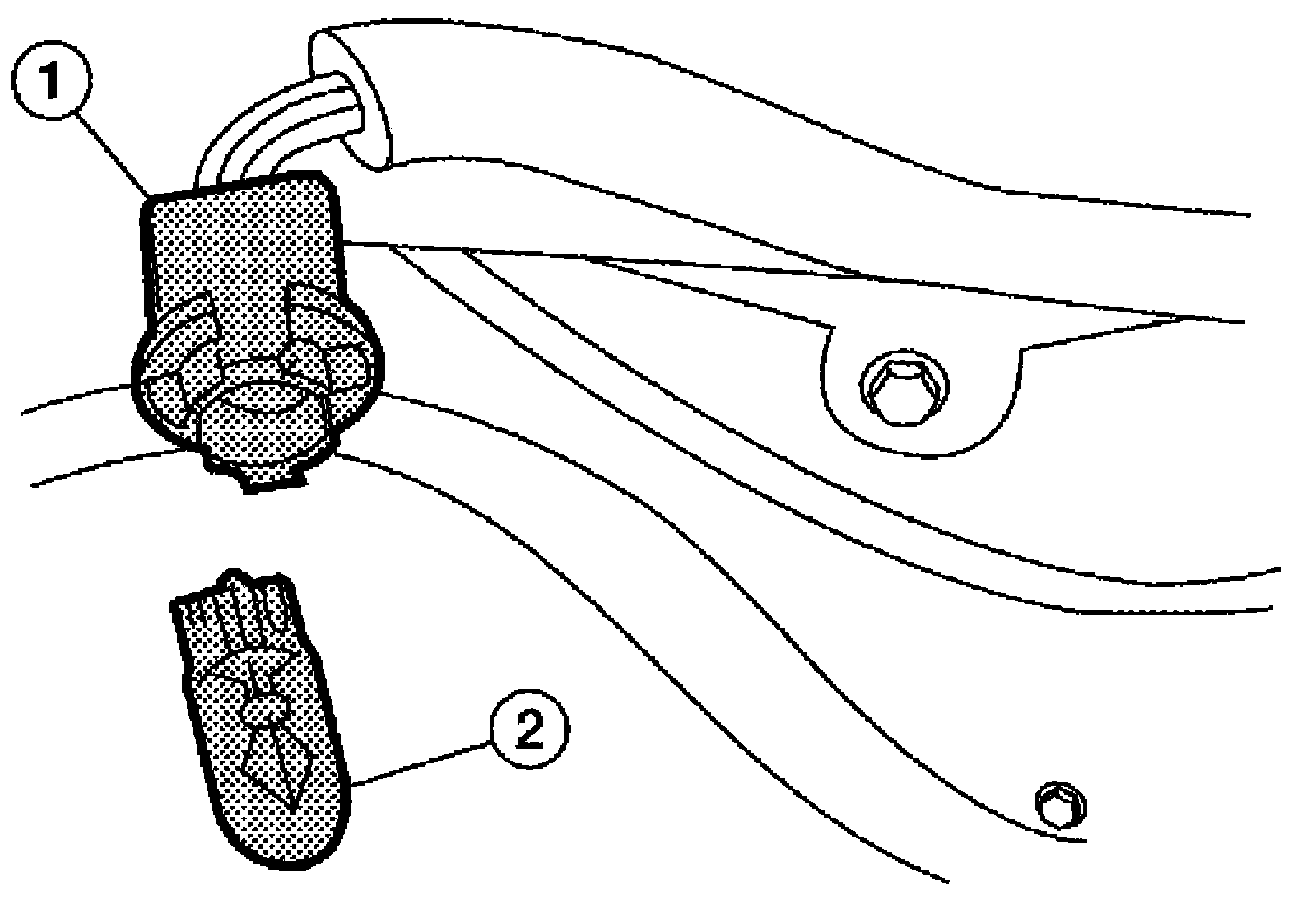

3. Pull bulb (2) straight out from glove box lamp socket (1) to remove.







Glove box lamp bulb: 12V - 3.4W
