Without Power Door Locks

A/T FINISHER LAMP

Removal

1. Remove A/T finisher from center console. Refer to [Shift Control System: Exploded view].
2. Rotate A/T finisher lamp socket (2) with bulb (3) counterclockwise, then pull away from finisher (1).







Installation

Installation is in the reverse order of removal.

Bulb Replacement

1. Remove A/T finisher from center console. Refer to [Shift Control System: Exploded view].

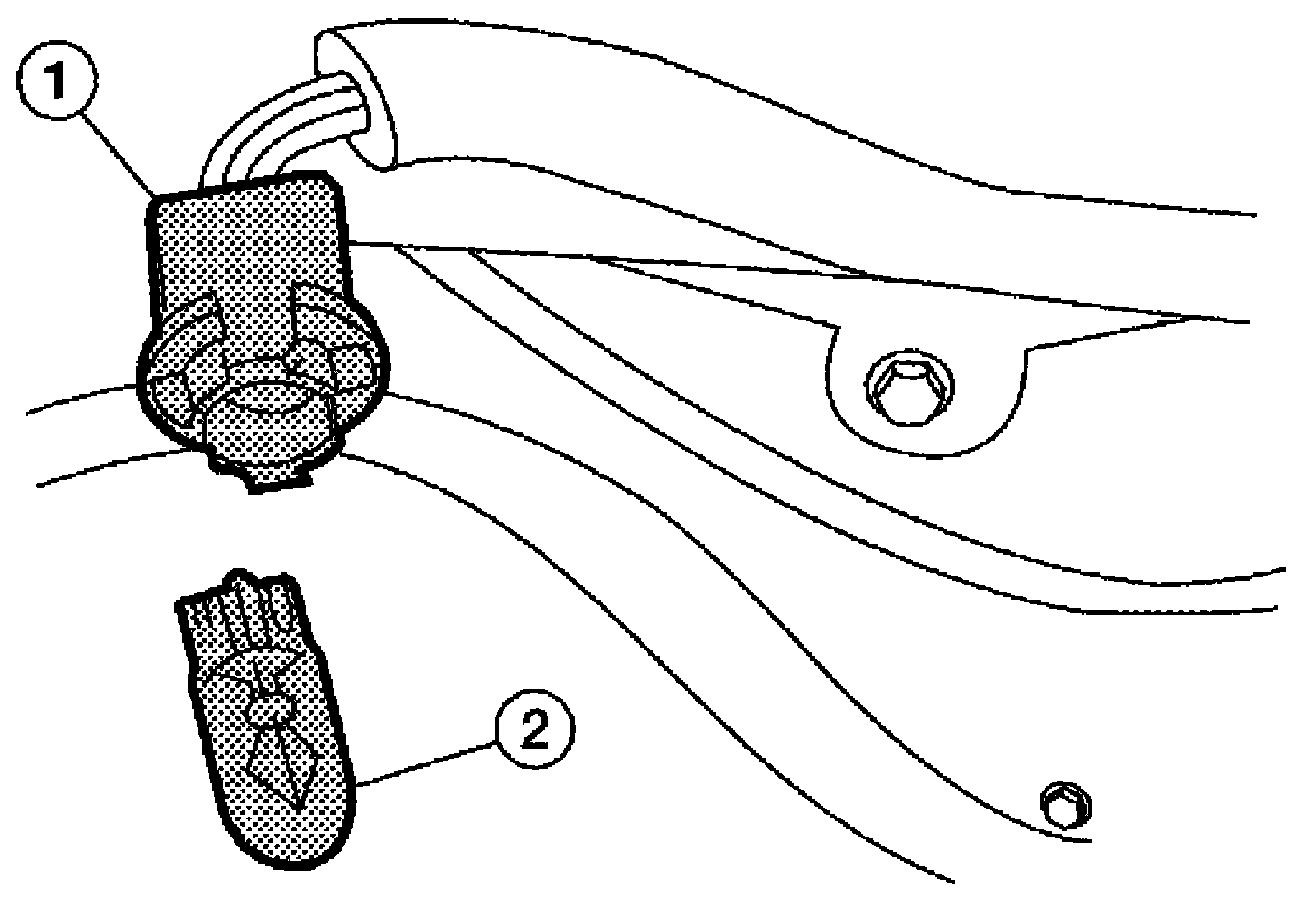

2. Remove A/T finisher lamp socket (1), then pull bulb (2) straight out away from socket.







AT finisher lamp bulb: 12V - 3W
