Meter Buzzer Circuit Check

Meter Buzzer Circuit Check

Description

- The buzzer for warning chime system is installed in the combination meter.
- The combination meter sounds the alarm buzzer based on the signals transmitted from various units.

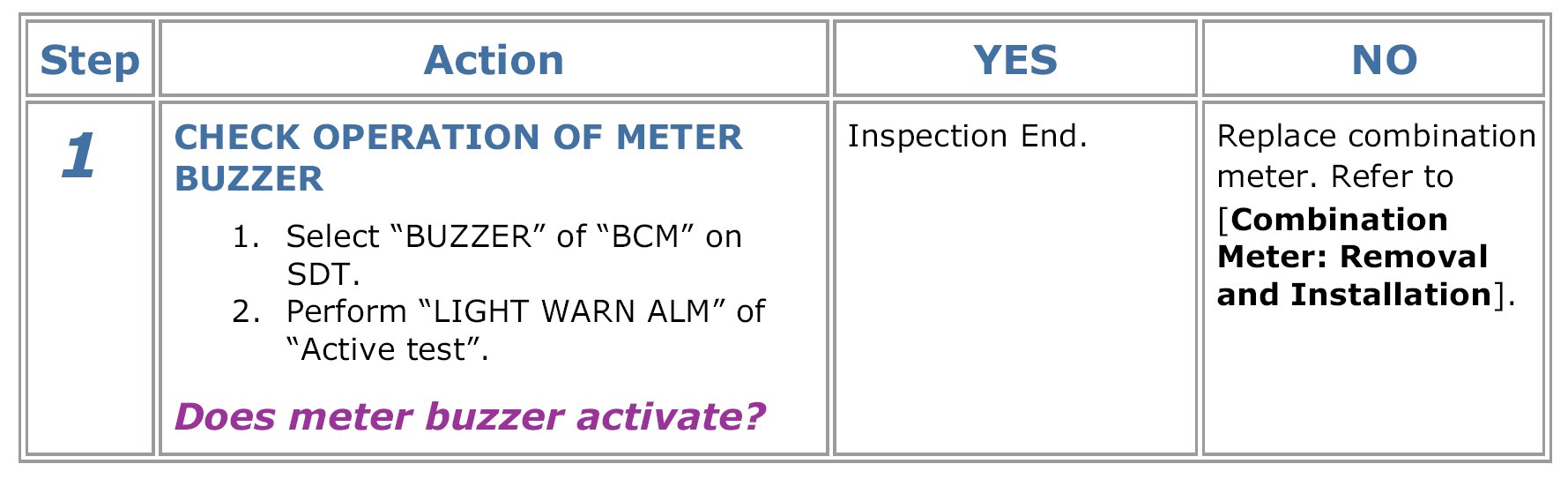

Component Function Check

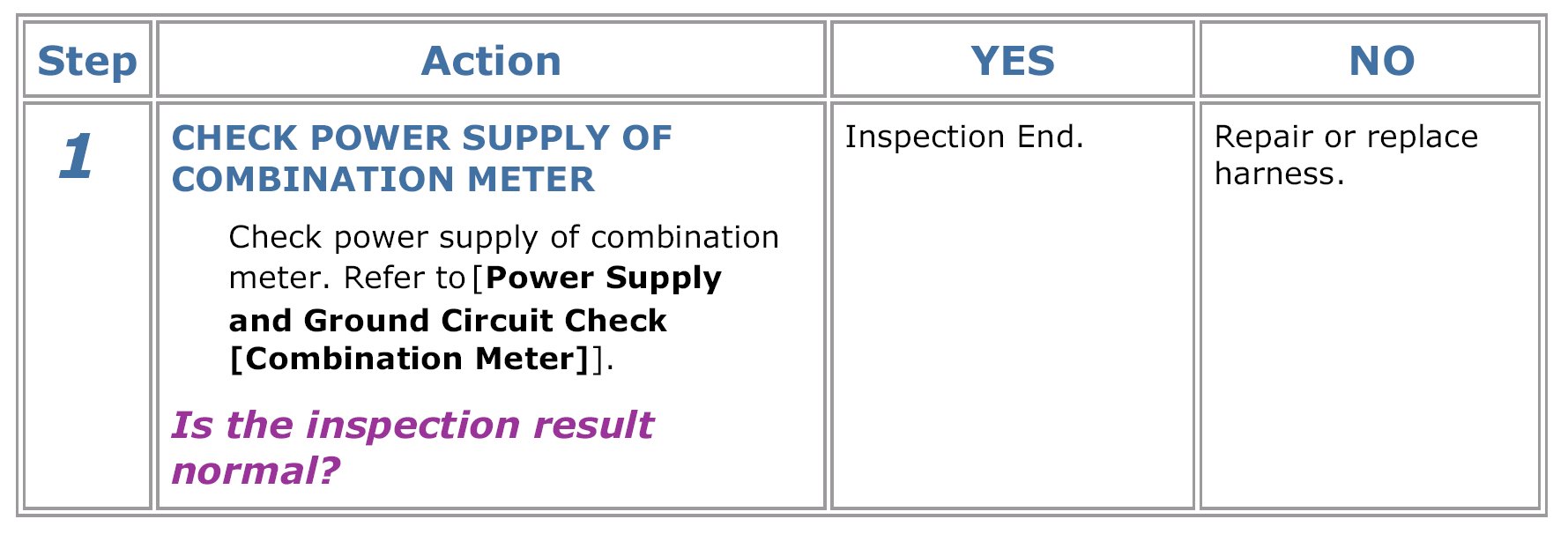

Diagnosis Procedure
