Key Switch Signal Circuit Check

Key Switch Signal Circuit Check

Description

Transmits a key switch signal to the BCM.

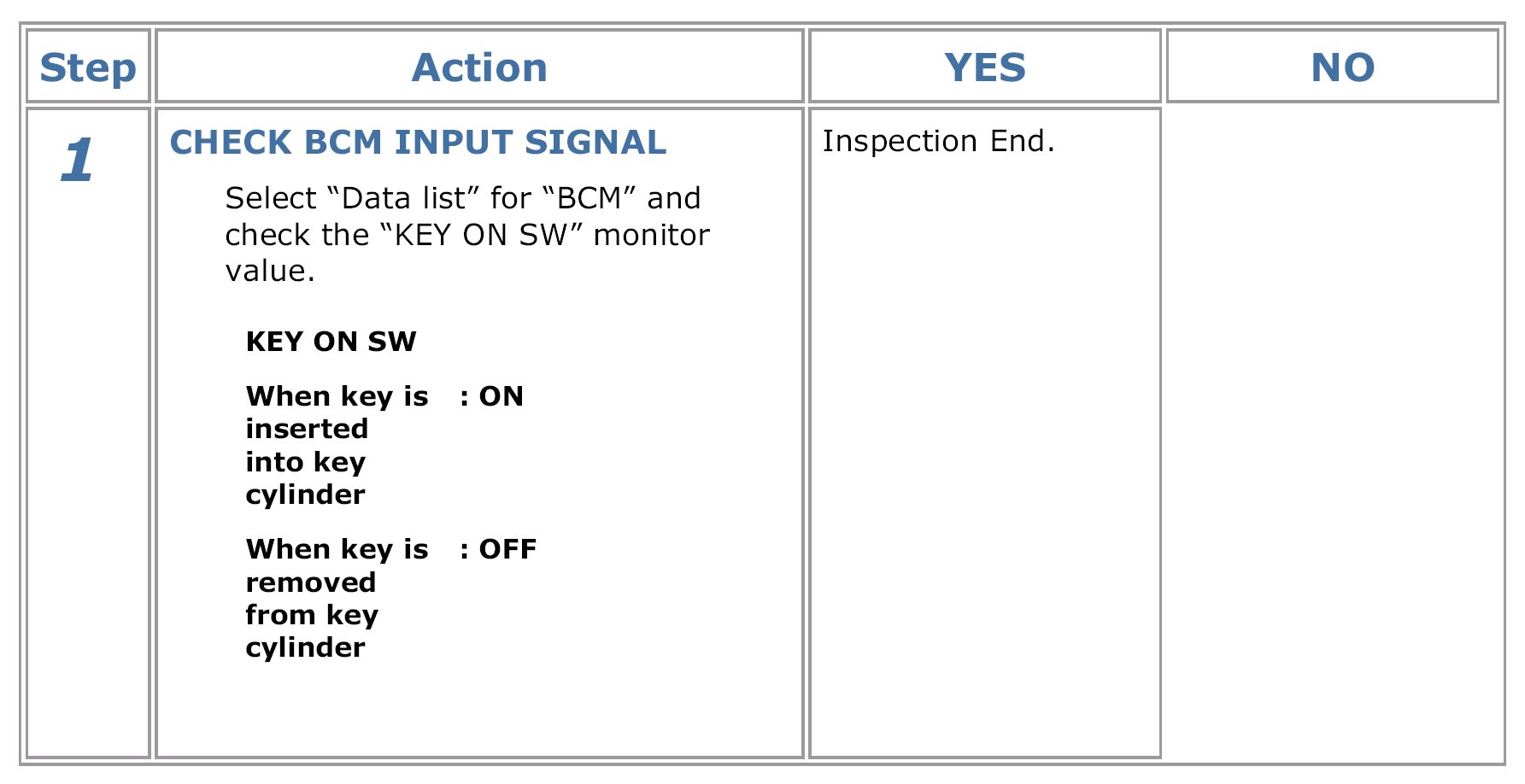

Component Function Check

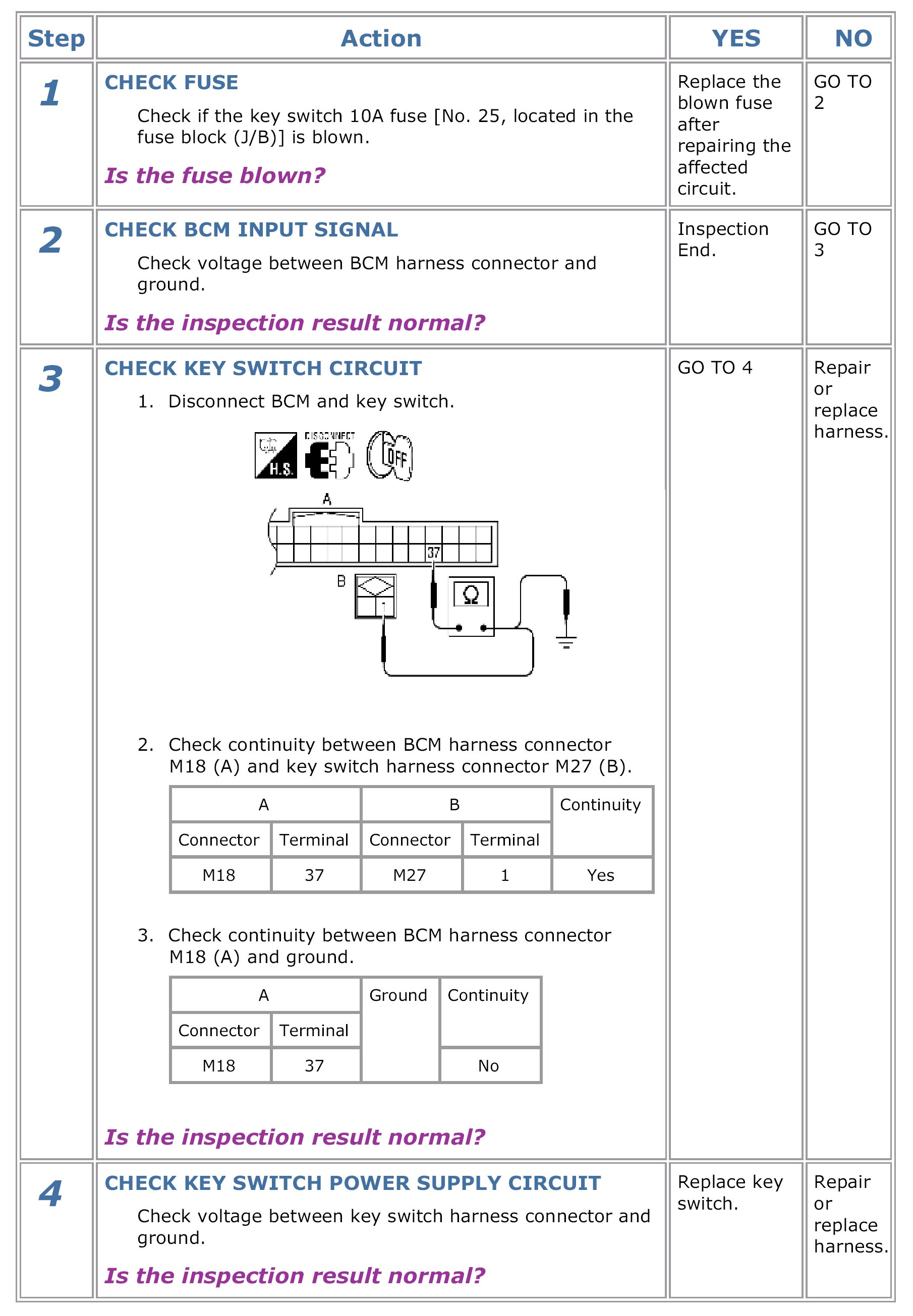

Diagnosis Procedure

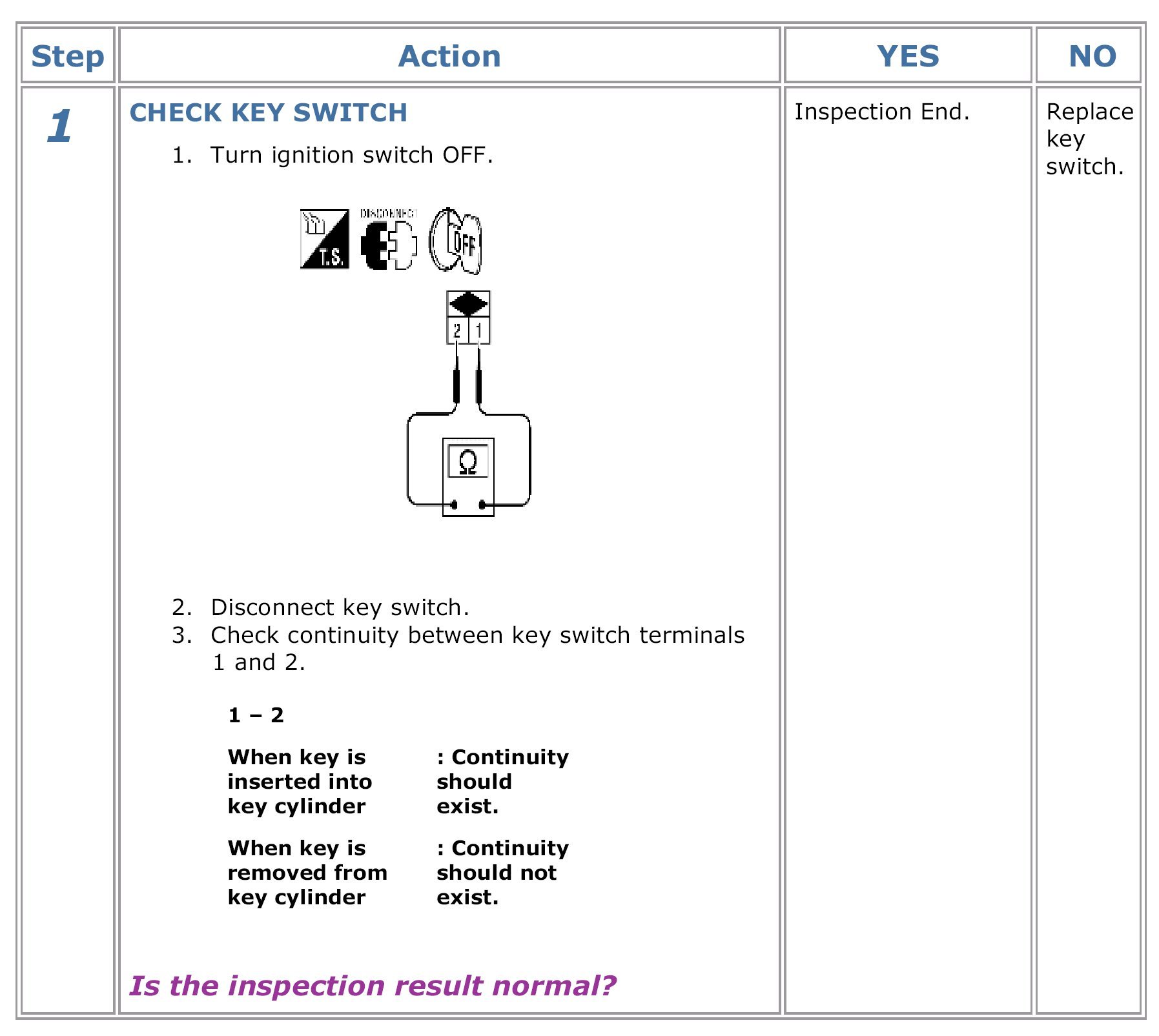

Component Inspection
