Combination Meter

COMBINATION METER










Removal

1. Disconnect the negative battery terminal.
1. Remove front pillar upper finisher. Refer to [Body Side Trim: Removal and Installation].

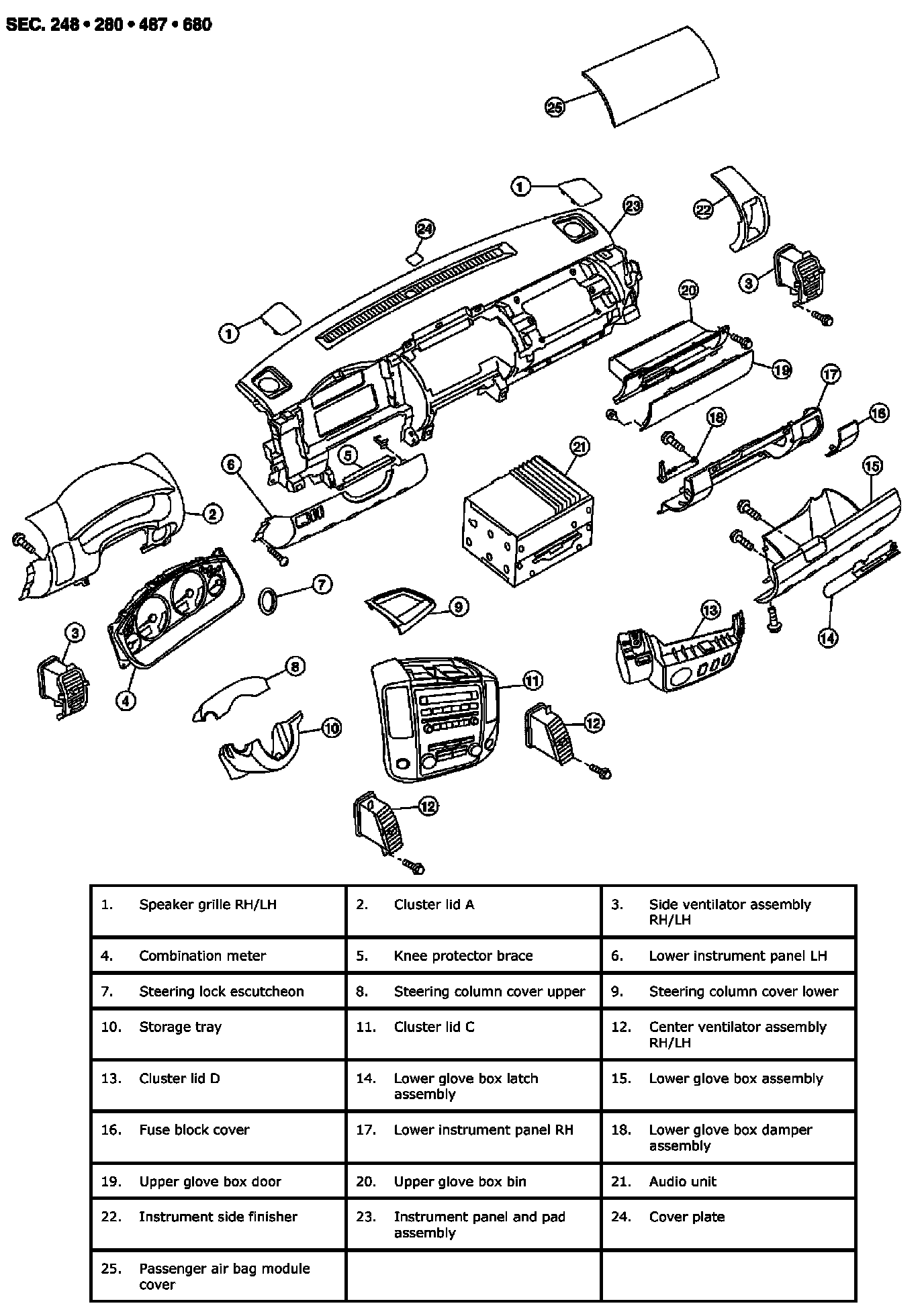

2. Remove lower instrument panel LH. Refer to [Instrument Panel Assembly: Removal and Installation].
3. Remove steering lock escutcheon.
4. Remove cluster lid A, using power tool. Refer to [Instrument Panel Assembly: Removal and Installation].

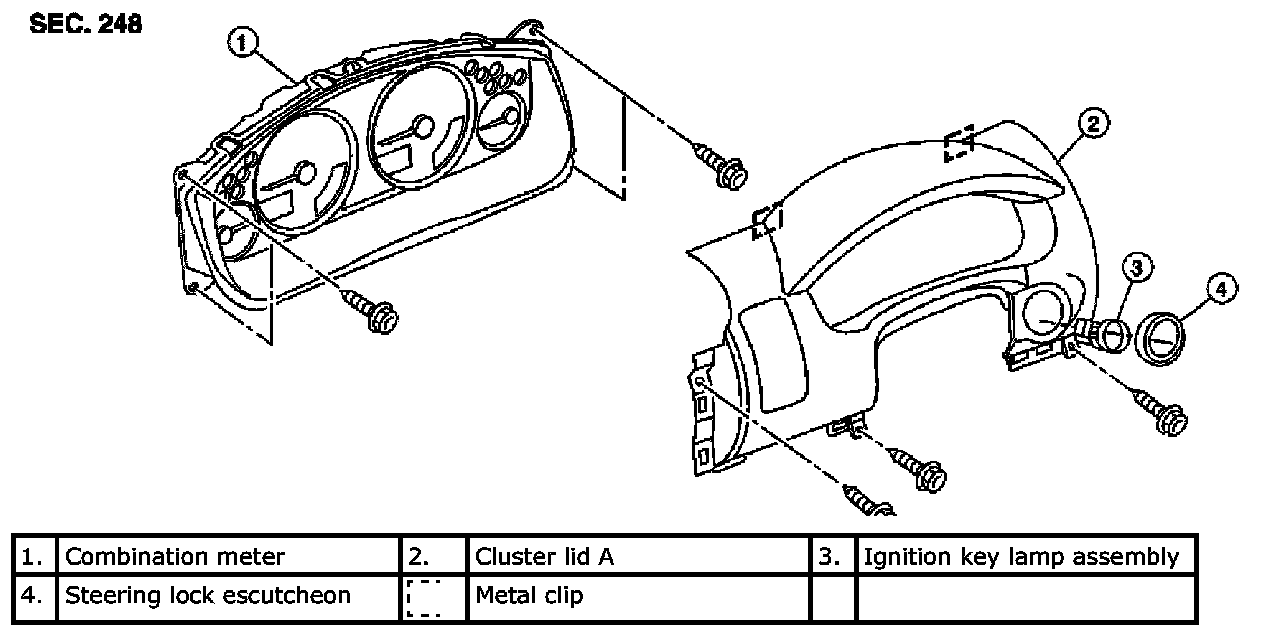

5. Remove combination meter, using power tool. Refer to [Combination Meter: Removal and Installation].
6. Disconnect combination meter electrical connectors.

Installation

Installation is in the reverse order of removal.
