Air Conditioner Control [Without VBC]

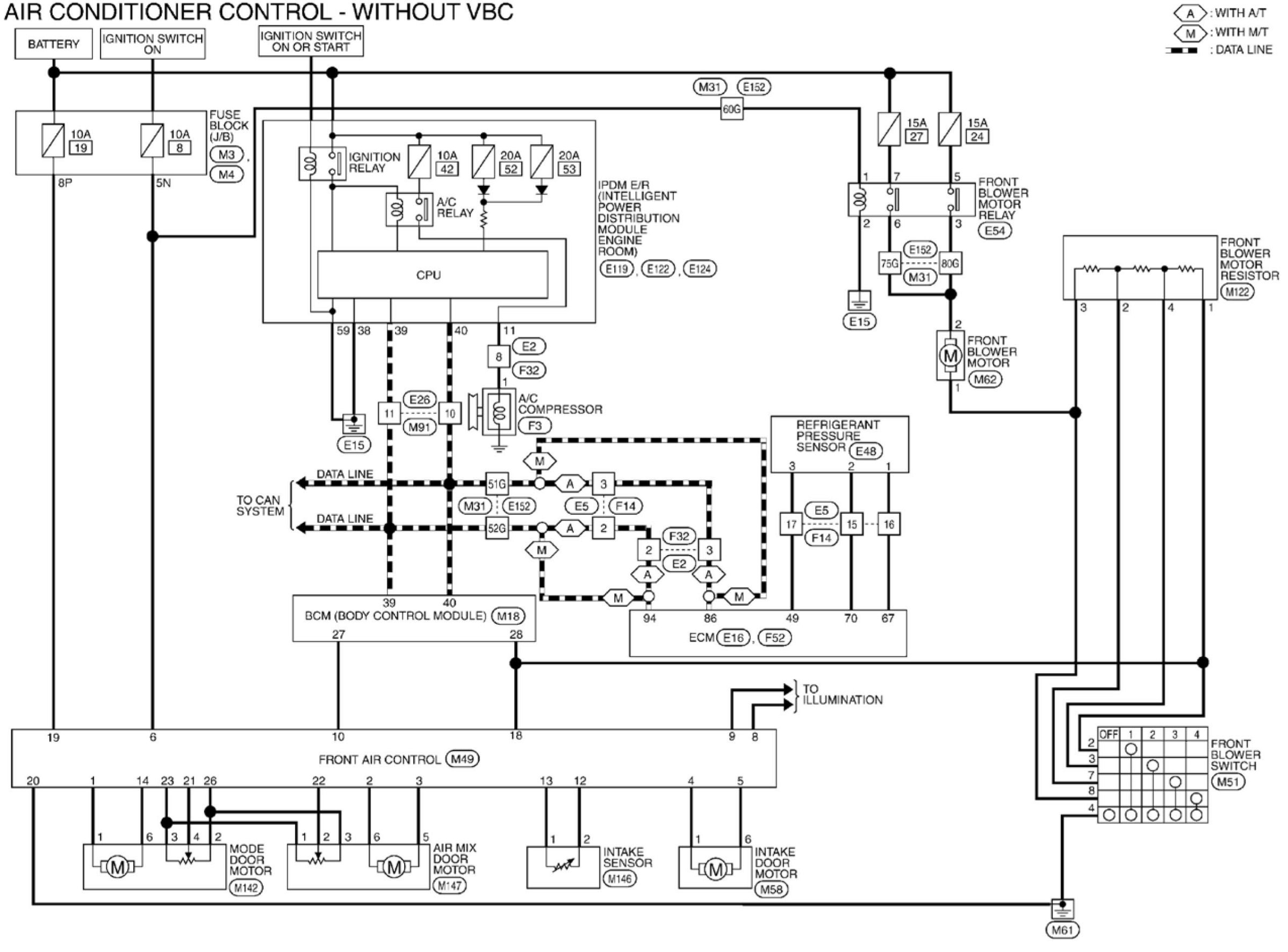

Air Conditioner Control: Wiring Diagram [Without VBC]

Air Conditioner Control - Without VBC:






Air Conditioner Control Connectors - Without VBC

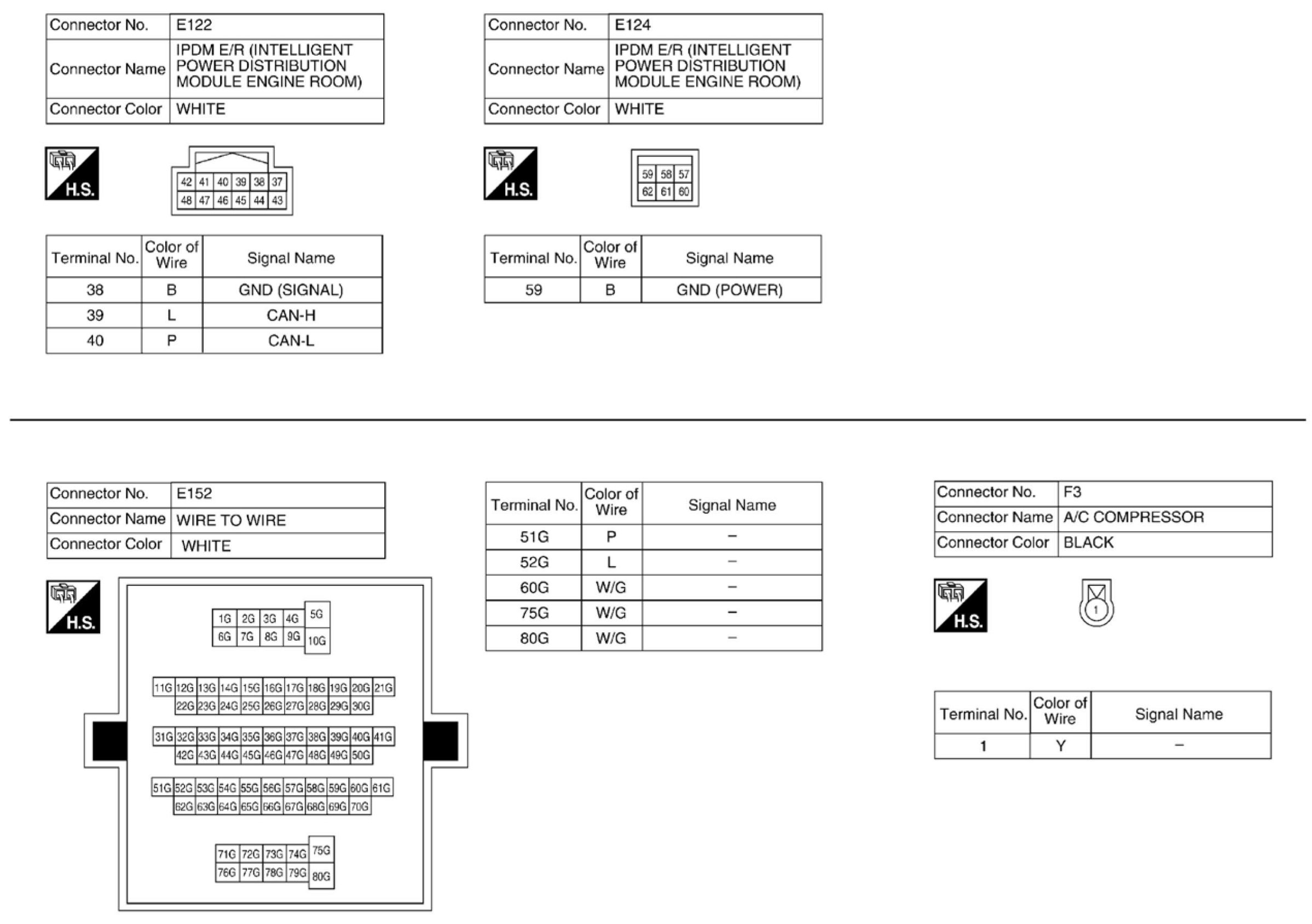

Air Conditioner Control Connectors - Without VBC (Part 1):

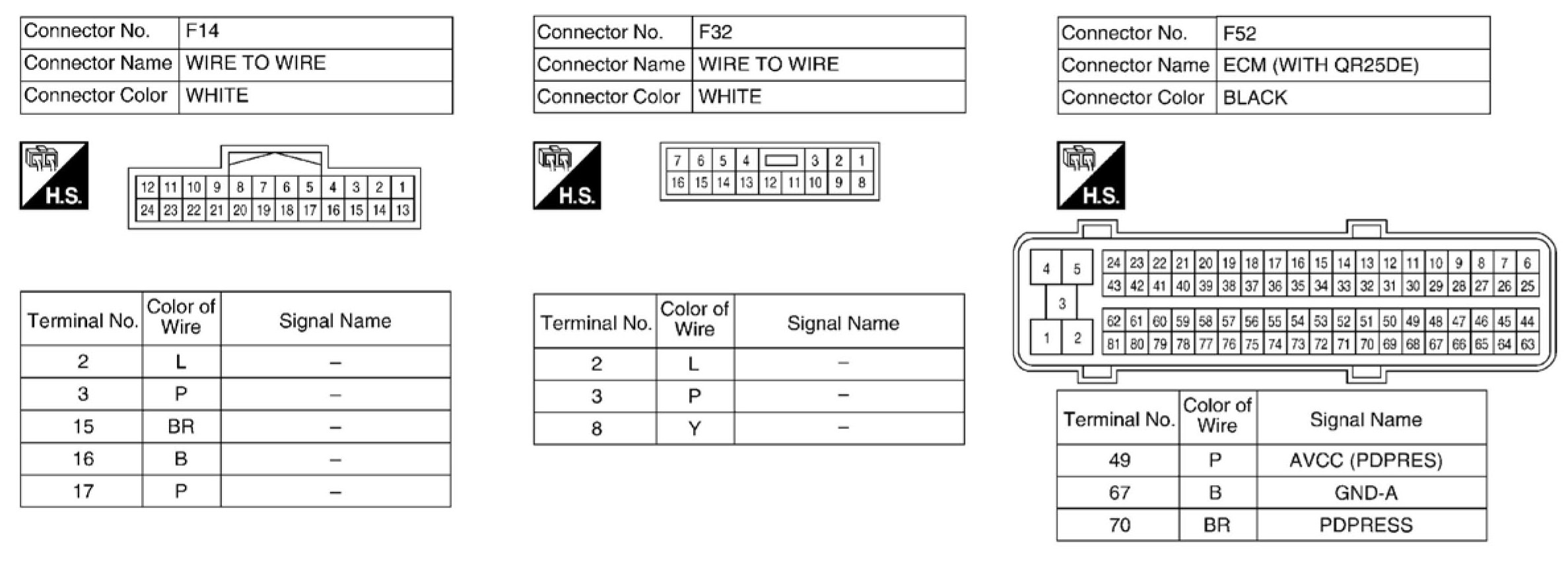

Air Conditioner Control Connectors - Without VBC (Part 2):

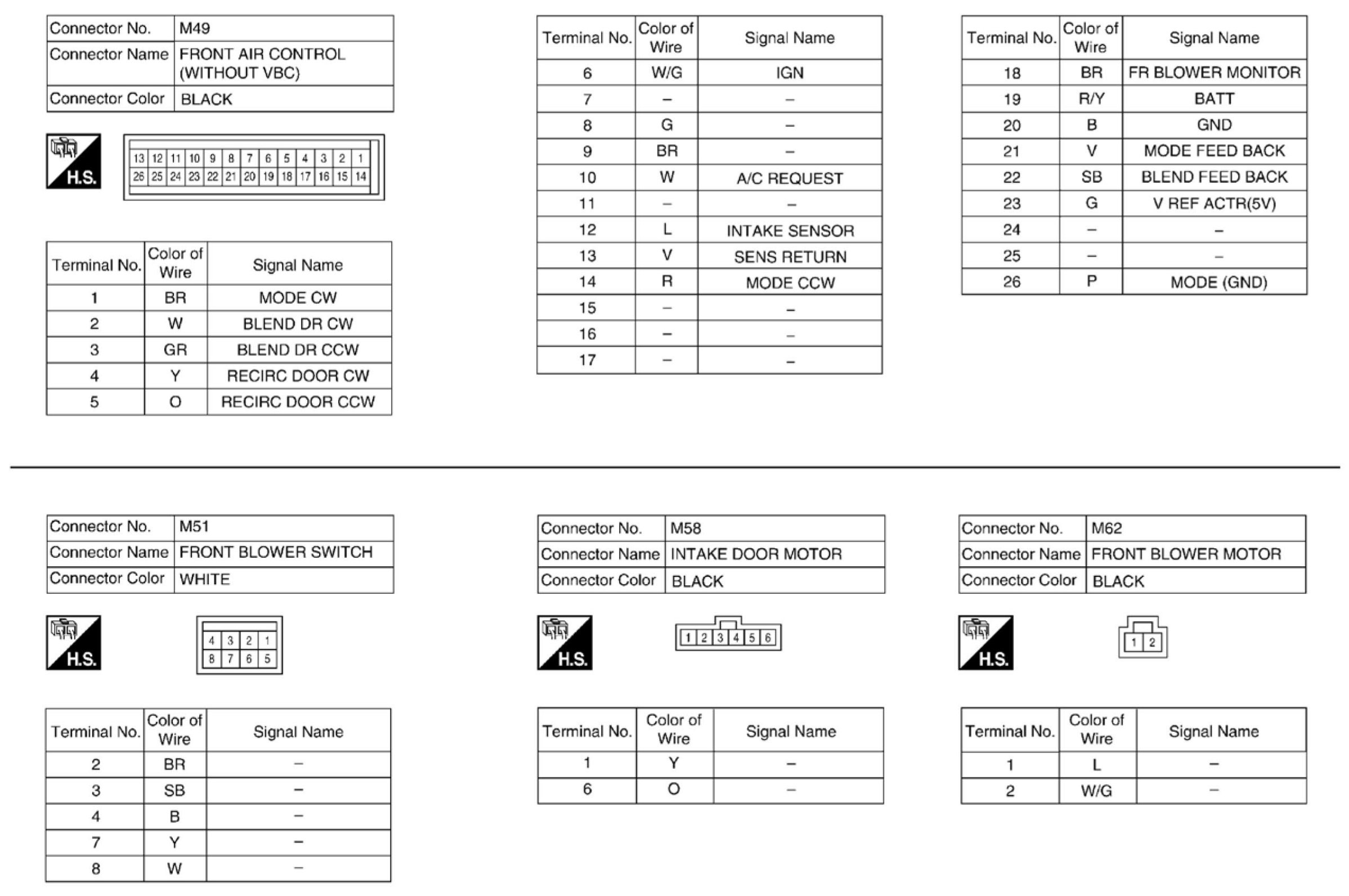

Air Conditioner Control Connectors - Without VBC (Part 3):

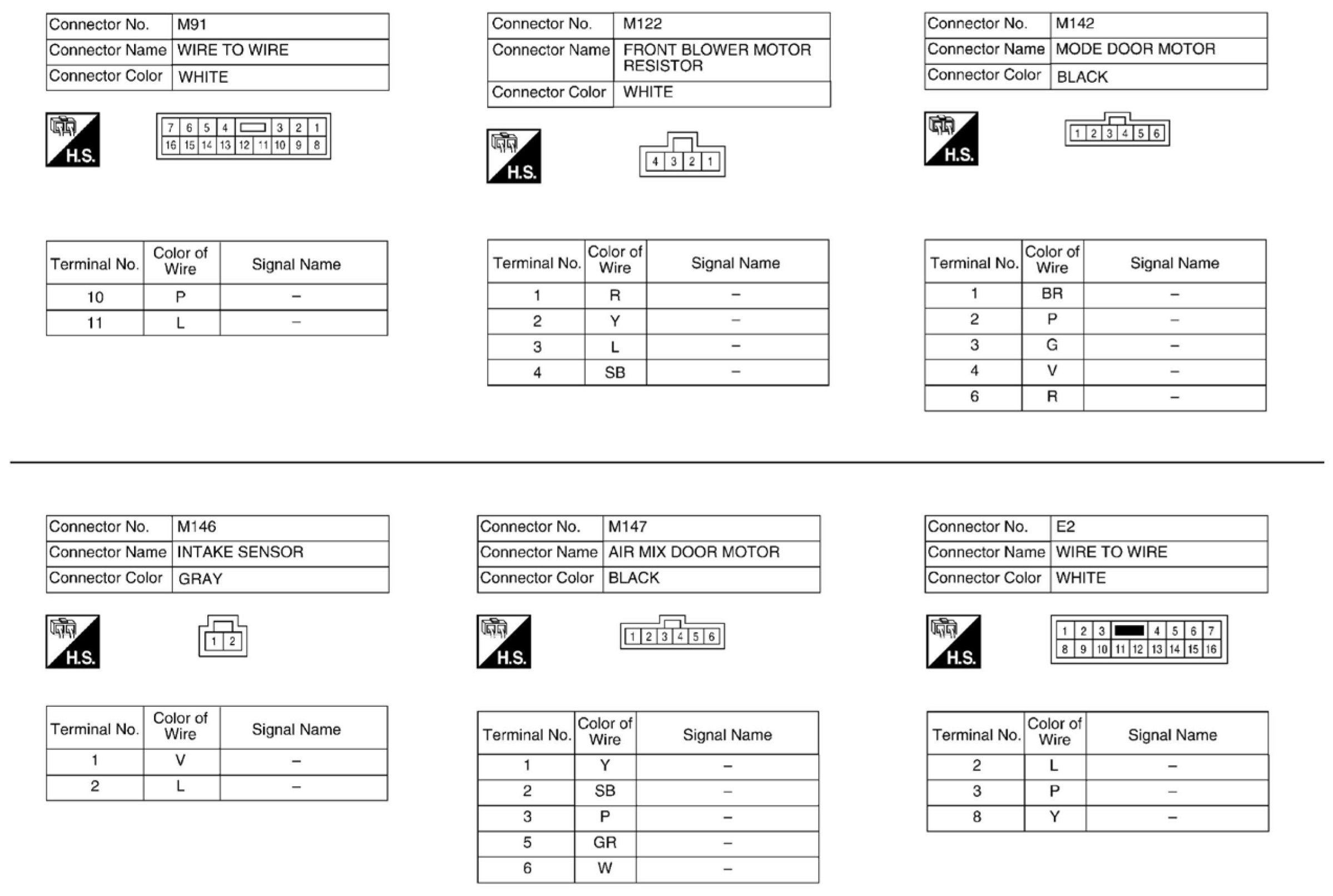

Air Conditioner Control Connectors - Without VBC (Part 4):

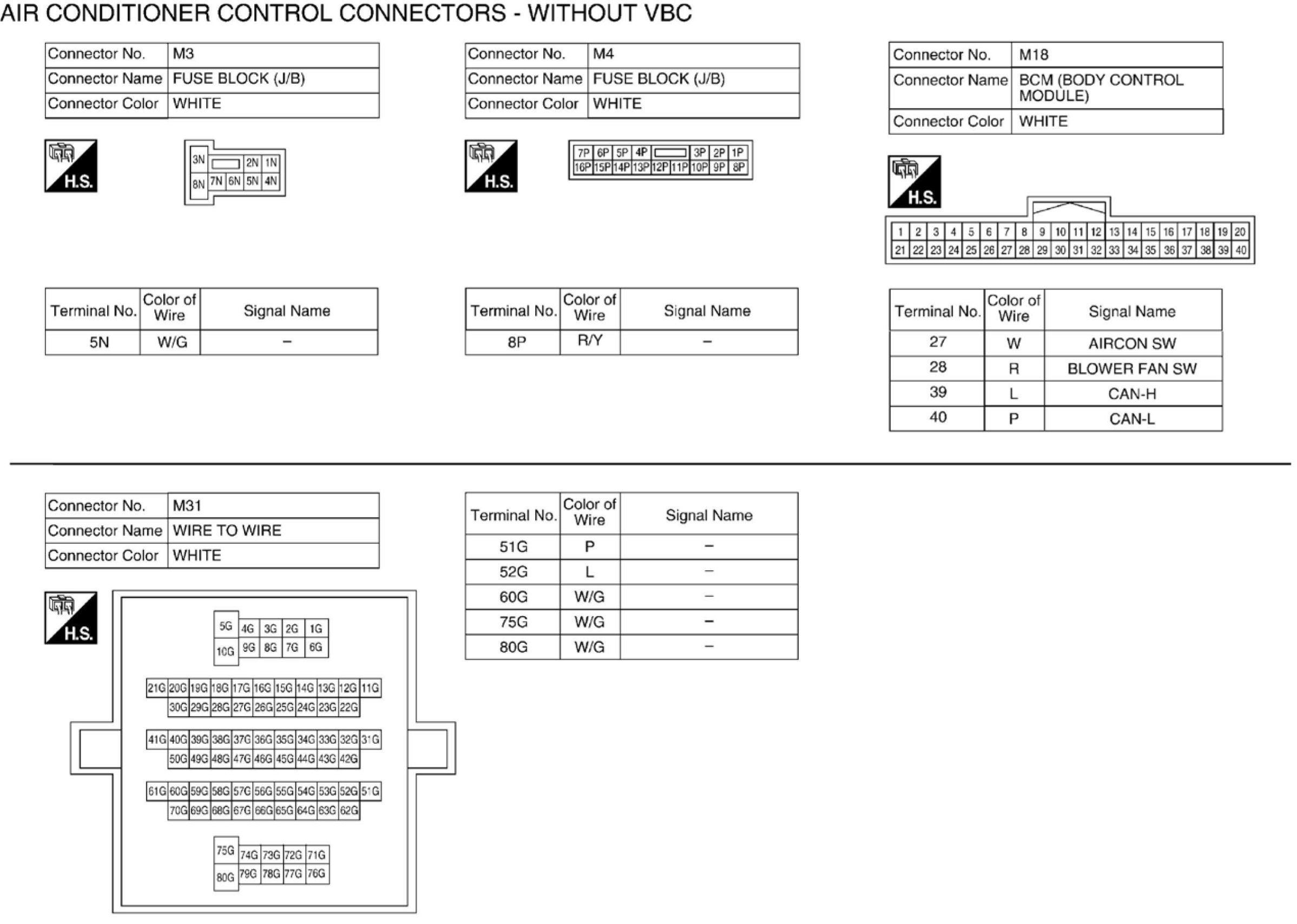

Air Conditioner Control Connectors - Without VBC (Part 5):

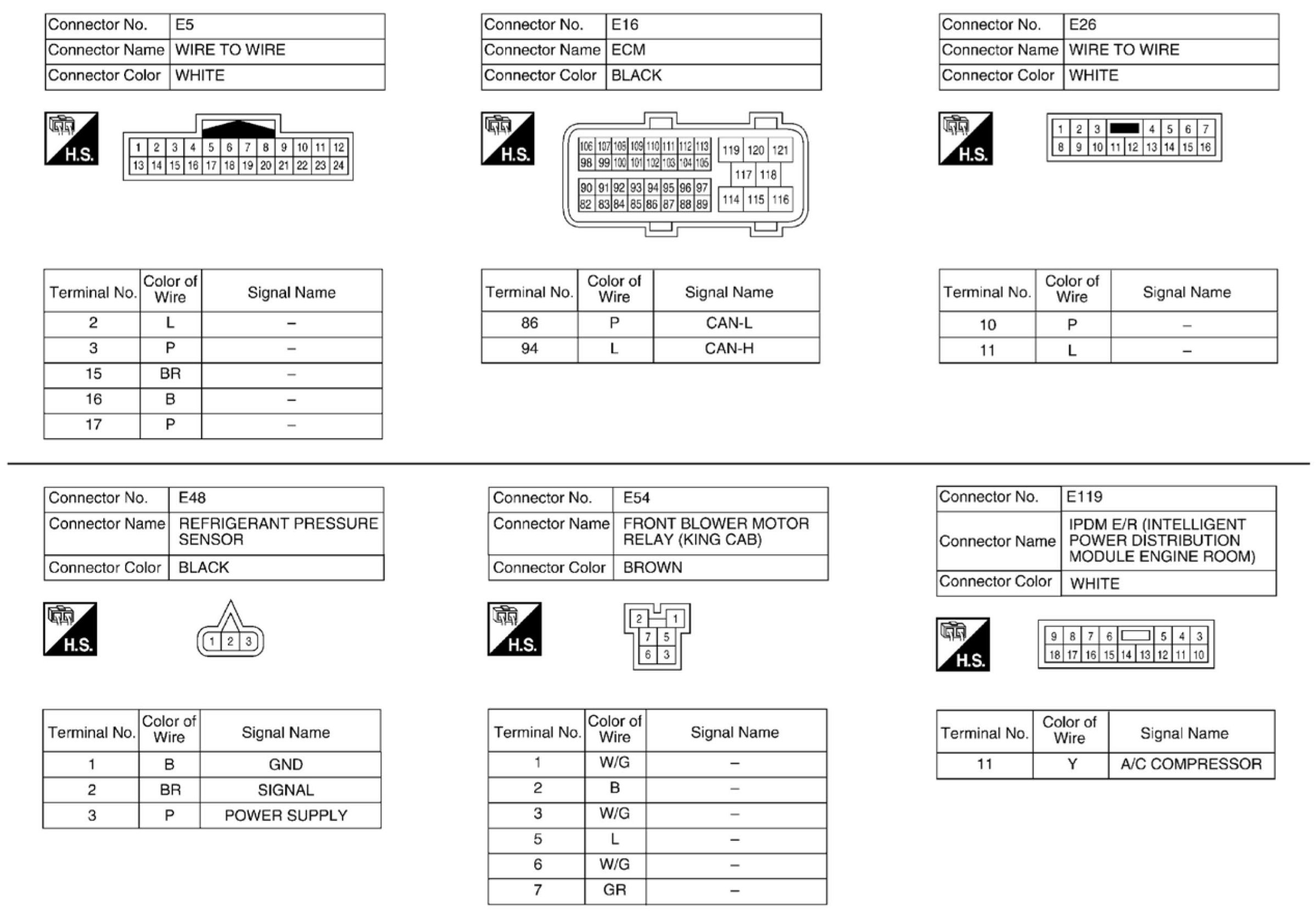

Air Conditioner Control Connectors - Without VBC (Part 6):
