Valve Guide Seal: Service and Repair
Valve Oil Seal: Removal and InstallationREMOVAL
1) Remove fan shroud (lower).
2) Turn crankshaft until the cylinder requiring new oil seals is at TDC. This will prevent valve from dropping into cylinder.
3) Remove camshaft relating to valve oil seal to be removed.
4) Remove valve lifters.

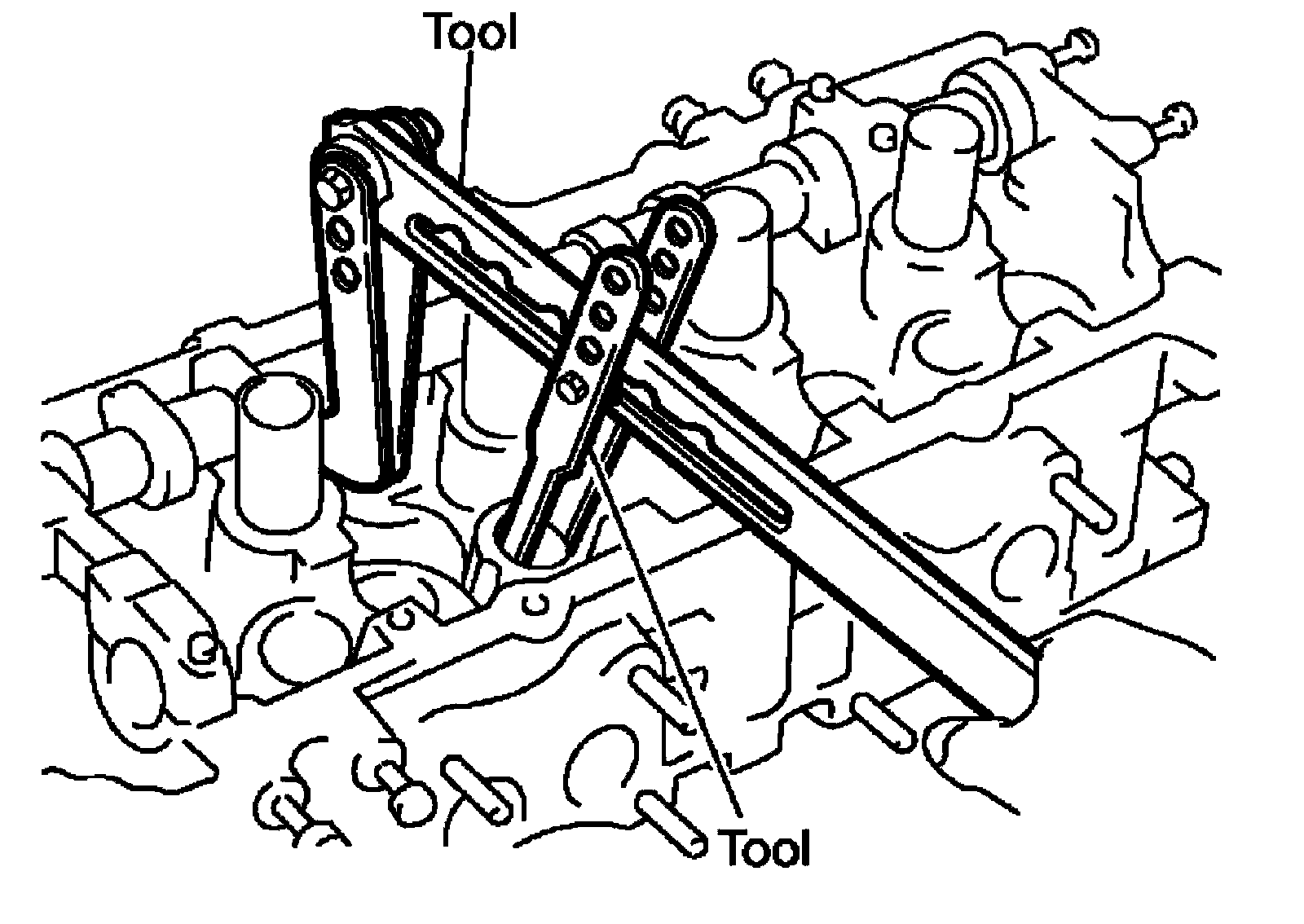

5) Remove valve collet, valve spring retainer and valve spring using Tool.
CAUTION:
^ When working, be careful not to damage valve lifter holes.
^ Do not remove valve spring seat from valve spring.
Tool numbers
: KV10116200 (J-26336-B)
: KV10115900 (J-26336-20)
^ Compress valve spring using Tool. Remove valve collet with magnetic hand.

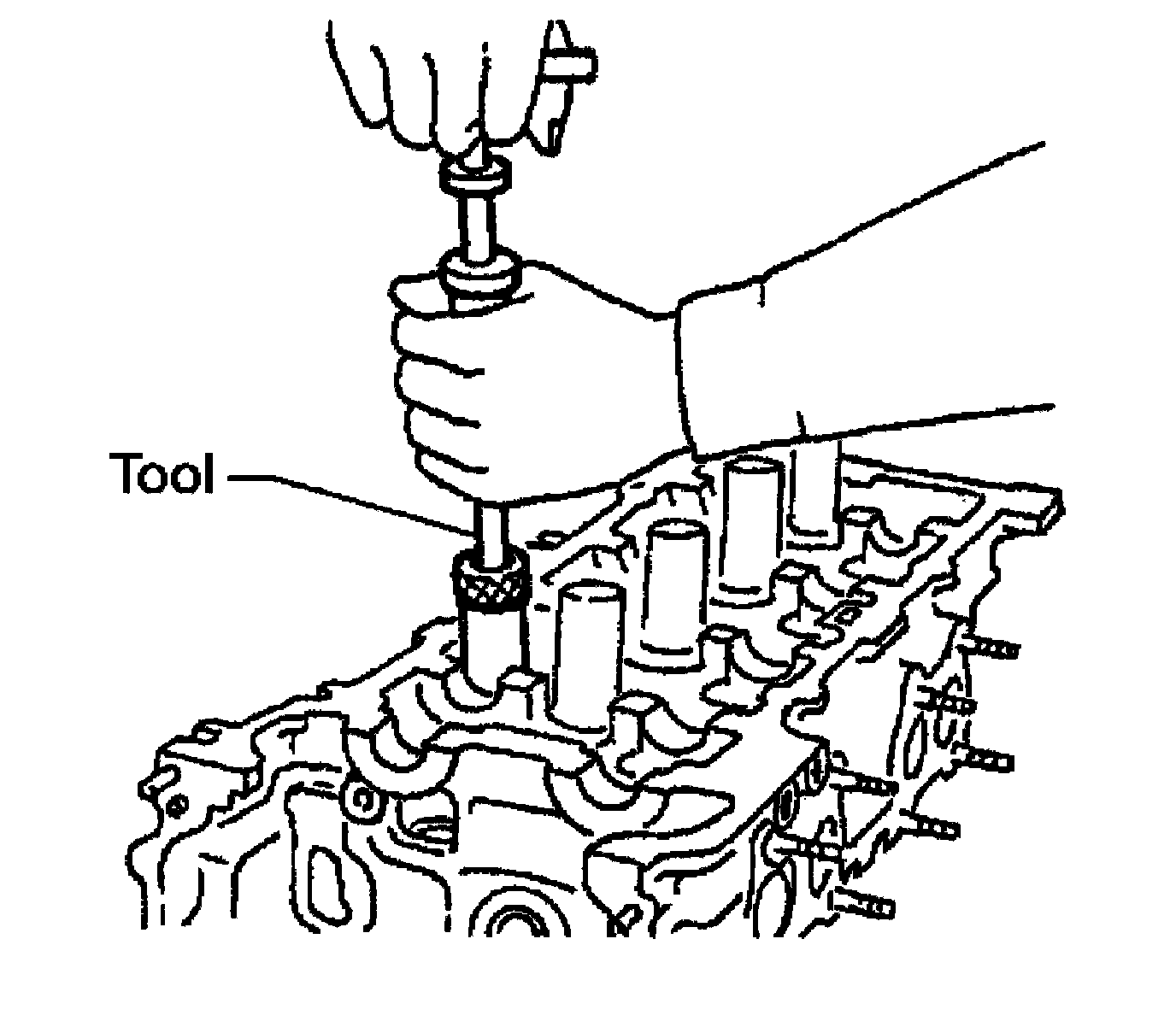

6) Remove valve oil seal using Tool.
Tool numbers: KV10107902 (3-38959)
INSTALLATION
1) Apply new engine oil to valve oil seal joint surface and seal lip.

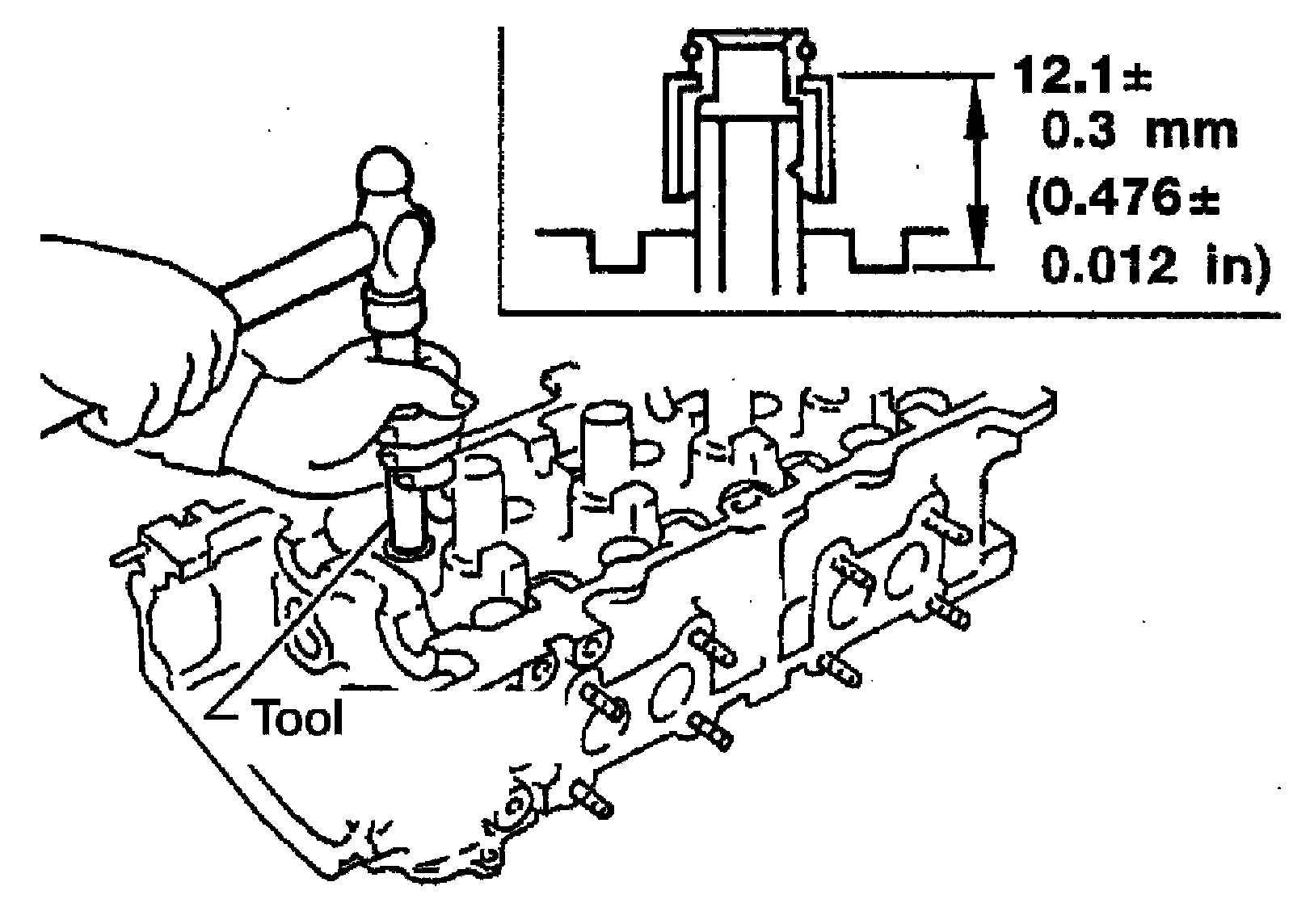

2) Press in valve oil seal to the height (H) as shown using Tool.
Tool numbers: KV10115600 (J-38958)
3) Installation of the remaining components is in the reverse order of removal.
