Component Tests and General Diagnostics

Oil Pressure Switch Signal Circuit Check

Description

Detects the engine oil pressure and transmits the oil pressure switch signal to the IPDM E/R.

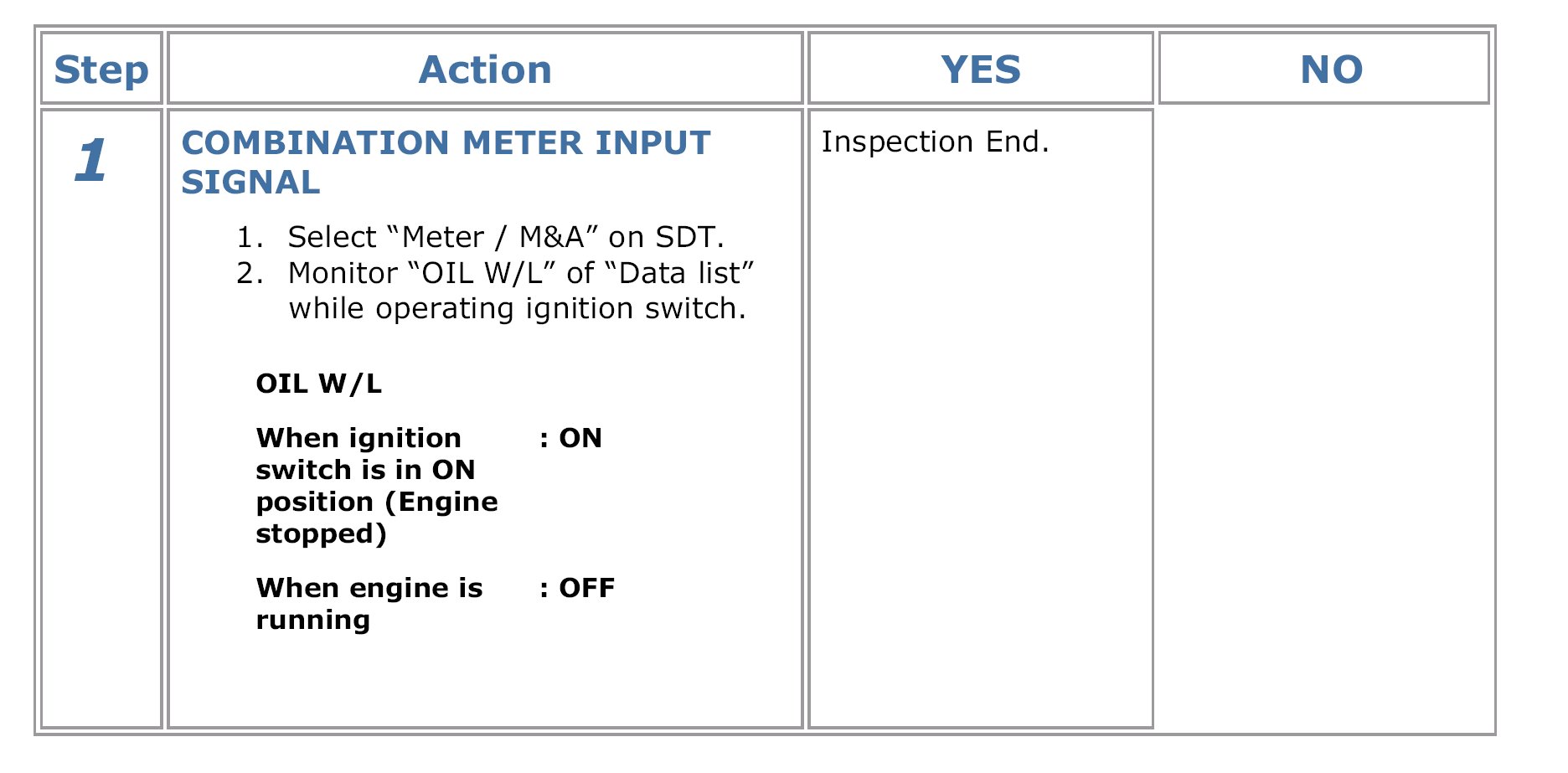

Component Function Check

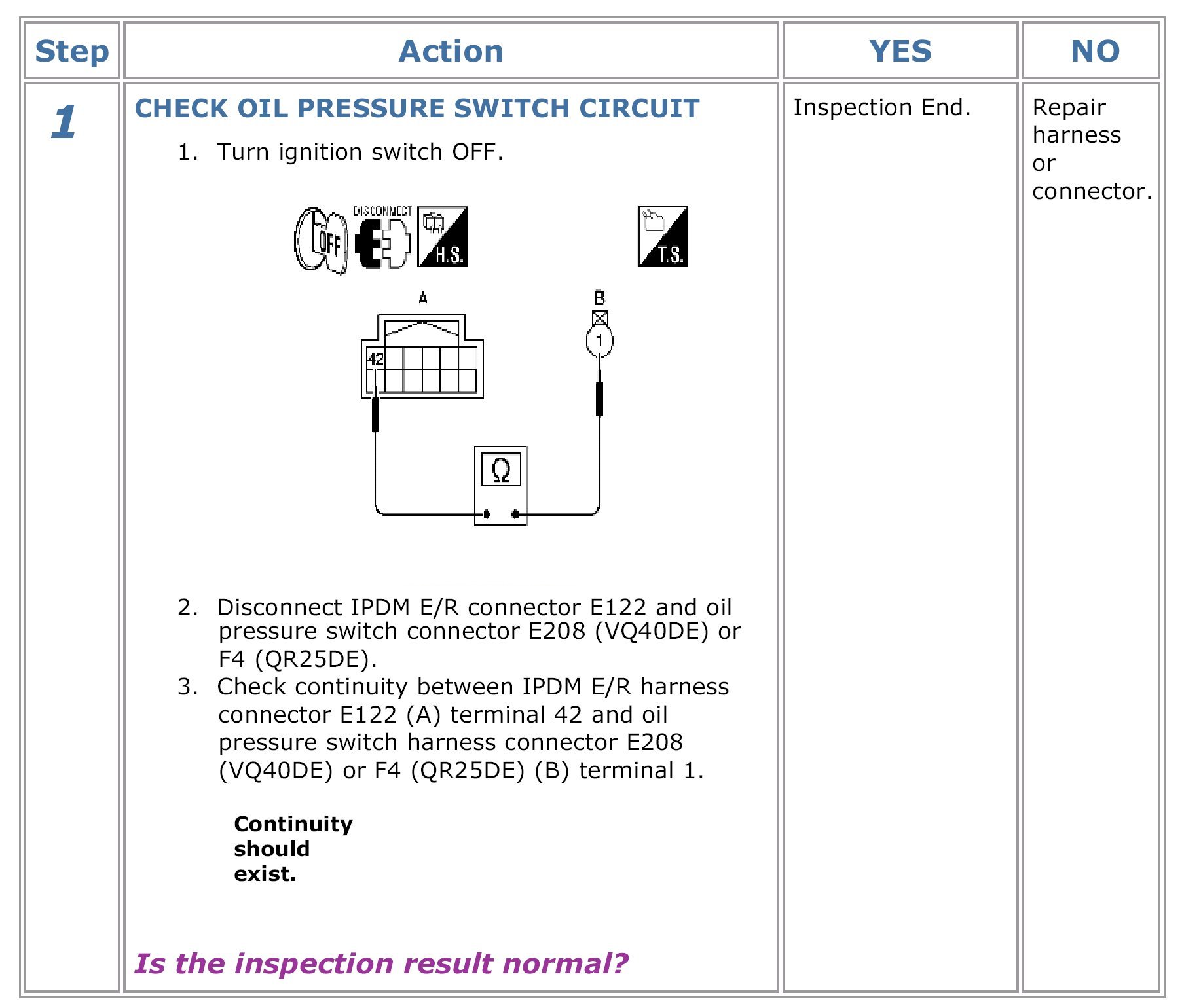

Diagnosis Procedure

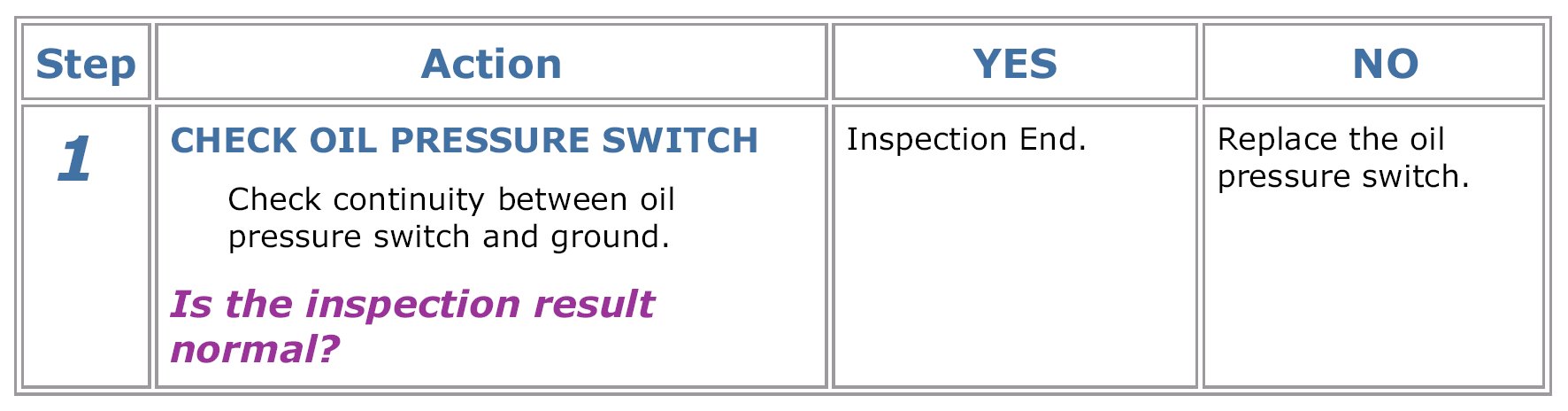

Component Inspection
