Towing / Trailer System

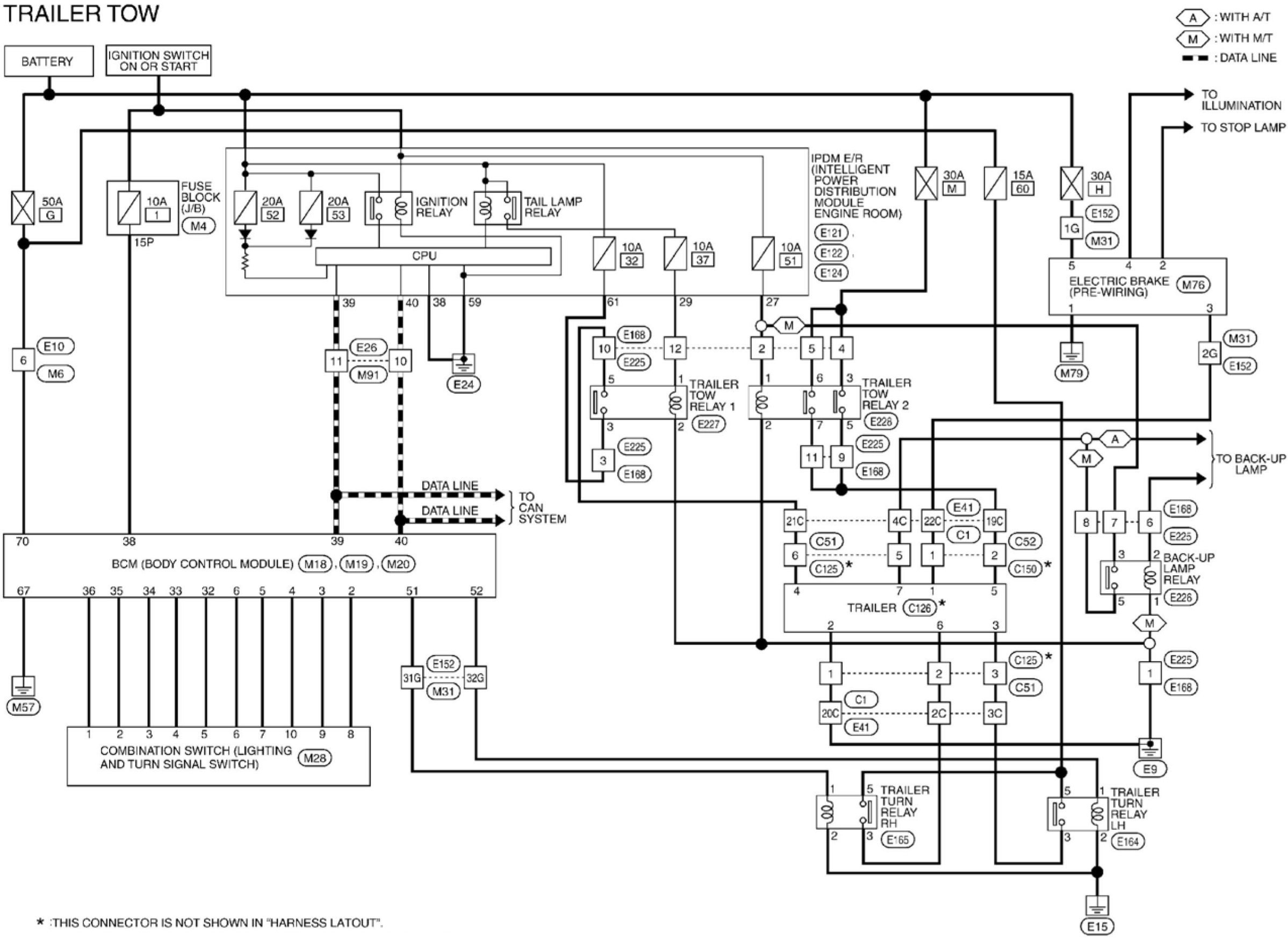

Trailer Tow: Wiring Diagram

Trailer Tow:






Trailer Tow Connectors

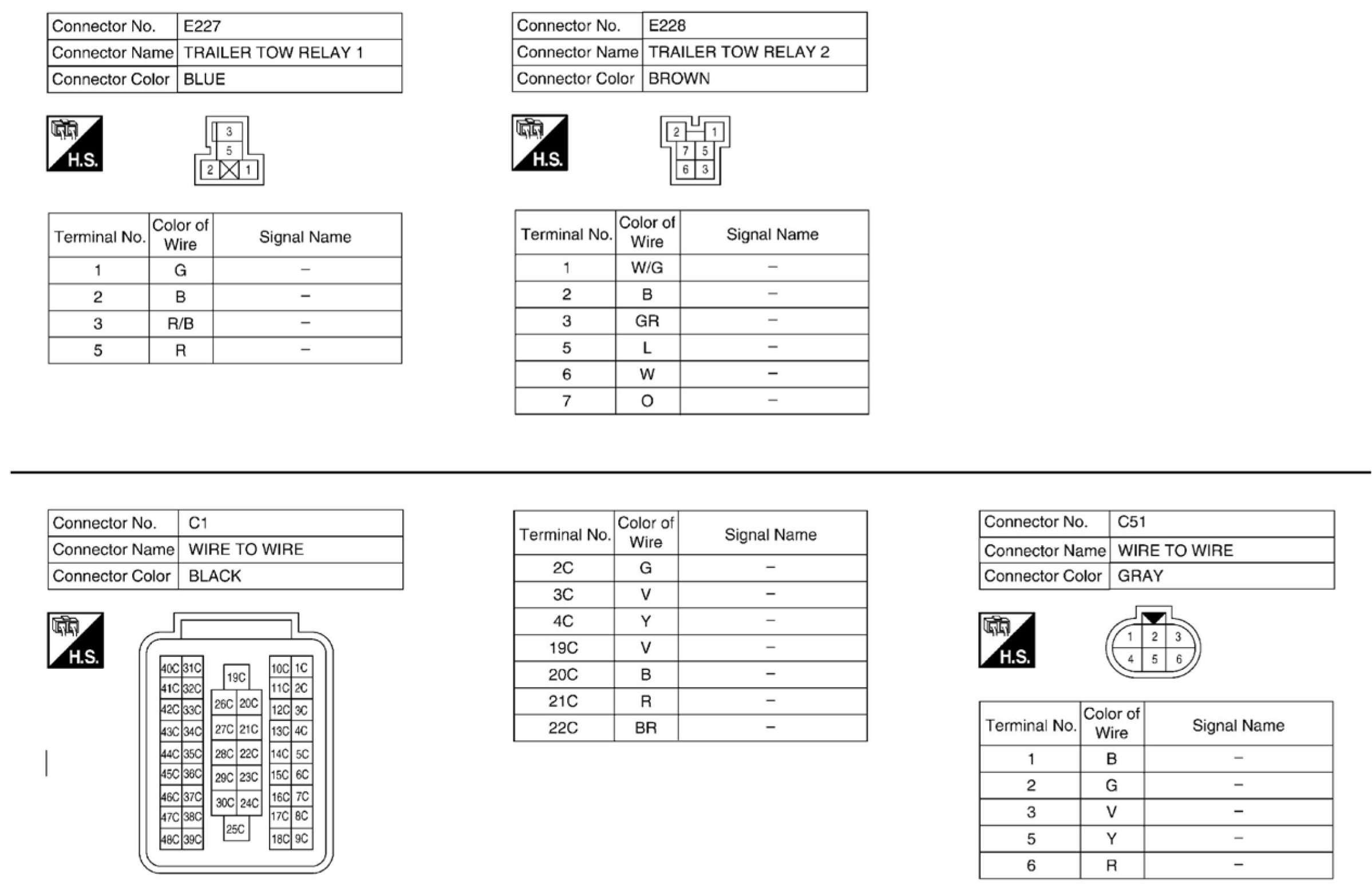

Trailer Tow Connectors (Part 1):

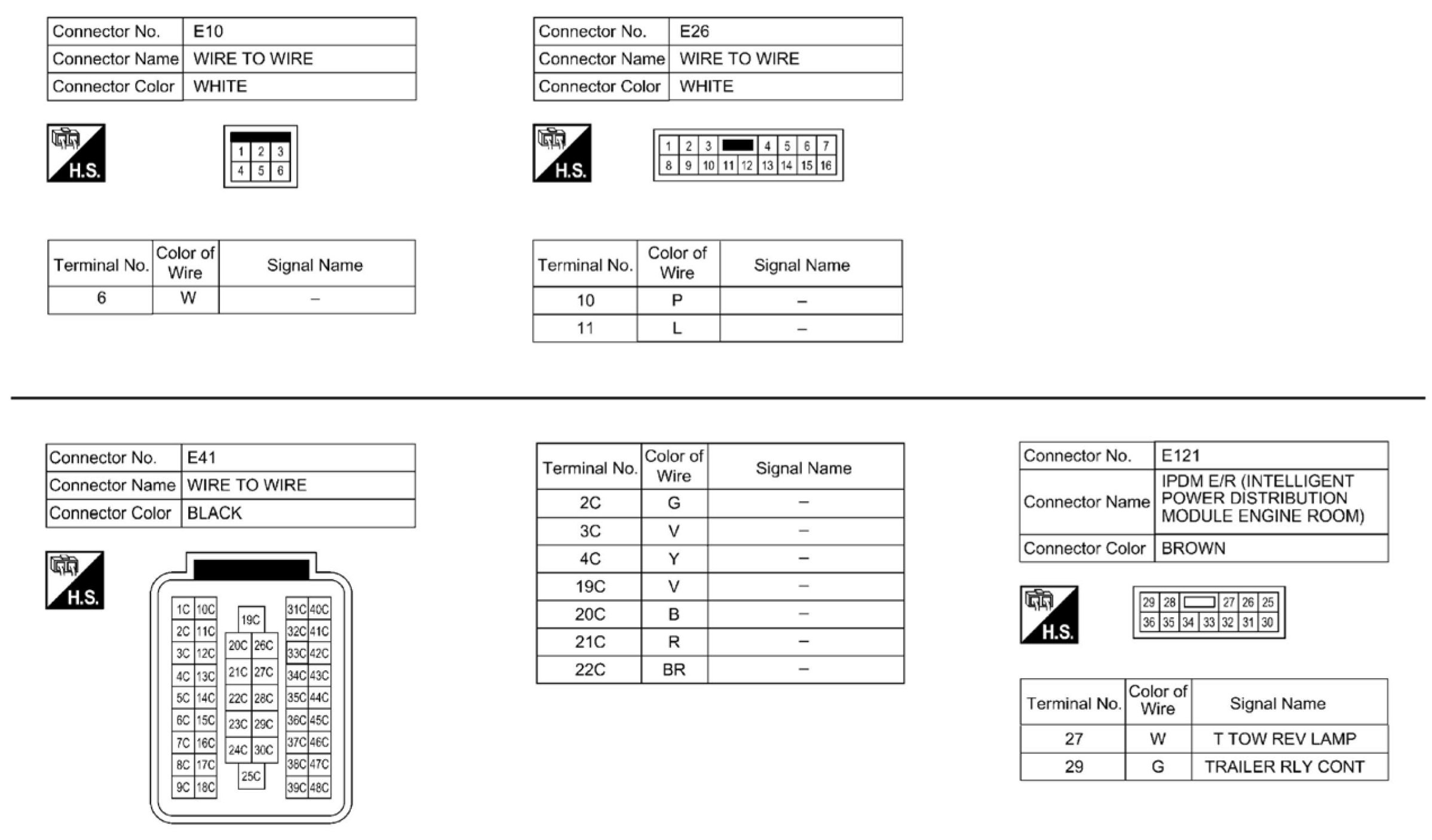

Trailer Tow Connectors (Part 2):

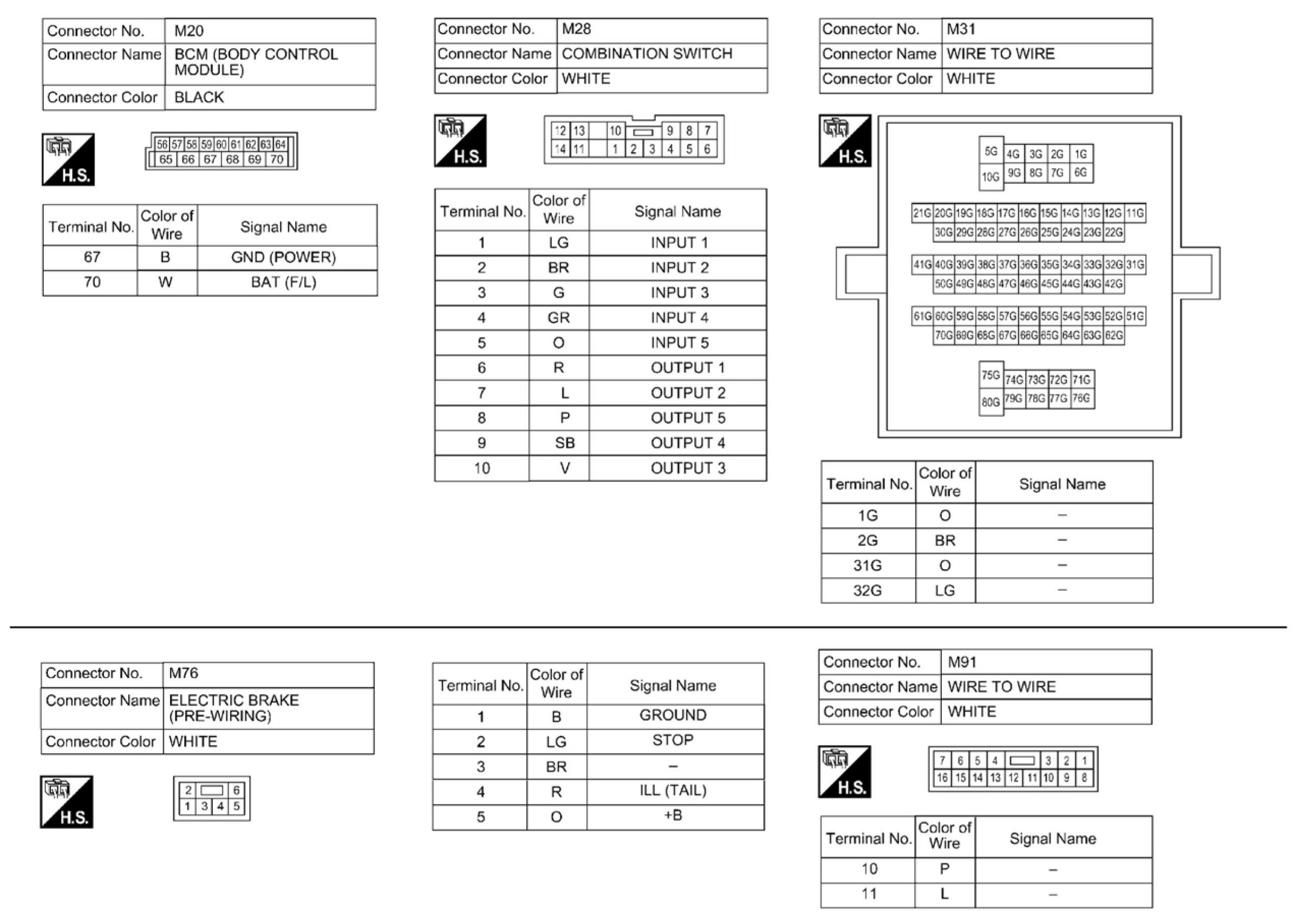

Trailer Tow Connectors (Part 3):

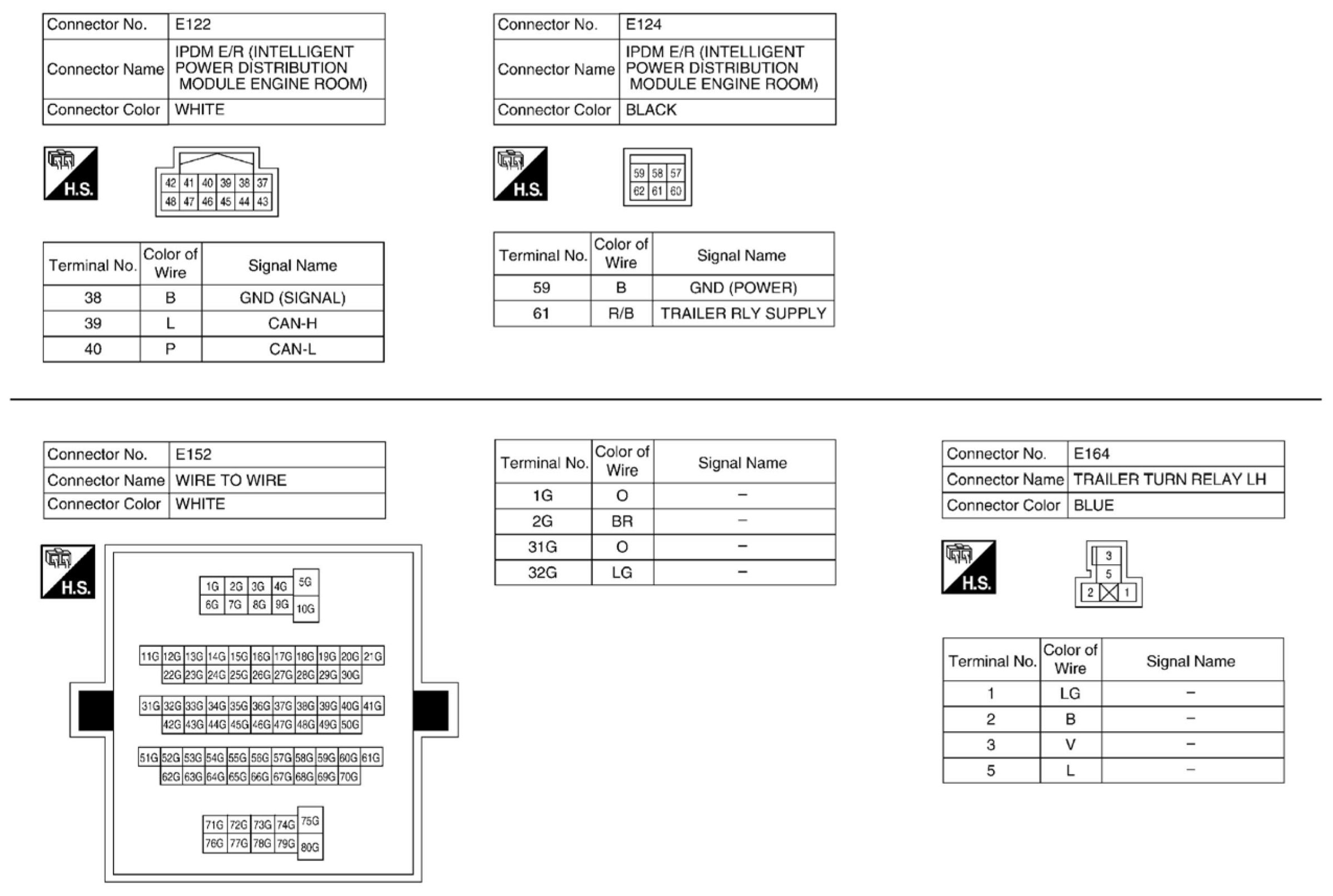

Trailer Tow Connectors (Part 4):

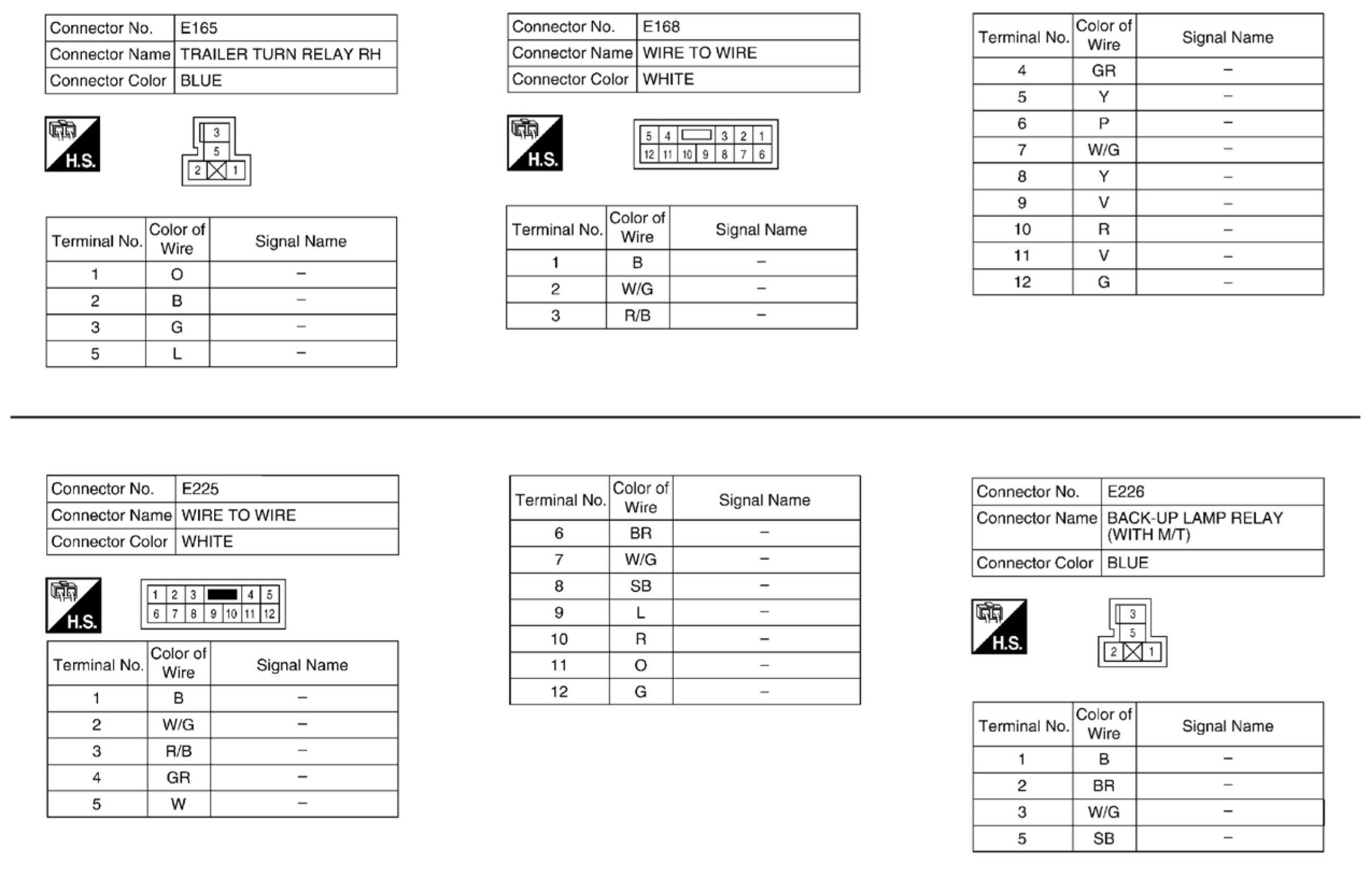

Trailer Tow Connectors (Part 5):

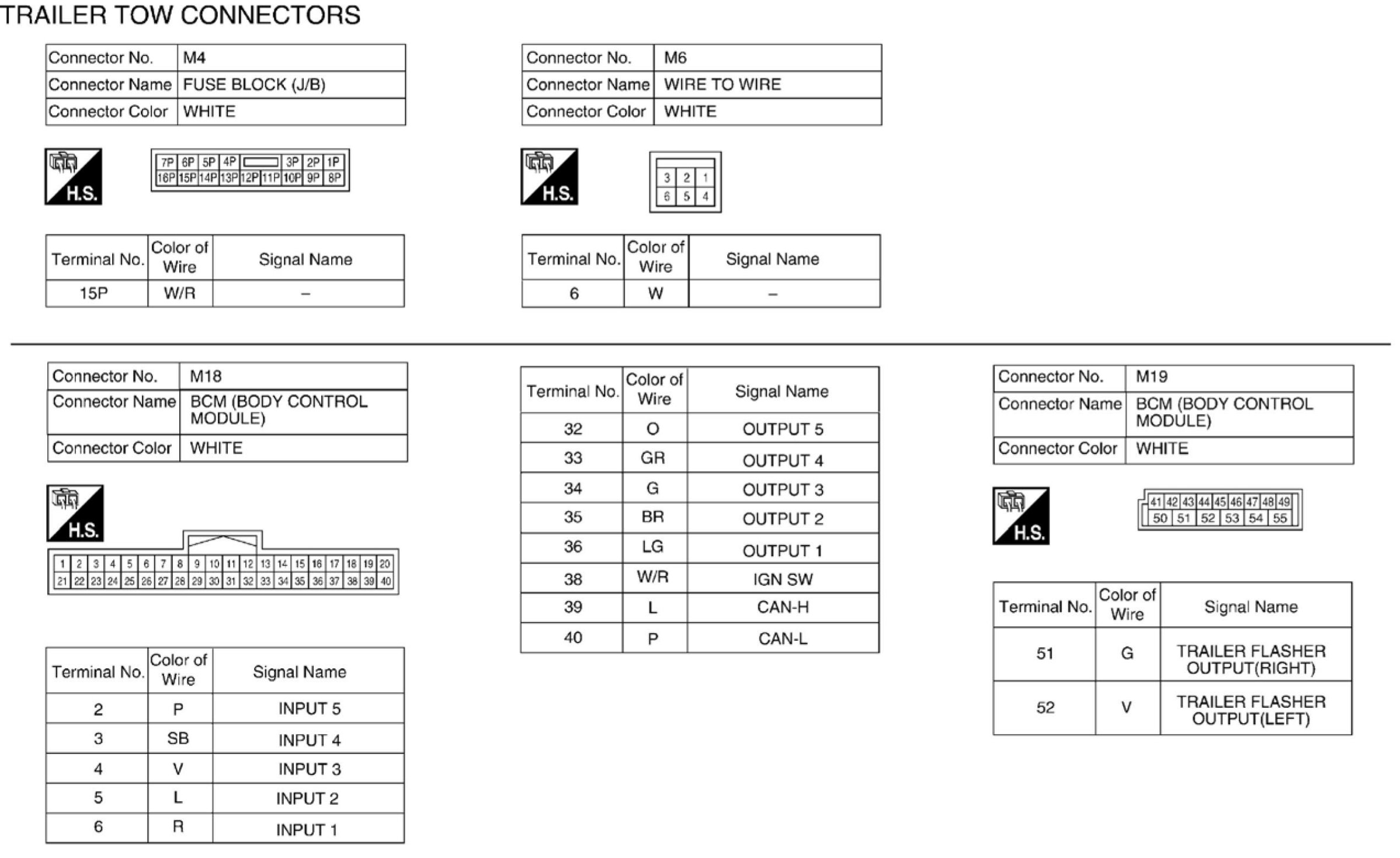

Trailer Tow Connectors (Part 6):

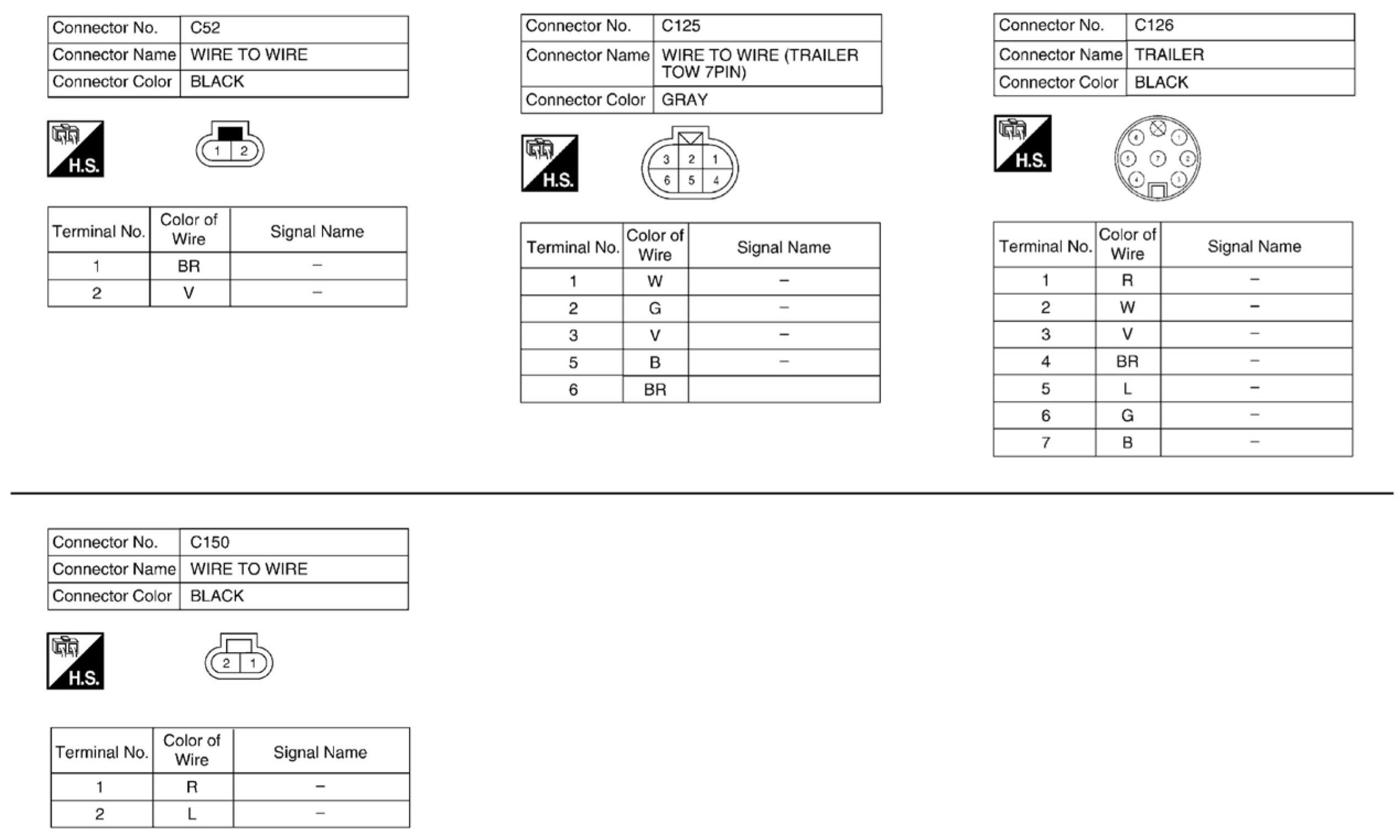

Trailer Tow Connectors (Part 7):
