Sunroof / Moonroof

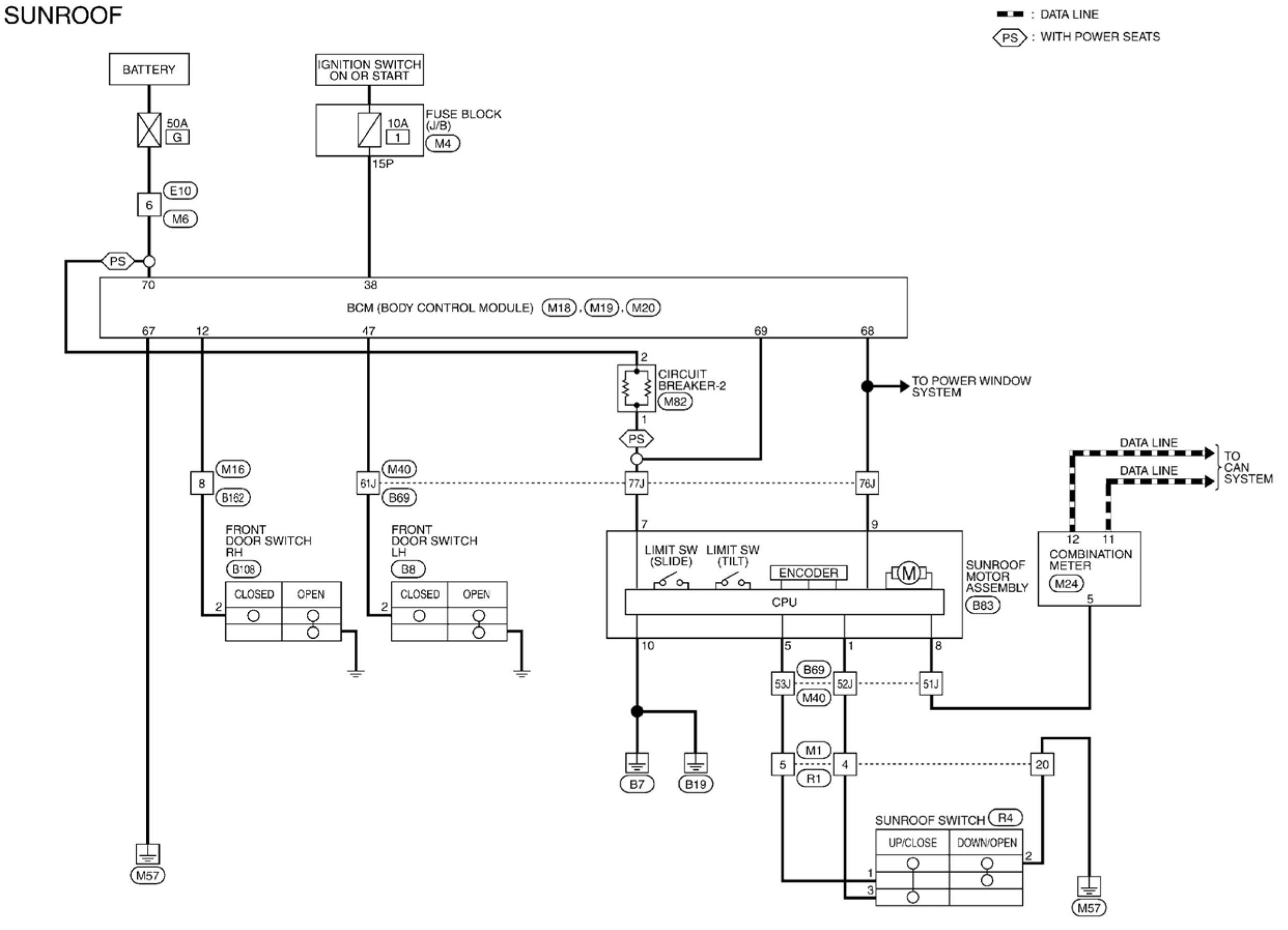

Sunroof Motor Assembly: Wiring Diagram

Sunroof:






Sunroof Connectors

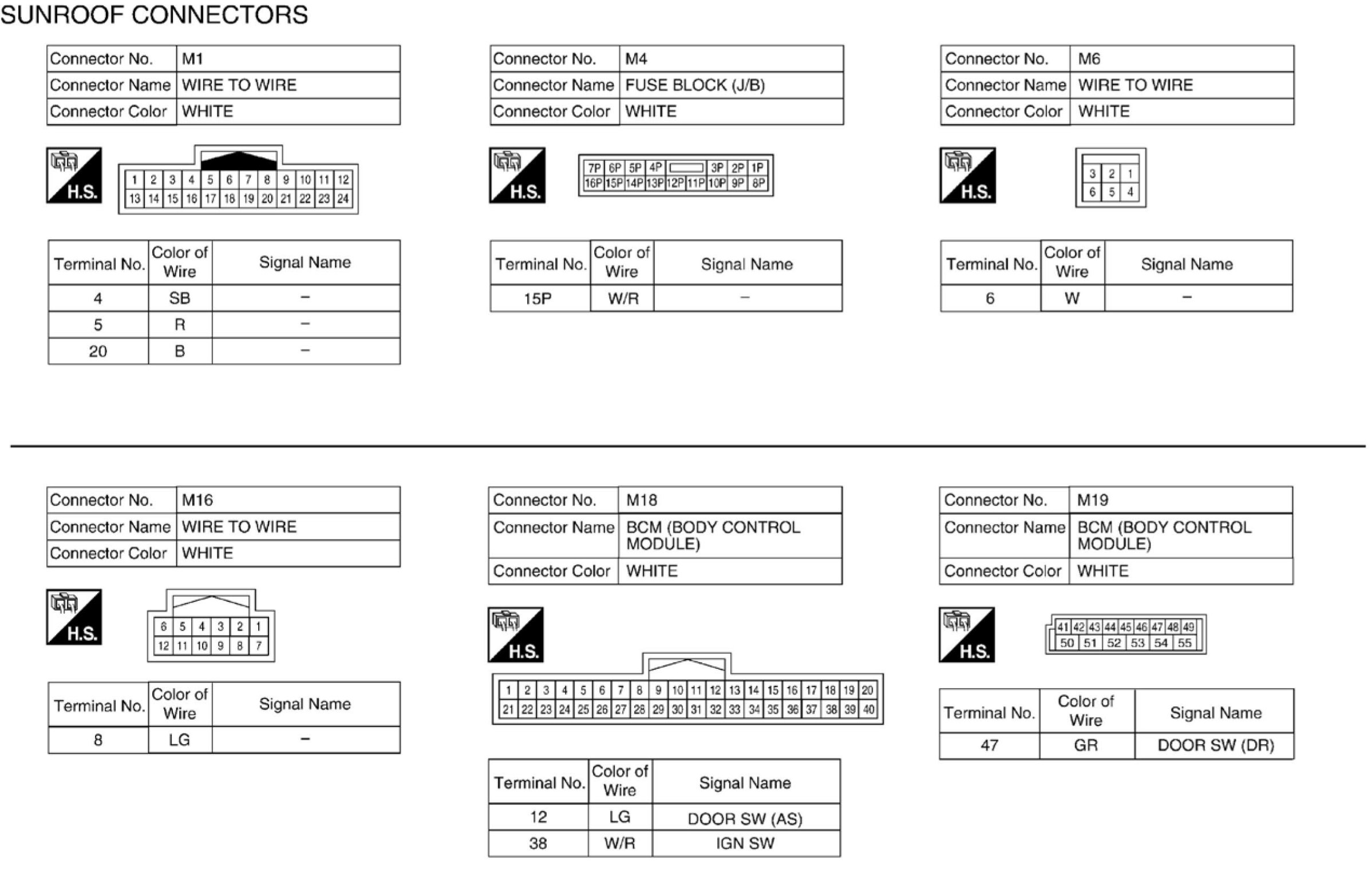

Sunroof Connectors (Part 1):

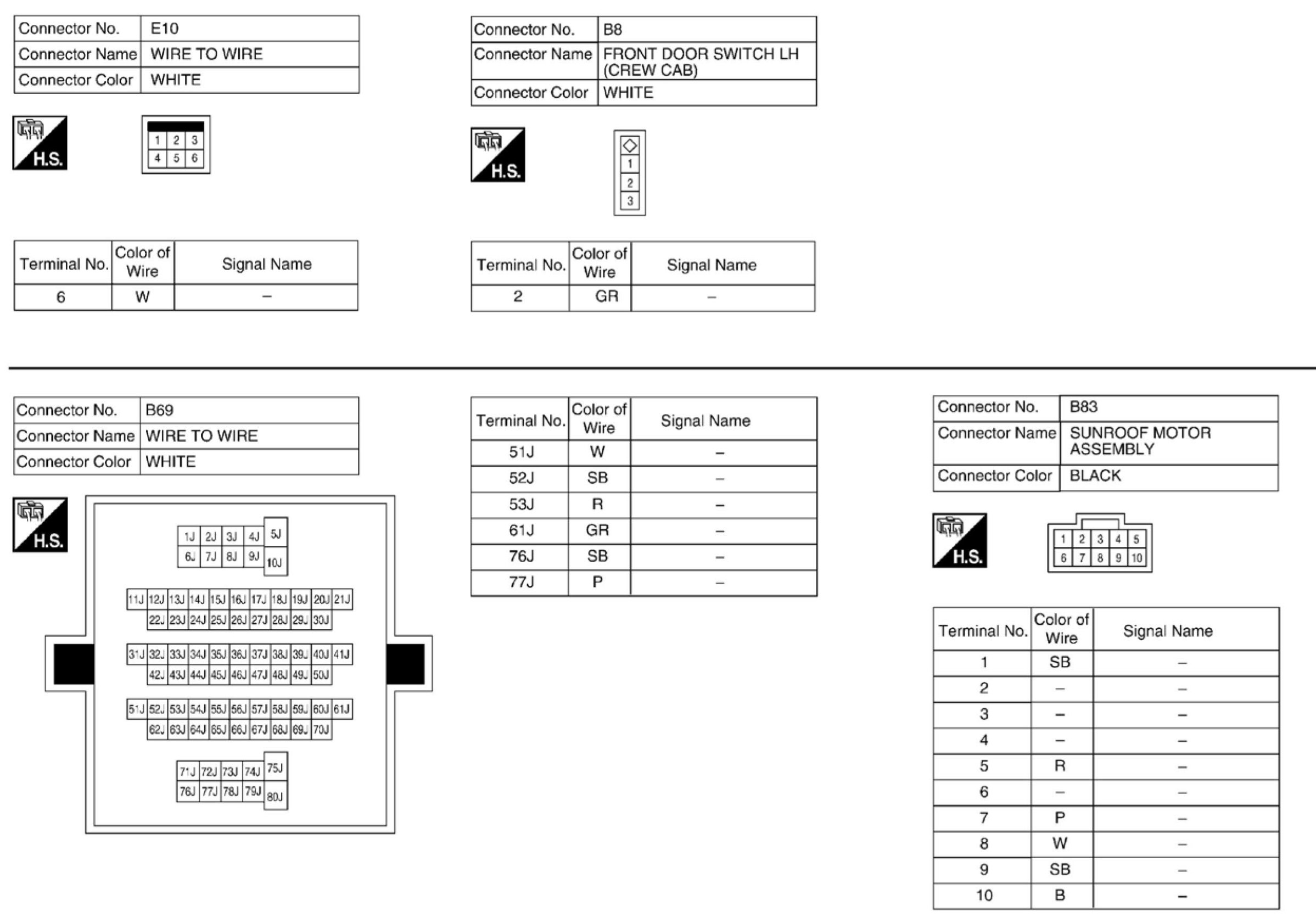

Sunroof Connectors (Part 2):

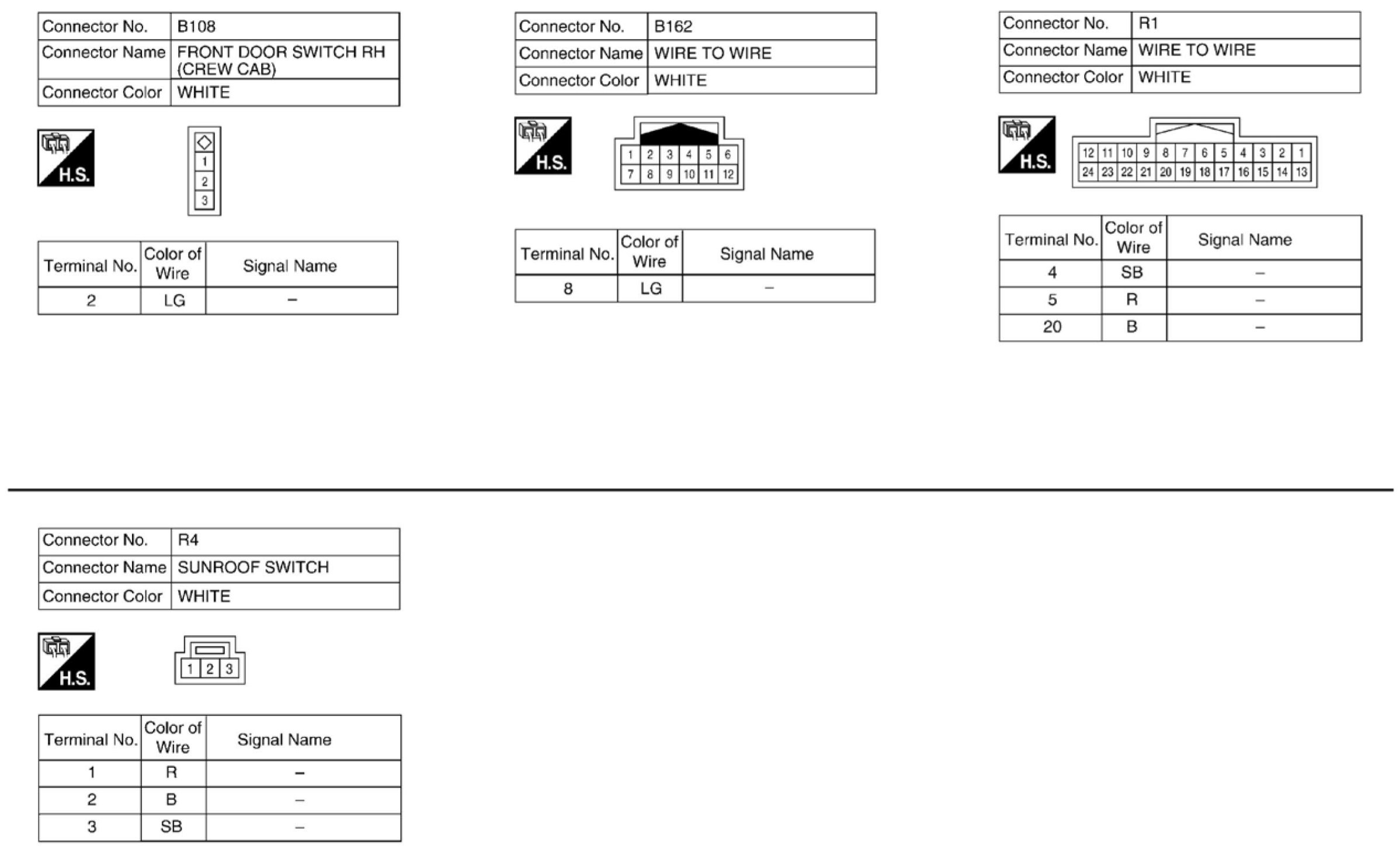

Sunroof Connectors (Part 3):

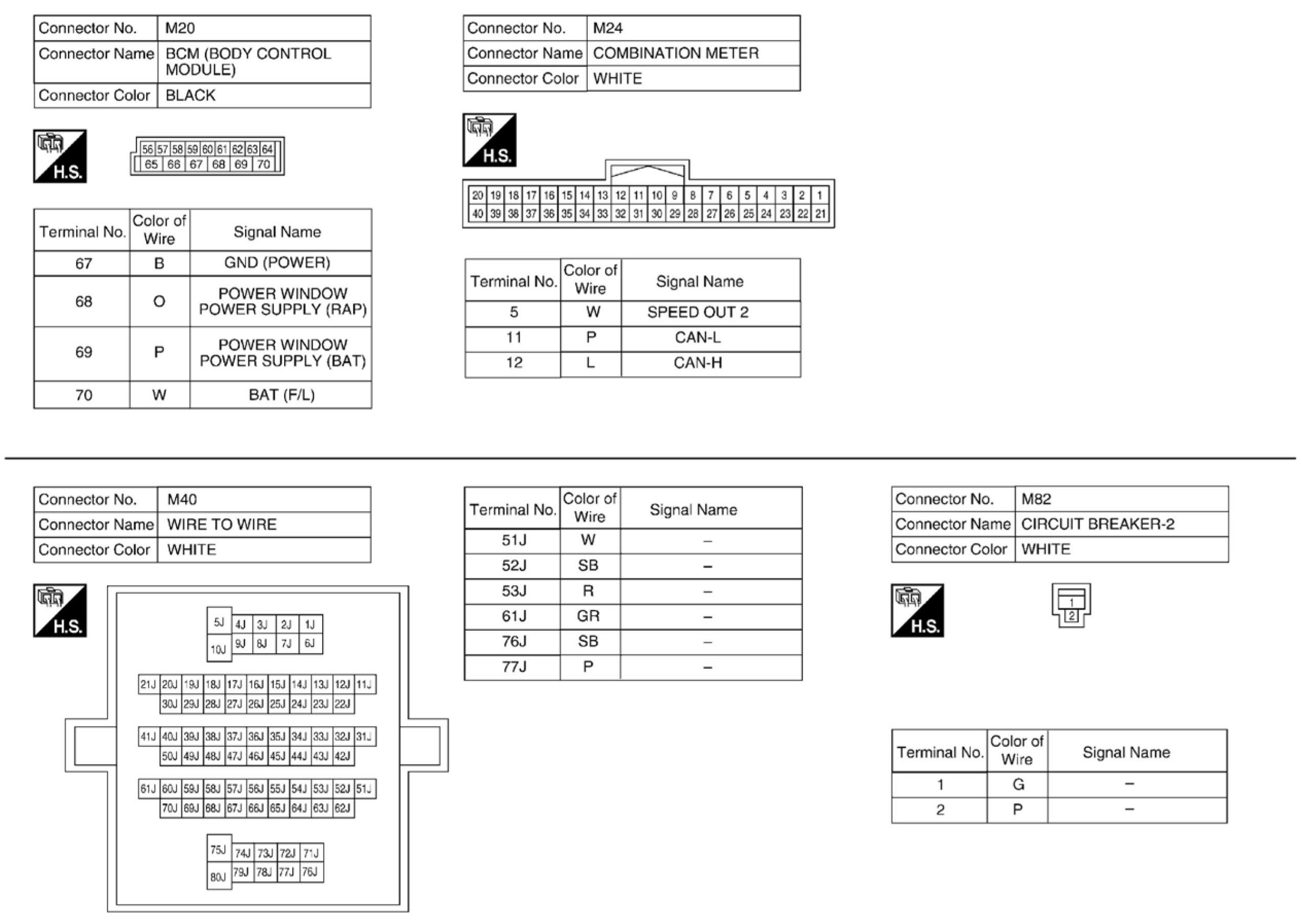

Sunroof Connectors (Part 4):
