System Diagram

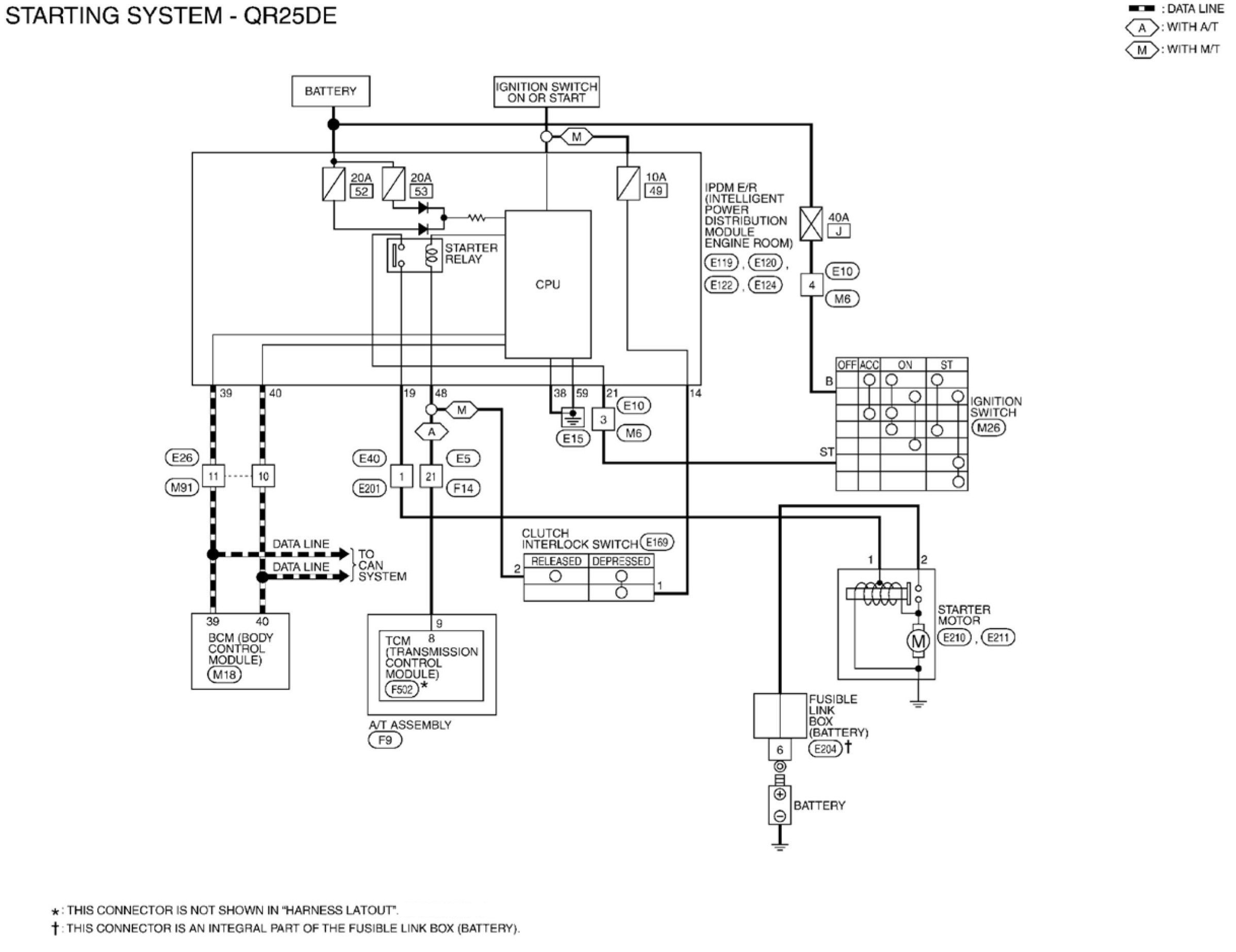

Starting System: Wiring Diagram [QR25DE]

Starting System:






Starting System Connectors - QR25DE

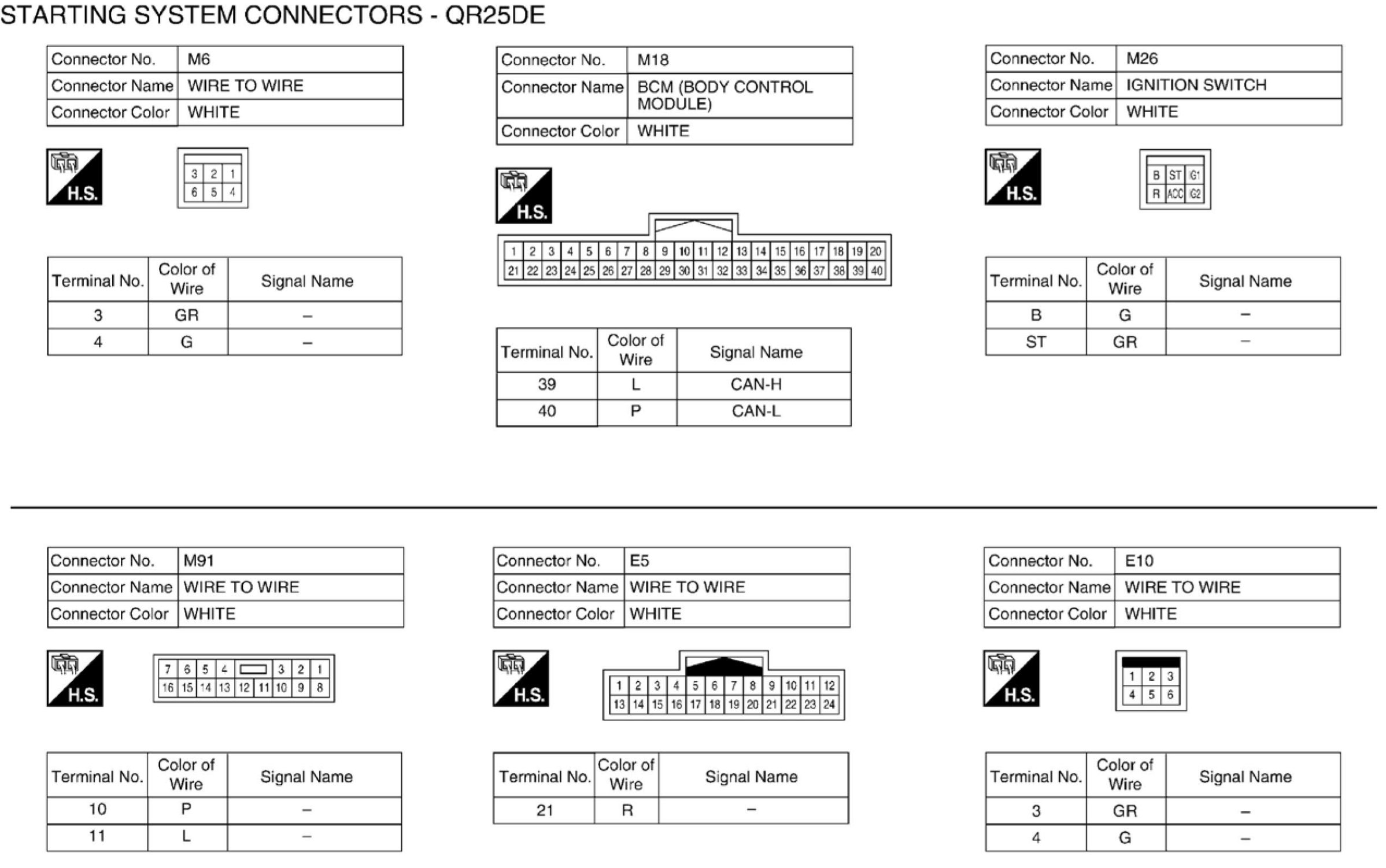

Starting System Connectors (Part 1):

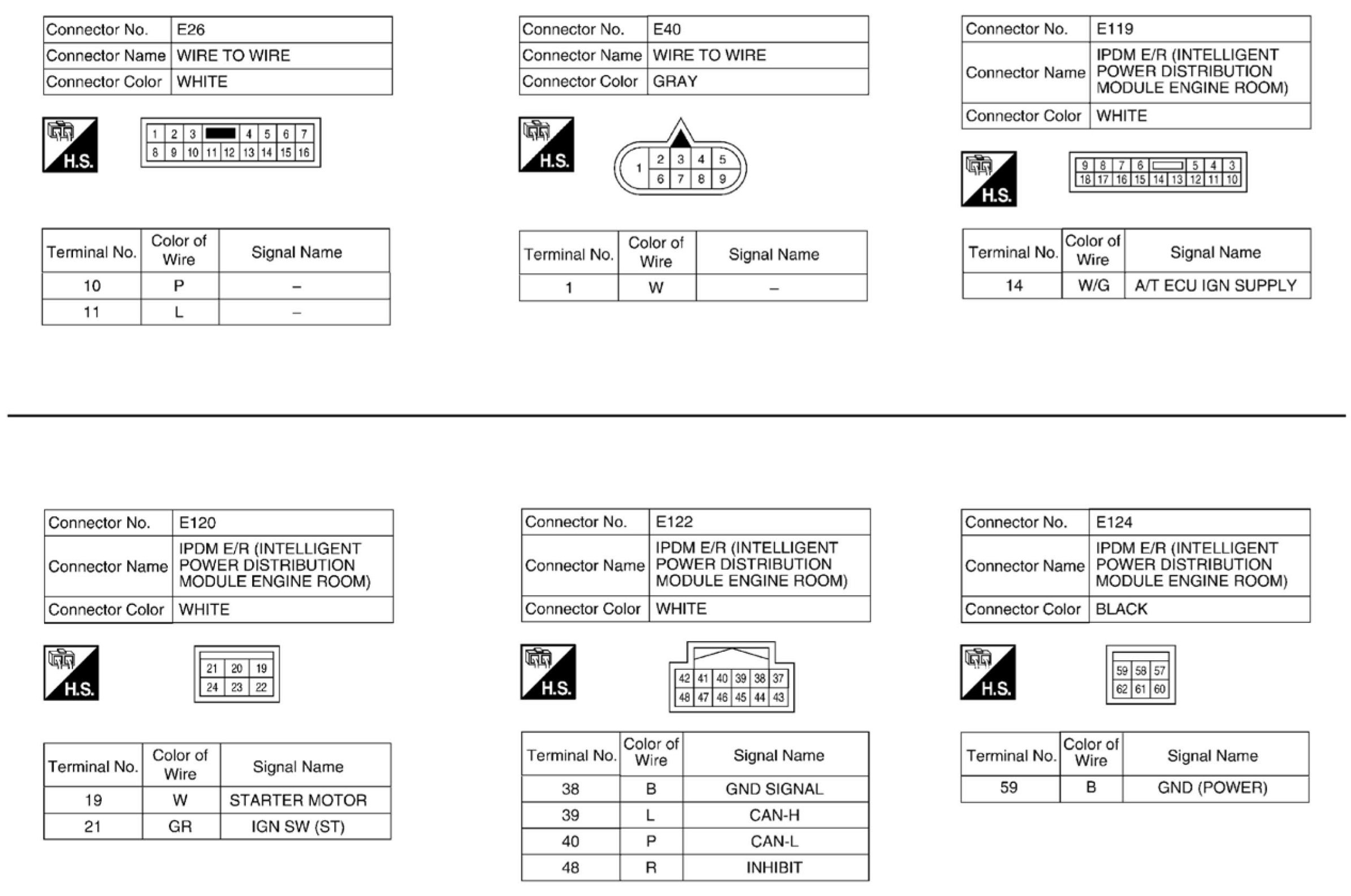

Starting System Connectors (Part 2):

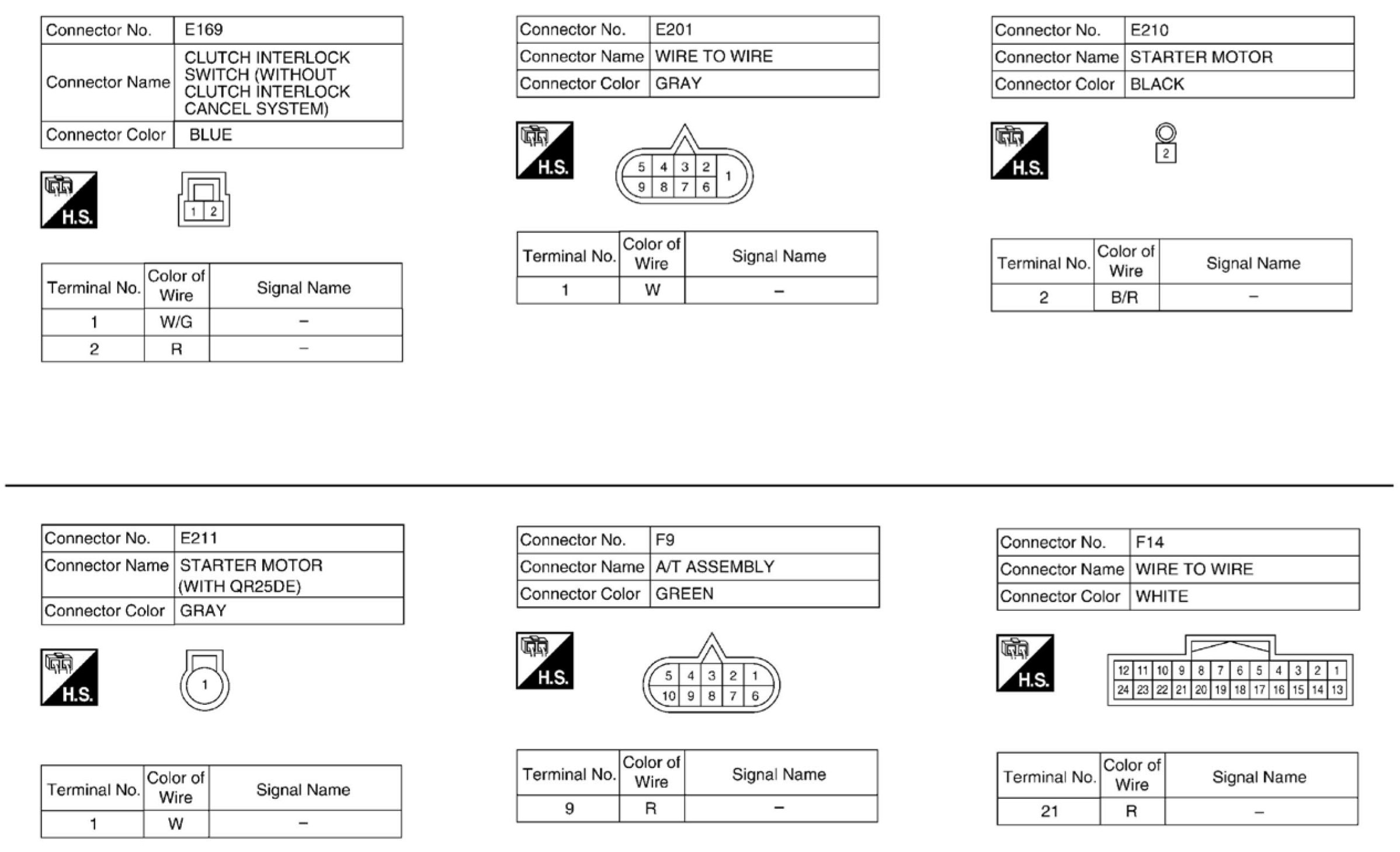

Starting System Connectors (Part 3):

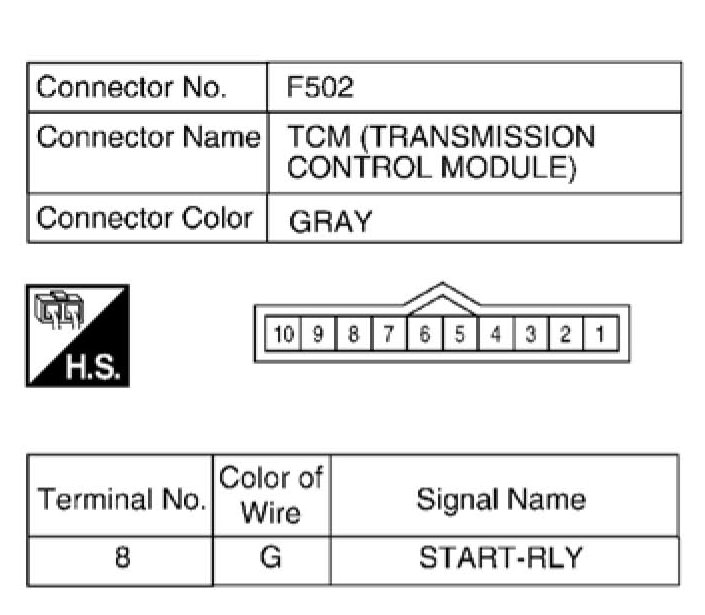

Starting System Connectors (Part 4):
