Power Seat [Passenger Side]

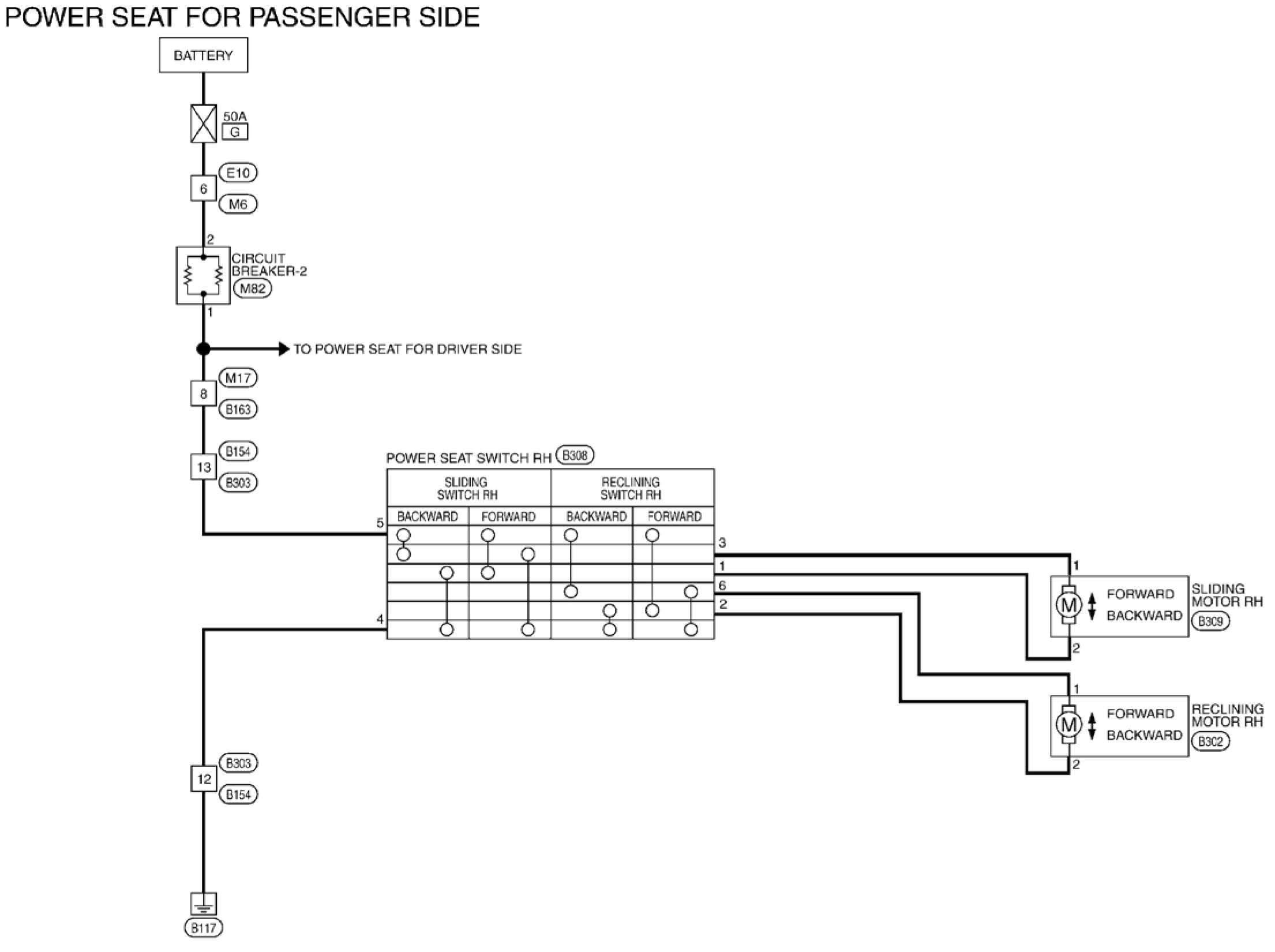

Power Seat: Wiring Diagram [Passenger Side]

Power Seat For Passenger Side:






Power Seat For Passenger side Connectors

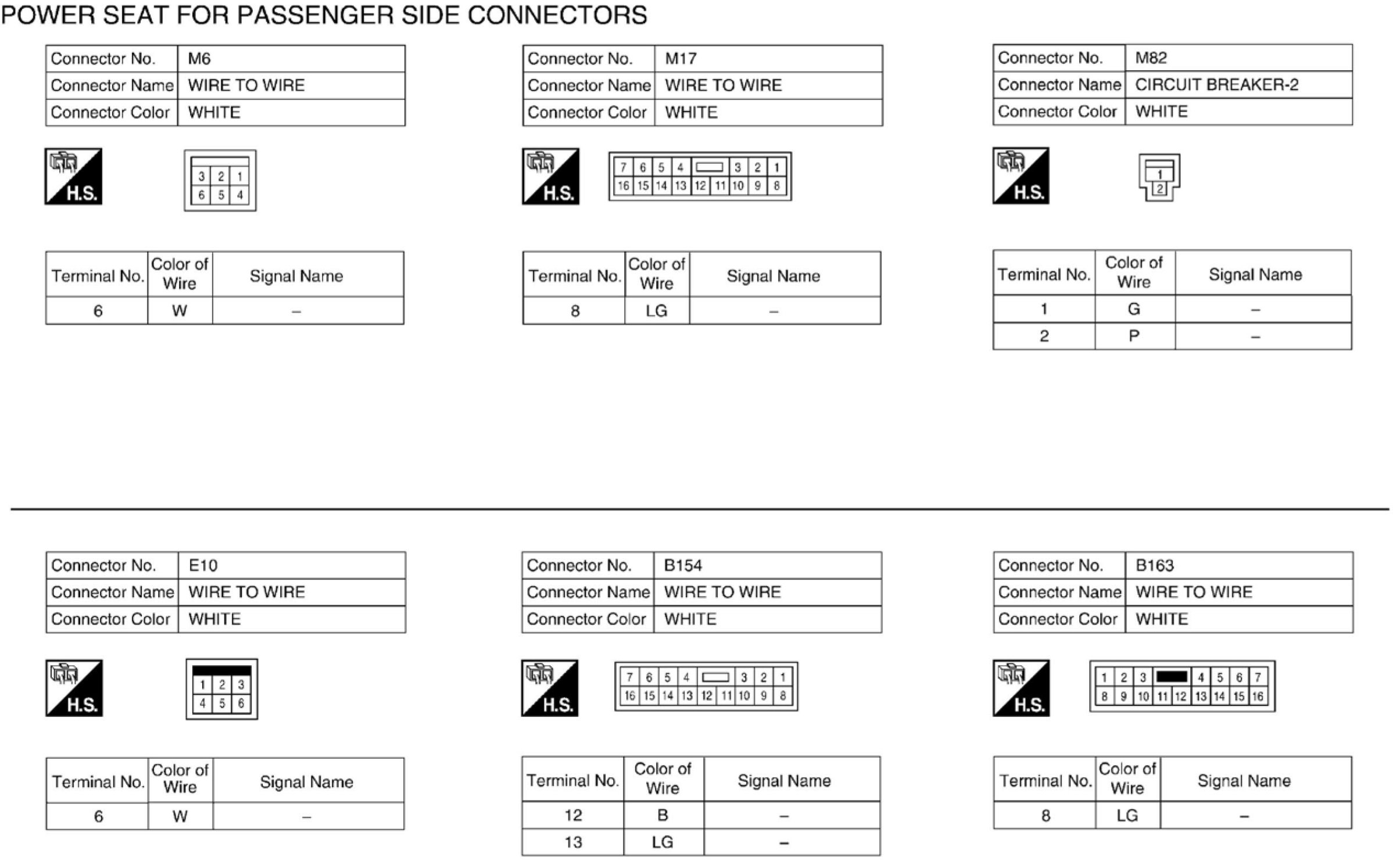

Power Seat For Passenger Side Connectors (Part 1):

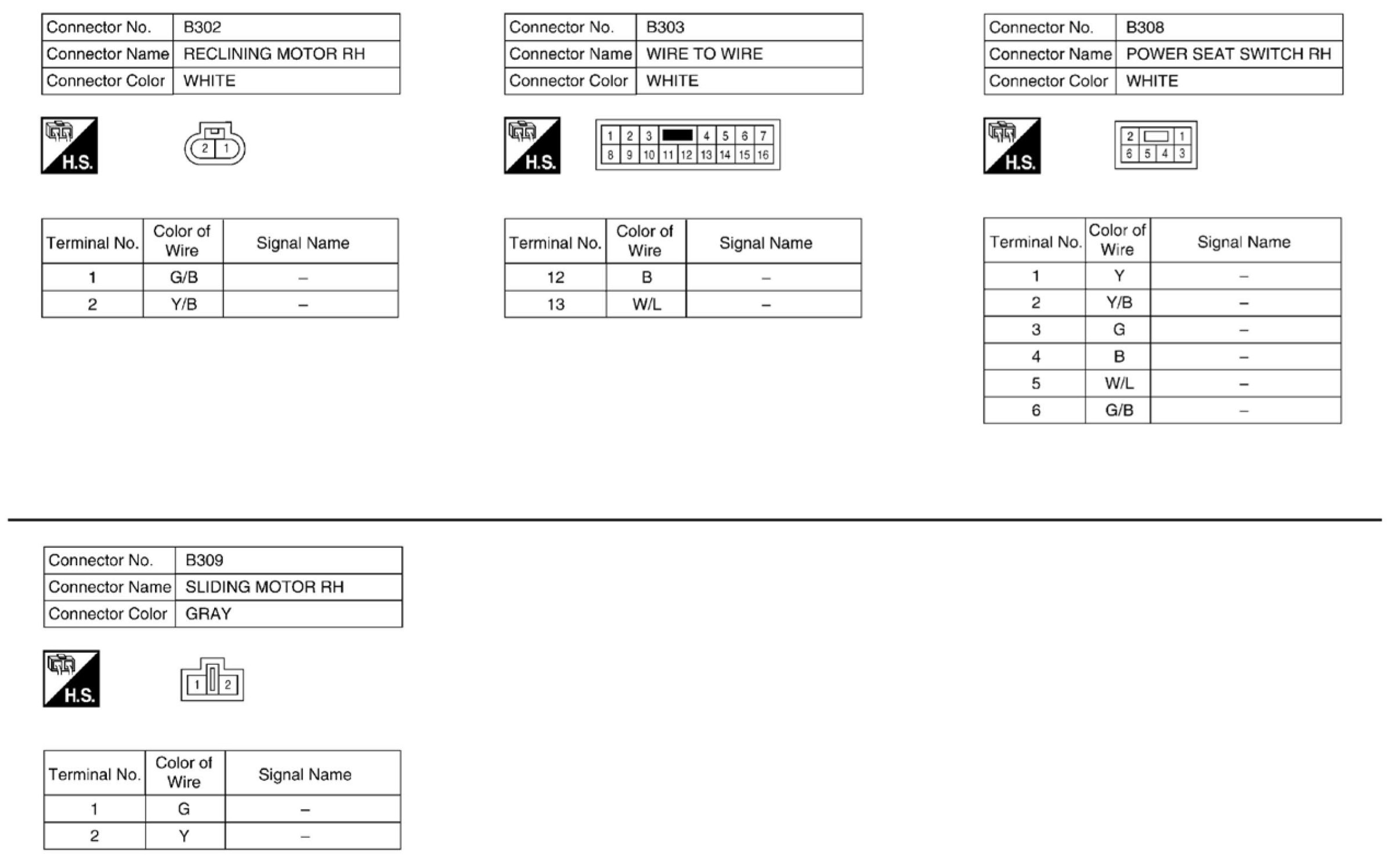

Power Seat For Passenger Side Connectors (Part 2):
