Seat Temperature Element

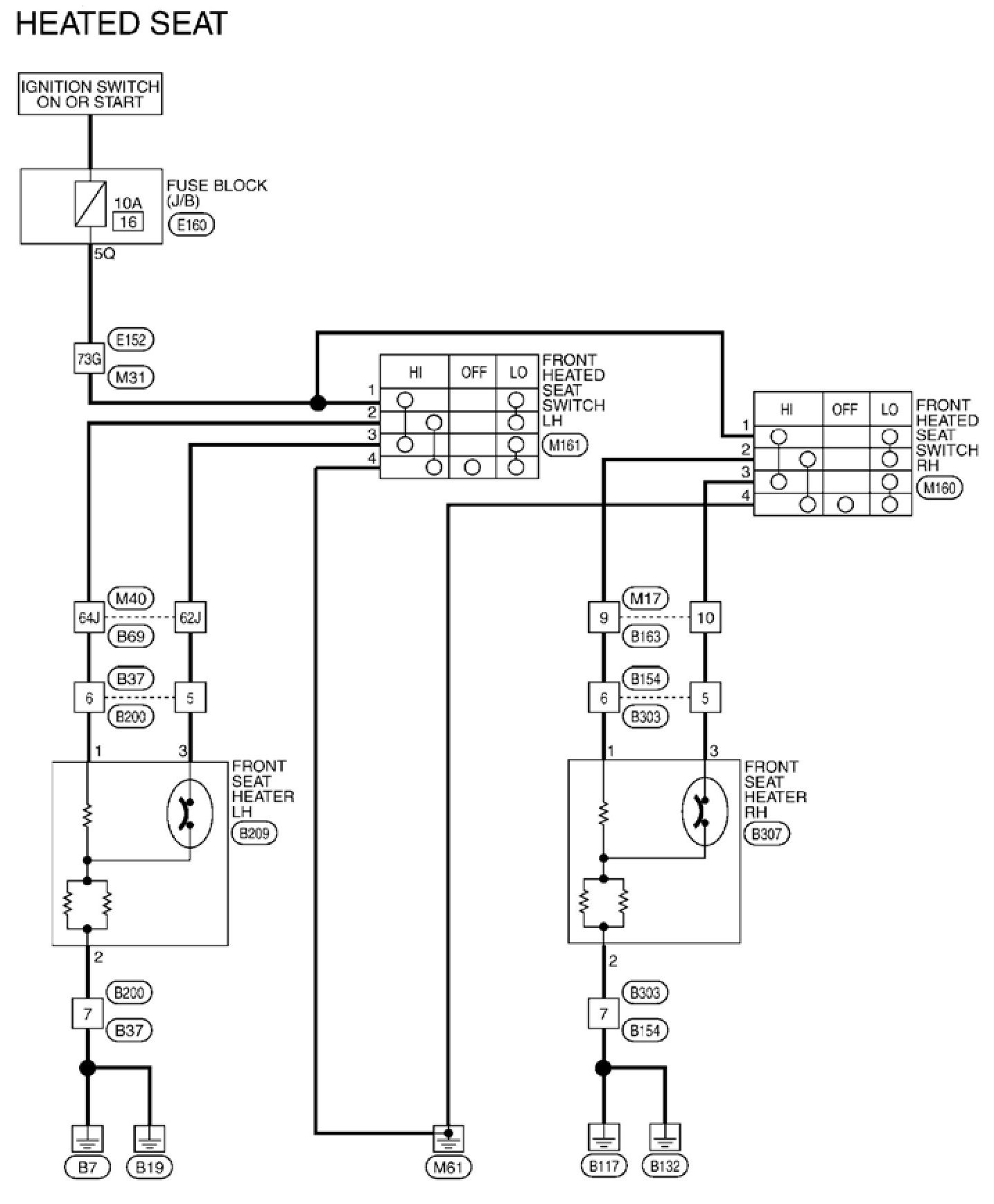

Heated Seat: Wiring Diagram

Heated Seat:

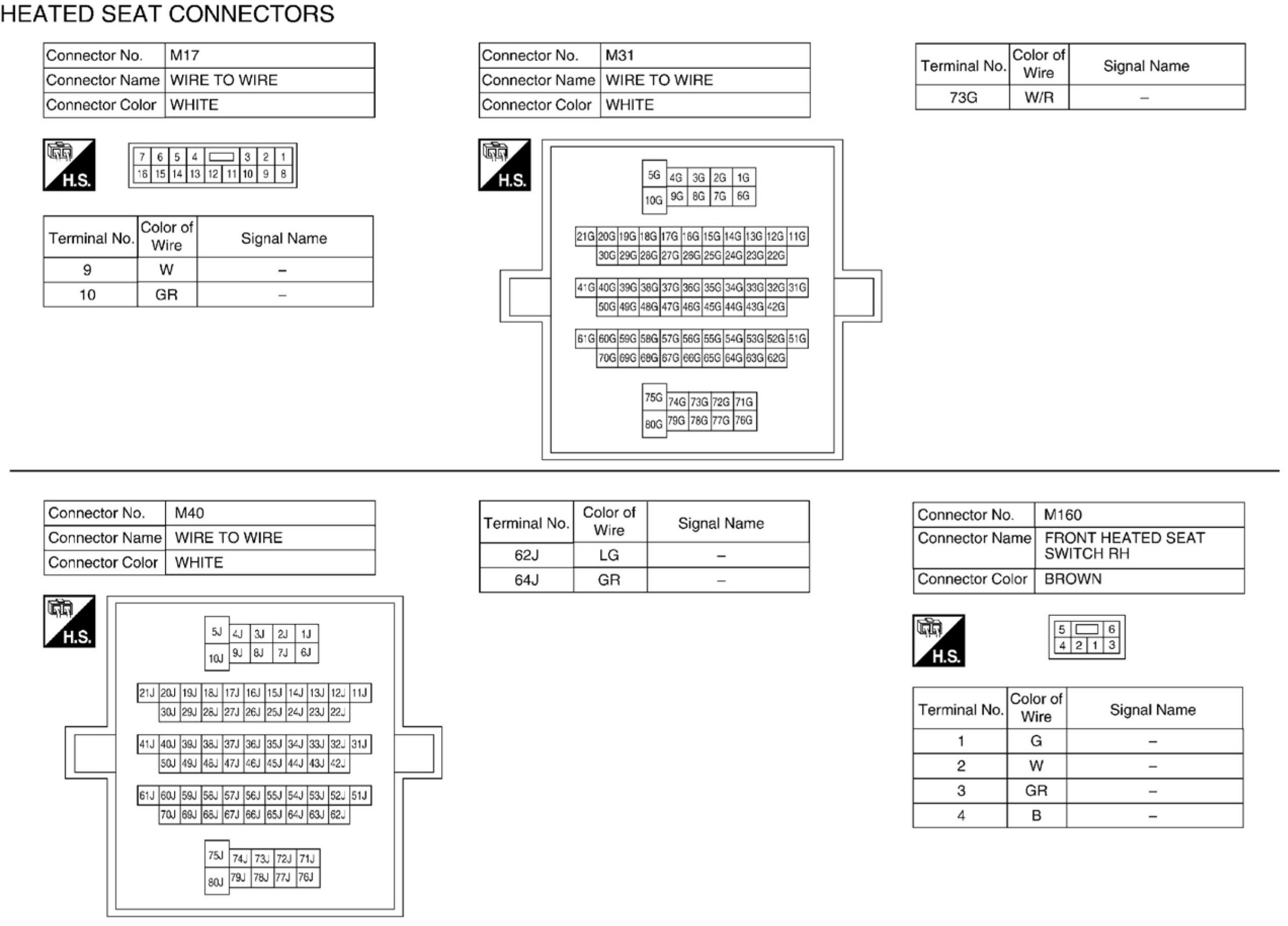

Heated Seat Connectors

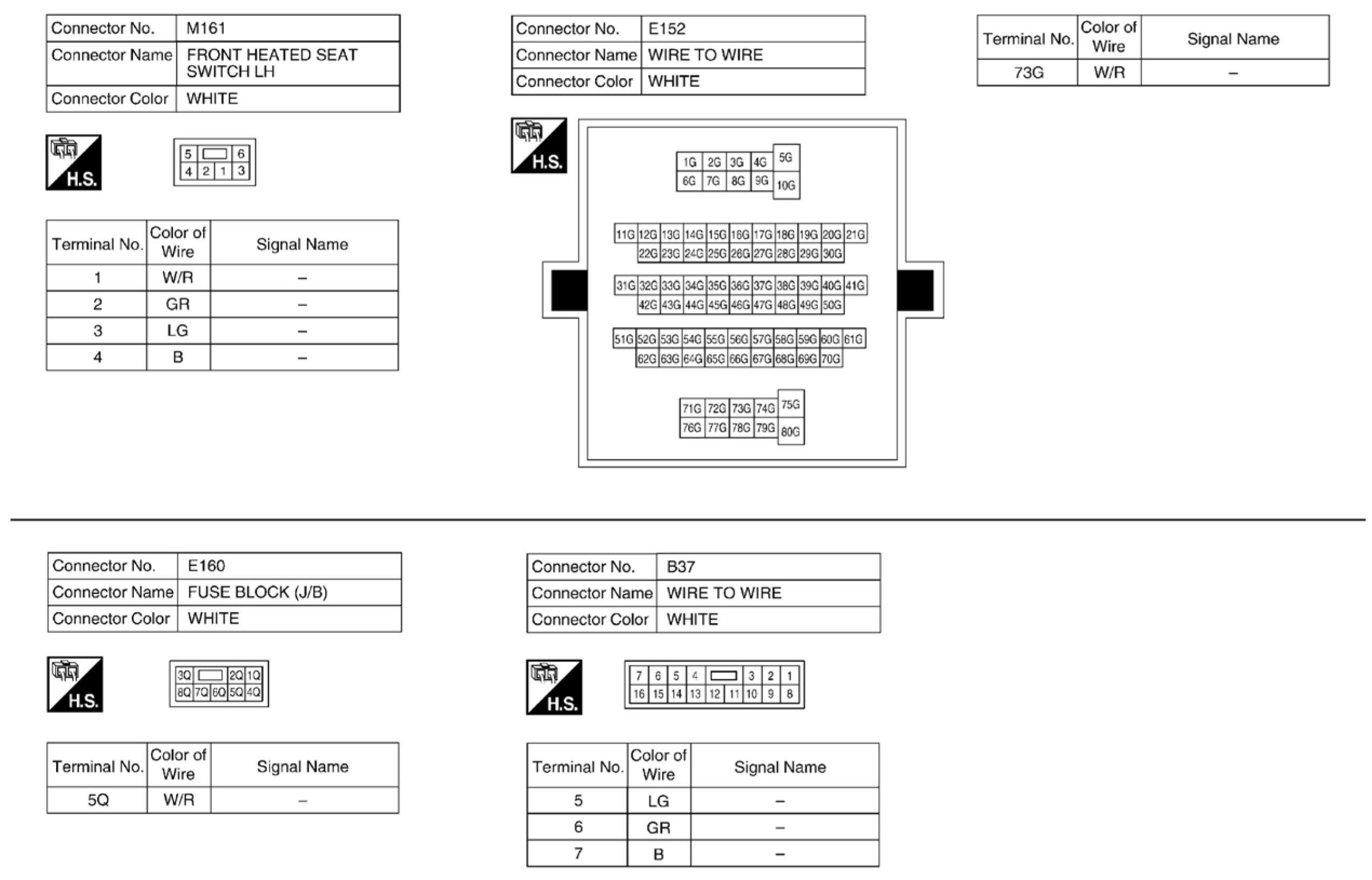

Heated Seat Connectors (Part 1):

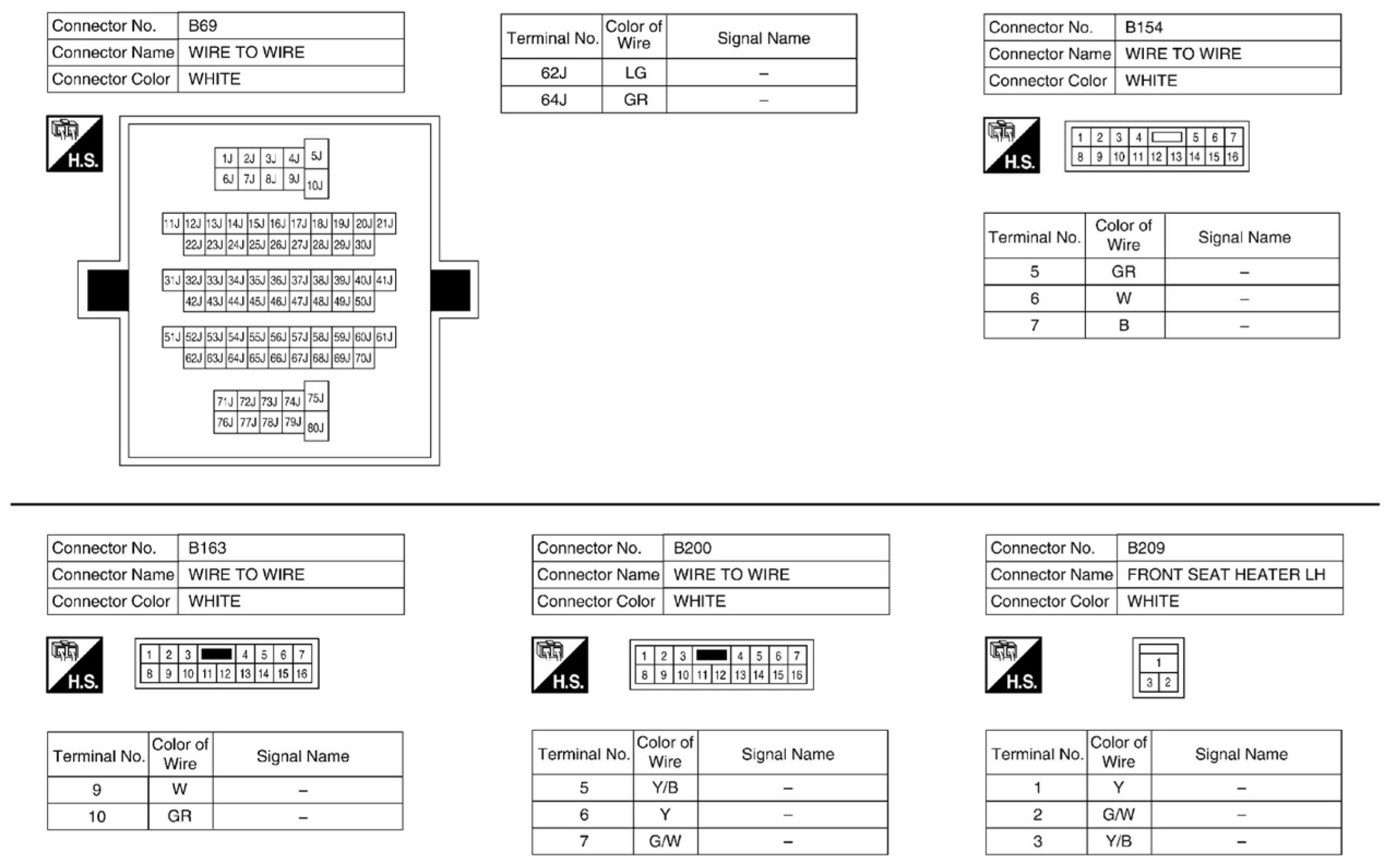

Heated Seat Connectors (Part 2):

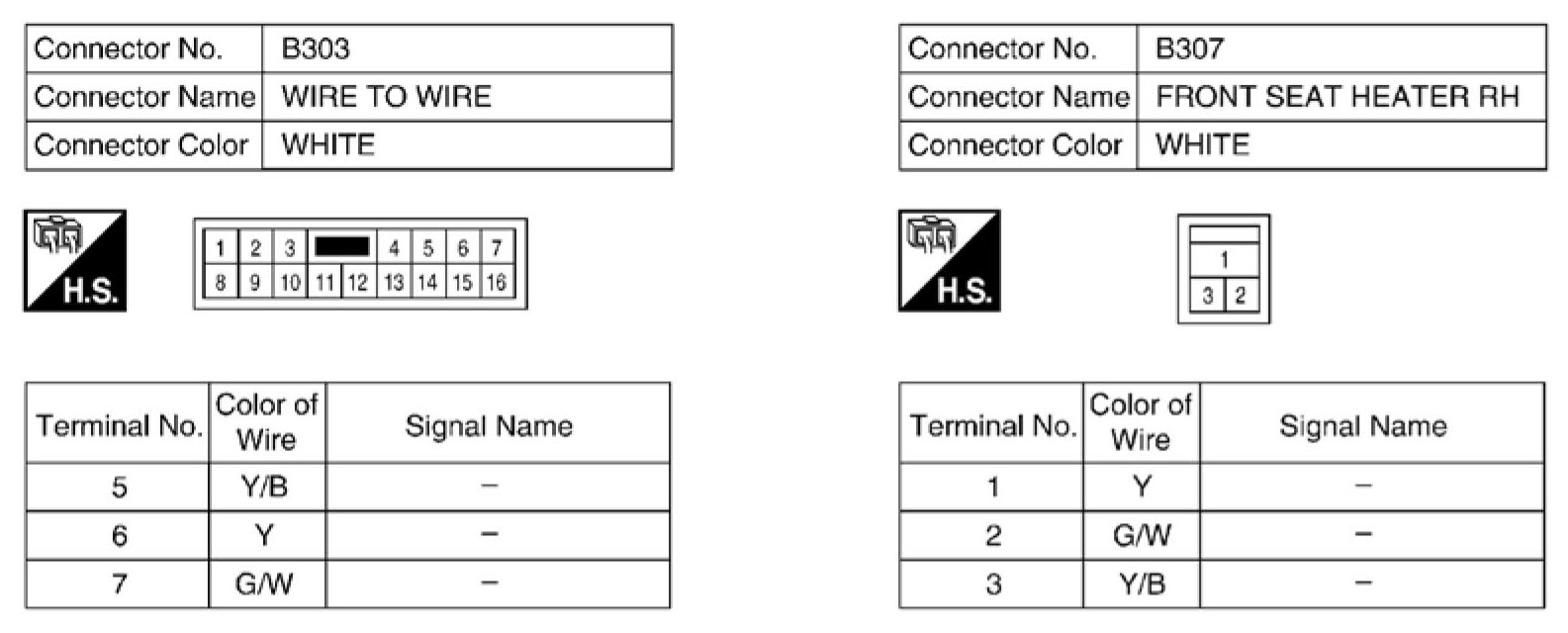

Heated Seat Connectors (Part 3):




Heated Seat Connectors (Part 4):
