Audio Unit [Base Audio]

Audio Unit: Wiring Diagram [Base Audio]

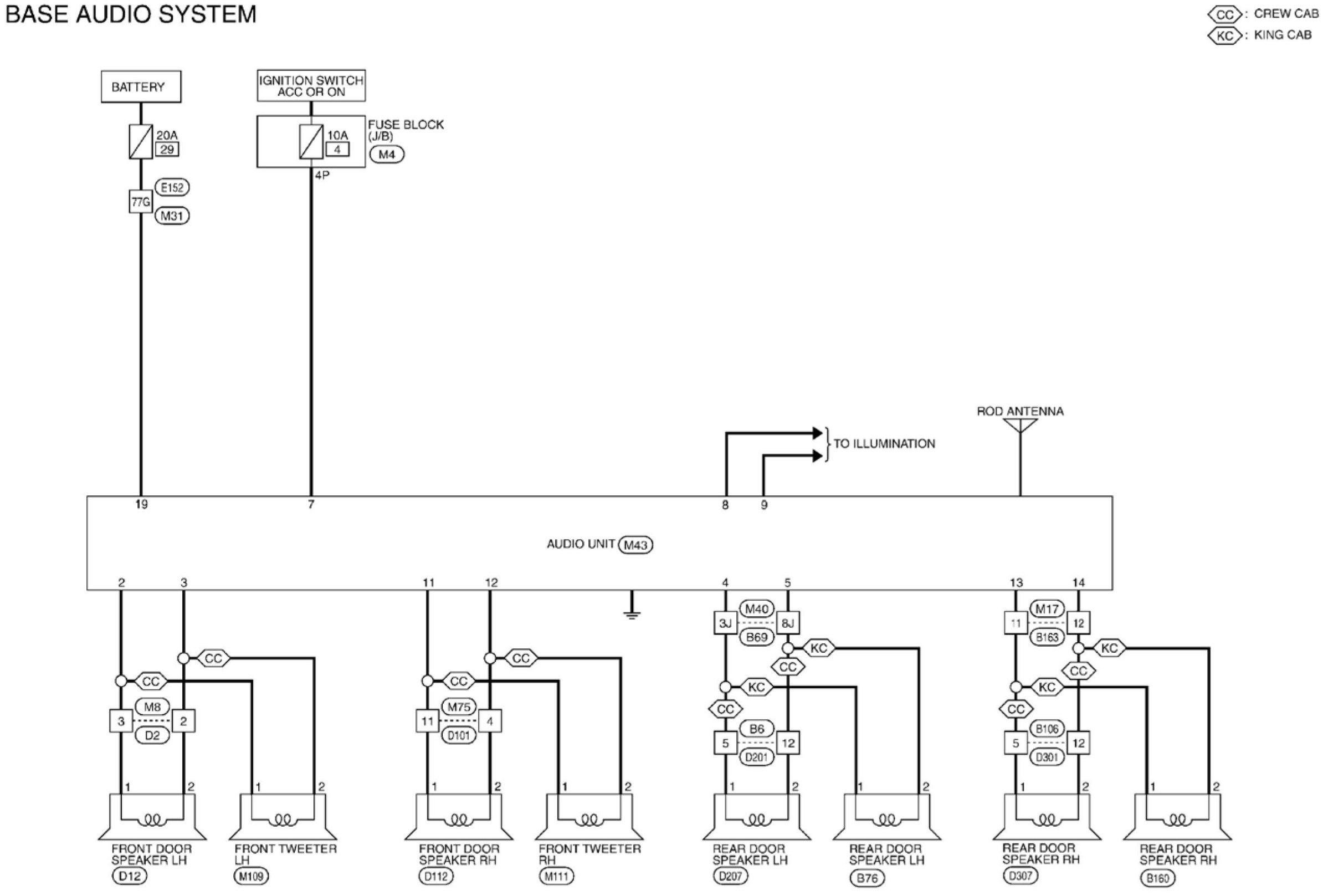

Base Audio System:

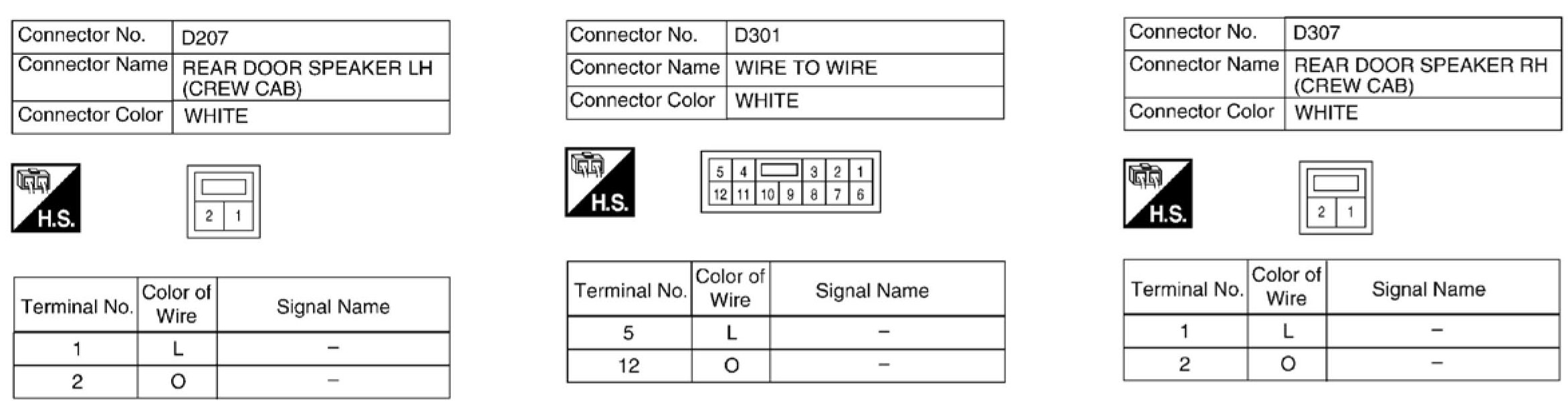

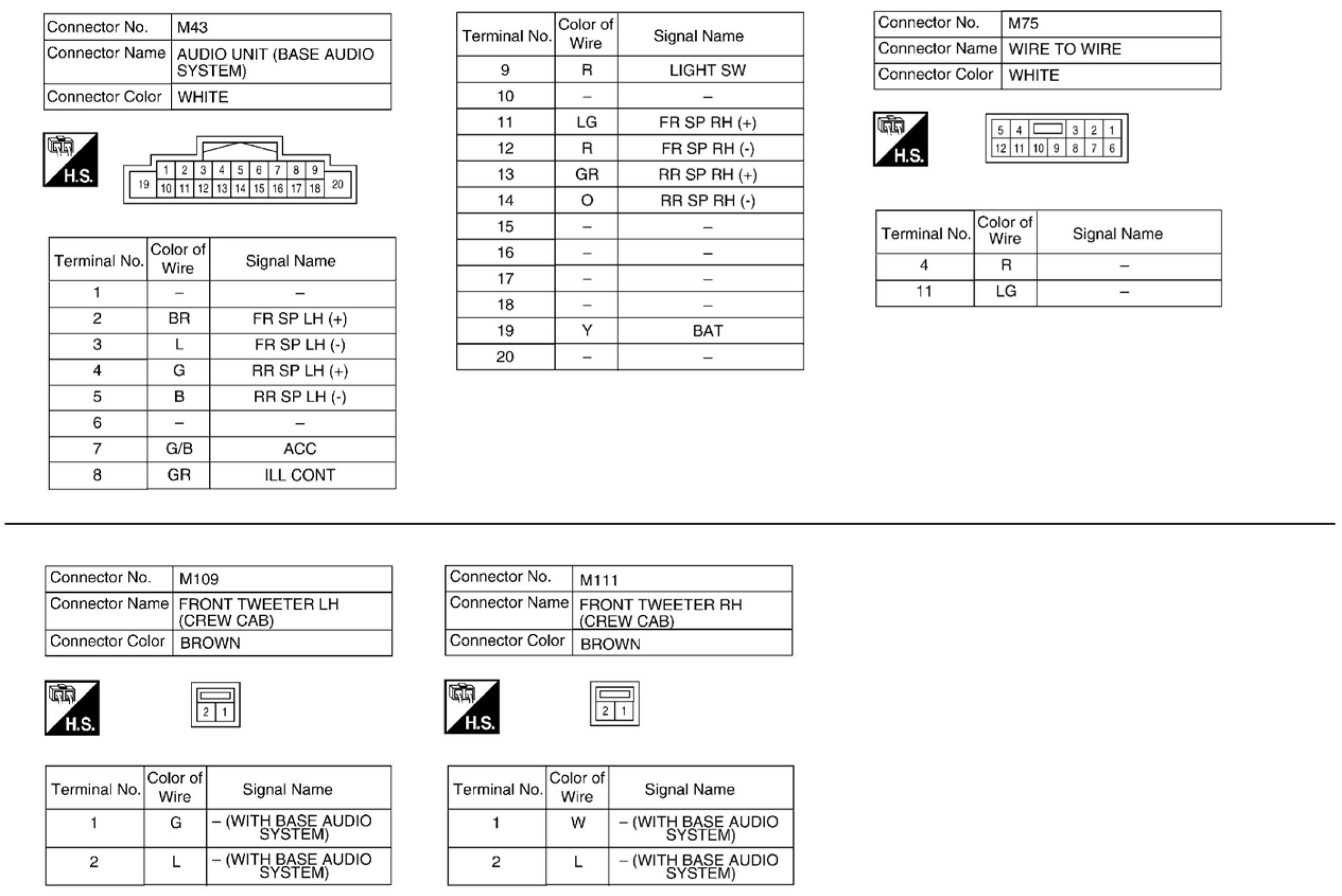

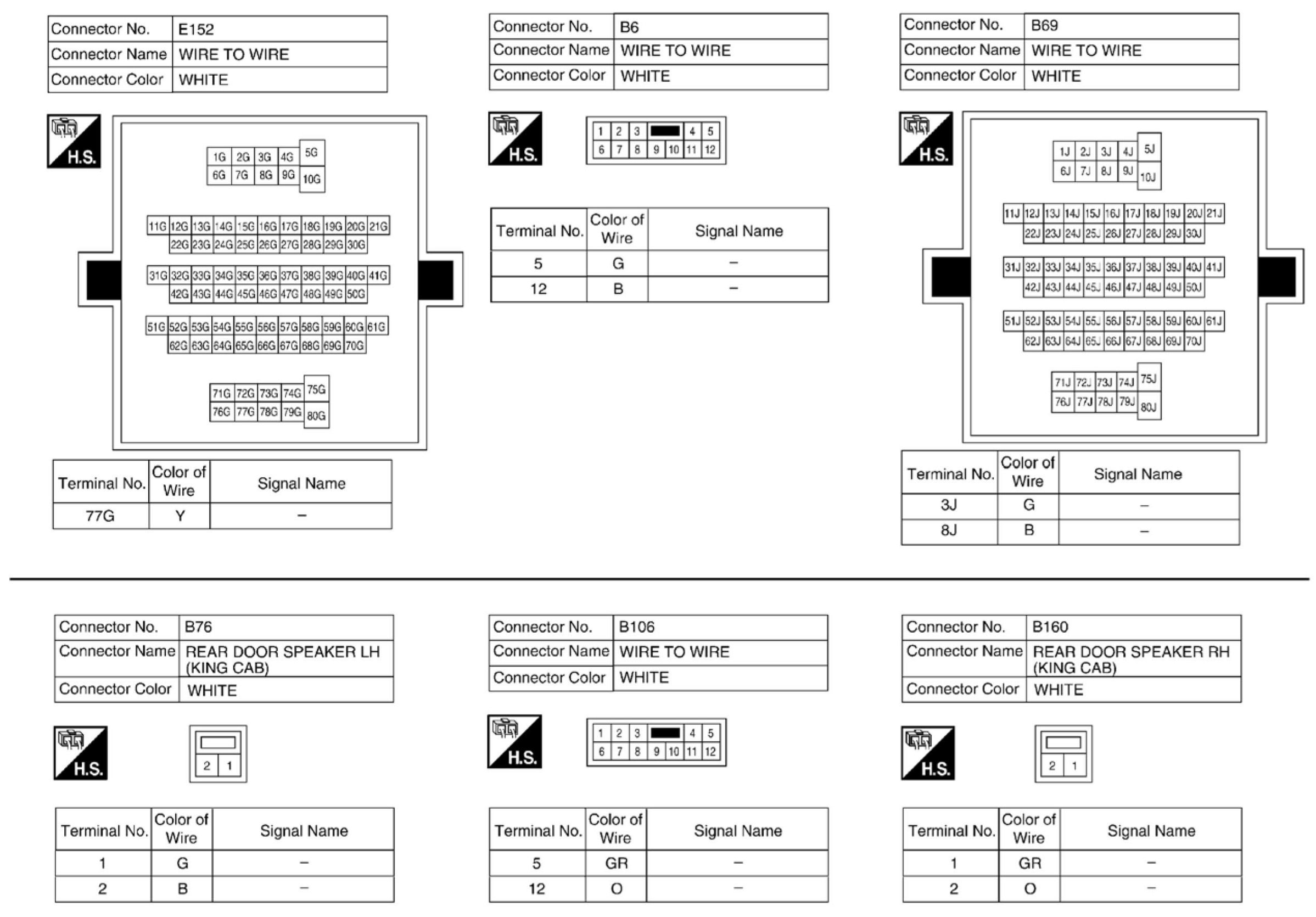

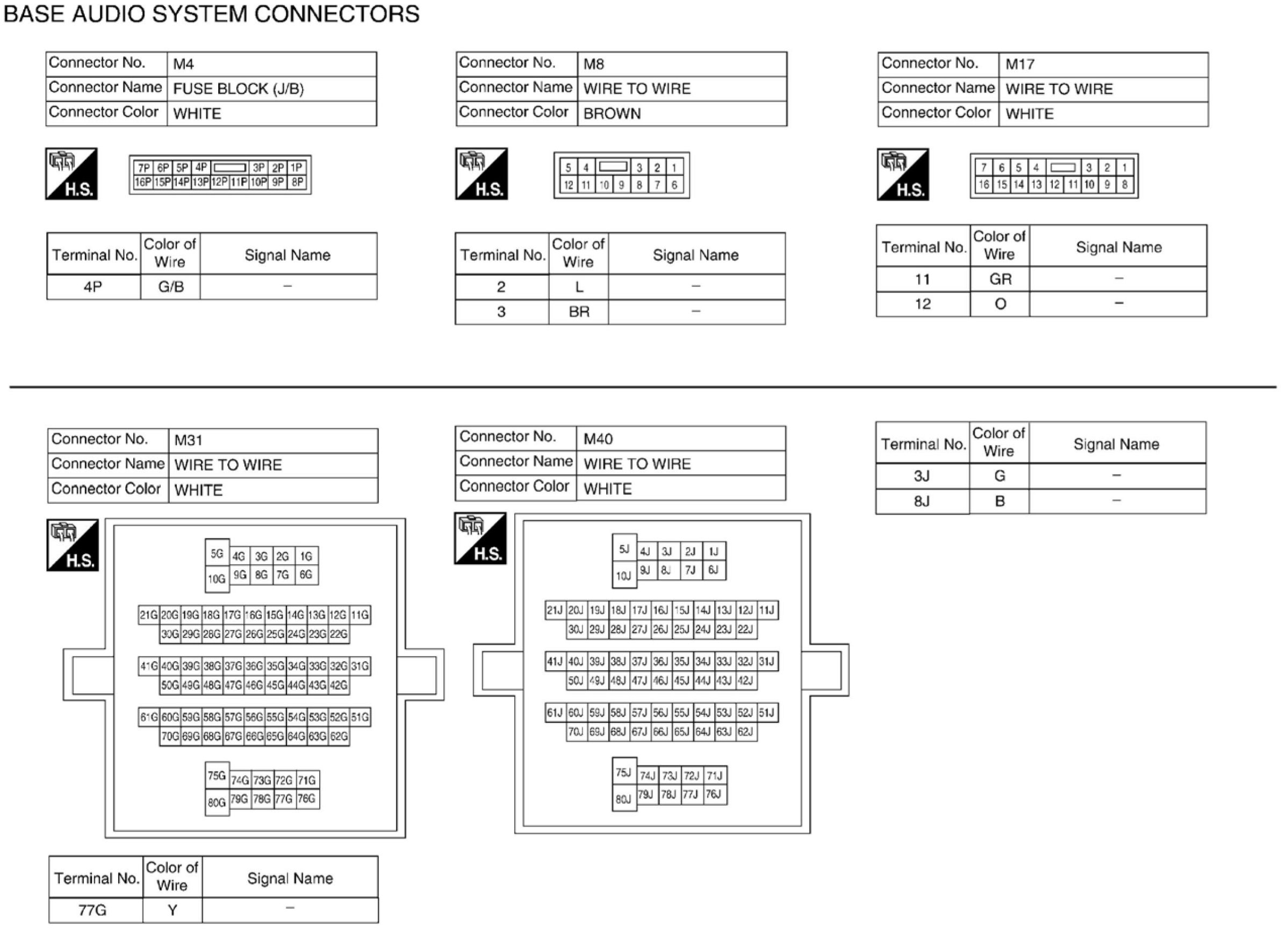

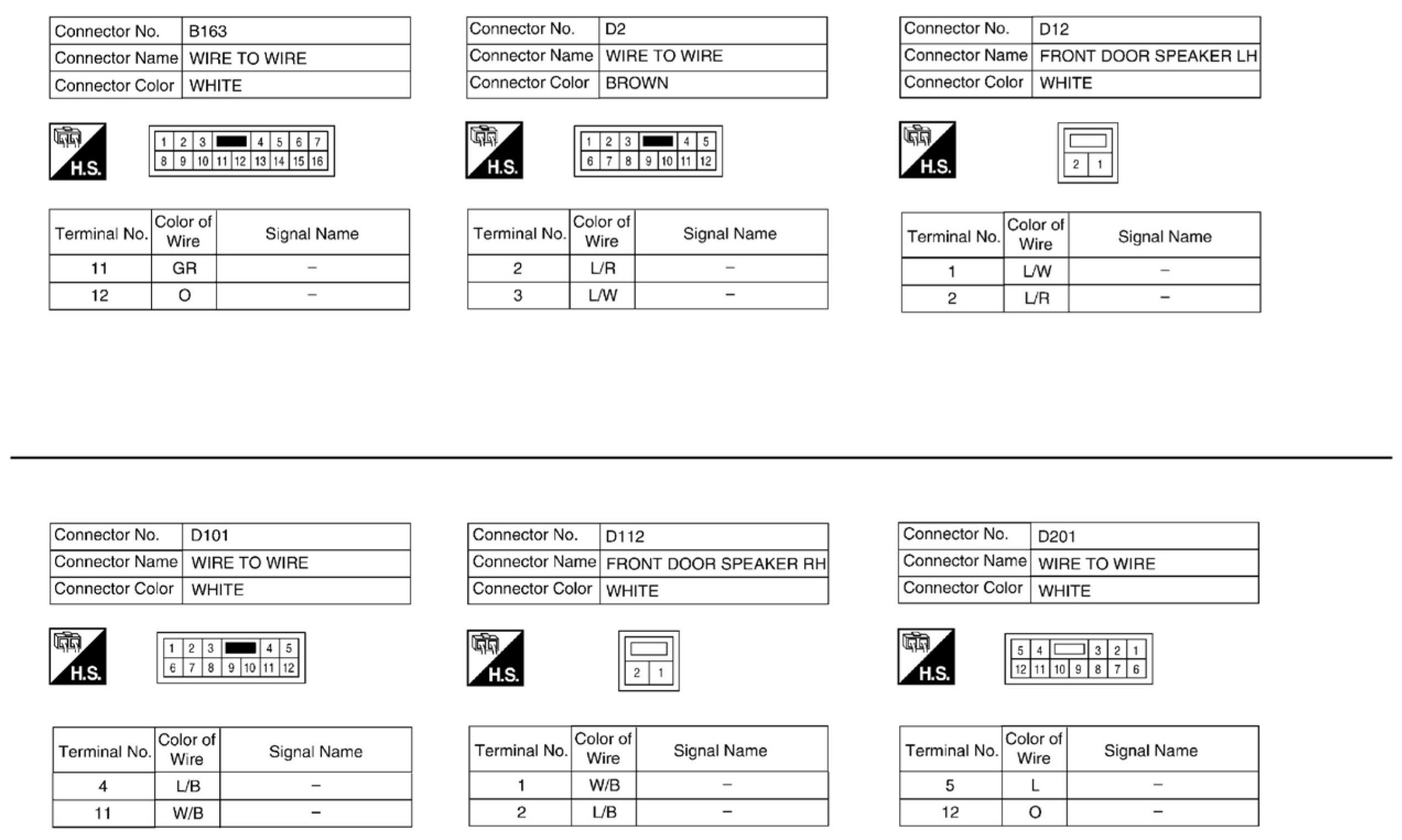

Base Audio System Connectors

Base Audio System Connectors (Part 1):




Base Audio System Connectors (Part 2):




Base Audio System Connectors (Part 3):




Base Audio System Connectors (Part 4):




Base Audio System Connectors (Part 5):
