Heated Element, Mirror

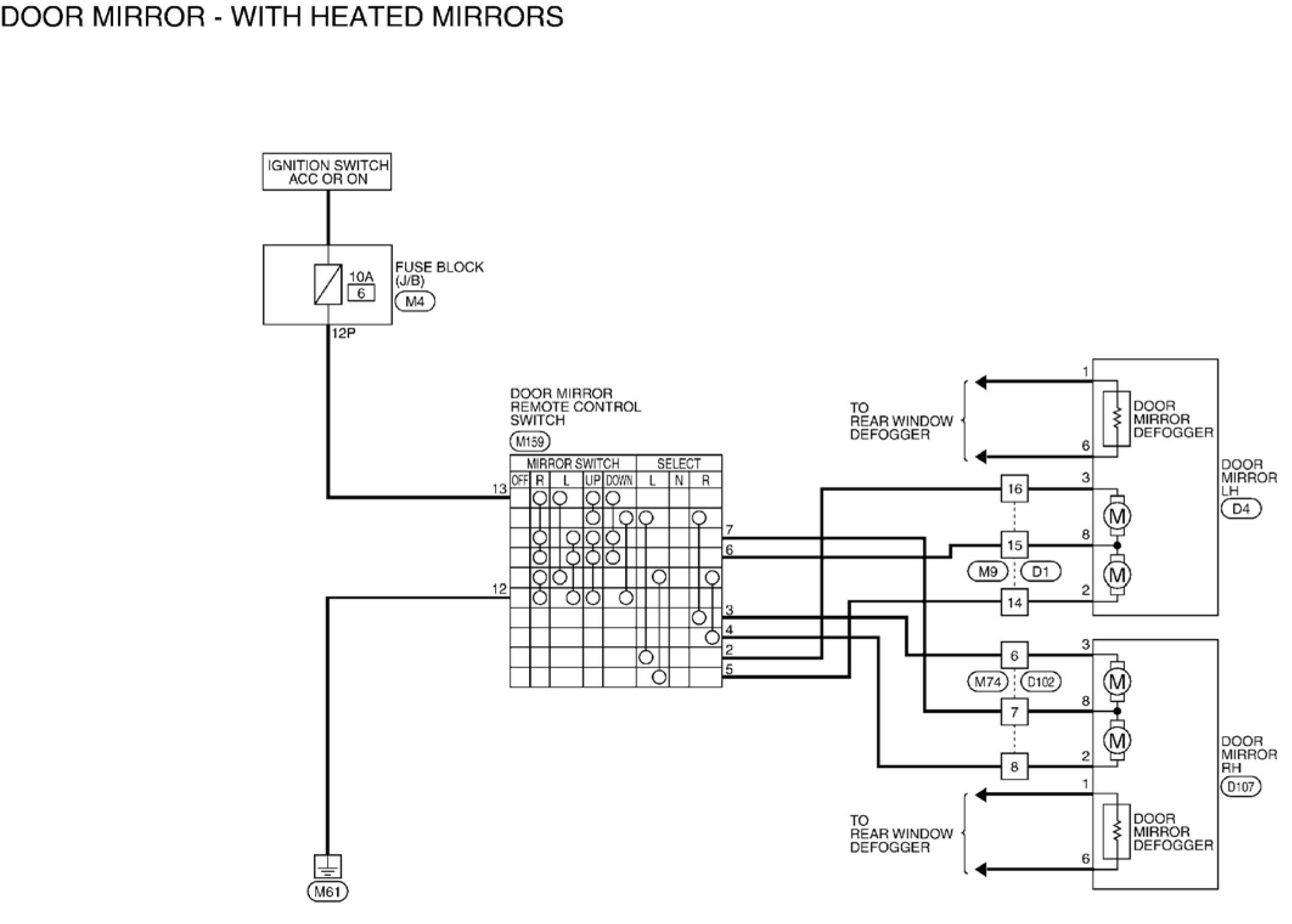

Door Mirror: Wiring Diagram [with Heated Mirrors]

Door Mirrors - With Heated Mirrors:






Door Mirror Connectors - with Heated Mirrors

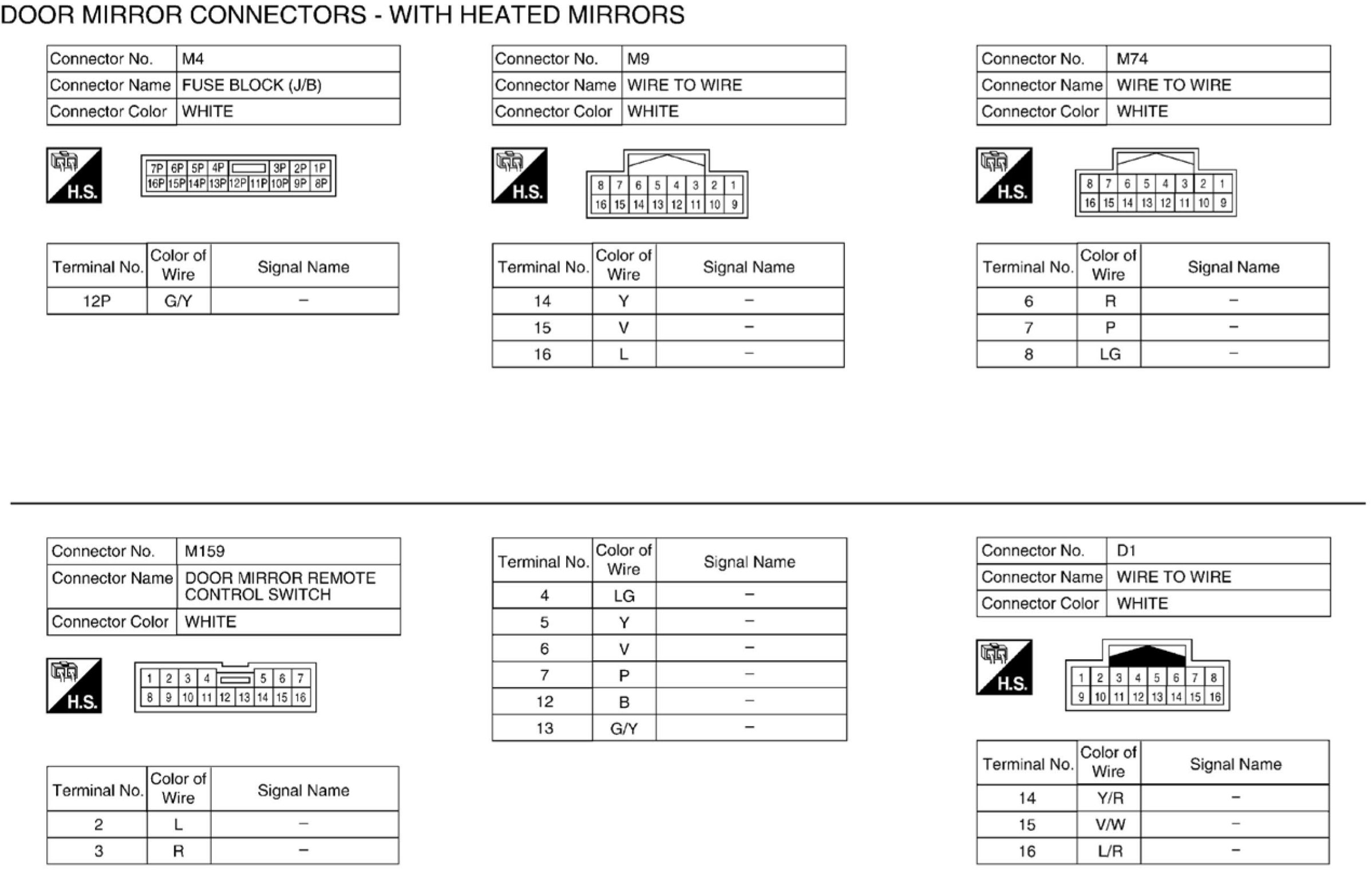

Door Mirrors Connectors - With Heated Mirrors (Part 1):

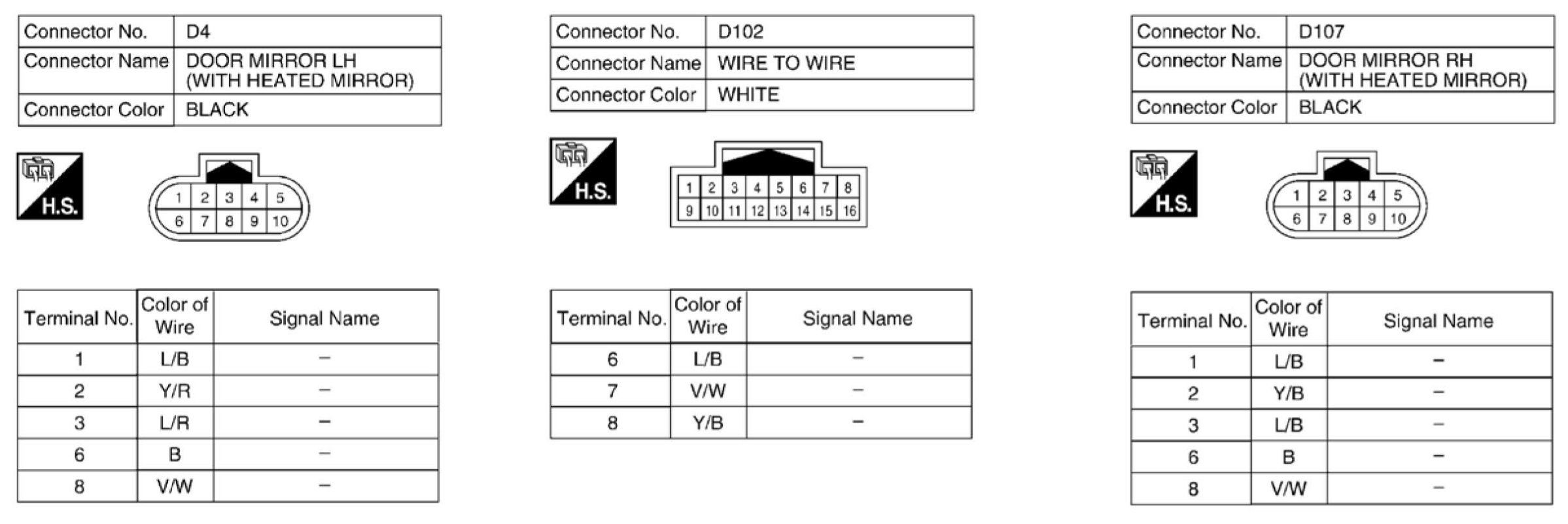

Door Mirrors Connectors - With Heated Mirrors (Part 2):
