Turn Signals

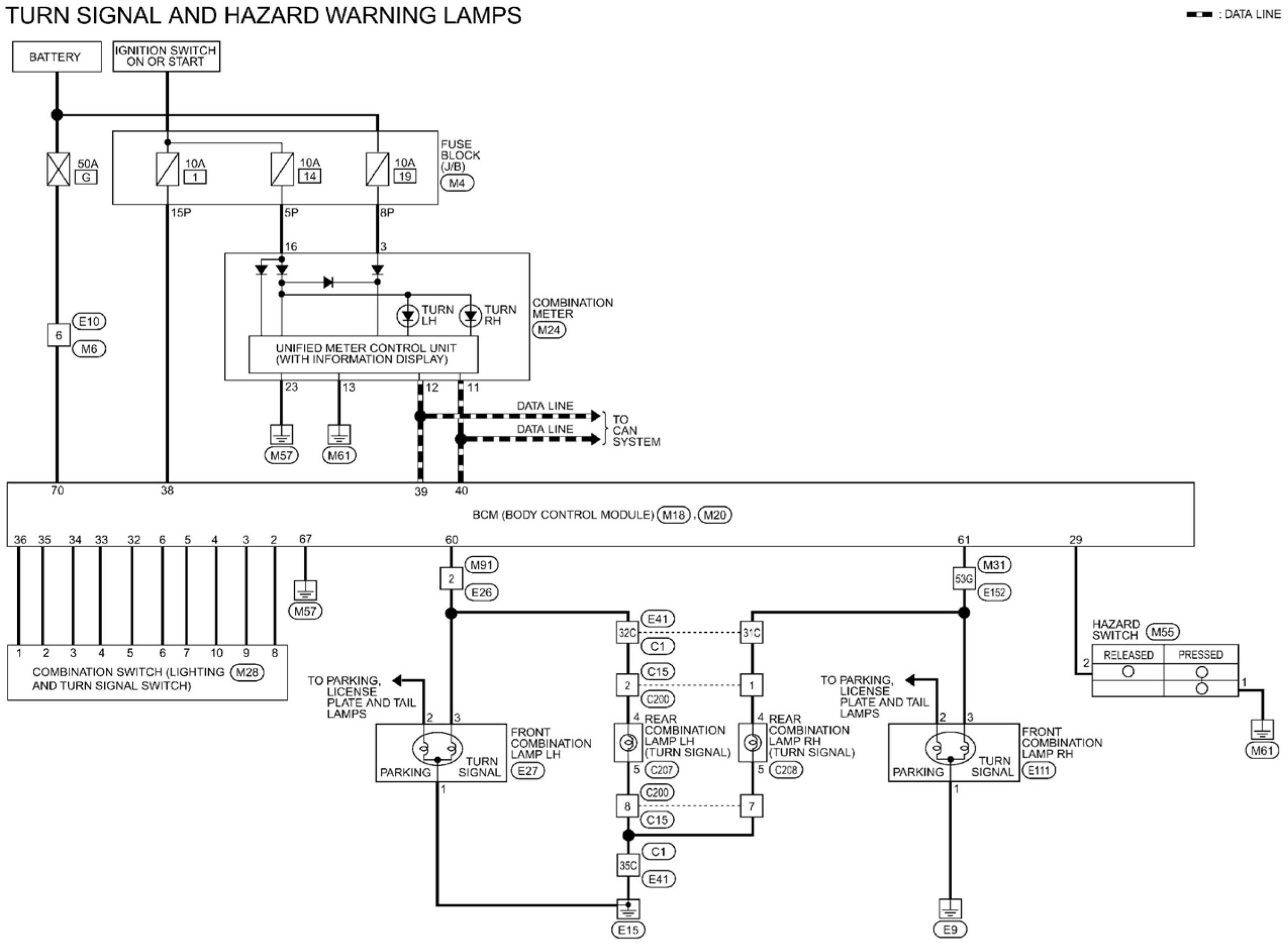

Turn Signal and Hazard Warning Lamp System: Wiring Diagram

Turn Signal And Hazard Warning Lamps:






Turn Signal and Hazard Warning Lamp

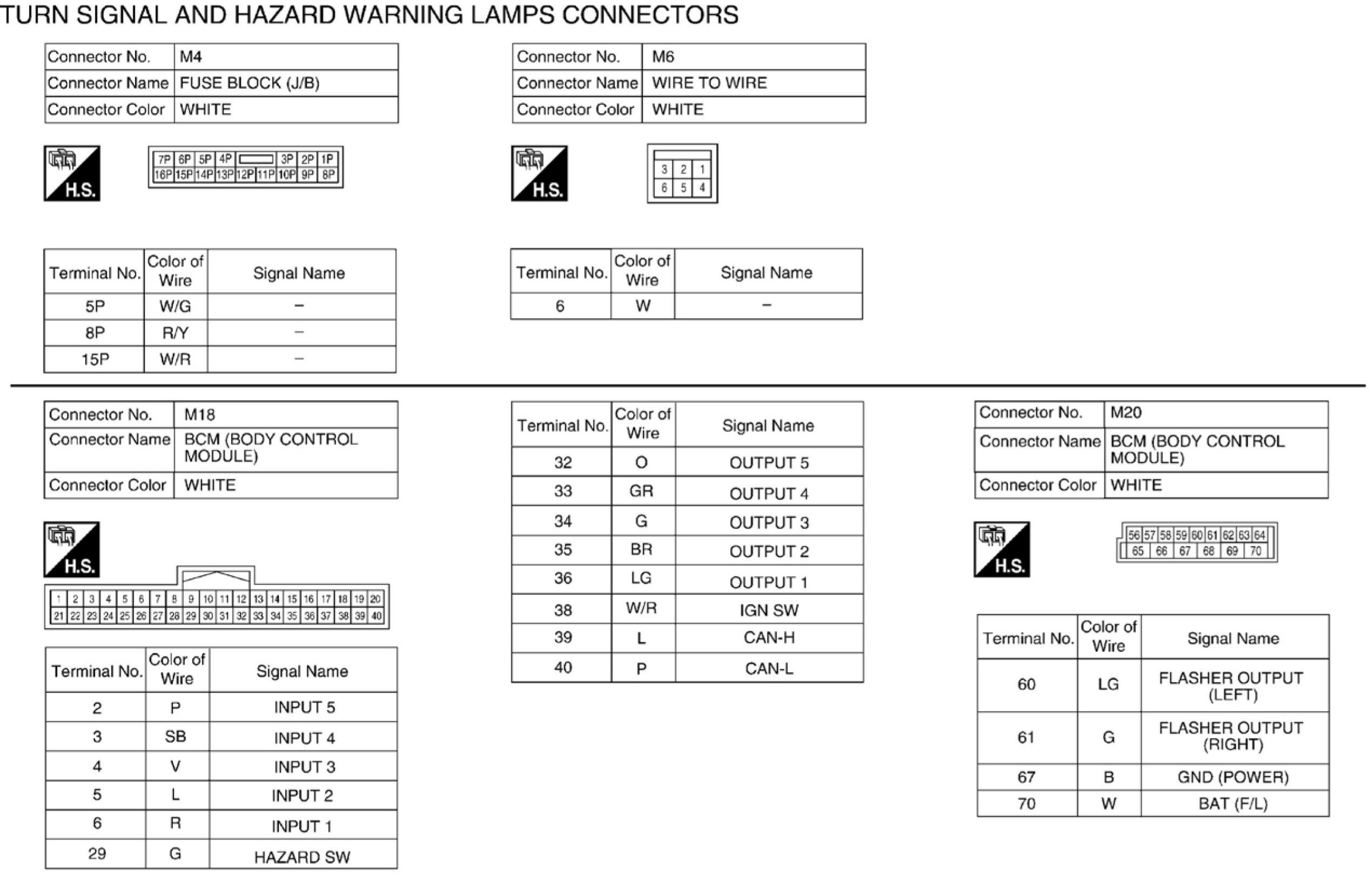

Turn Signal And Hazard Warning Lamps Connectors (Part 1):

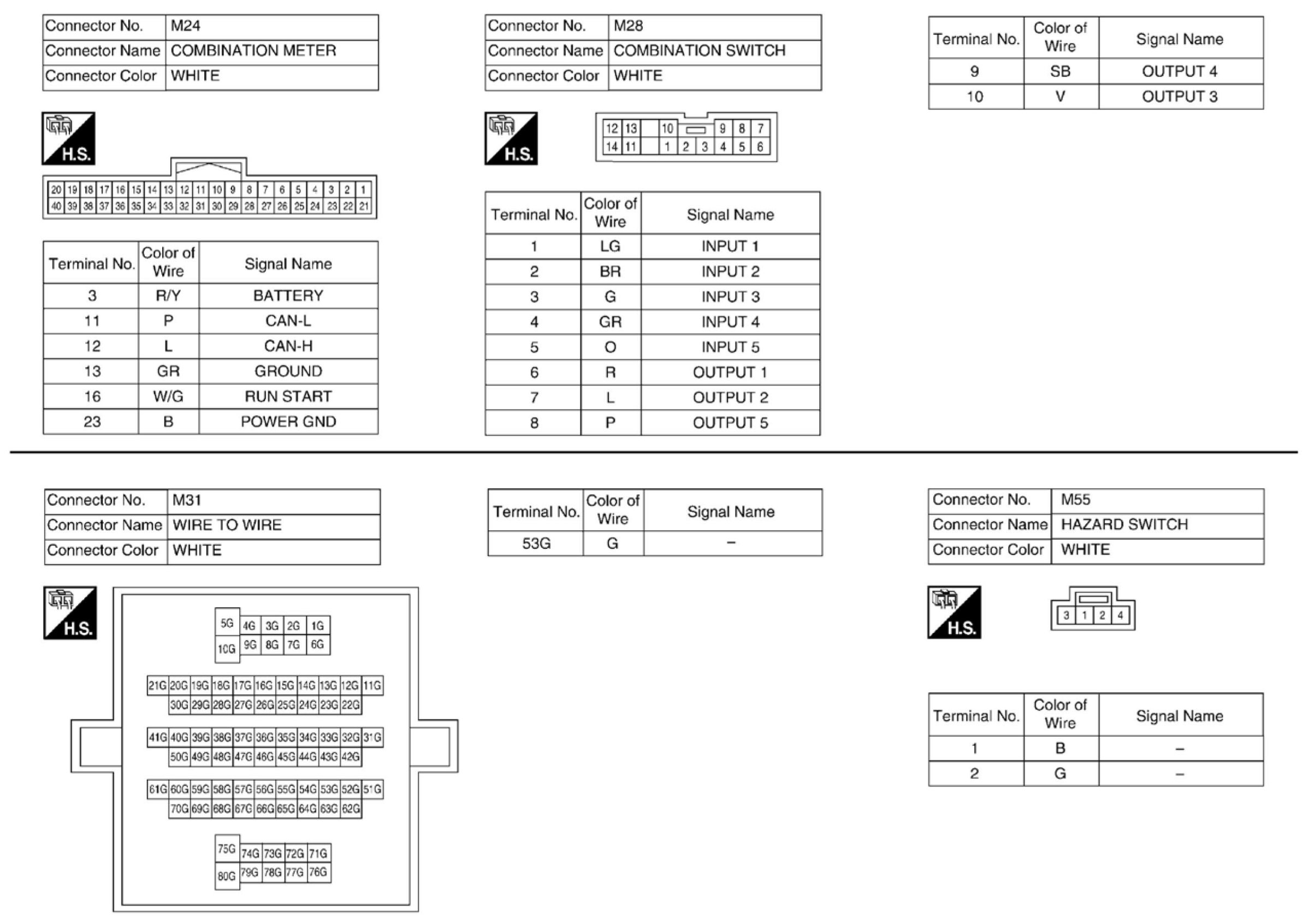

Turn Signal And Hazard Warning Lamps Connectors (Part 2):

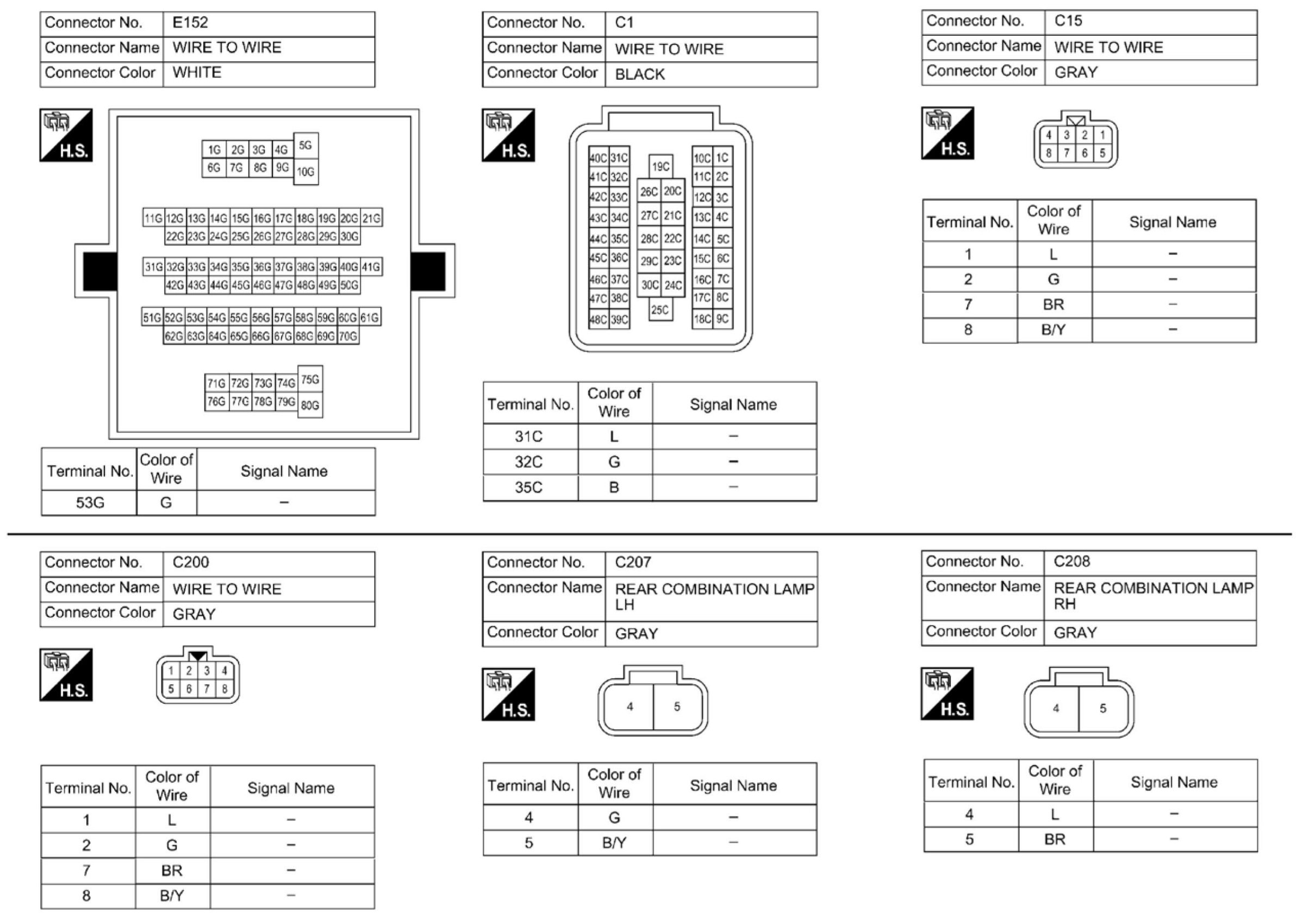

Turn Signal And Hazard Warning Lamps Connectors (Part 3):

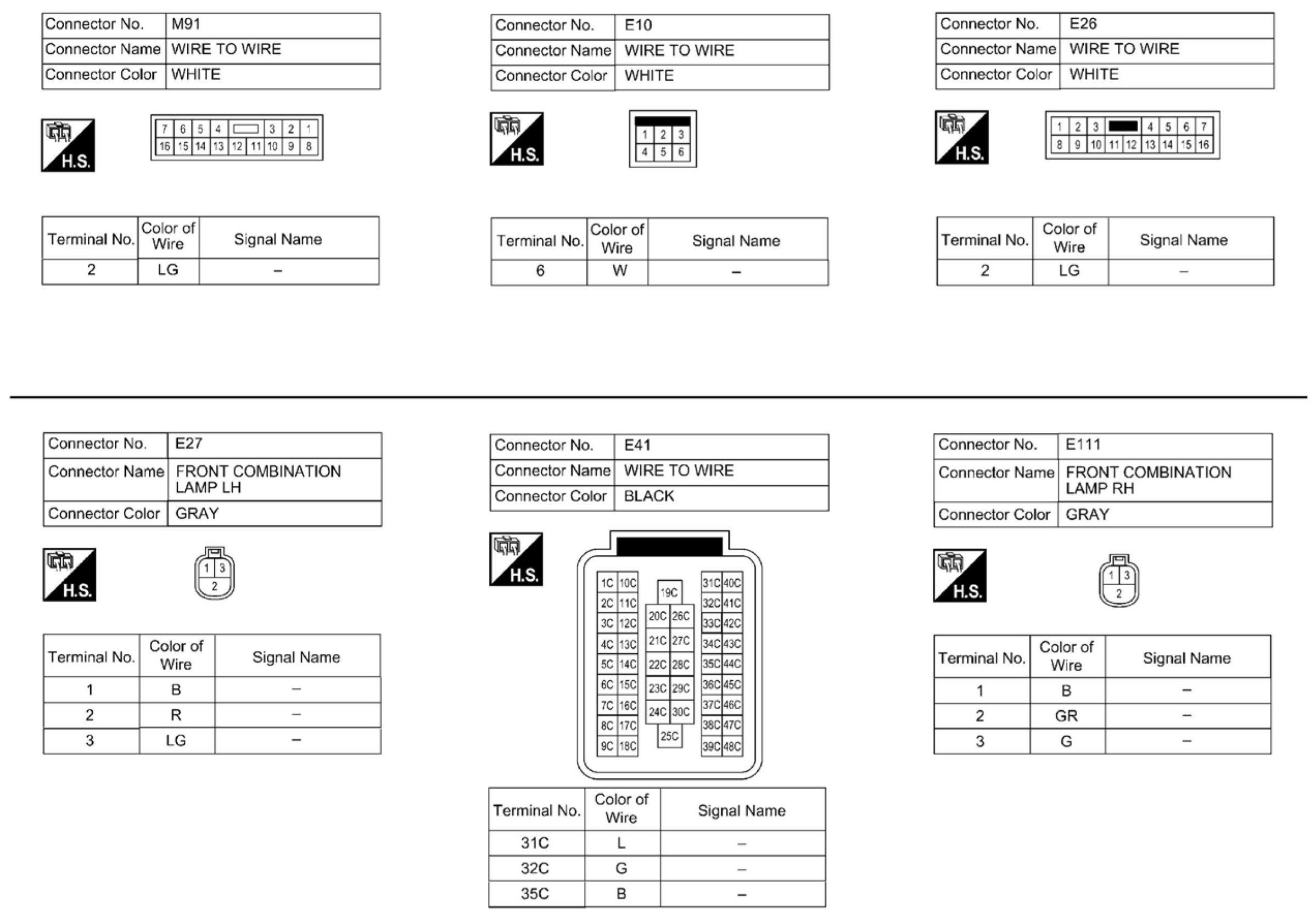

Turn Signal And Hazard Warning Lamps Connectors (Part 4):
