Fog/Driving Lamp

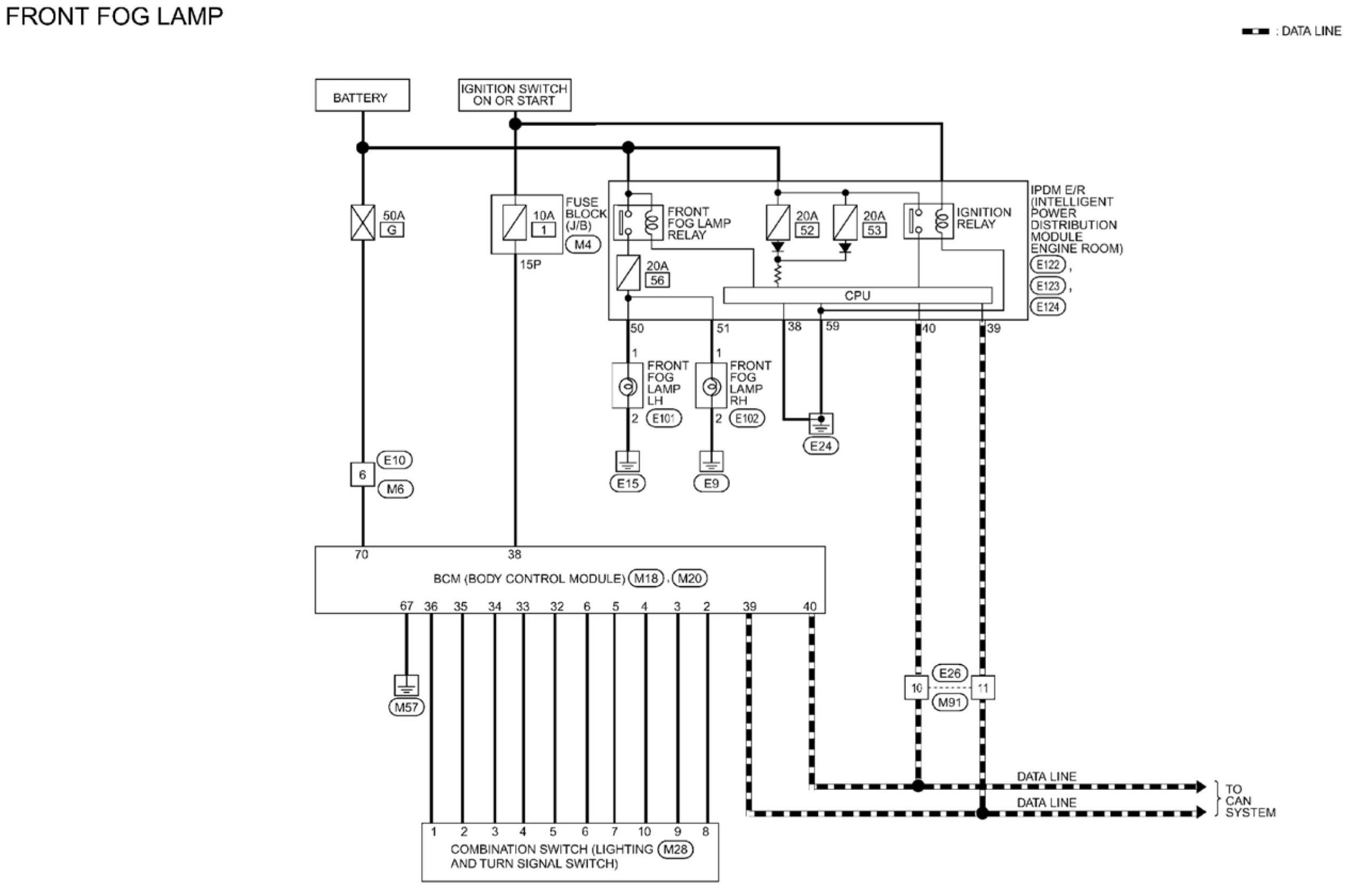

Front Fog Lamp System: Wiring Diagram

Front Fog Lamp:






Front Fog Lamp Connectors

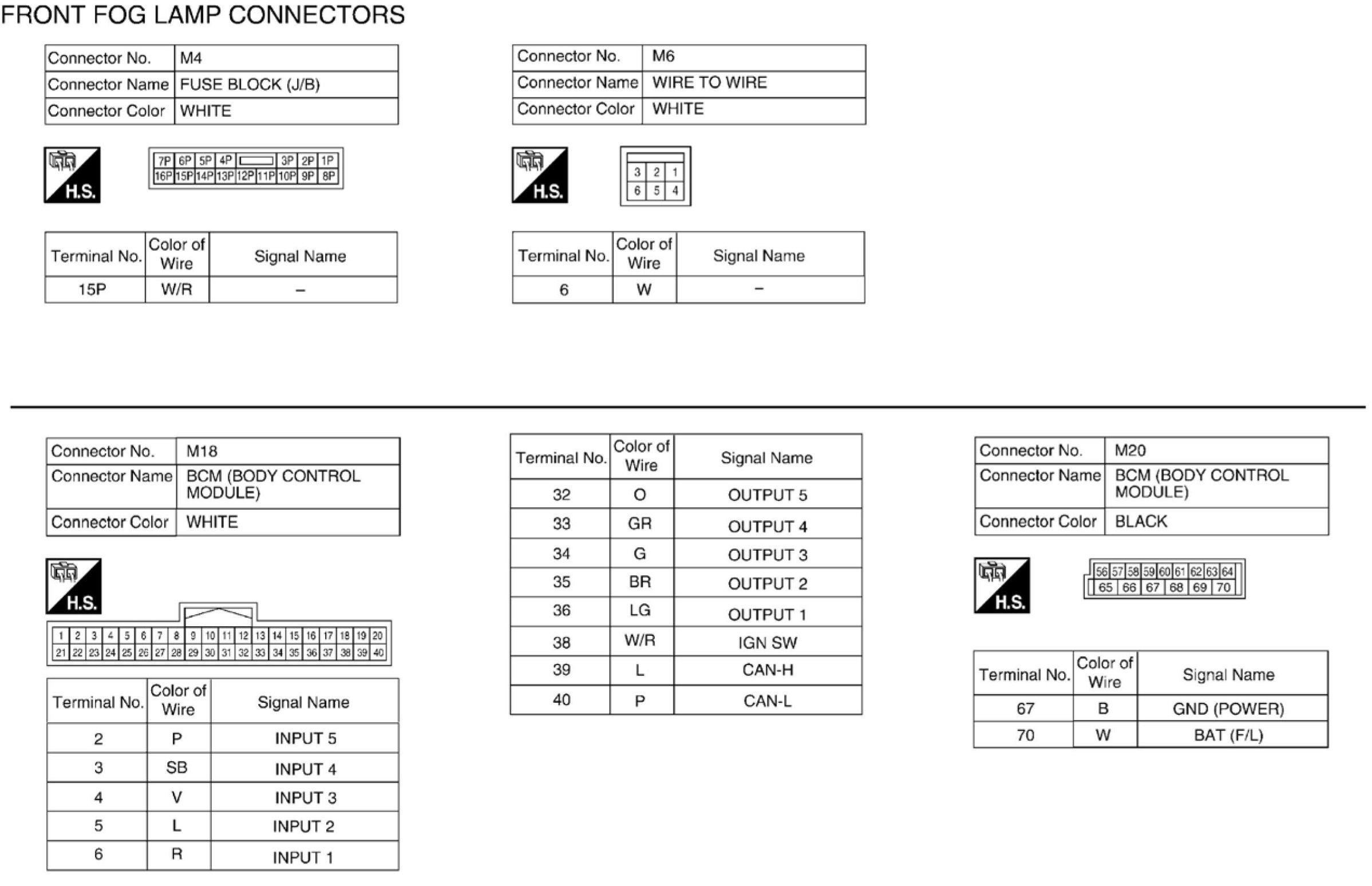

Front Fog Lamp Connectors (Part 1):

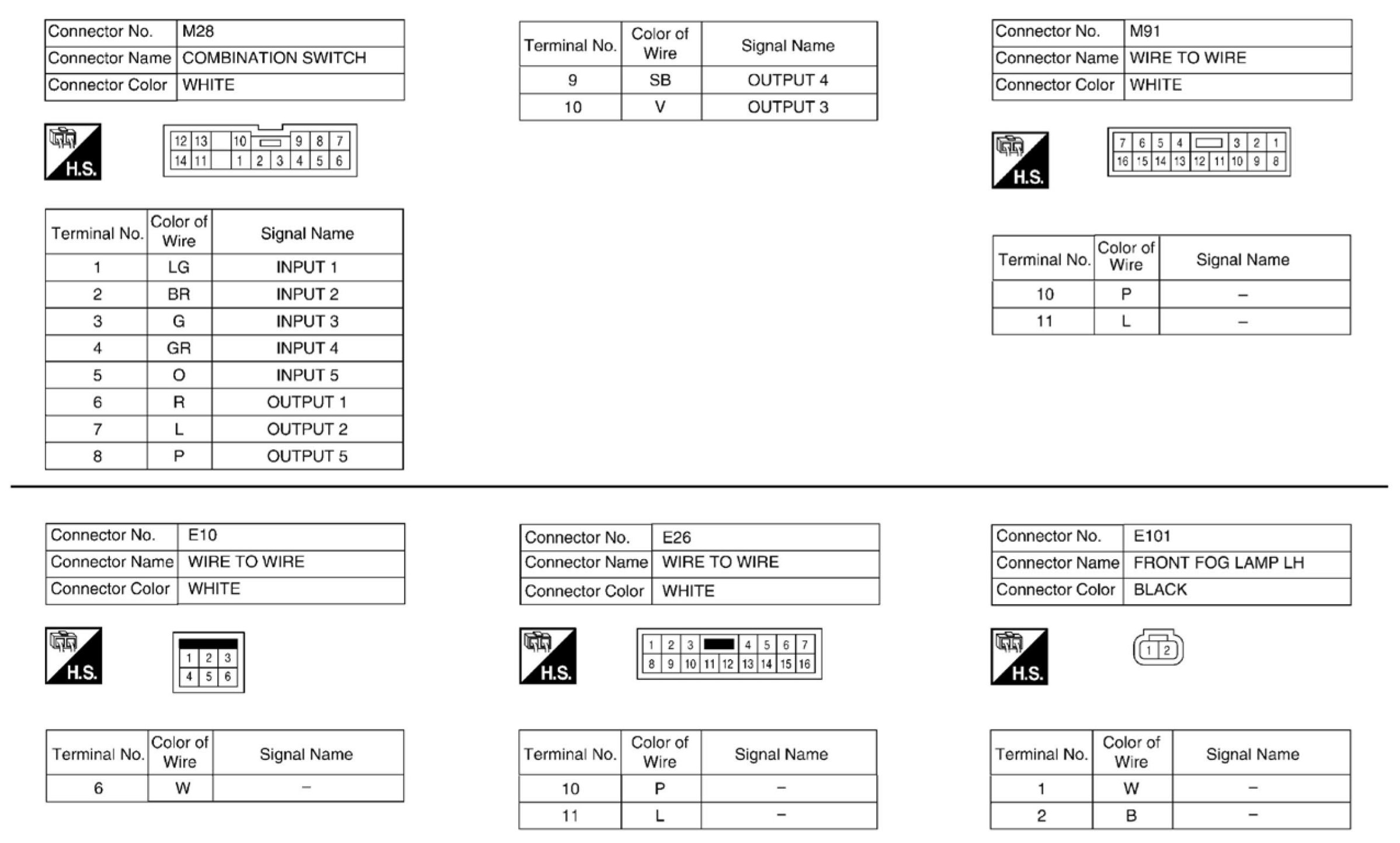

Front Fog Lamp Connectors (Part 2):

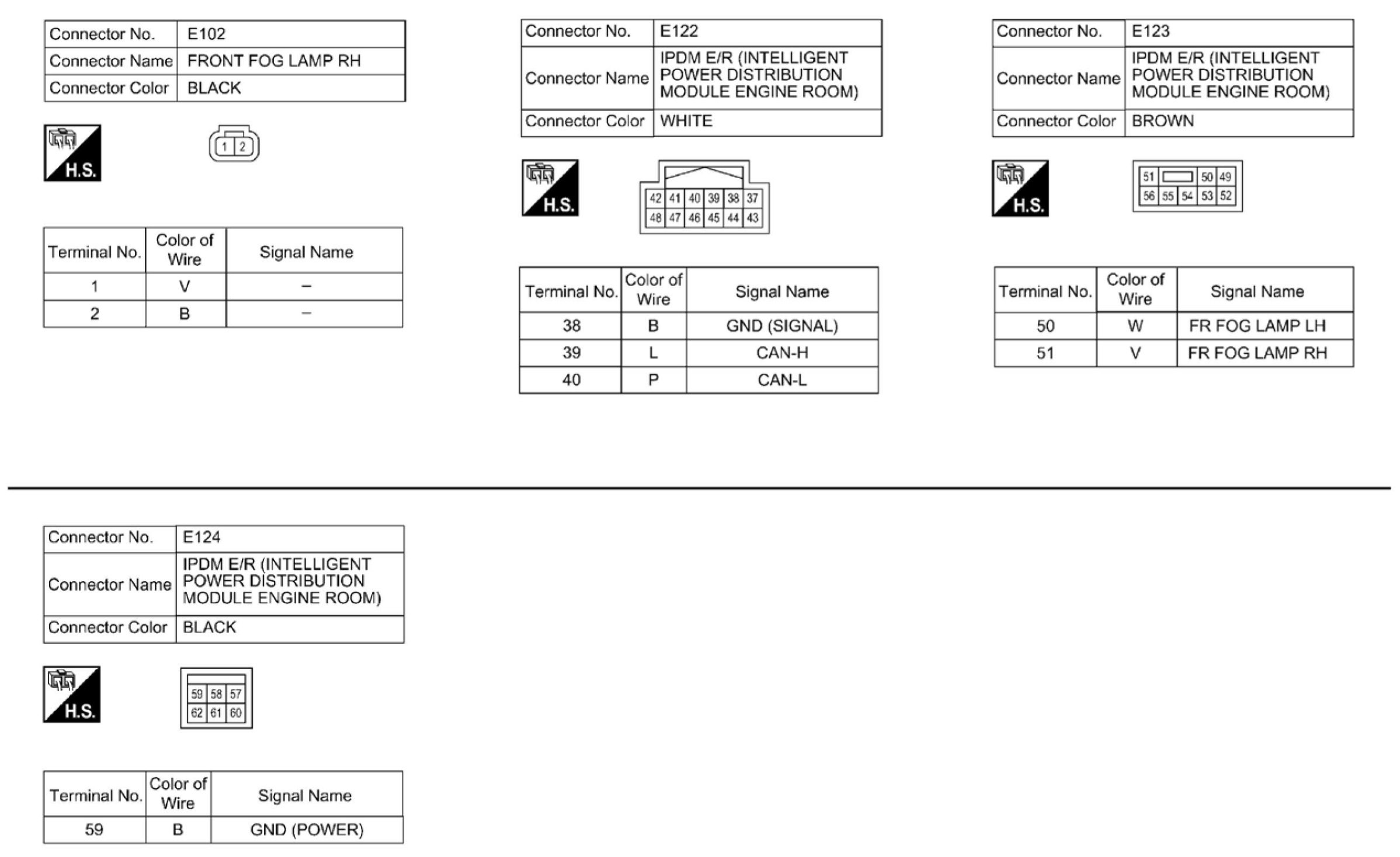

Front Fog Lamp Connectors (Part 3):
