Brake Lamp

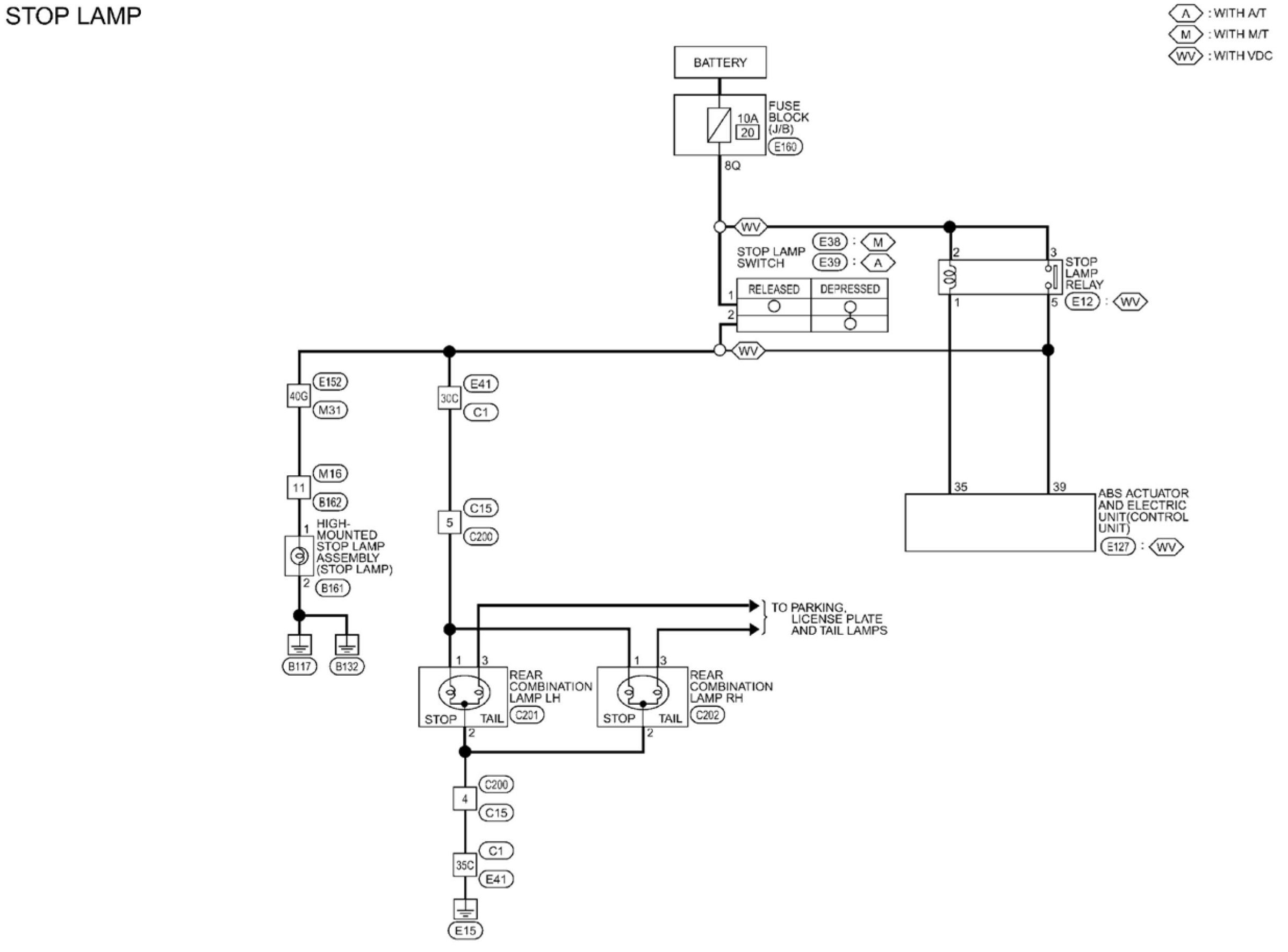

Stop Lamp: Wiring Diagram

Stop Lamp:






Stop Lamp Connectors

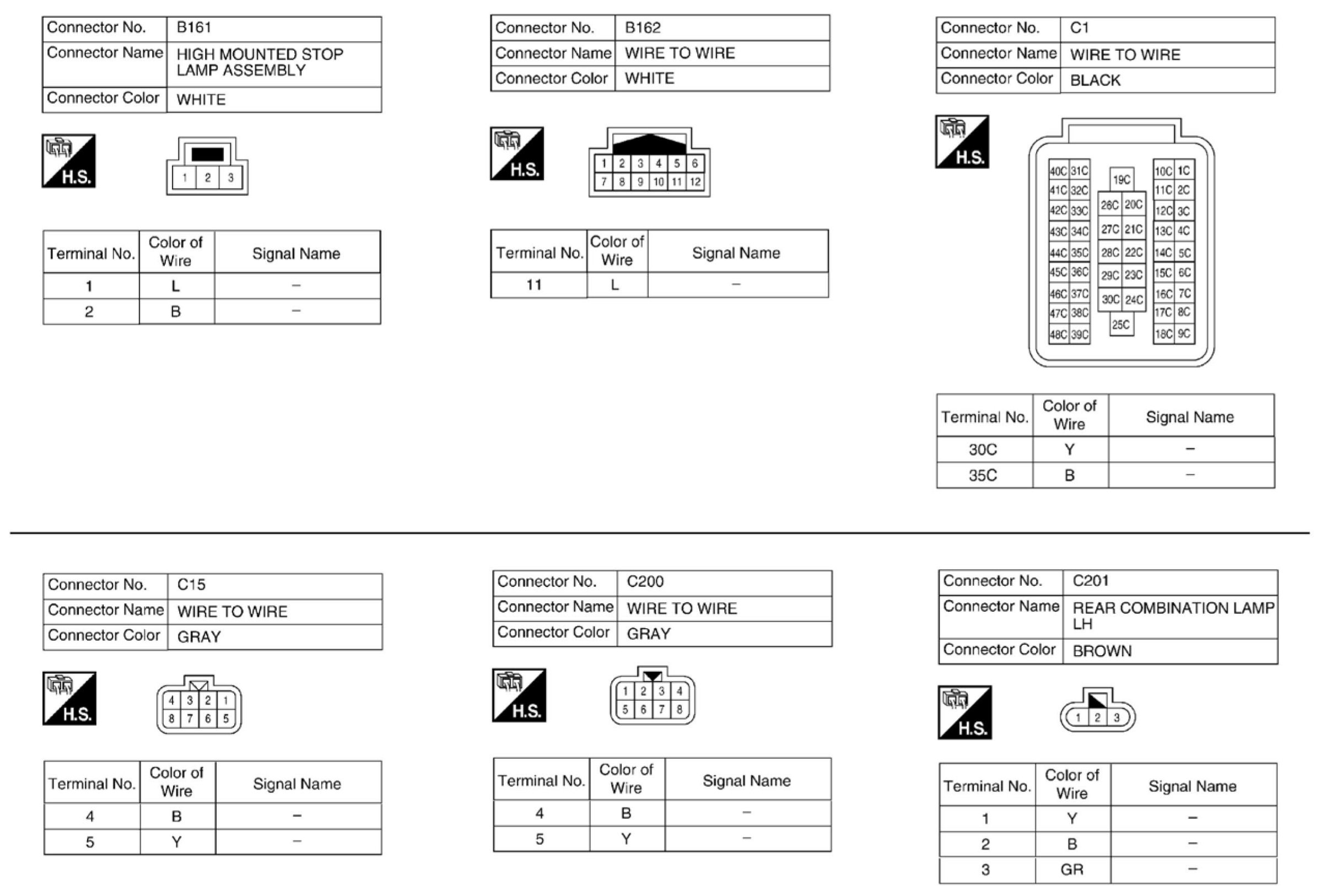

Stop Lamp Connectors (Part 1):

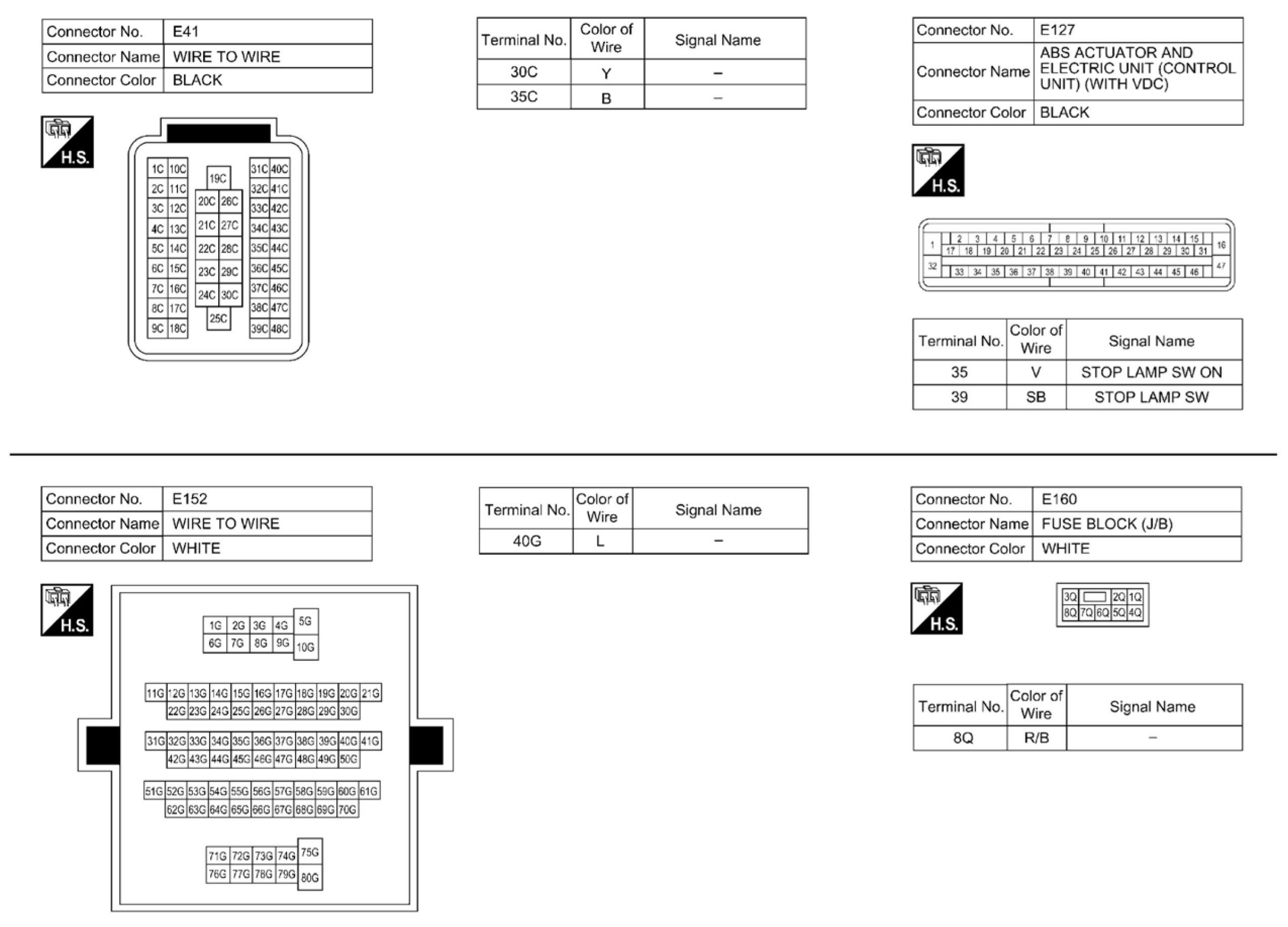

Stop Lamp Connectors (Part 2):

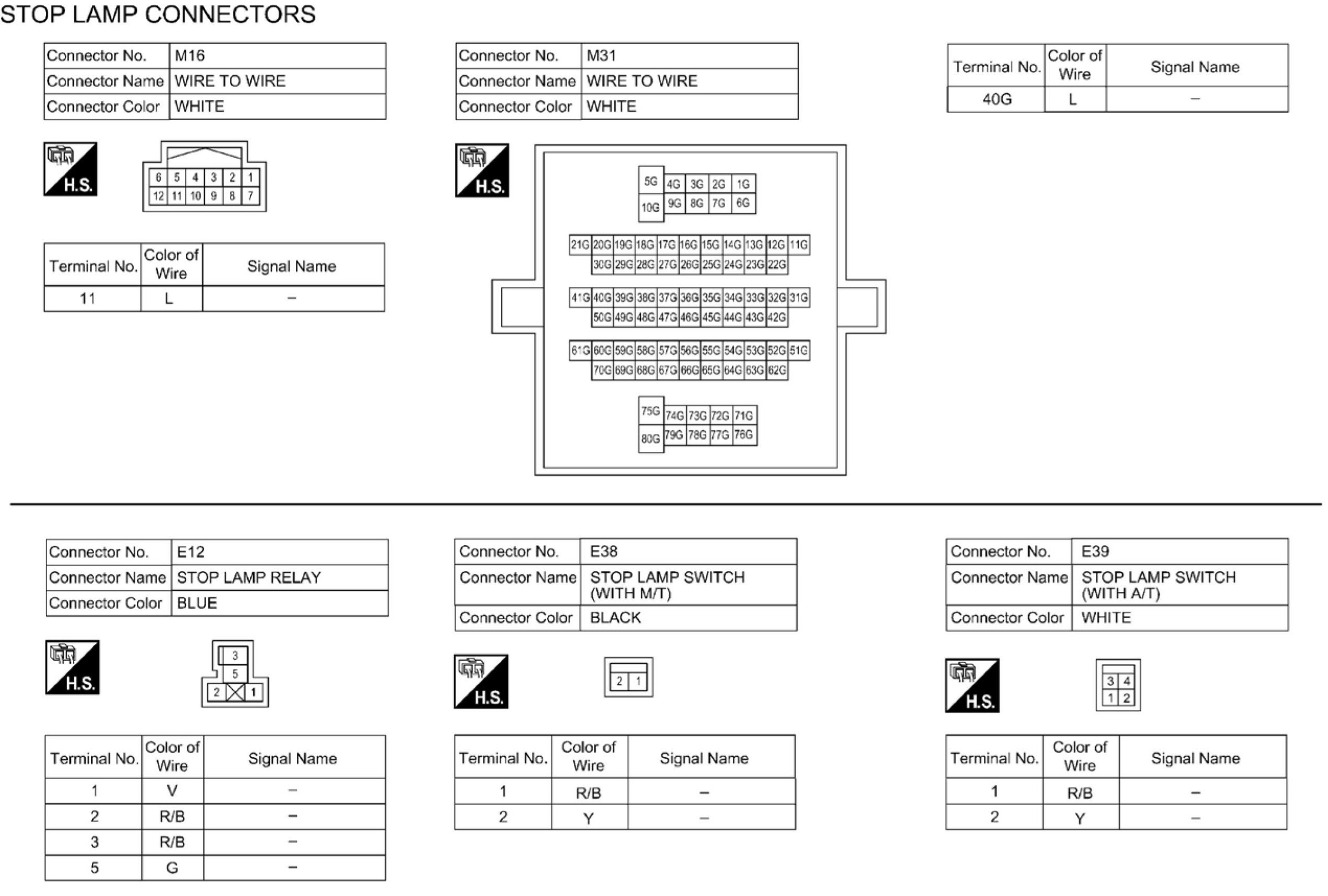

Stop Lamp Connectors (Part 3):

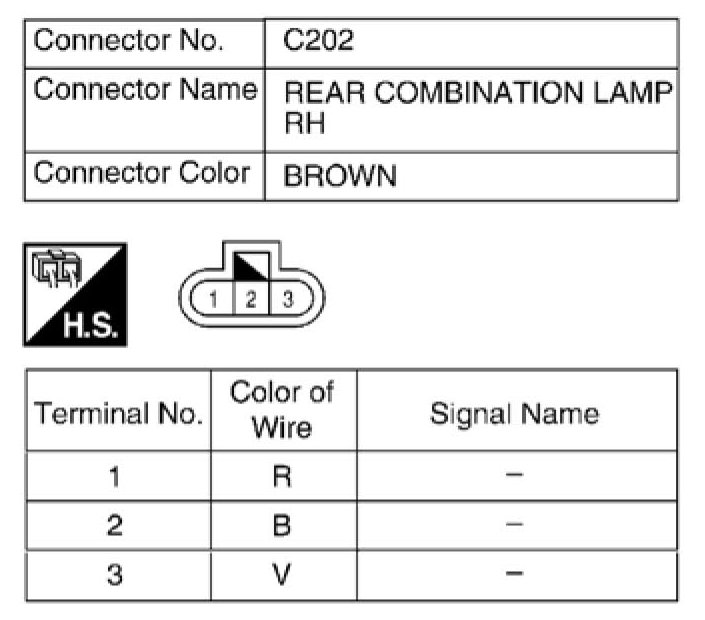

Stop Lamp Connectors (Part 4):
