Backup Lamp

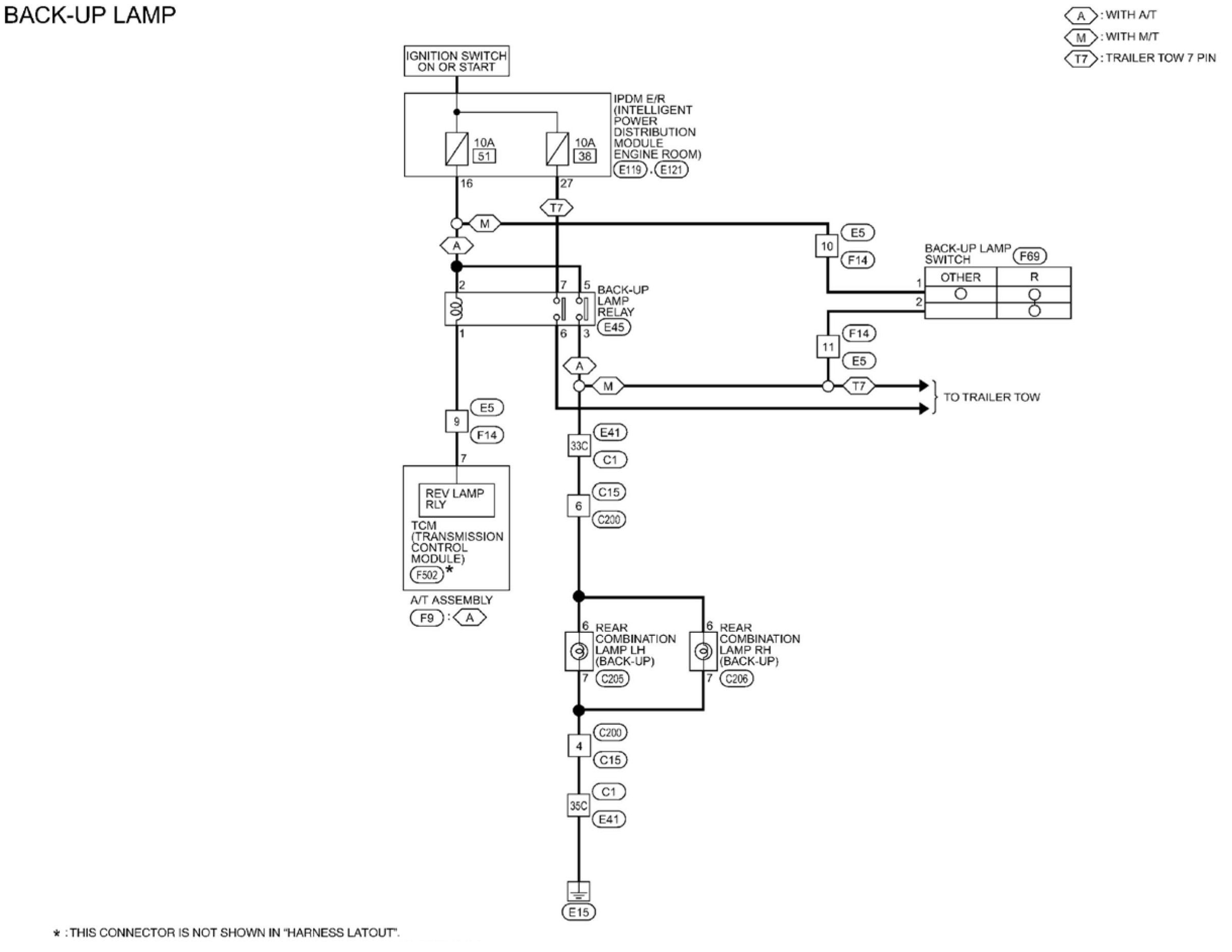

Back-Up Lamp: Wiring Diagram

Back-Up Lamp:






Back-Up Lamp: Wiring Diagram

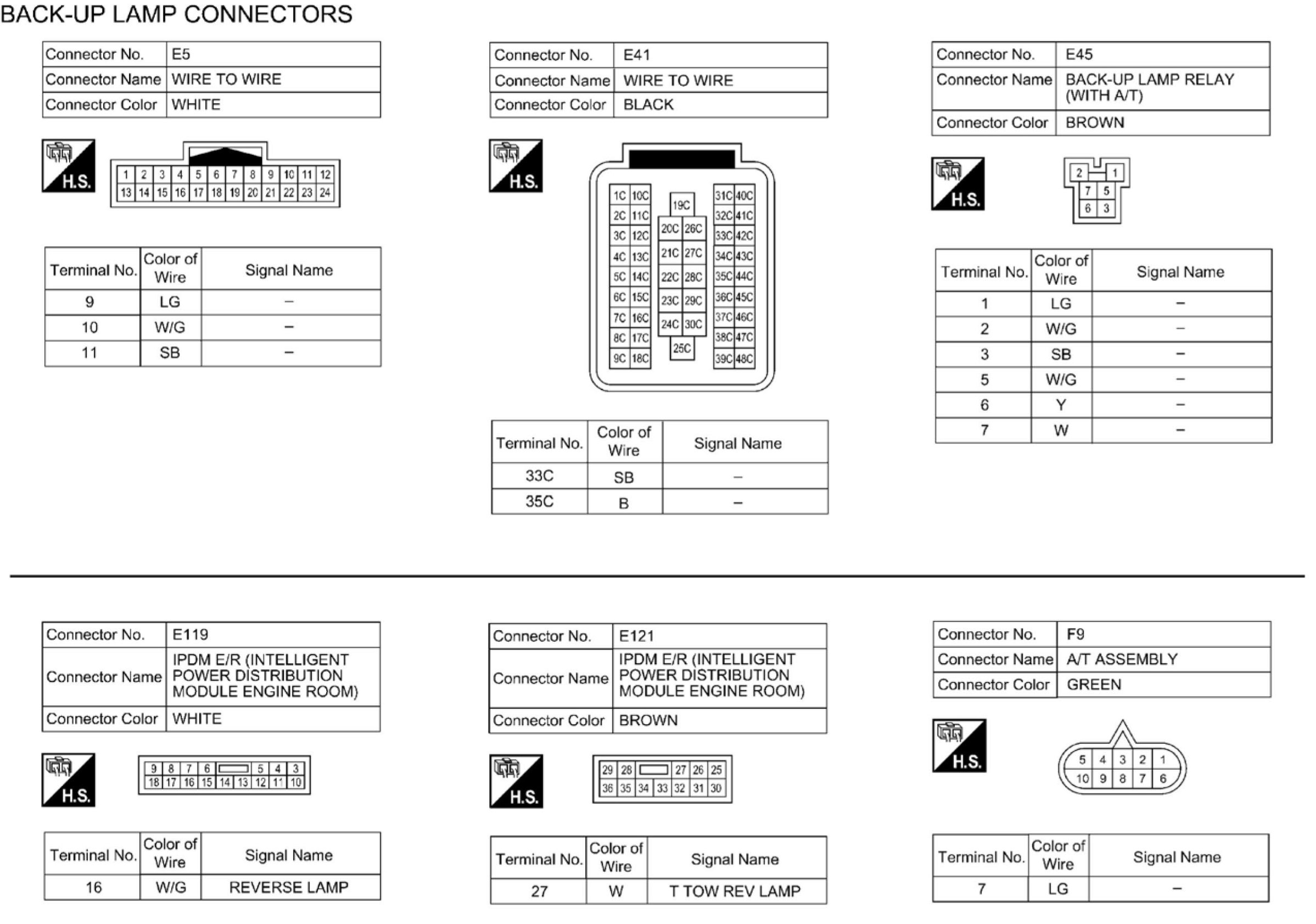

Back-Up Lamp Connectors (Part 1):

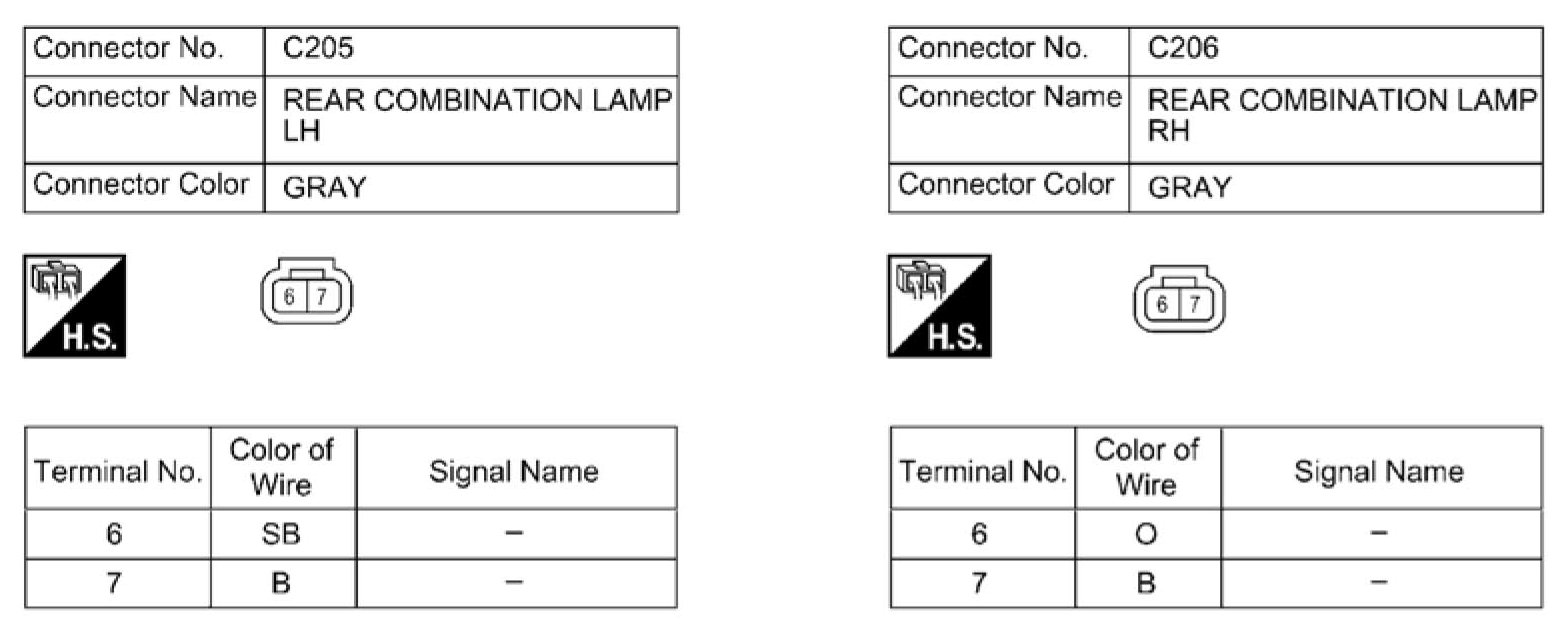

Back-Up Lamp Connectors (Part 2):

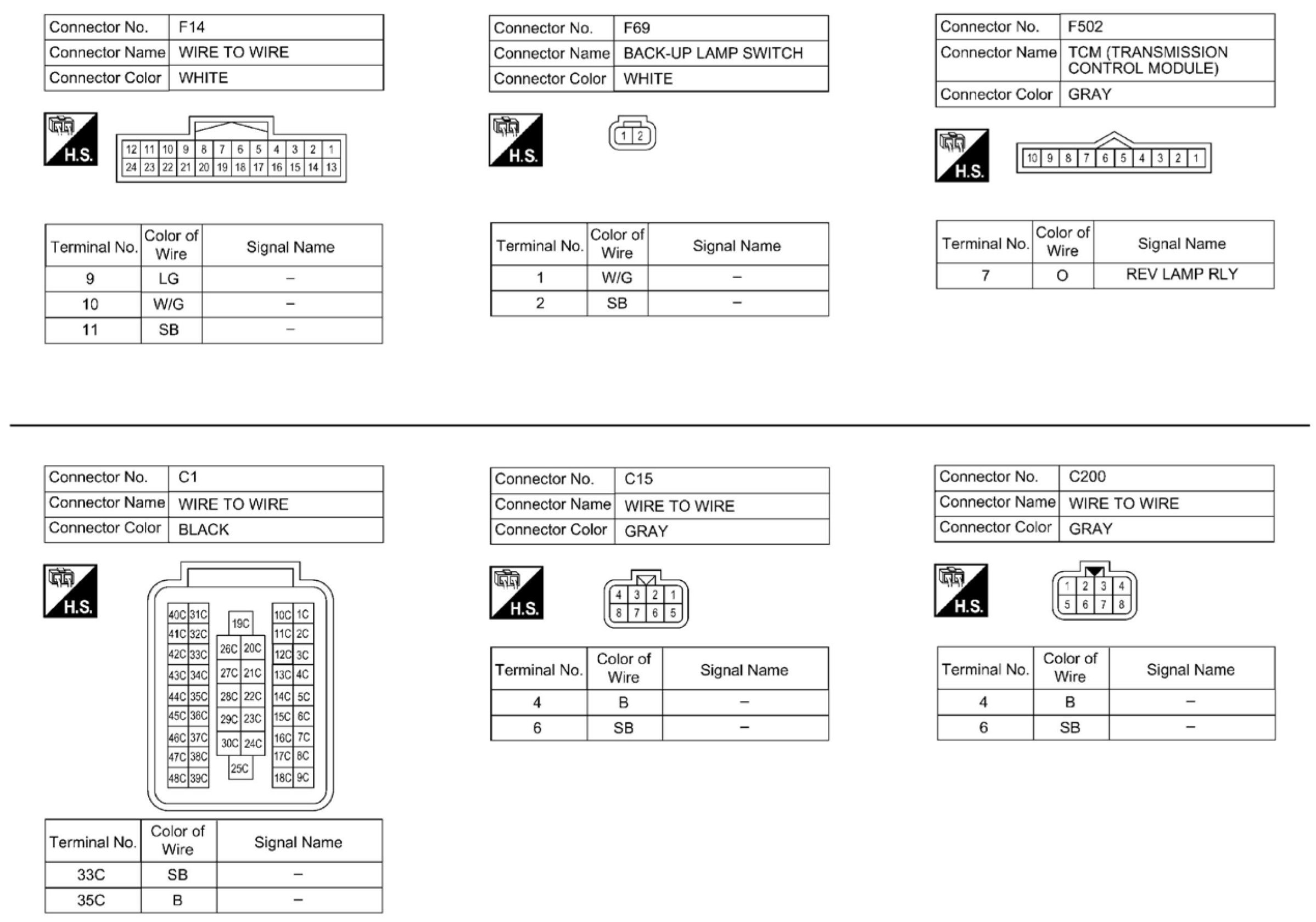

Back-Up Lamp Connectors (Part 3):
