Remote Keyless Entry System [King Cab]

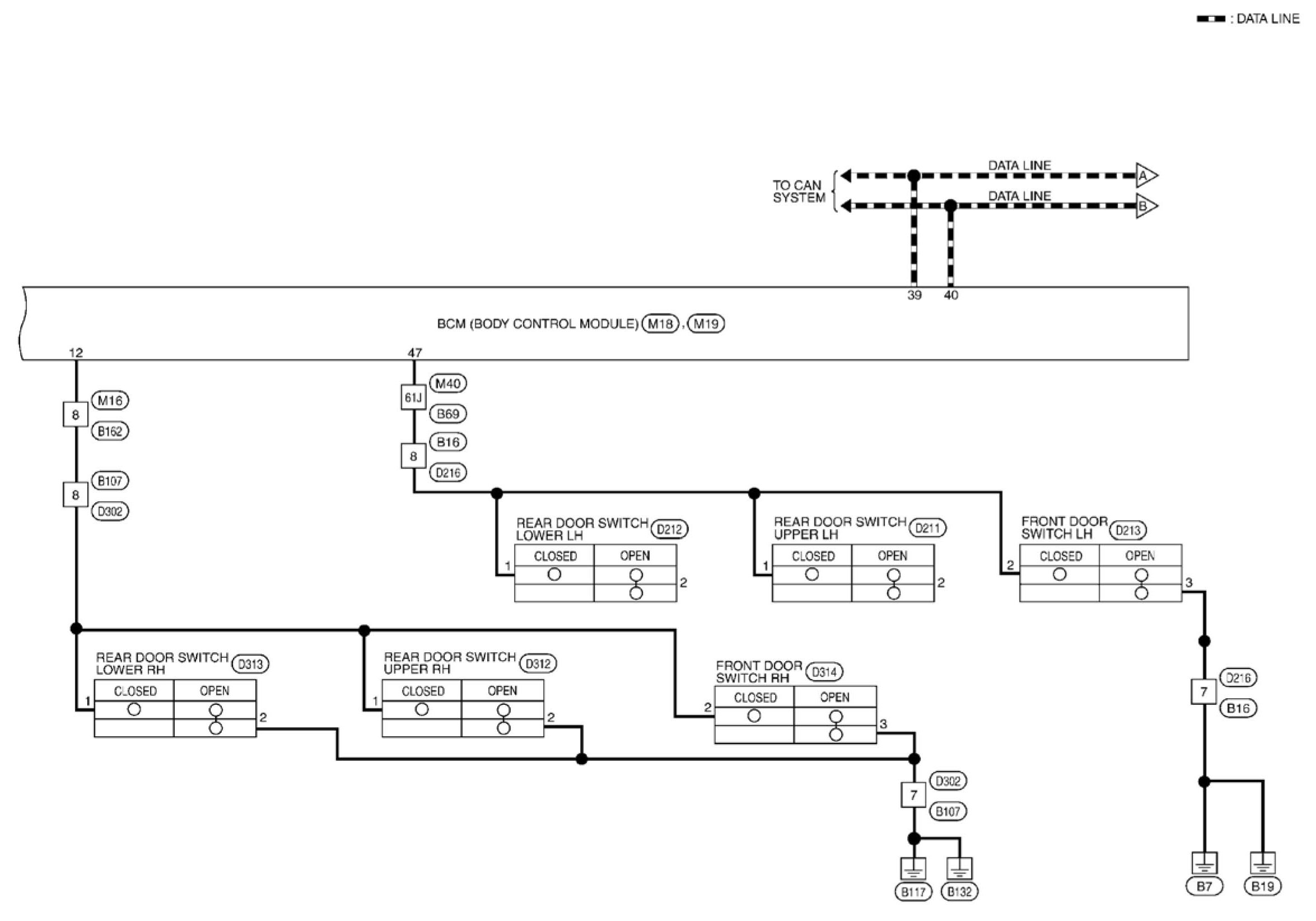

Remote keyless Entry System: Wiring [King Cab]

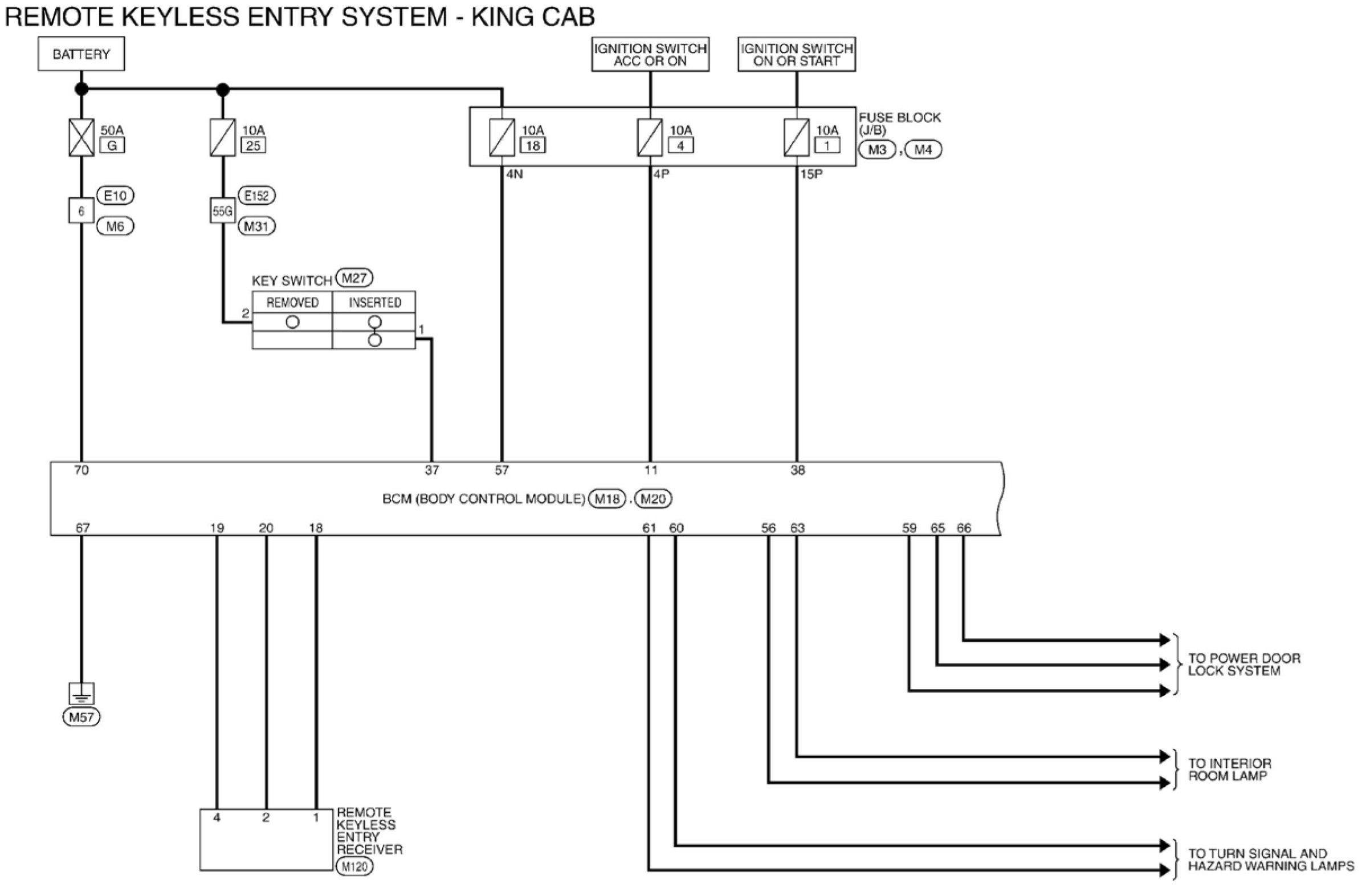

Remote Keyless Entry System - King Cab (Part 1):




Remote Keyless Entry System - King Cab (Part 2):

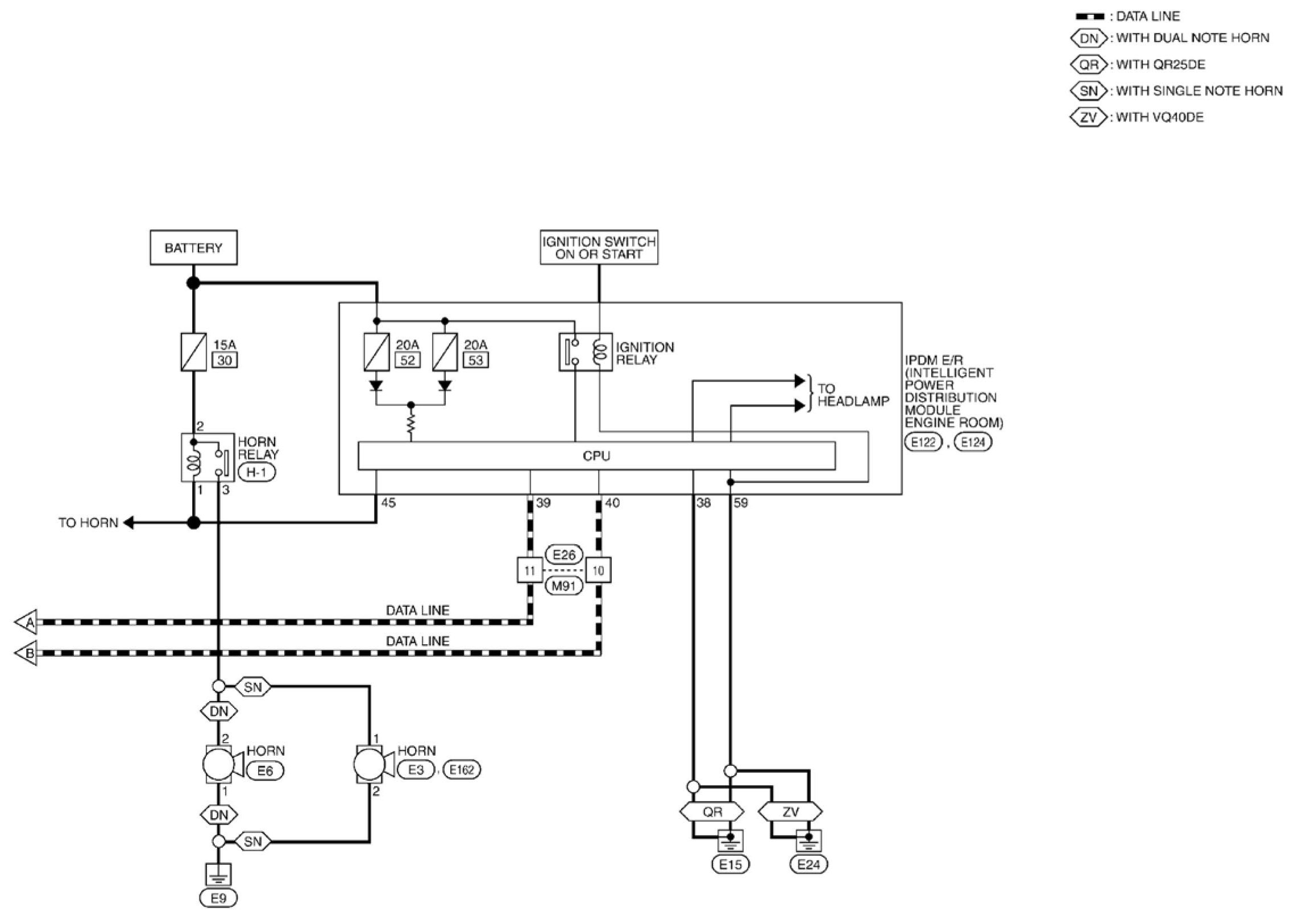

Remote Keyless Entry System - King Cab (Part 3):

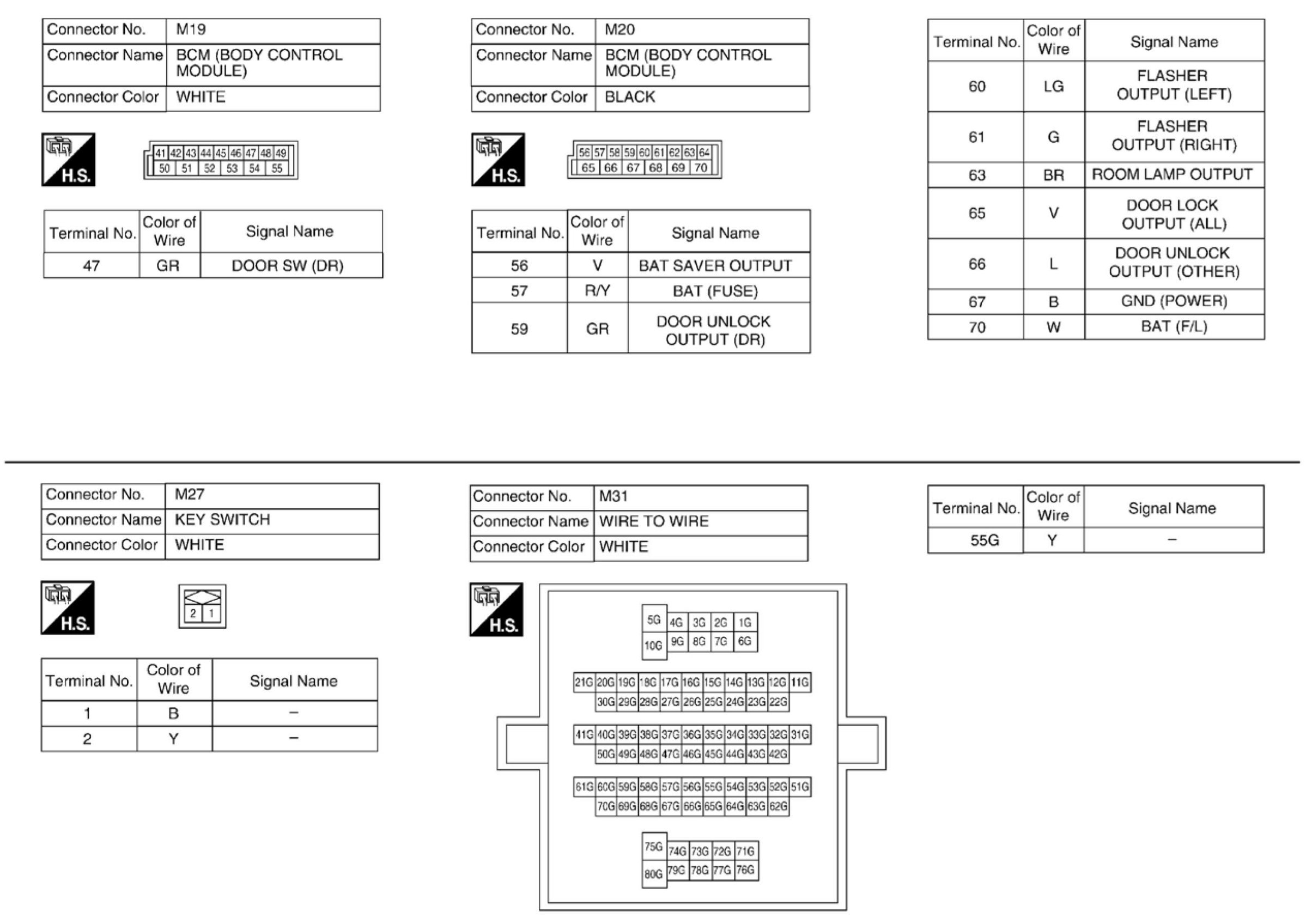

Remote keyless Entry System Connectors - King Cab

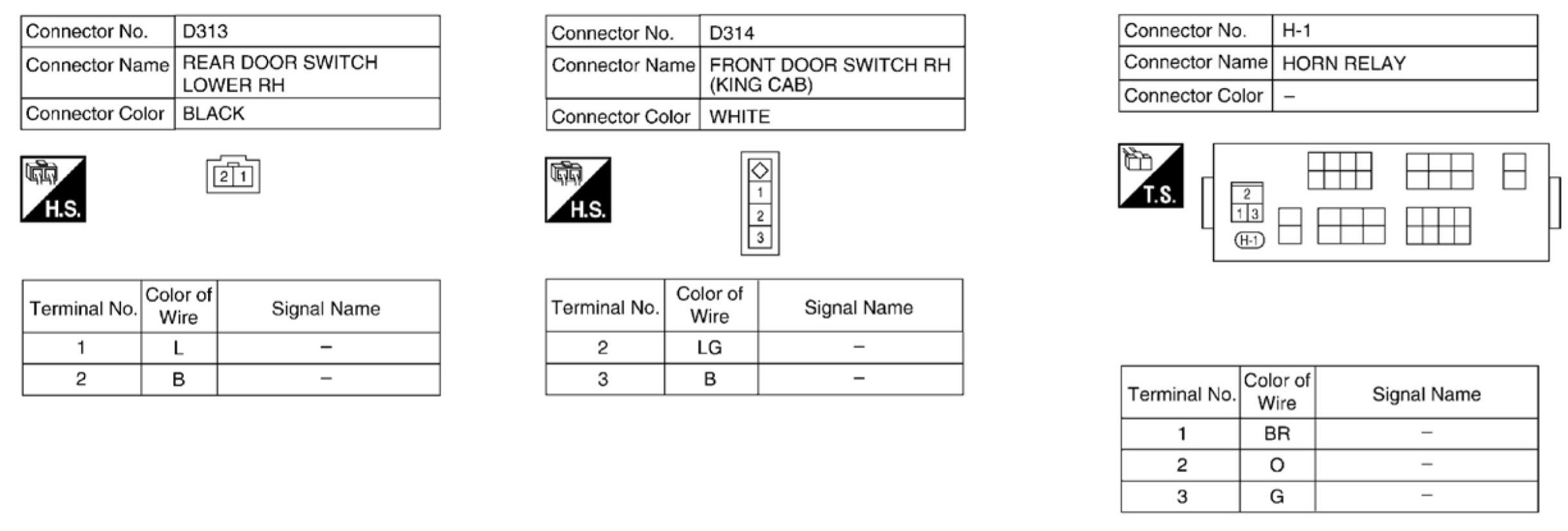

Remote Keyless Entry System Connectors - King Cab (Part 1):

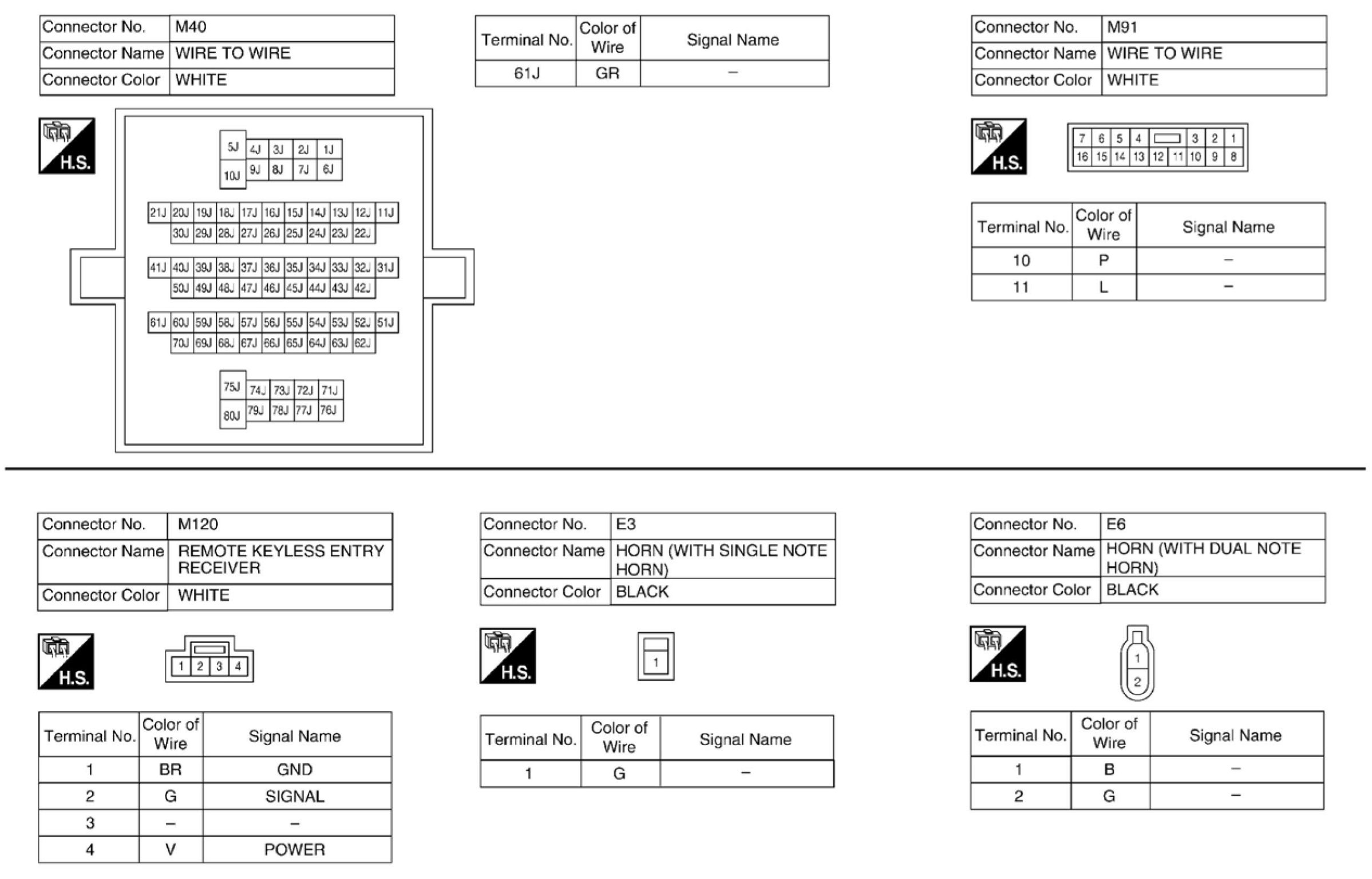

Remote Keyless Entry System Connectors - King Cab (Part 2):

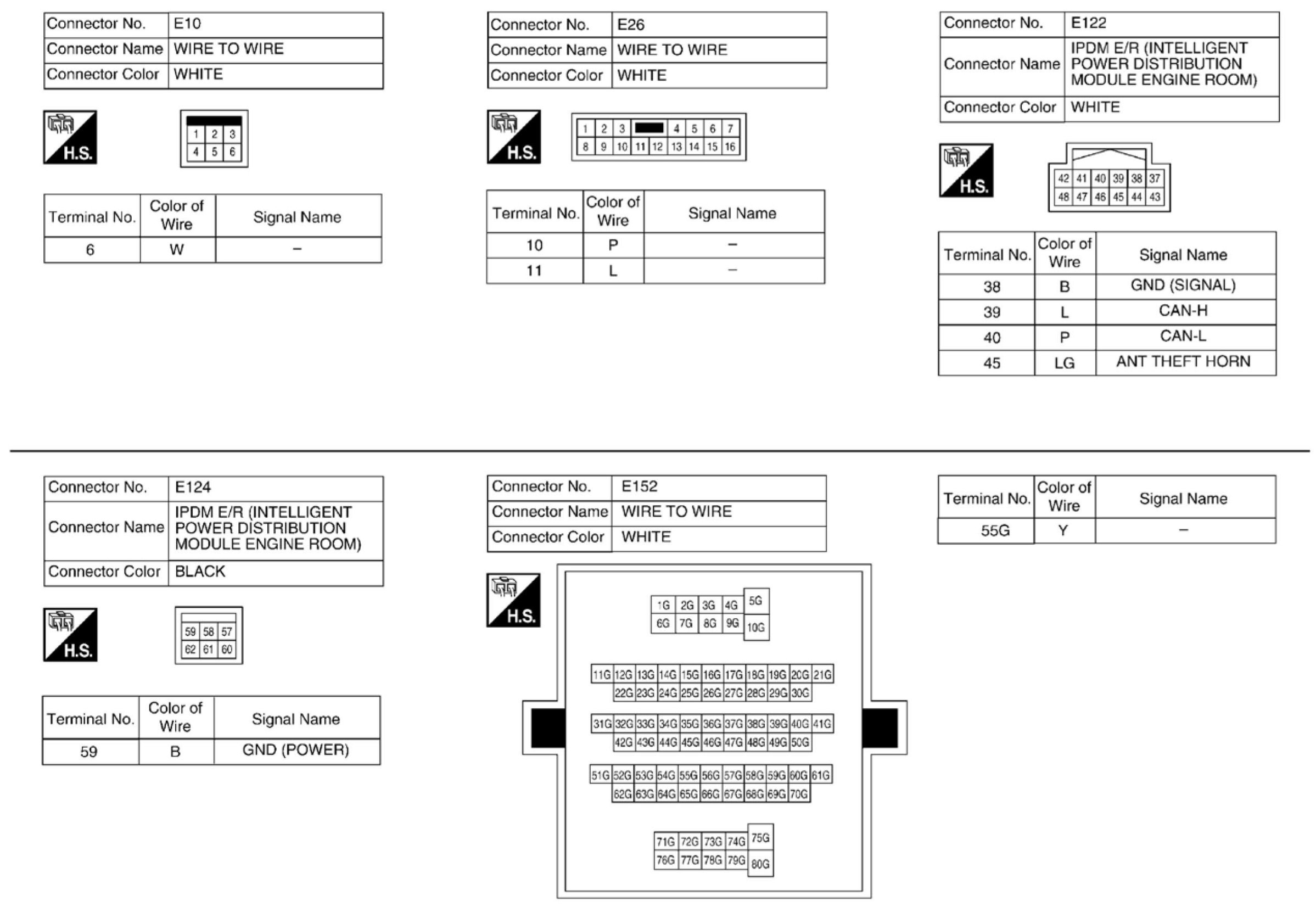

Remote Keyless Entry System Connectors - King Cab (Part 3):

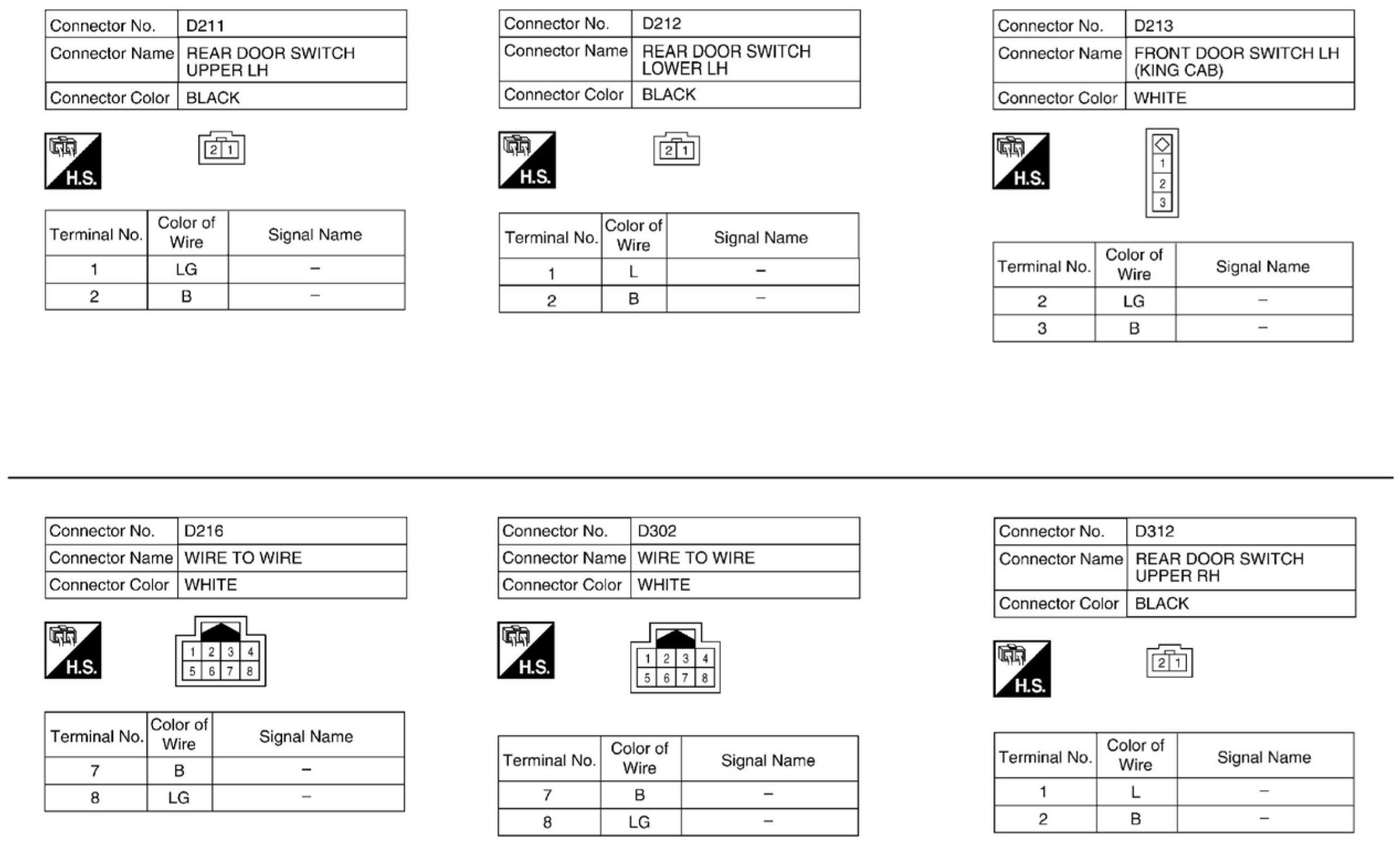

Remote Keyless Entry System Connectors - King Cab (Part 4):

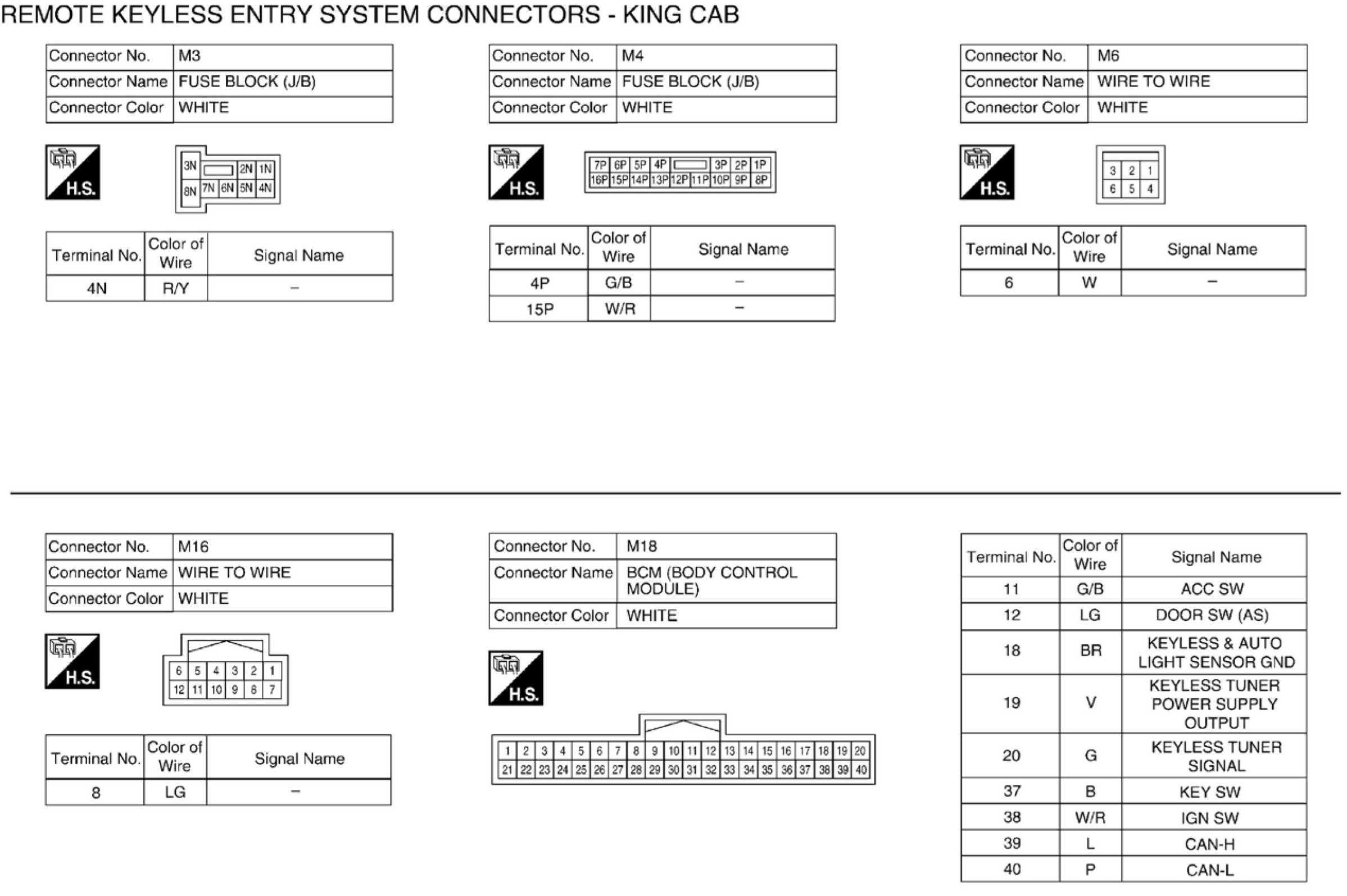

Remote Keyless Entry System Connectors - King Cab (Part 5):




Remote Keyless Entry System Connectors - King Cab (Part 6):

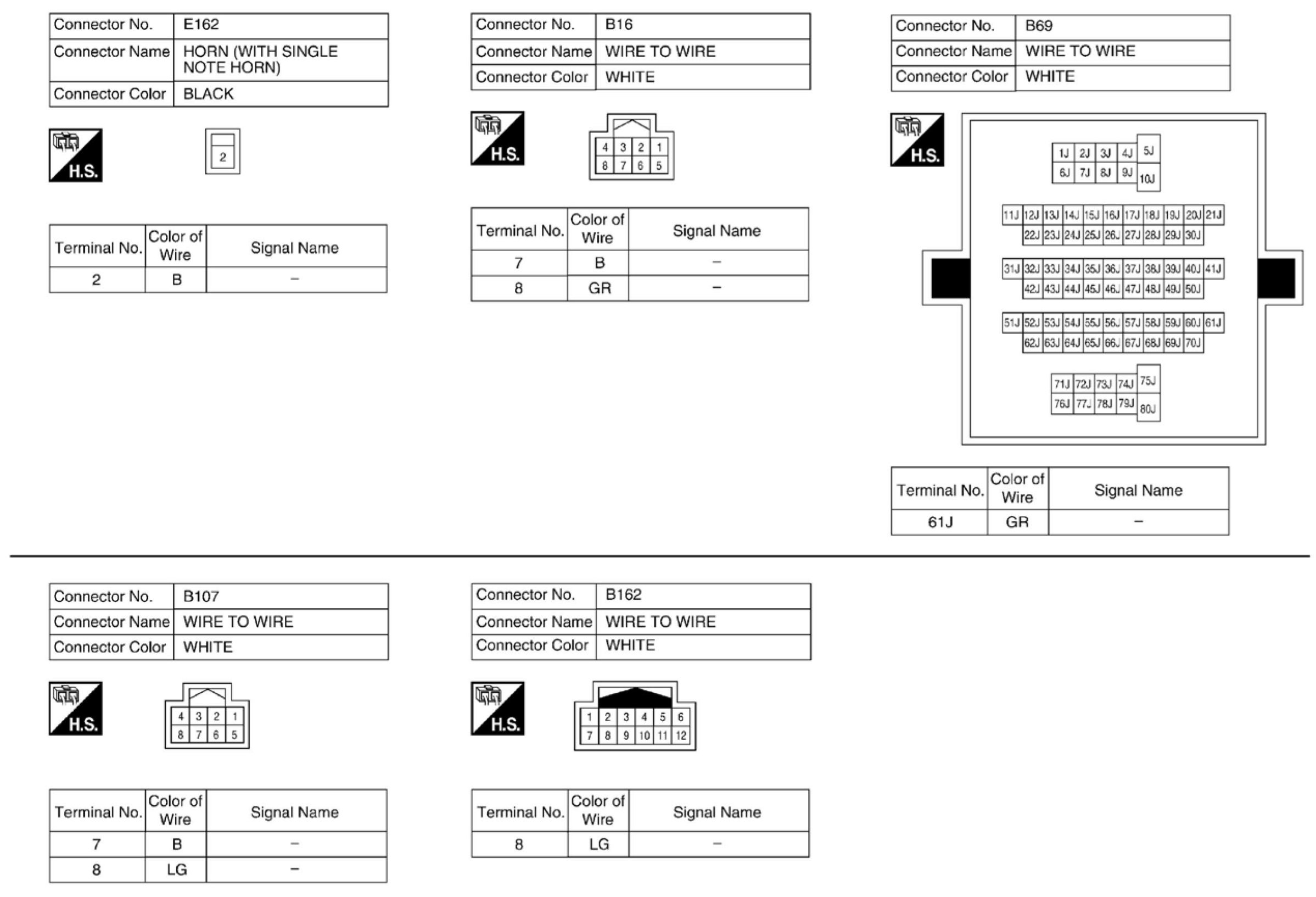

Remote Keyless Entry System Connectors - King Cab (Part 7):
