Heated Glass Element

Defogger Control System: Wiring Diagram

Rear Window Defogger

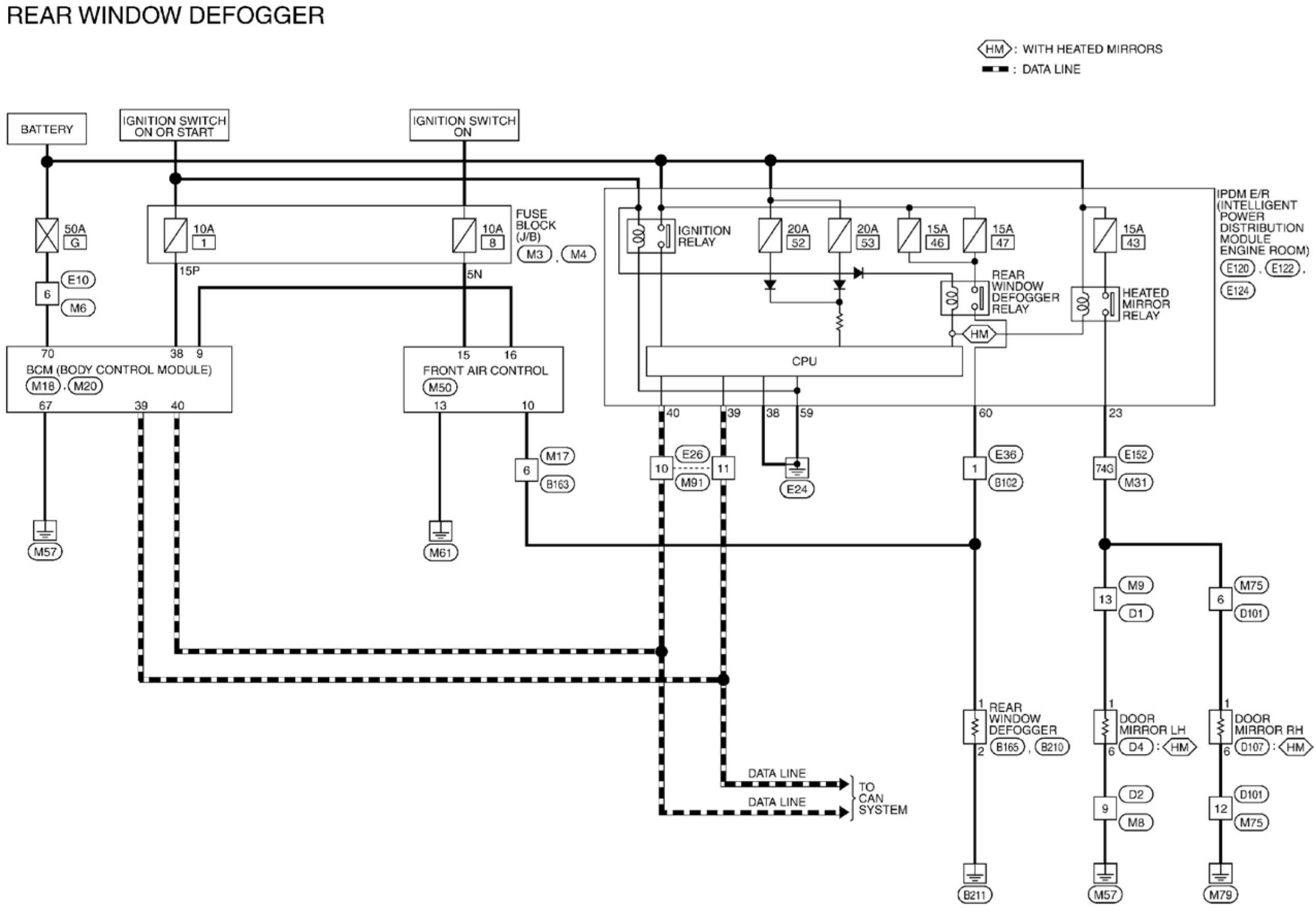

Rear Window Defogger:

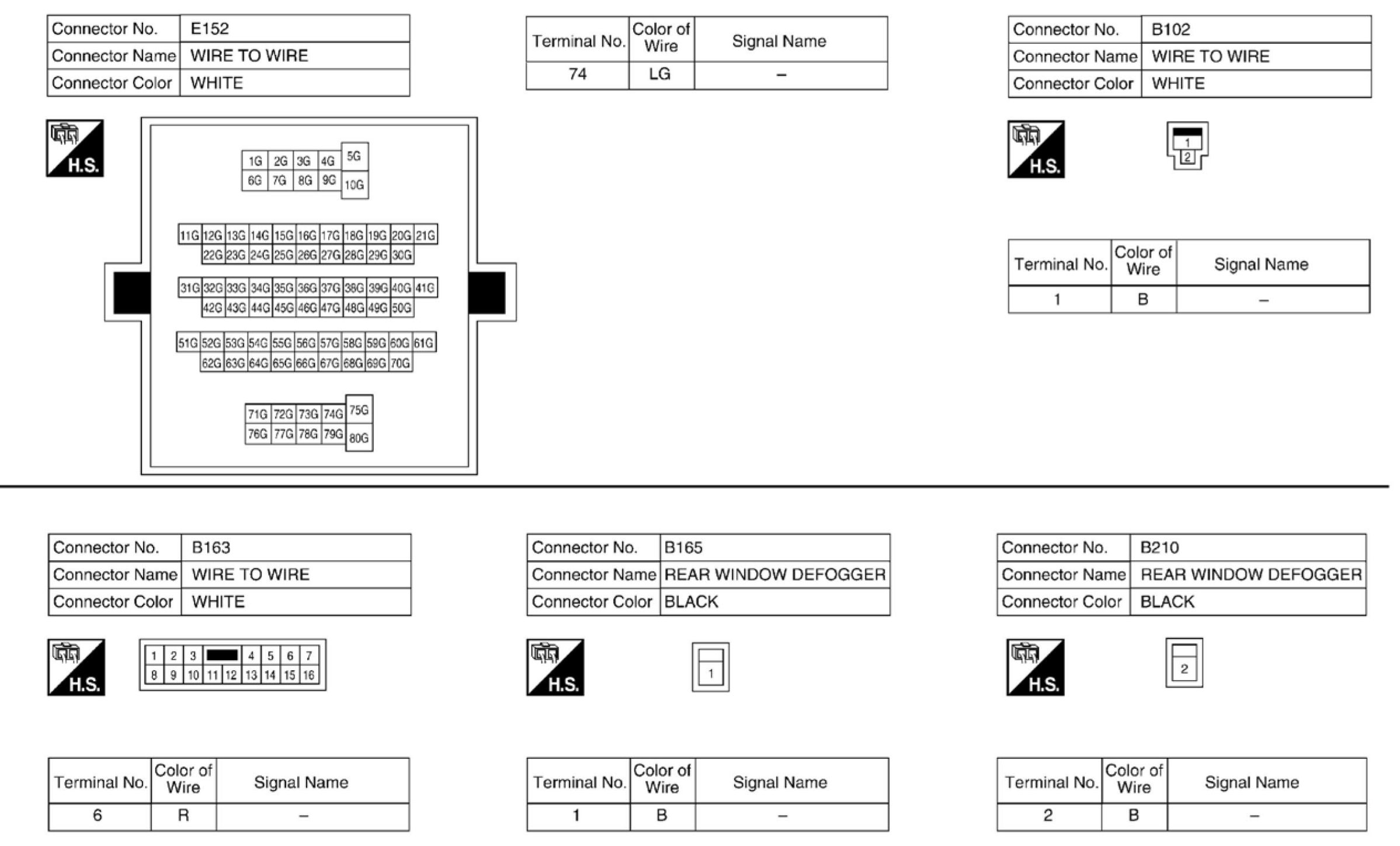

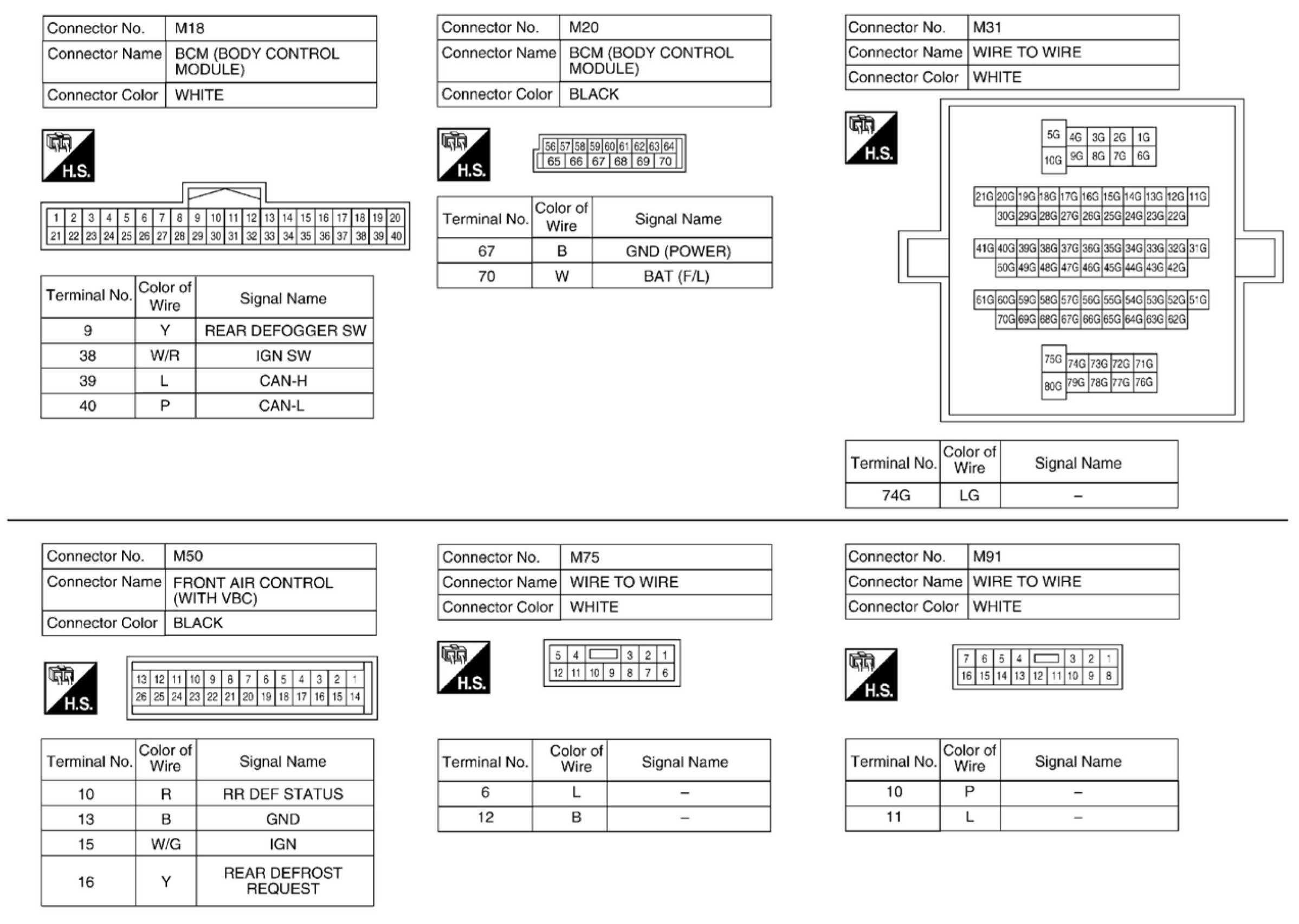

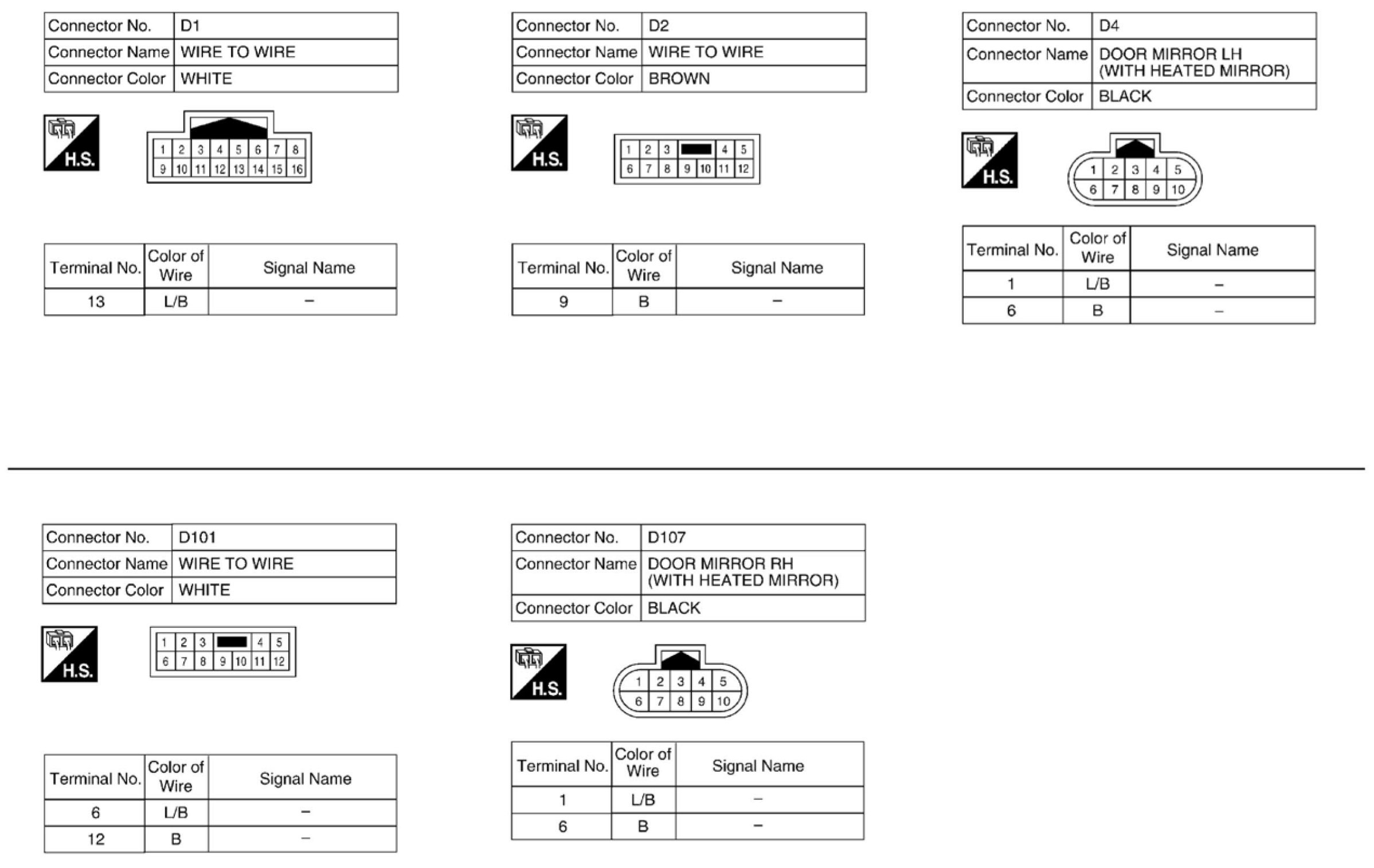

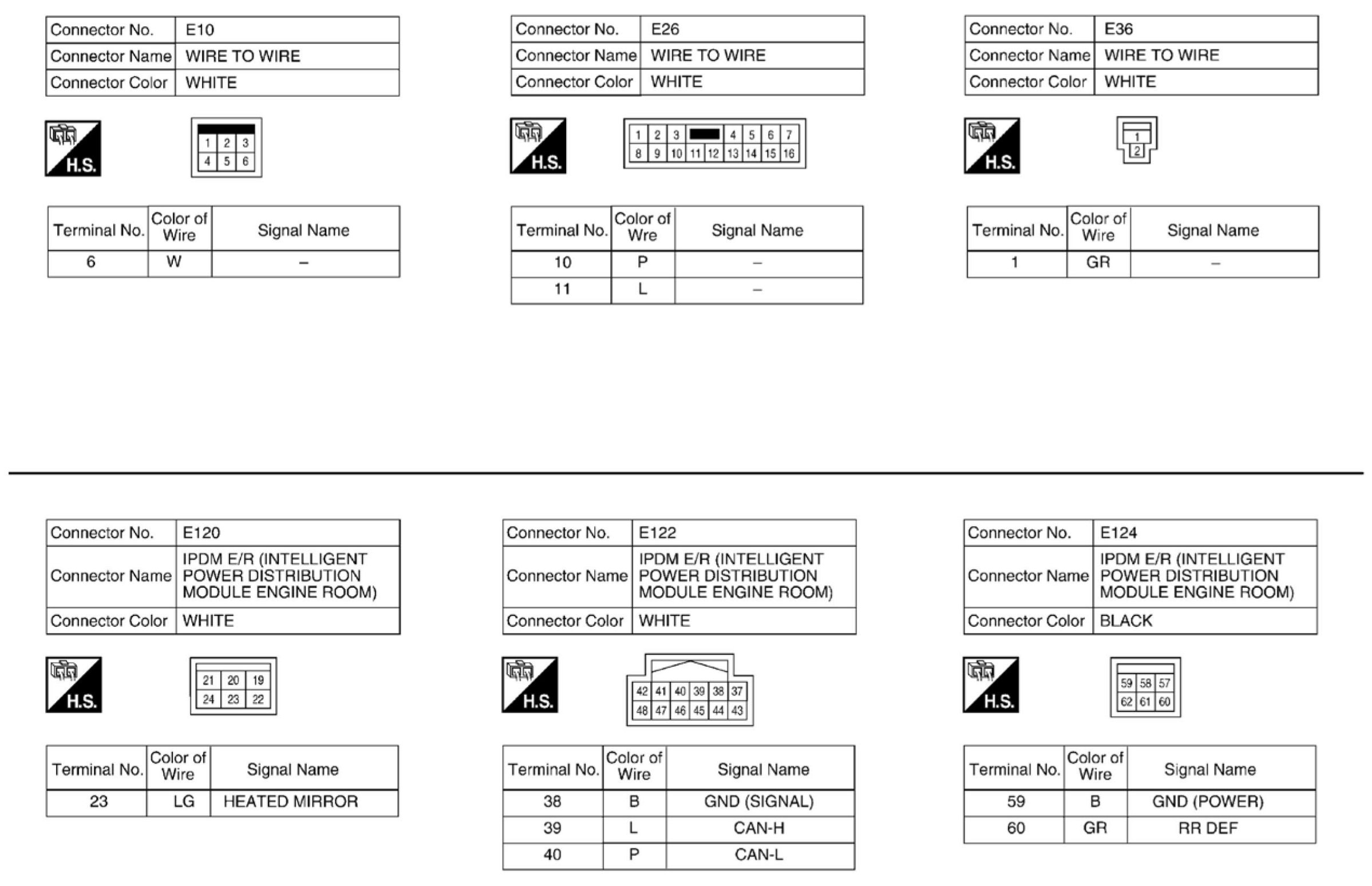

Rear Window Defogger Connectors

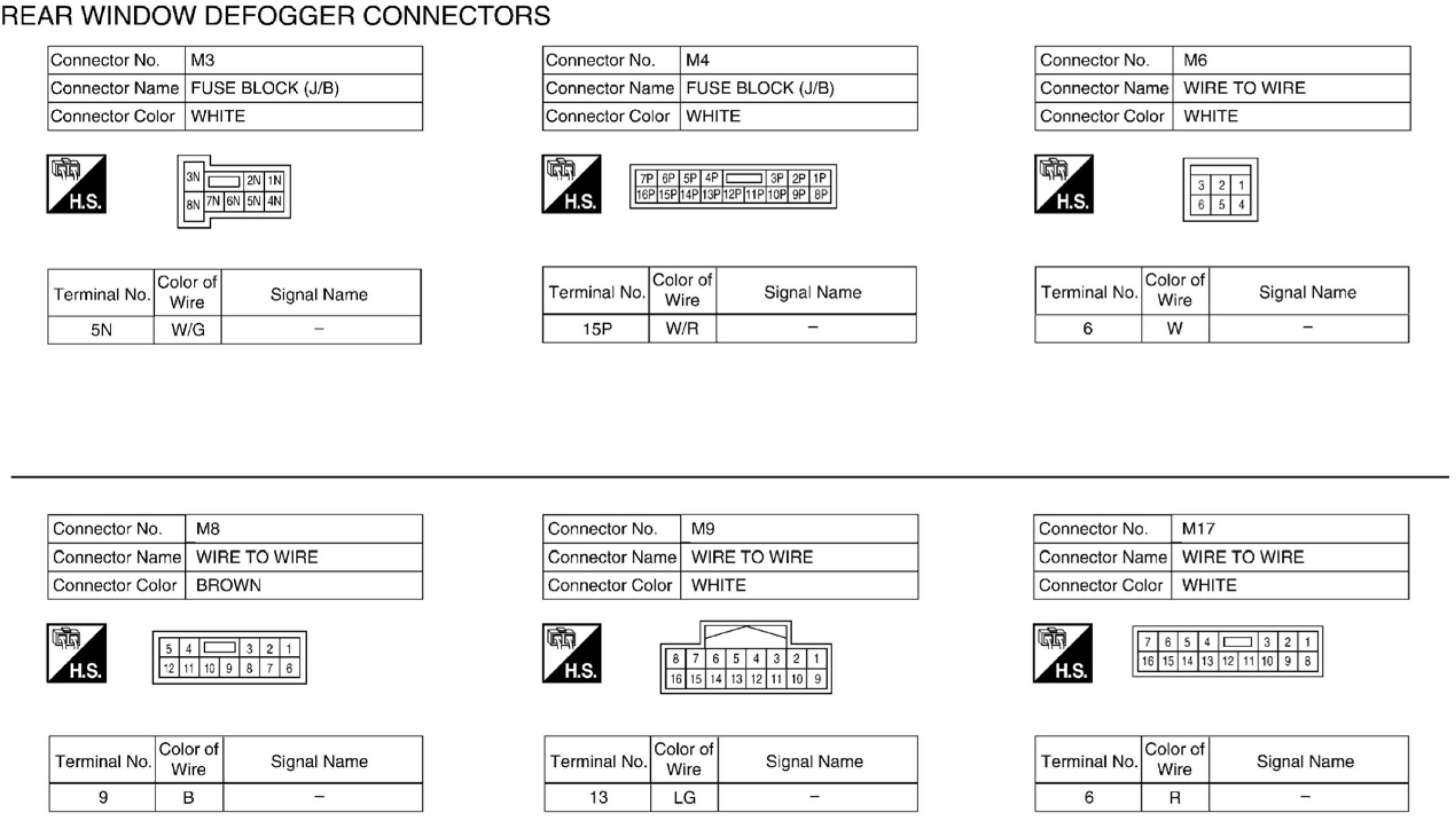

Rear Window Defogger Connectors (Part 1):

Rear Window Defogger Connectors (Part 2):

Rear Window Defogger Connectors (Part 3):

Rear Window Defogger Connectors (Part 4):

Rear Window Defogger Connectors (Part 5):
