Charging System

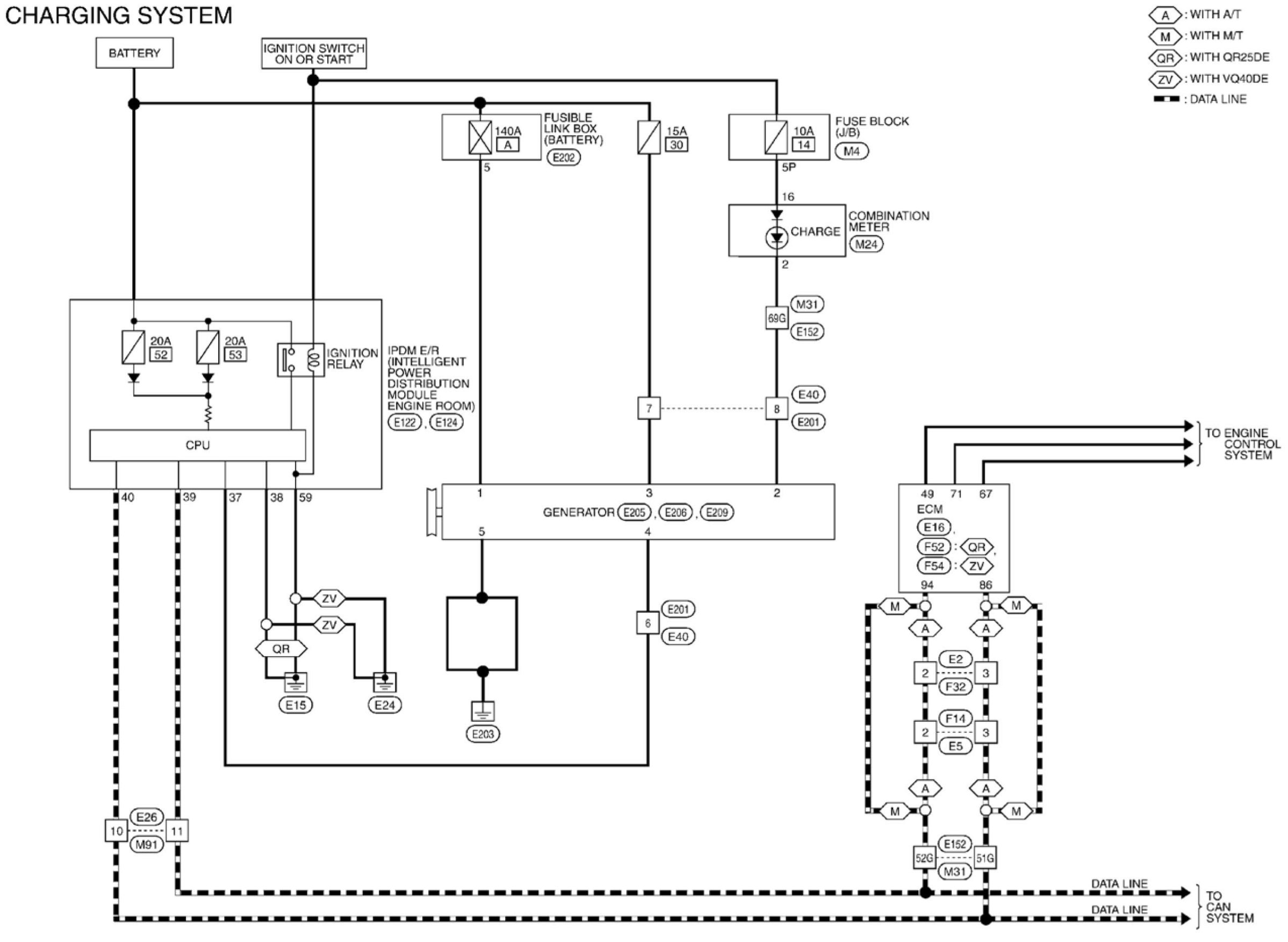

Charging System: Wiring Diagram

Charging System:






Charging System Connectors

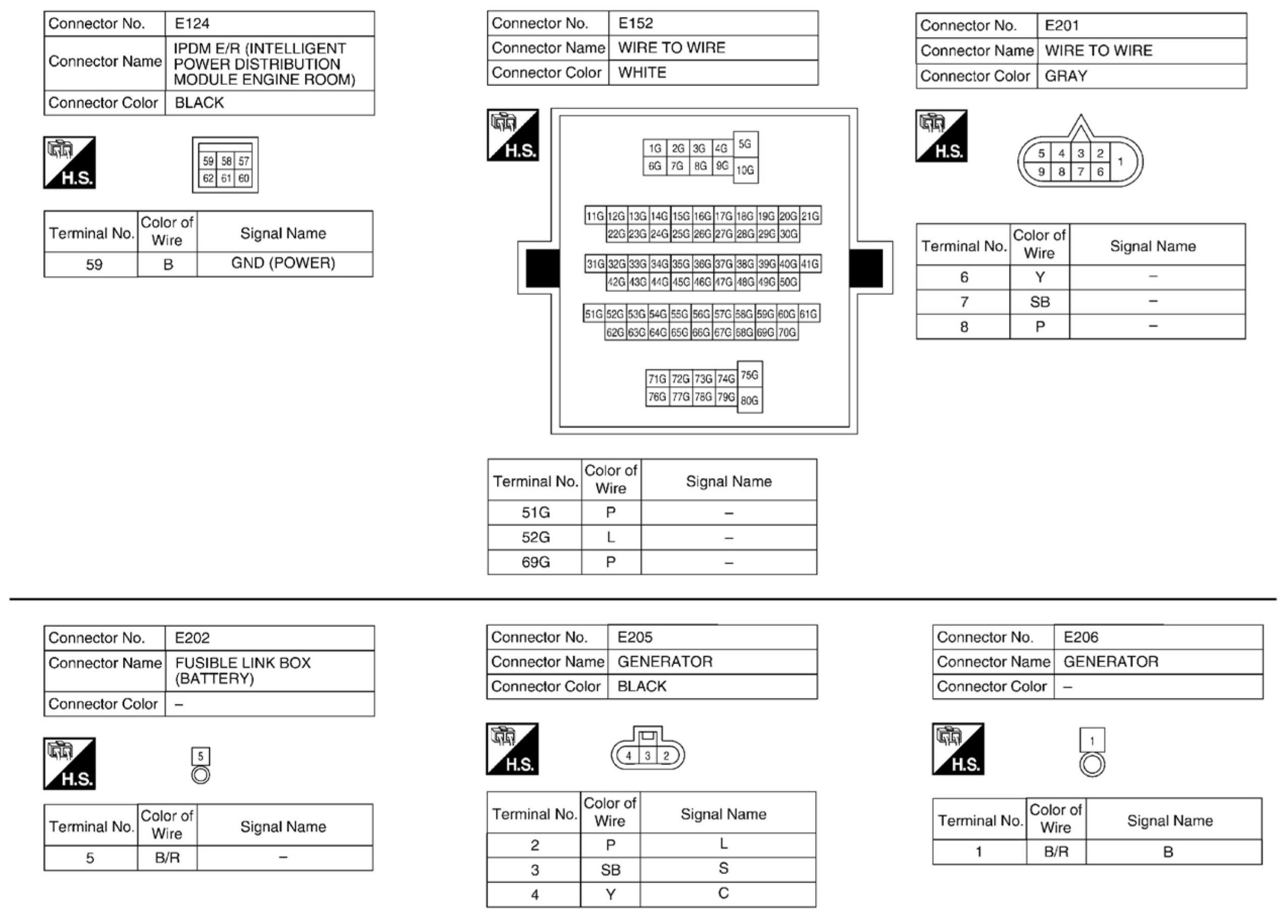

Charging System Connectors (Part 1):

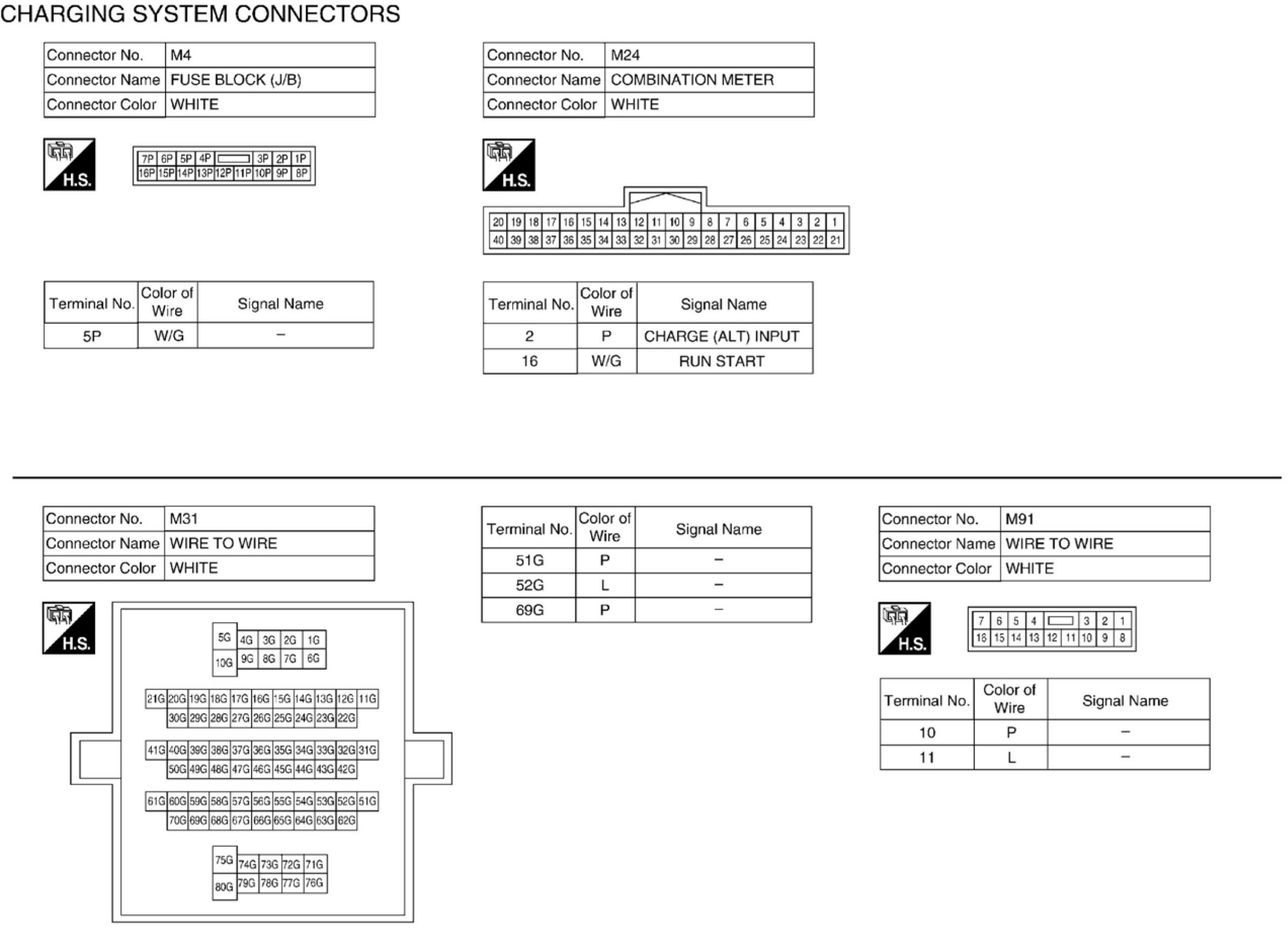

Charging System Connectors (Part 2):

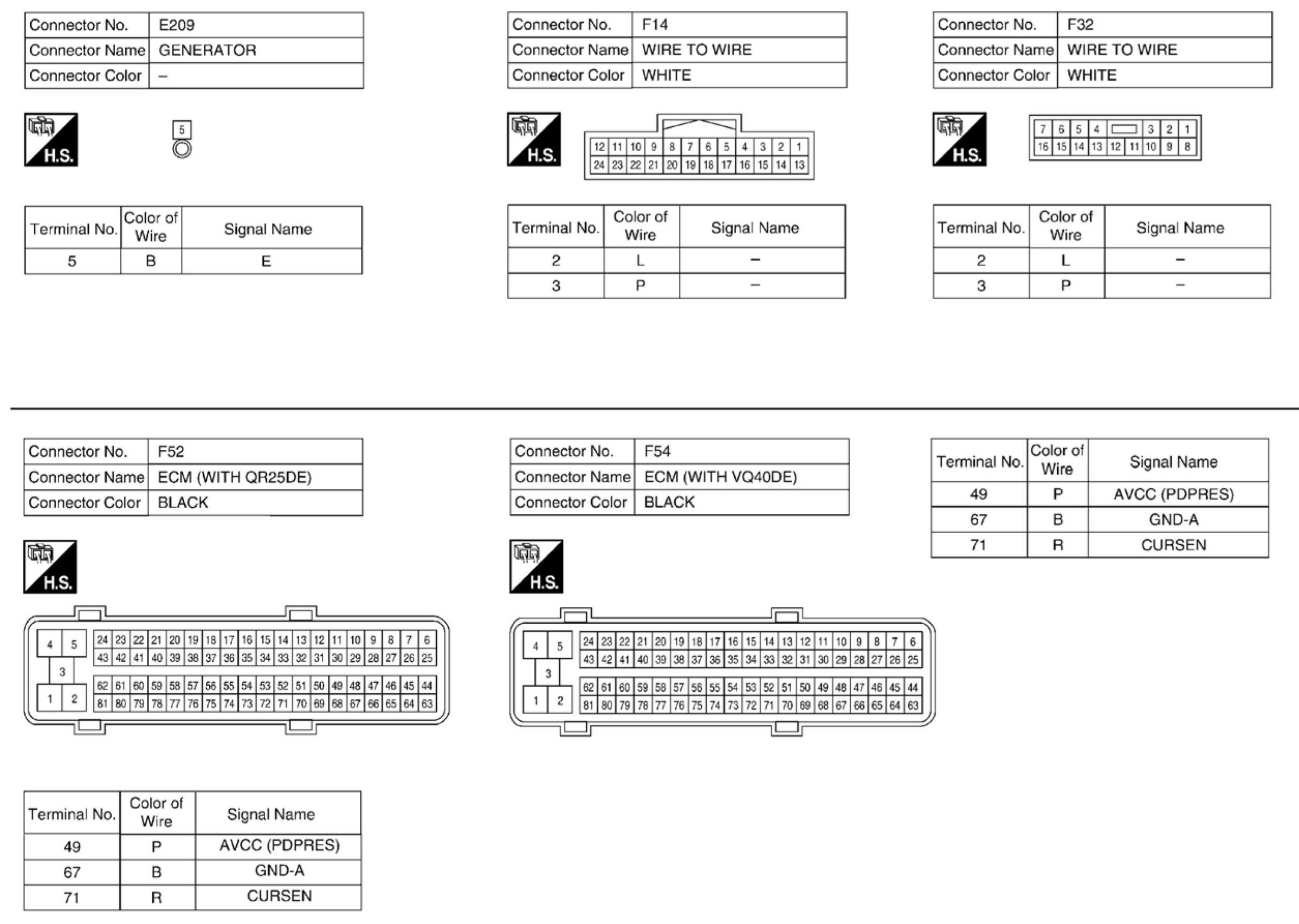

Charging System Connectors (Part 3):

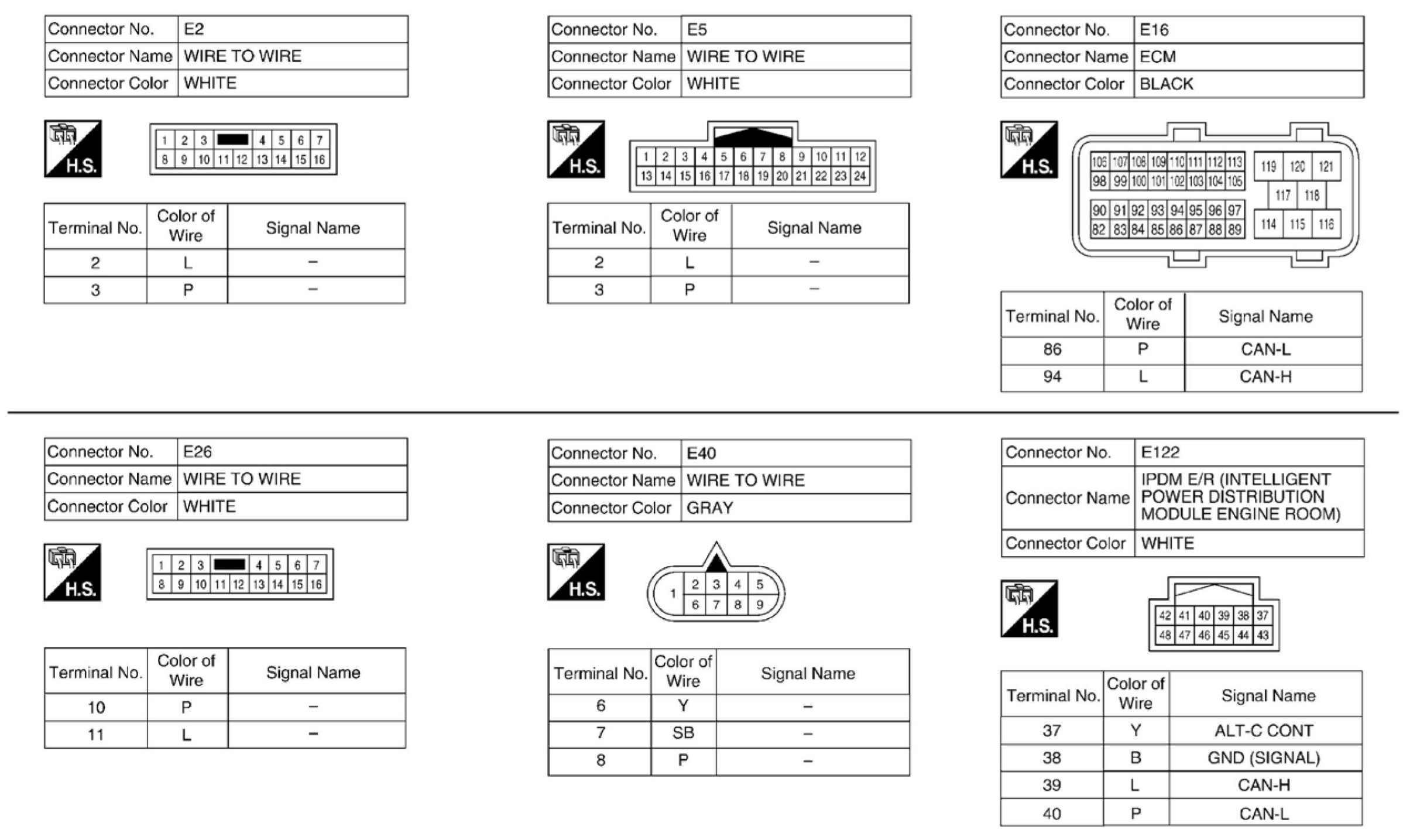

Charging System Connectors (Part 4):
