System Diagram

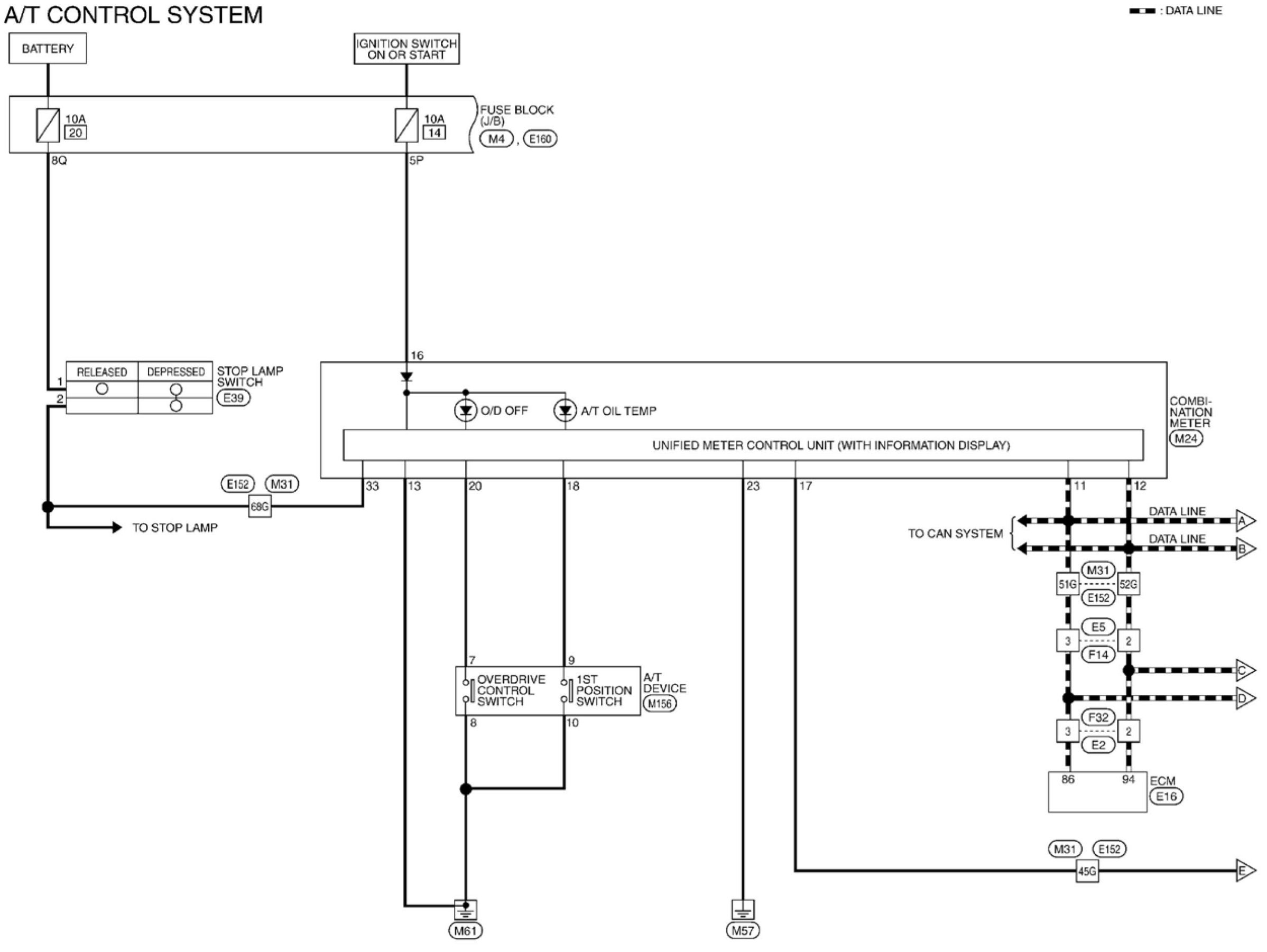

A/T Control System: Wiring DiagramA/T Control System (Part 1):

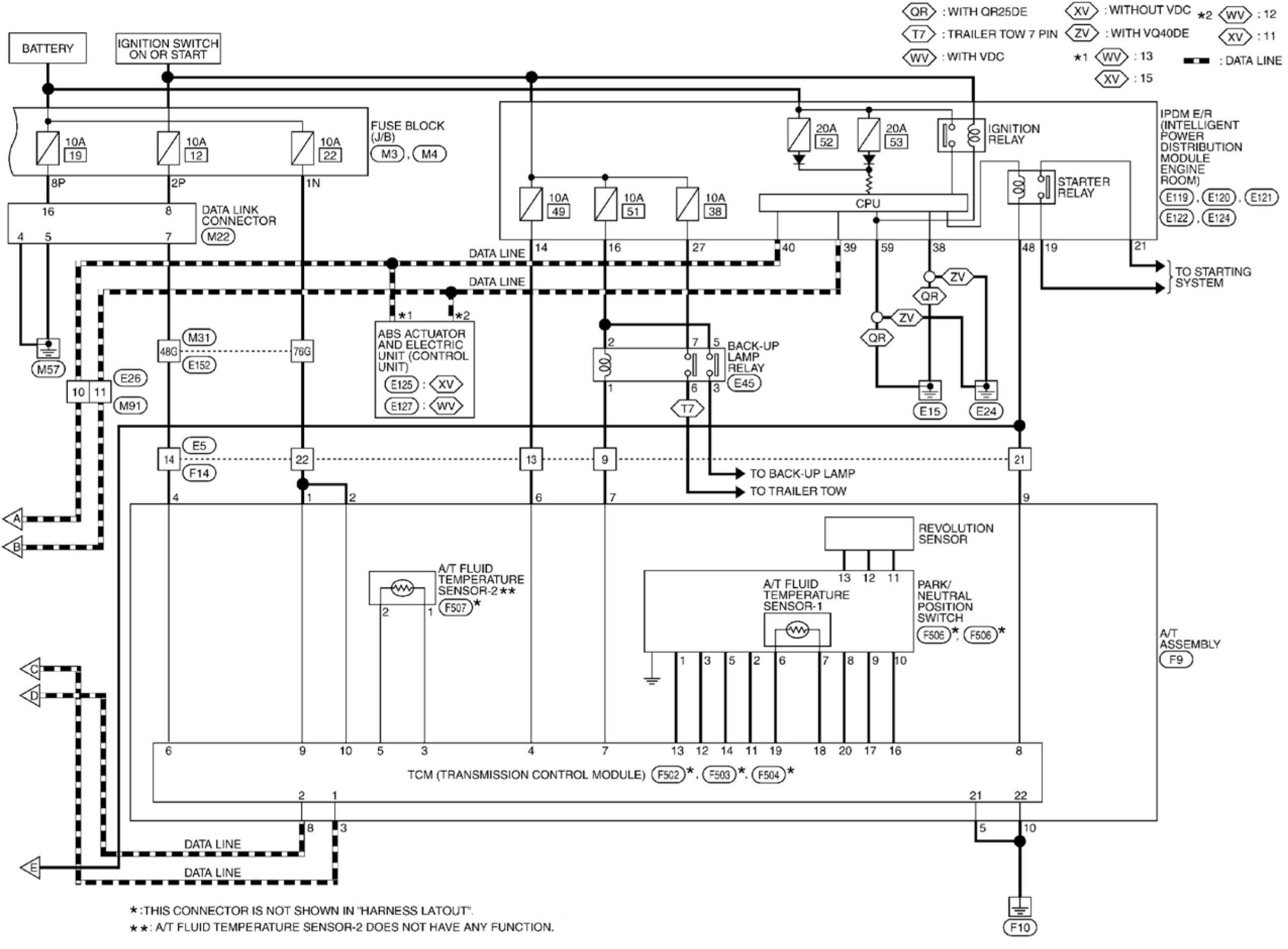

A/T Control System (Part 2):
A/T Control System Connectors

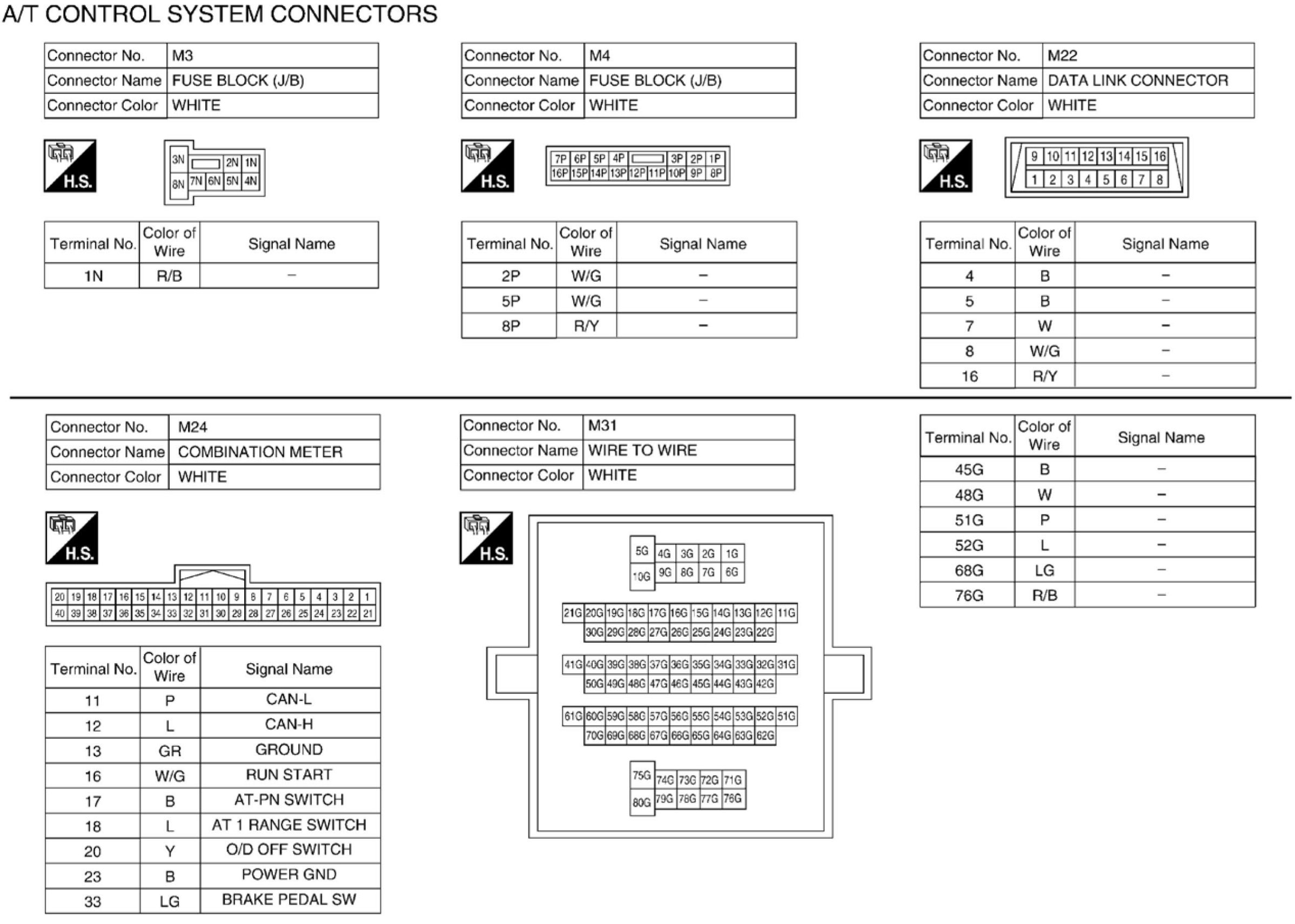

A/T Control System Connectors (Part 1):

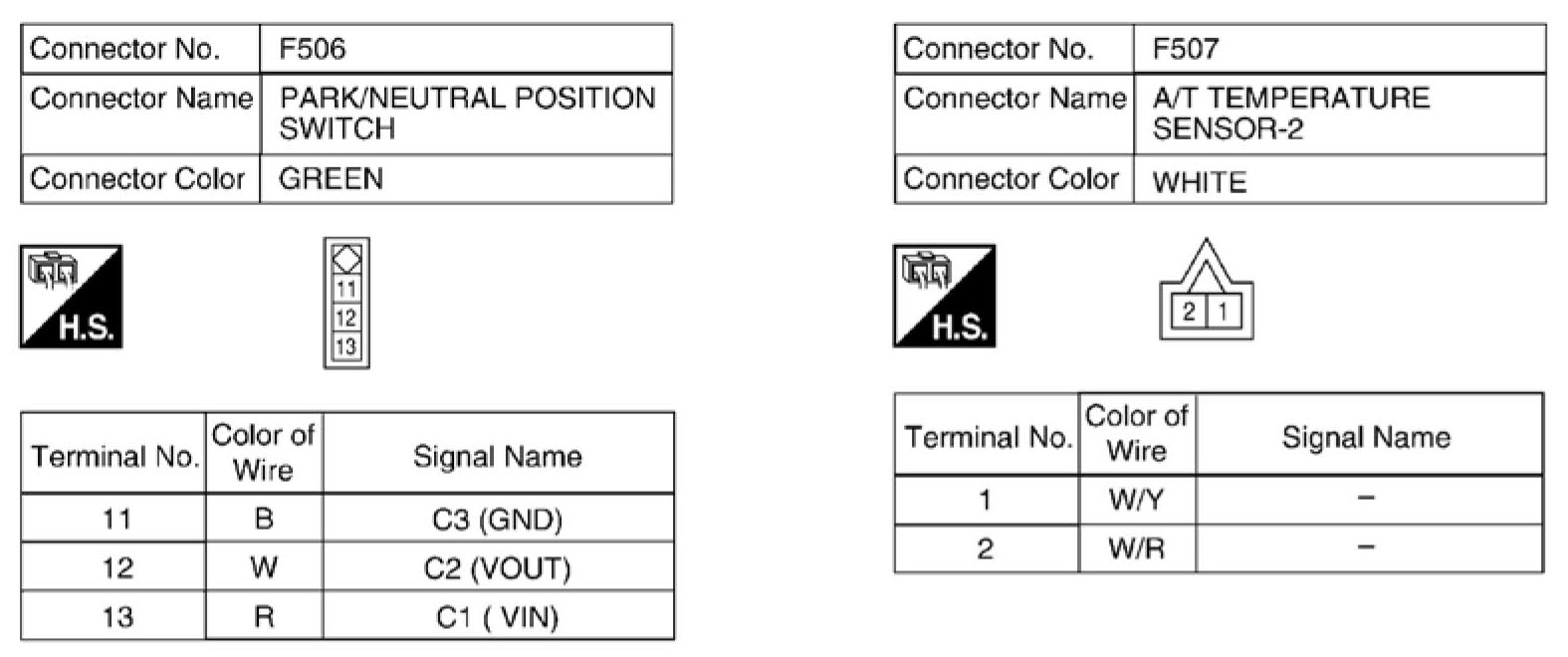

A/T Control System Connectors (Part 2):

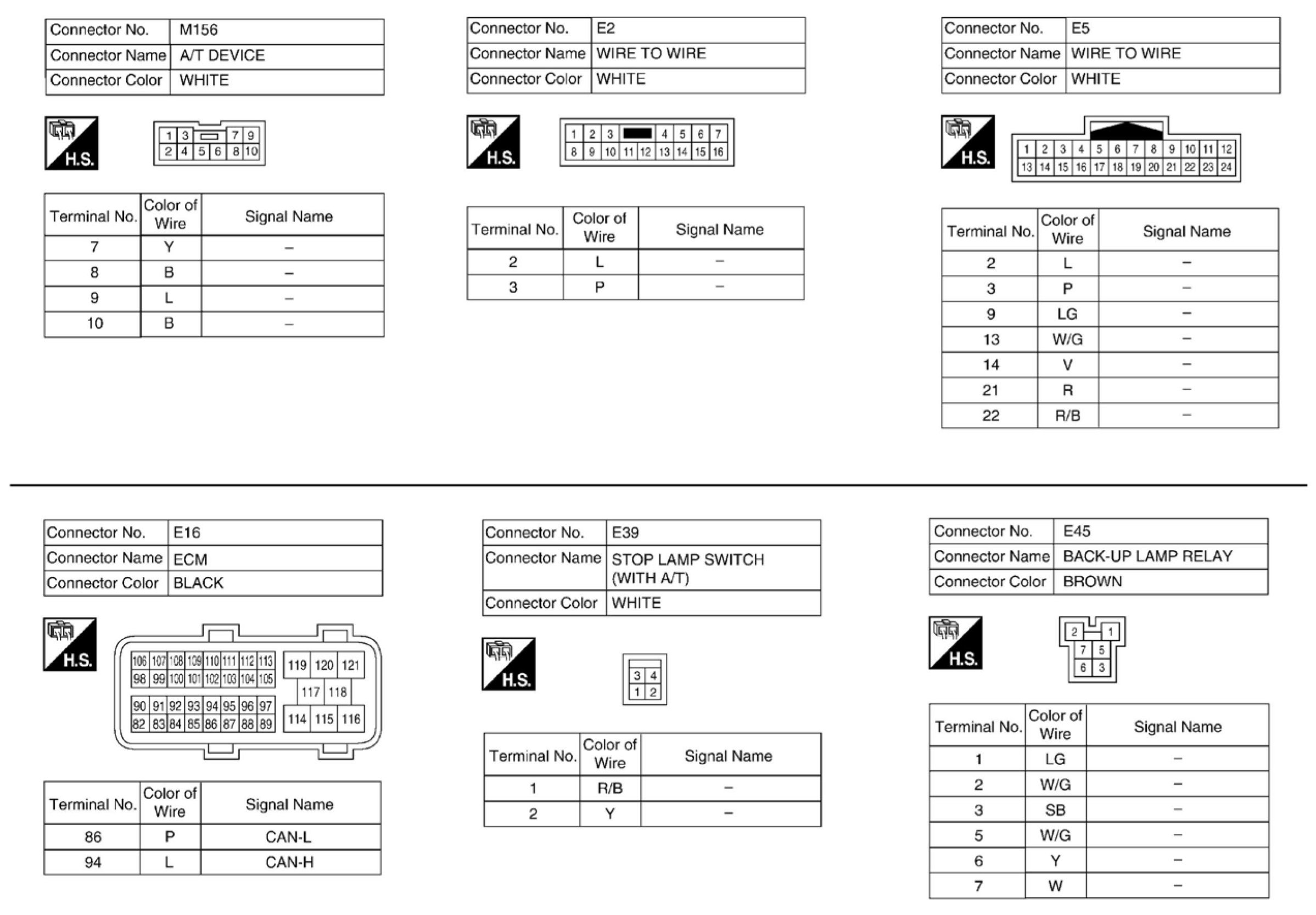

A/T Control System Connectors (Part 3):

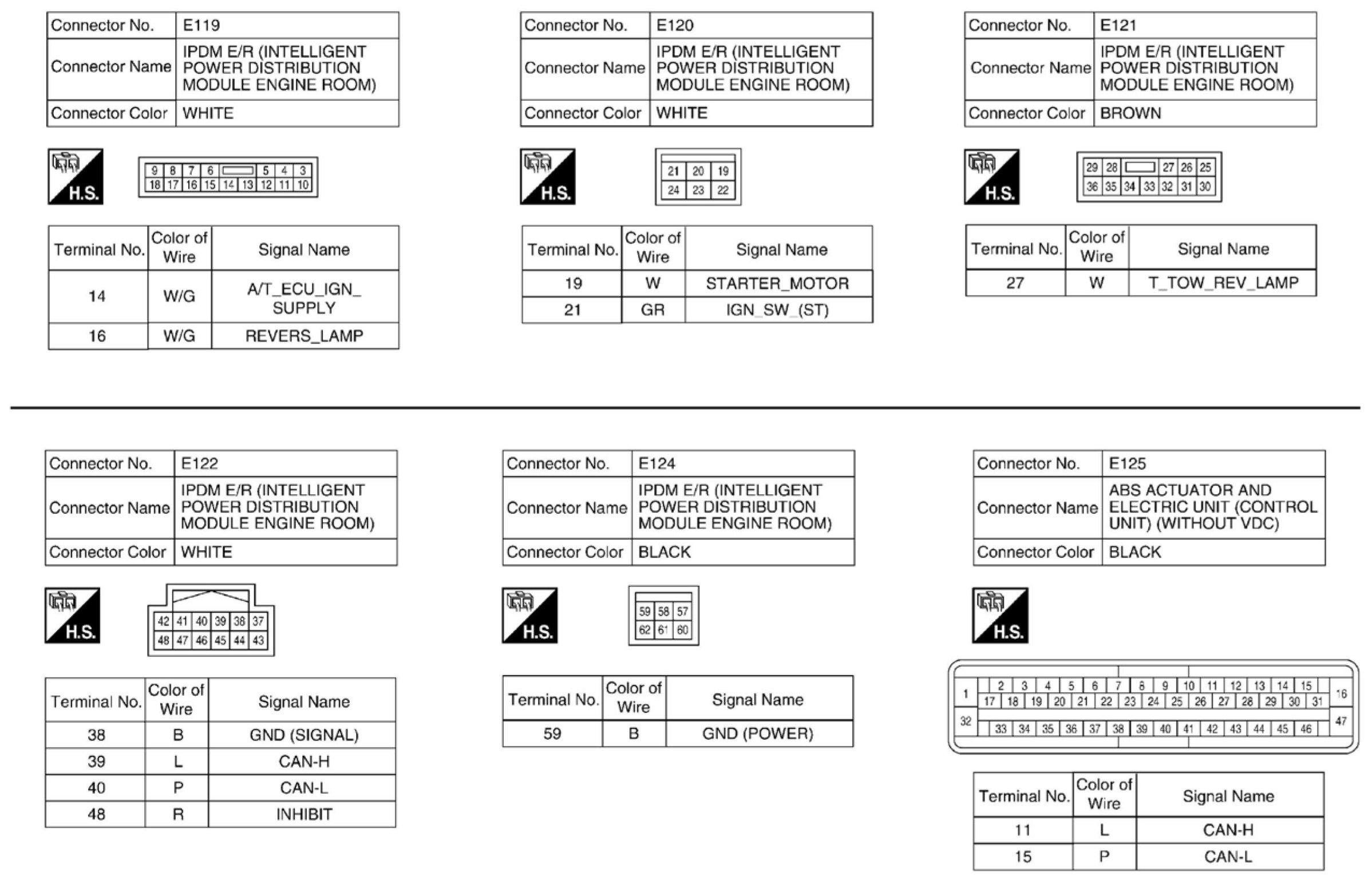

A/T Control System Connectors (Part 4):

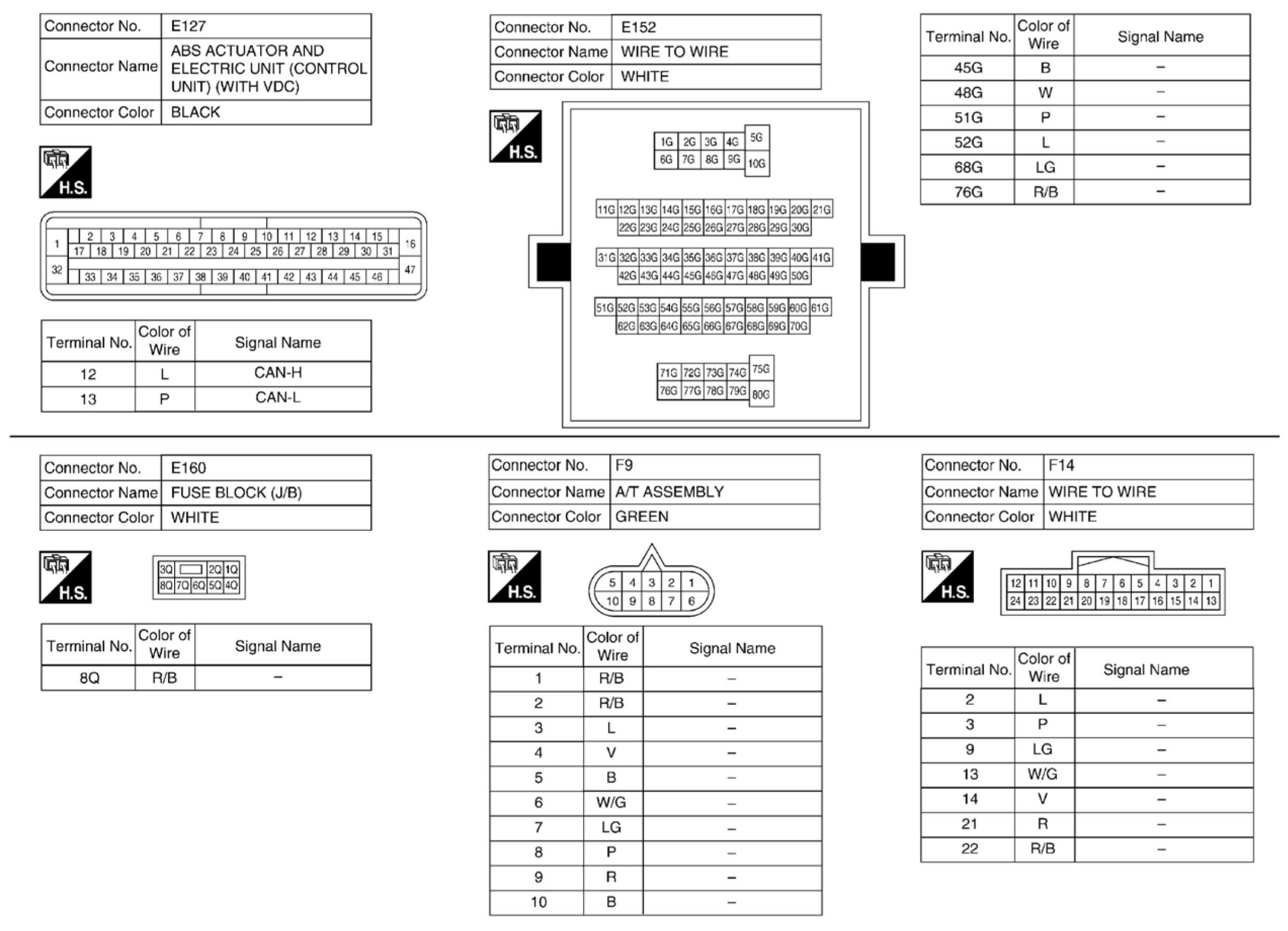

A/T Control System Connectors (Part 5):

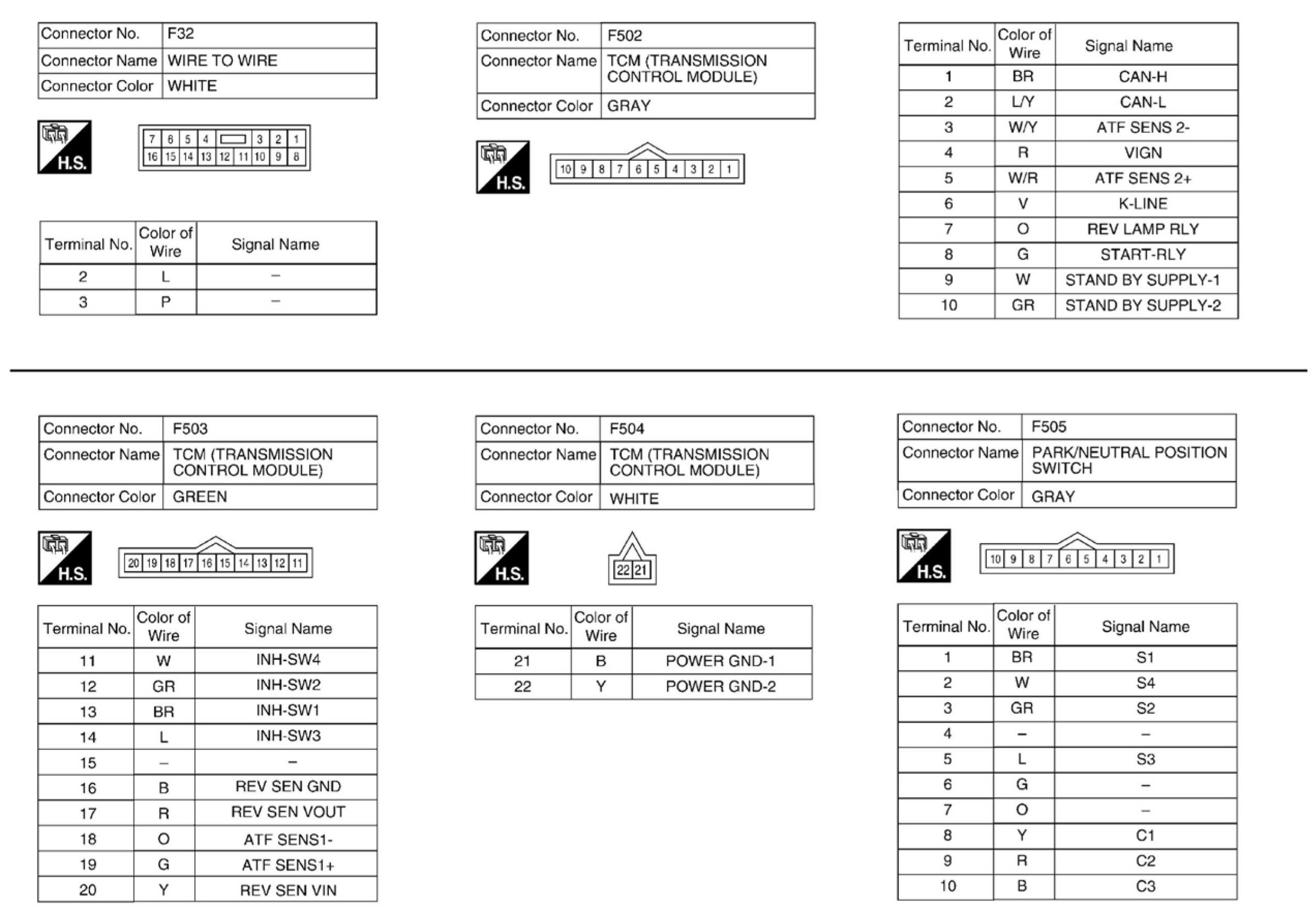

A/T Control System Connectors (Part 6):
