Shift Interlock, A/T

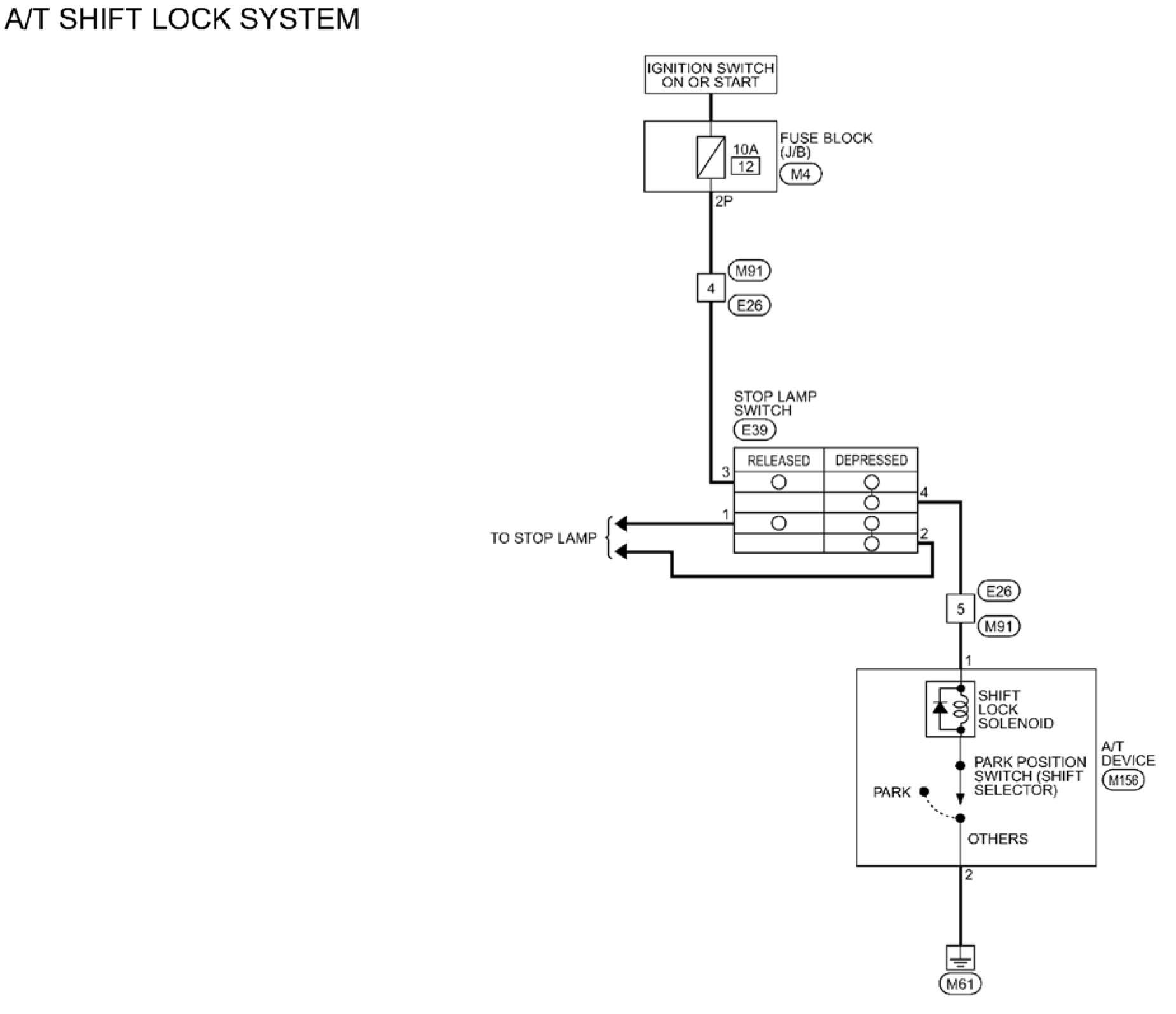

A/T Shift Lock System: Wiring Diagram
A/T Shift Lock System:

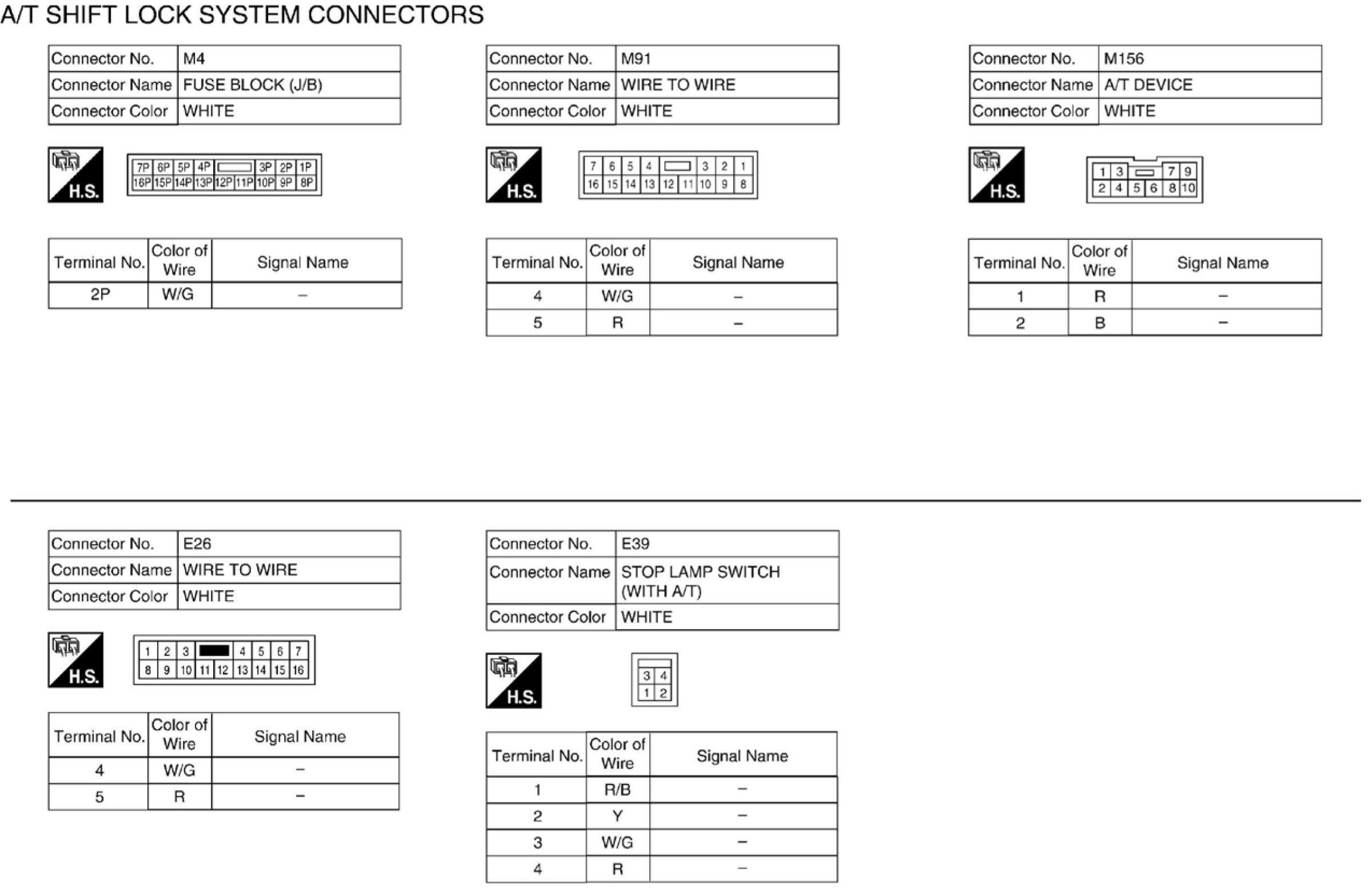

A/T Shift Lock System Connectors
A/T Shift Lock System Connectors:
