Immobilizer System

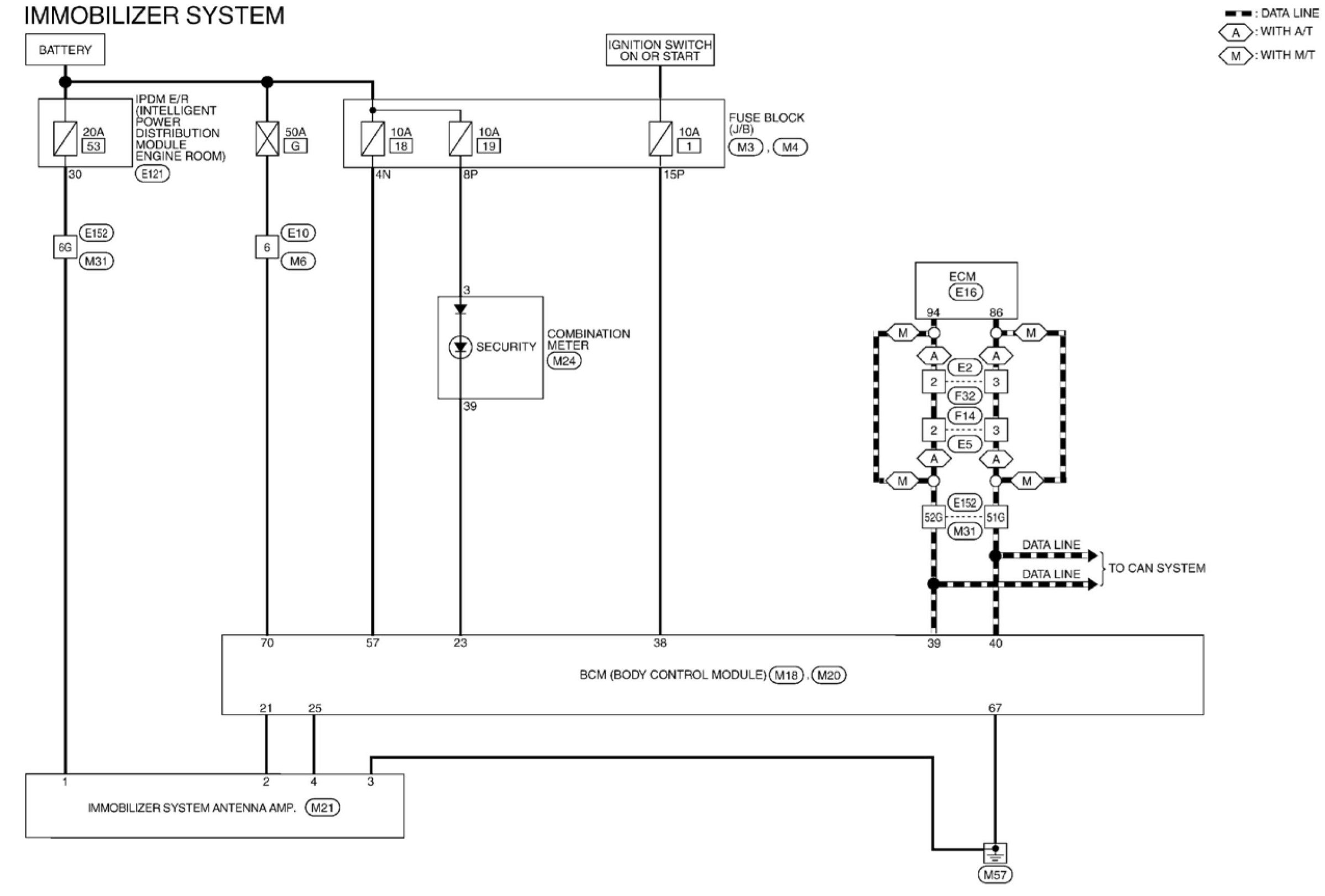

Immobilizer System: Wiring Diagram

Immobilizer System:

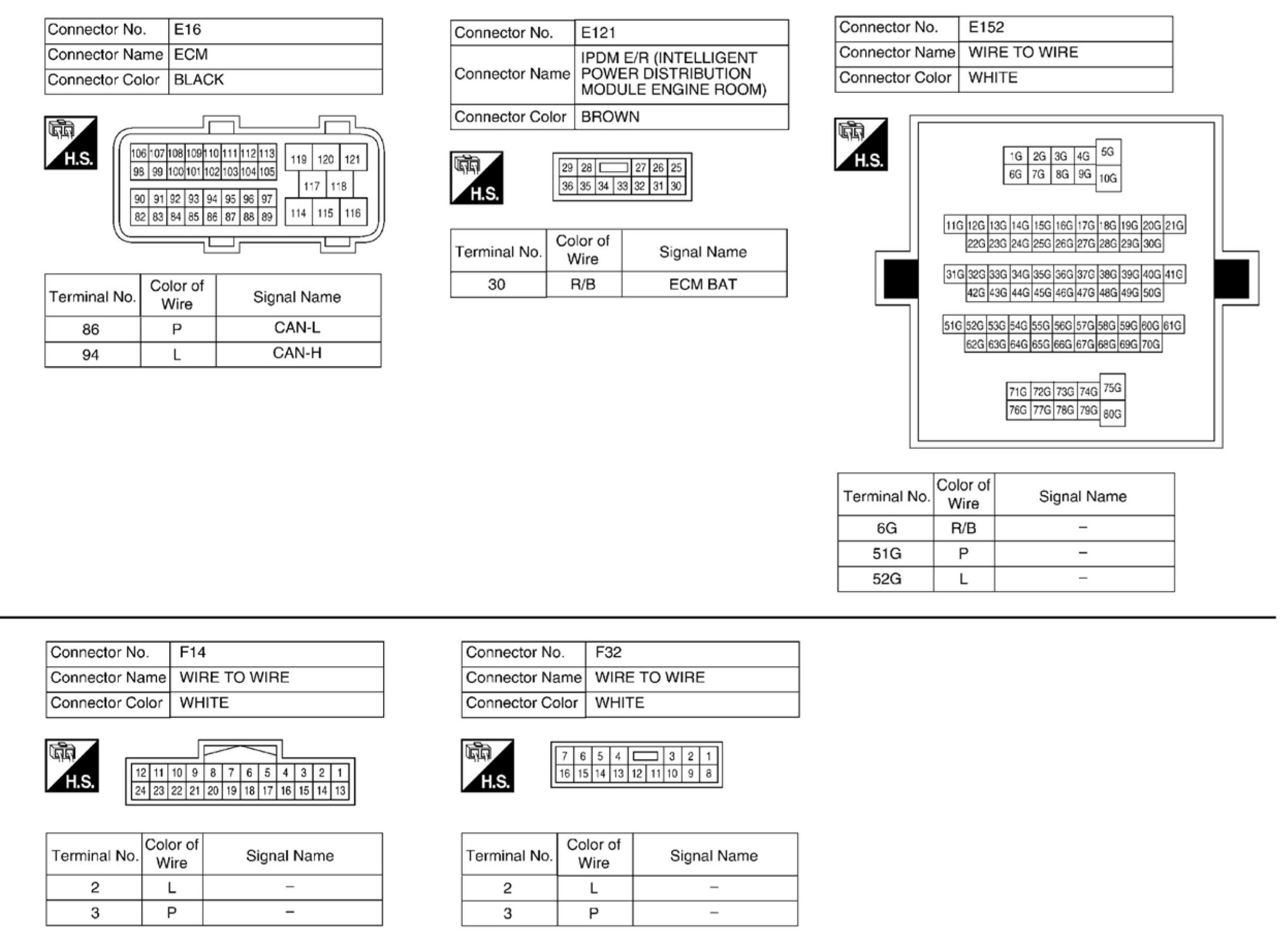

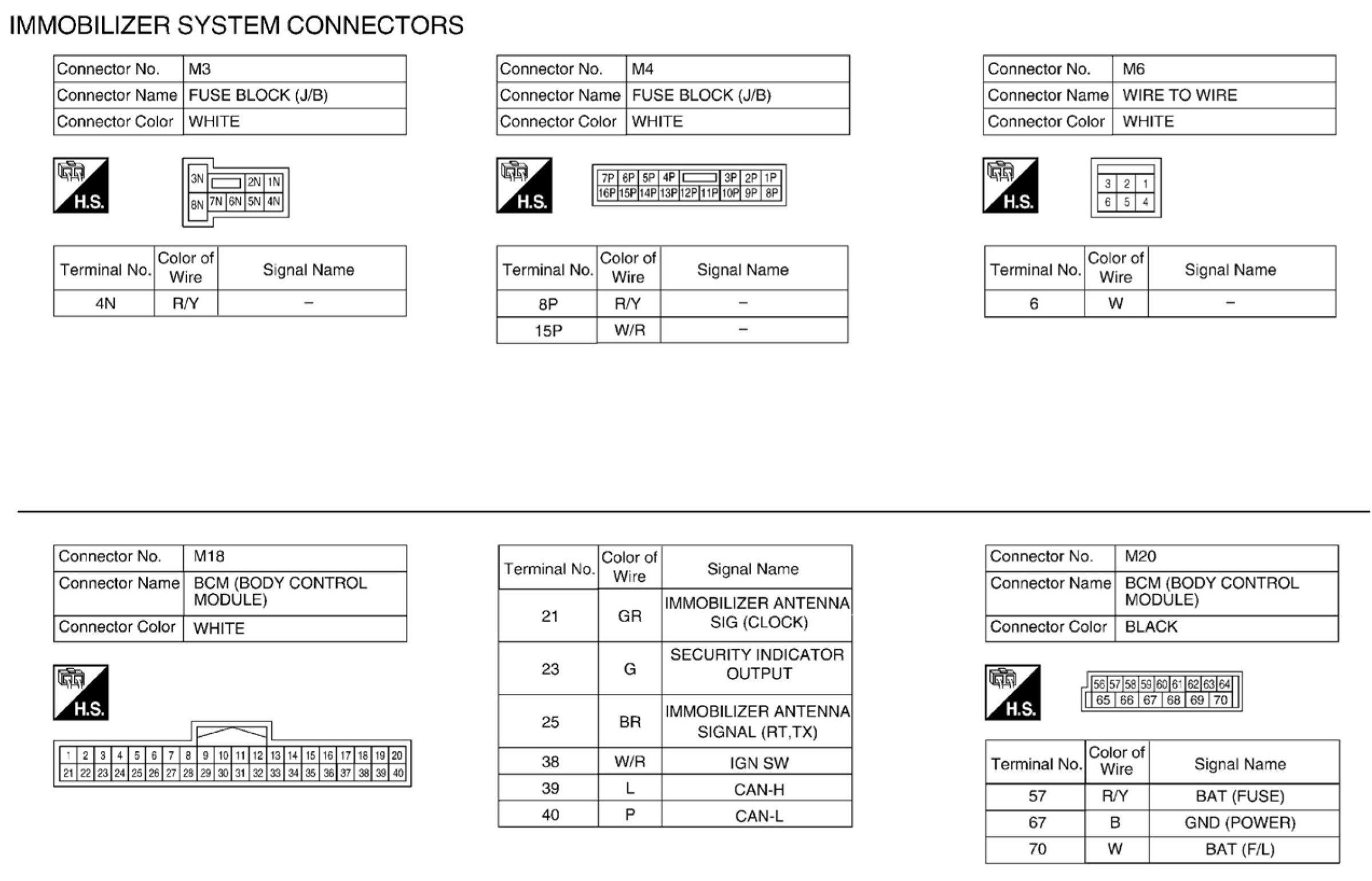

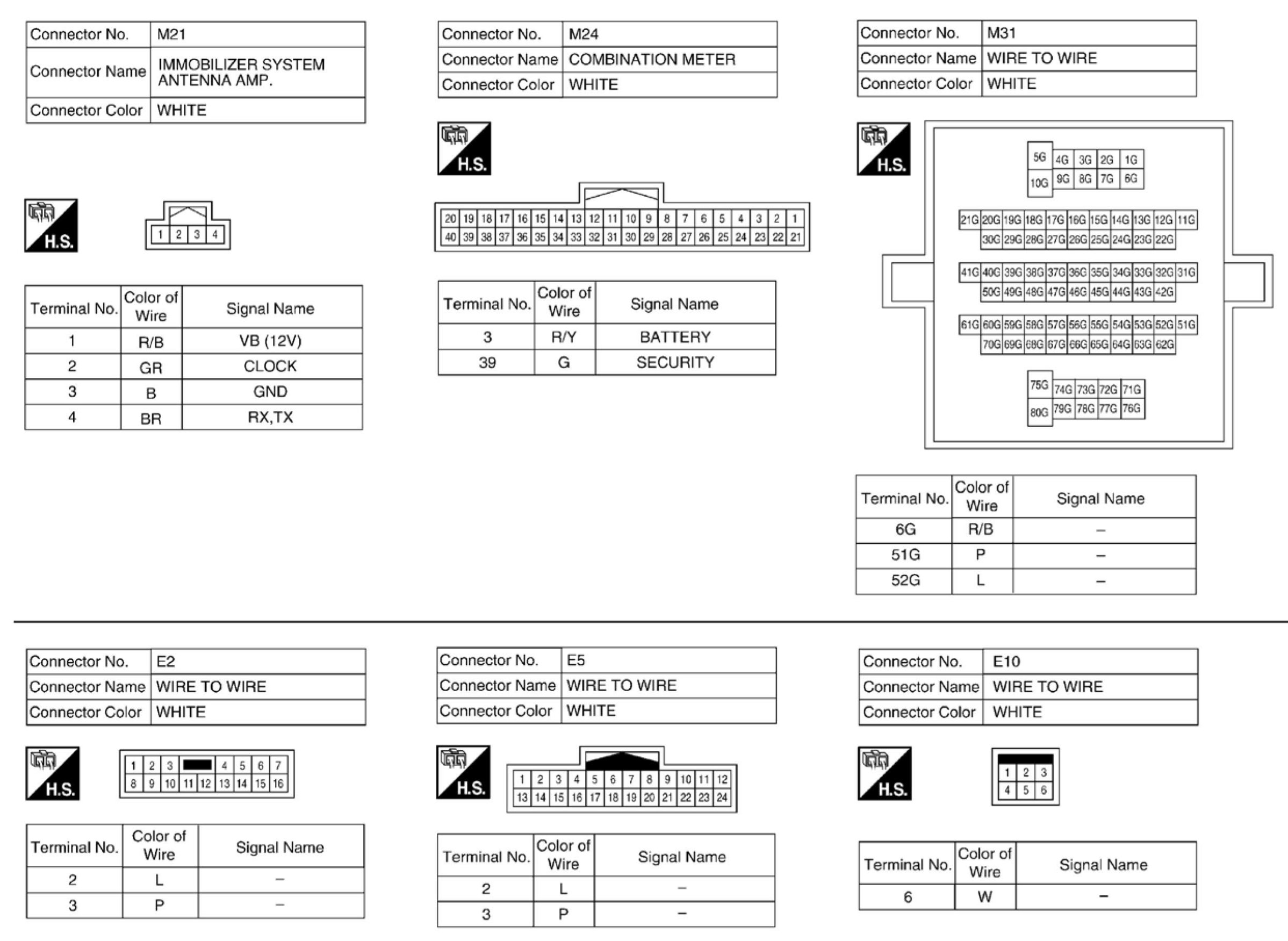

Immobilizer System Connectors

Immobilizer System Connectors (Part 1):




Immobilizer System Connectors (Part 2):




Immobilizer System Connectors (Part 3):
