ABLS

ABLS: Wiring Diagram

Brake Control System - ABLS

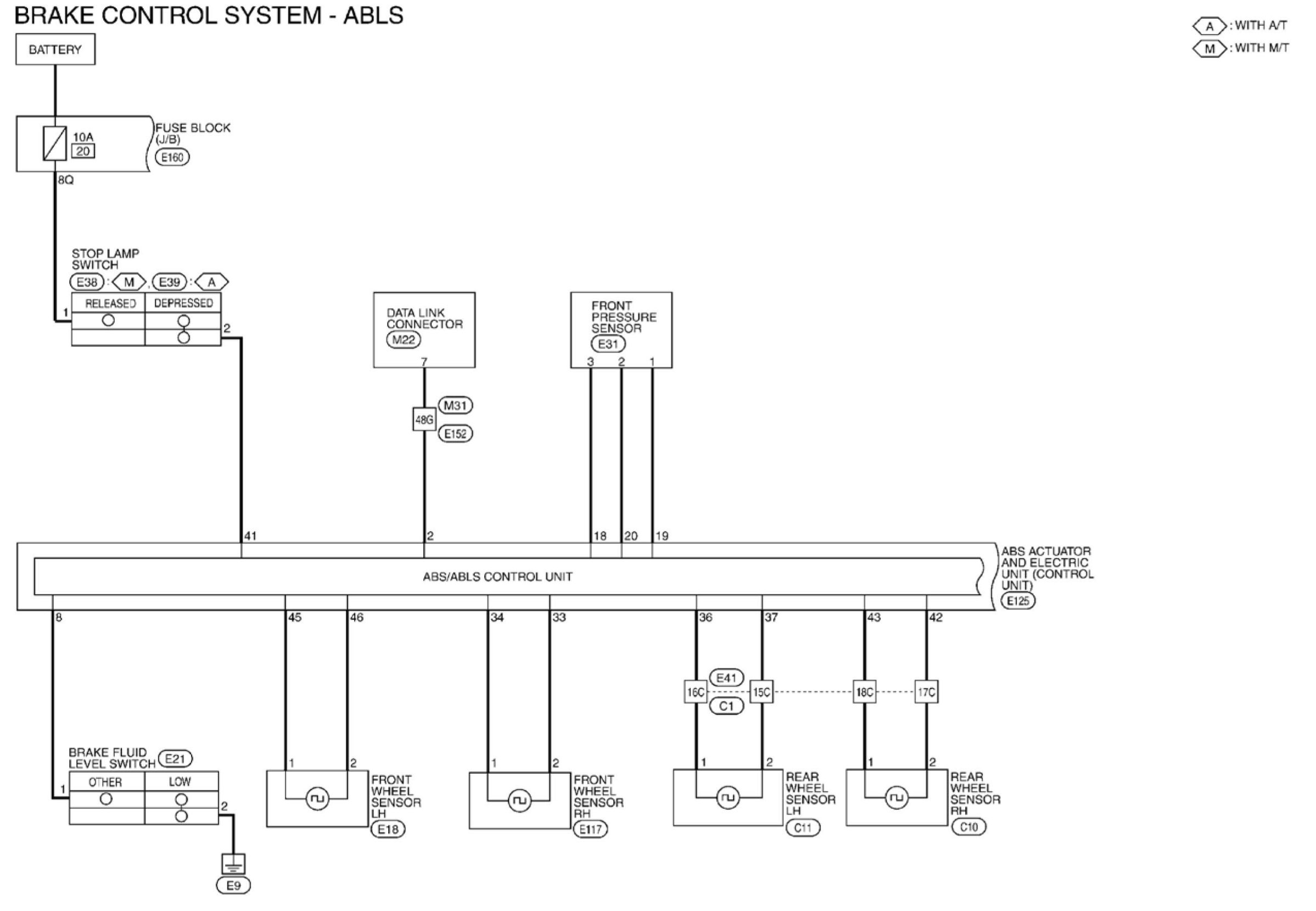

Brake Control System - ABLS (Part 1):

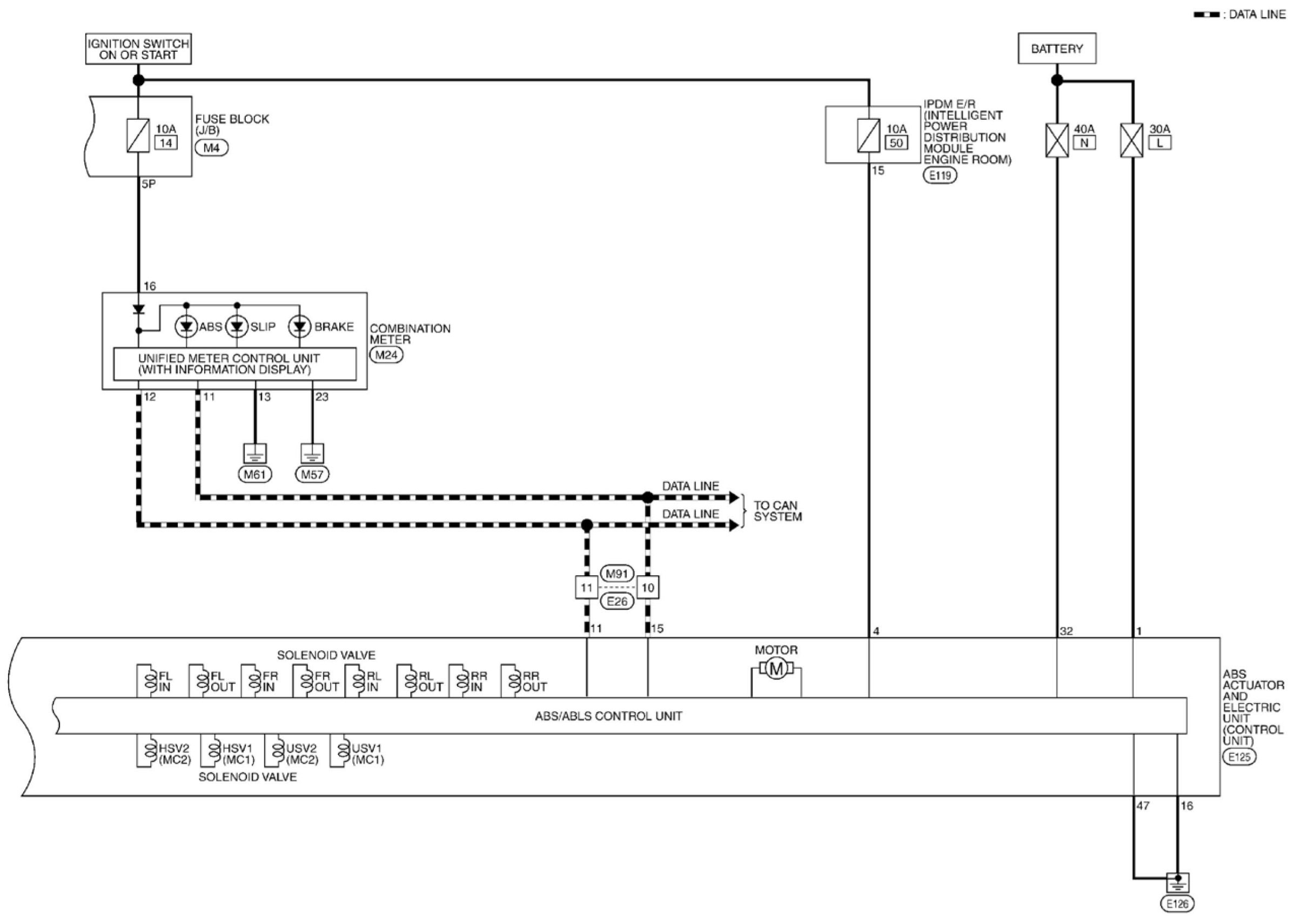

Brake Control System - ABLS (Part 2):






Brake Control System Connectors - ABLS

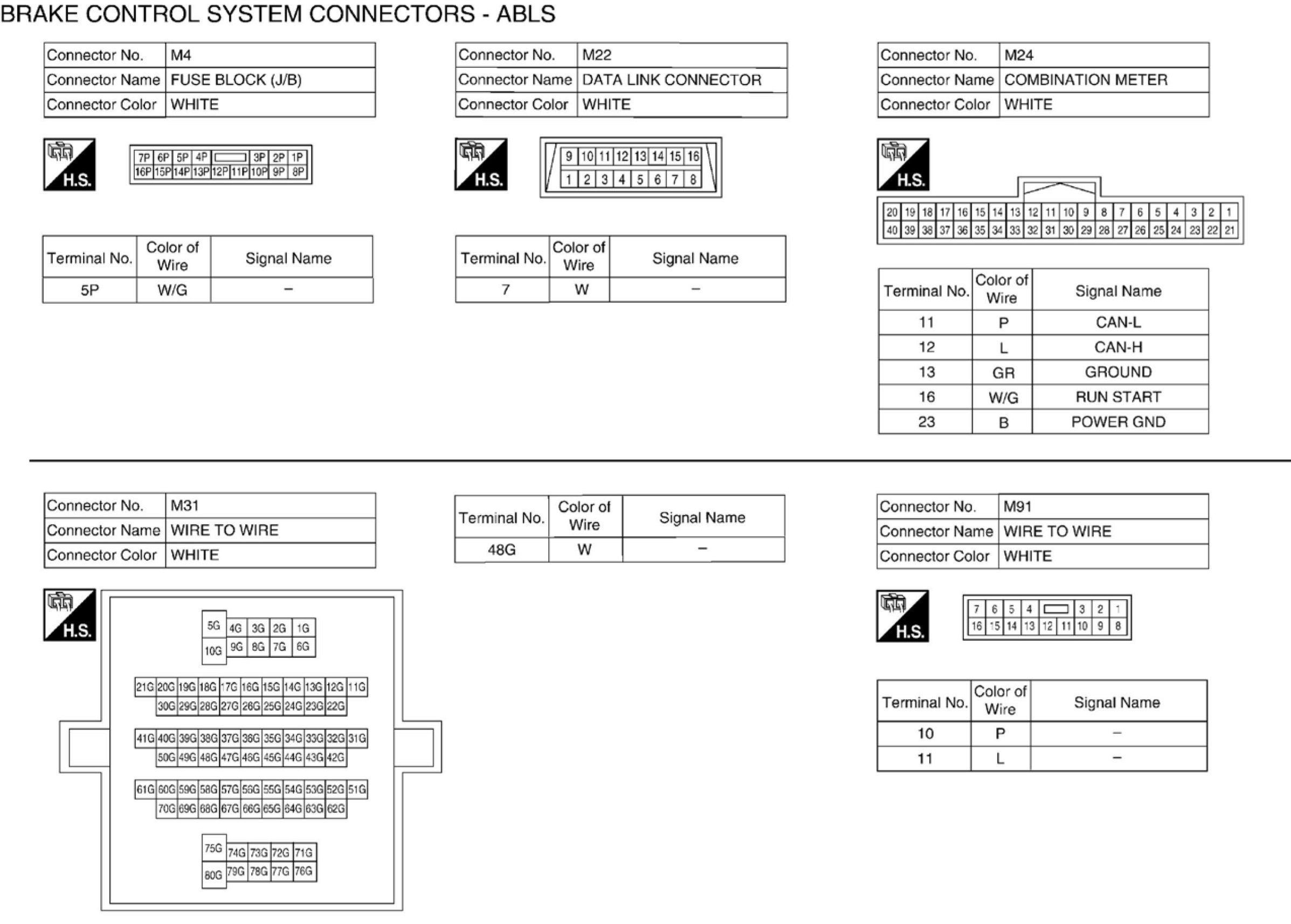

Brake Control System Connectors - ABLS (Part 1):

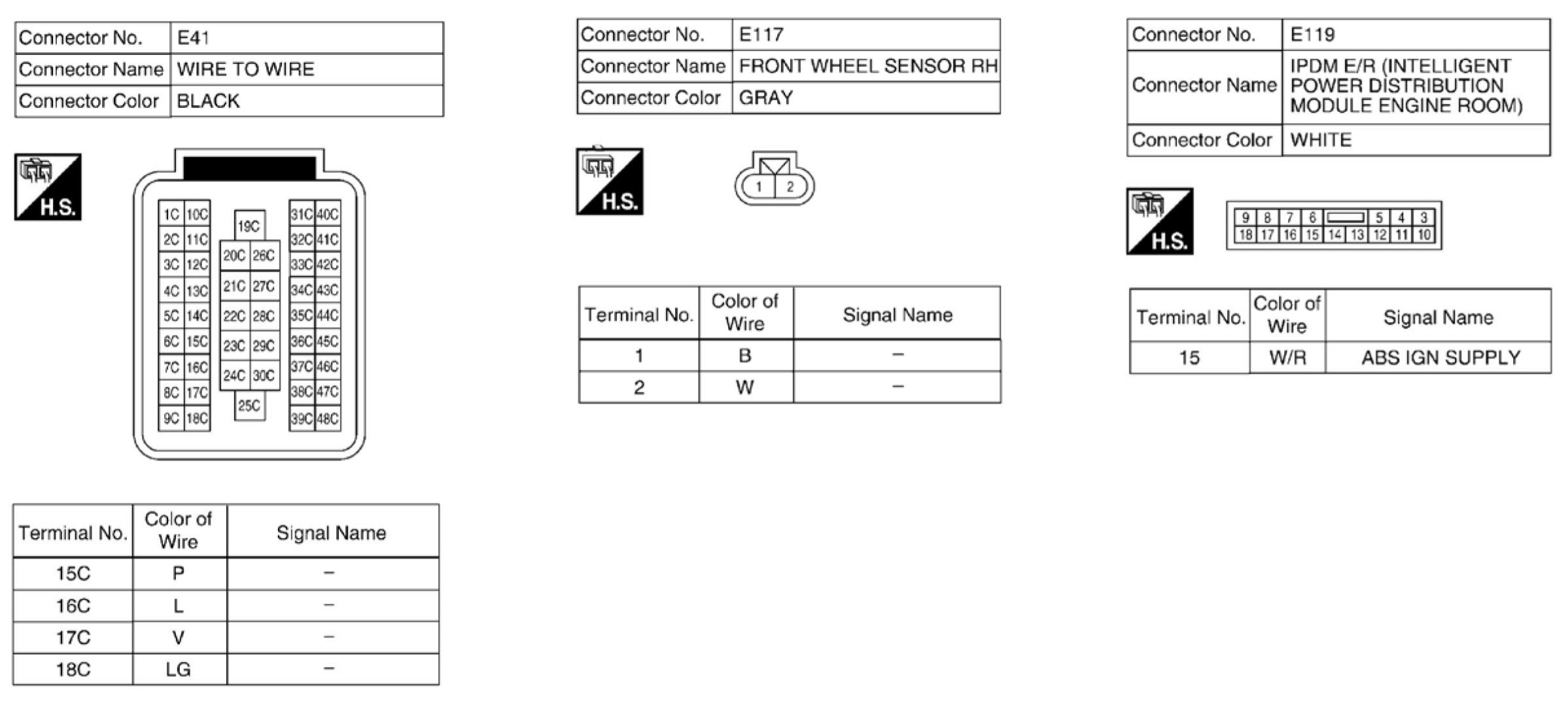

Brake Control System Connectors - ABLS (Part 2):

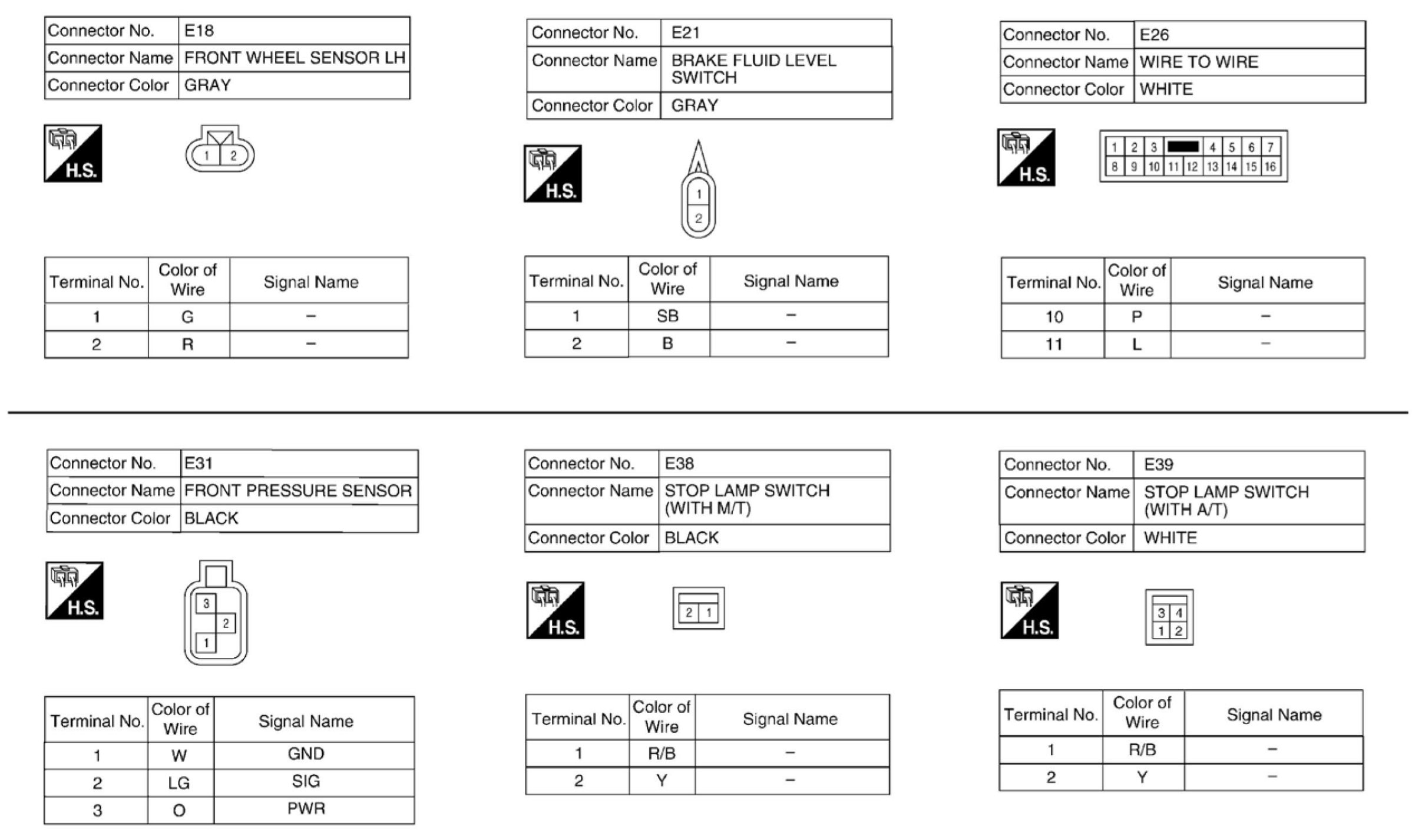

Brake Control System Connectors - ABLS (Part 3):

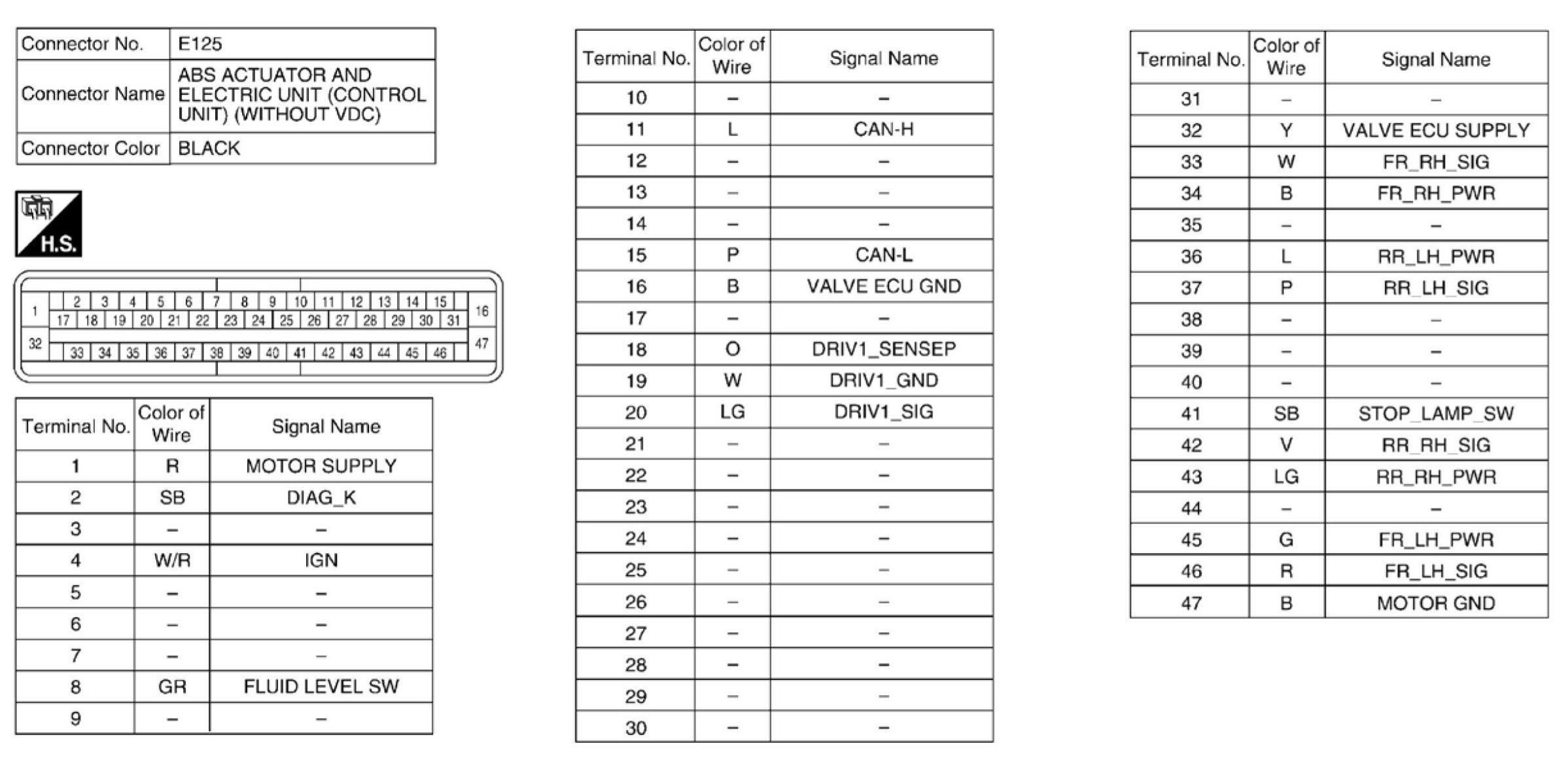

Brake Control System Connectors - ABLS (Part 4):
