SRS Airbag Control System Diagnosis Sensor Unit [With Power Seats]
SRS Airbag Control System Diagnosis Sensor Unit: Wiring Diagram [with Power Seats]SRS Airbag Control System - With Power Seats

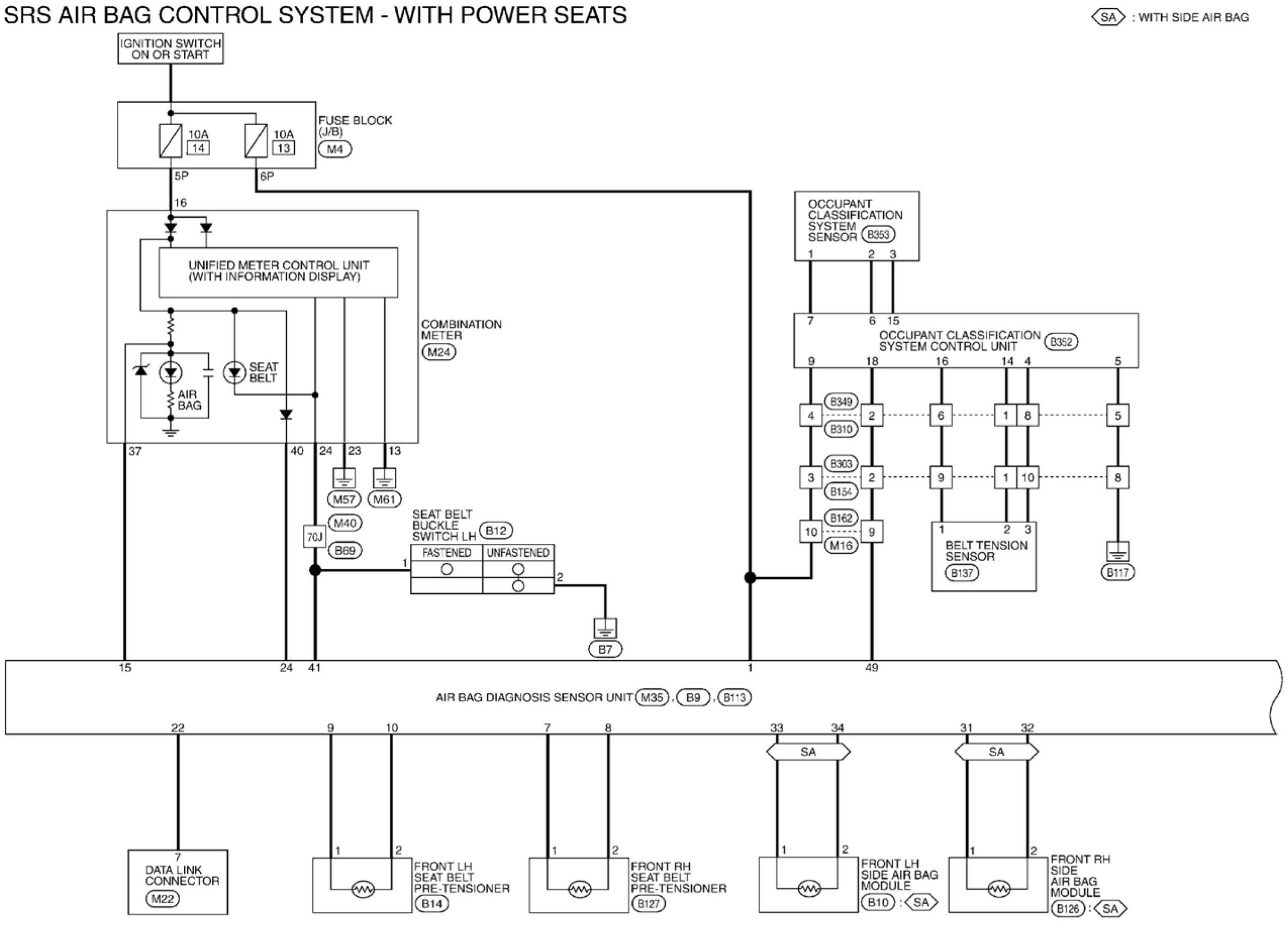

SRS Air Bag Control System - With Power Seats (Part 1):

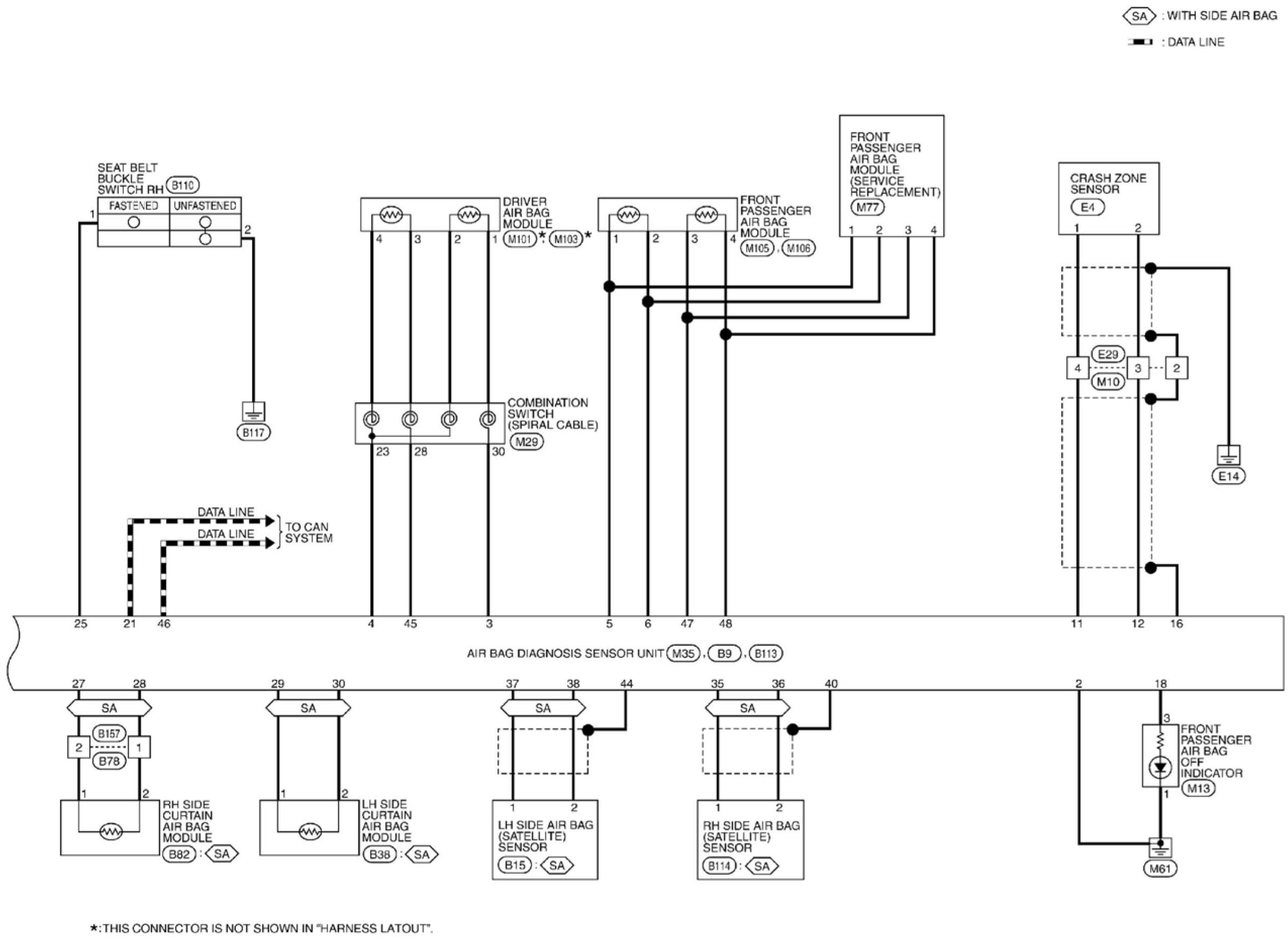

SRS Air Bag Control System - With Power Seats (Part 2):

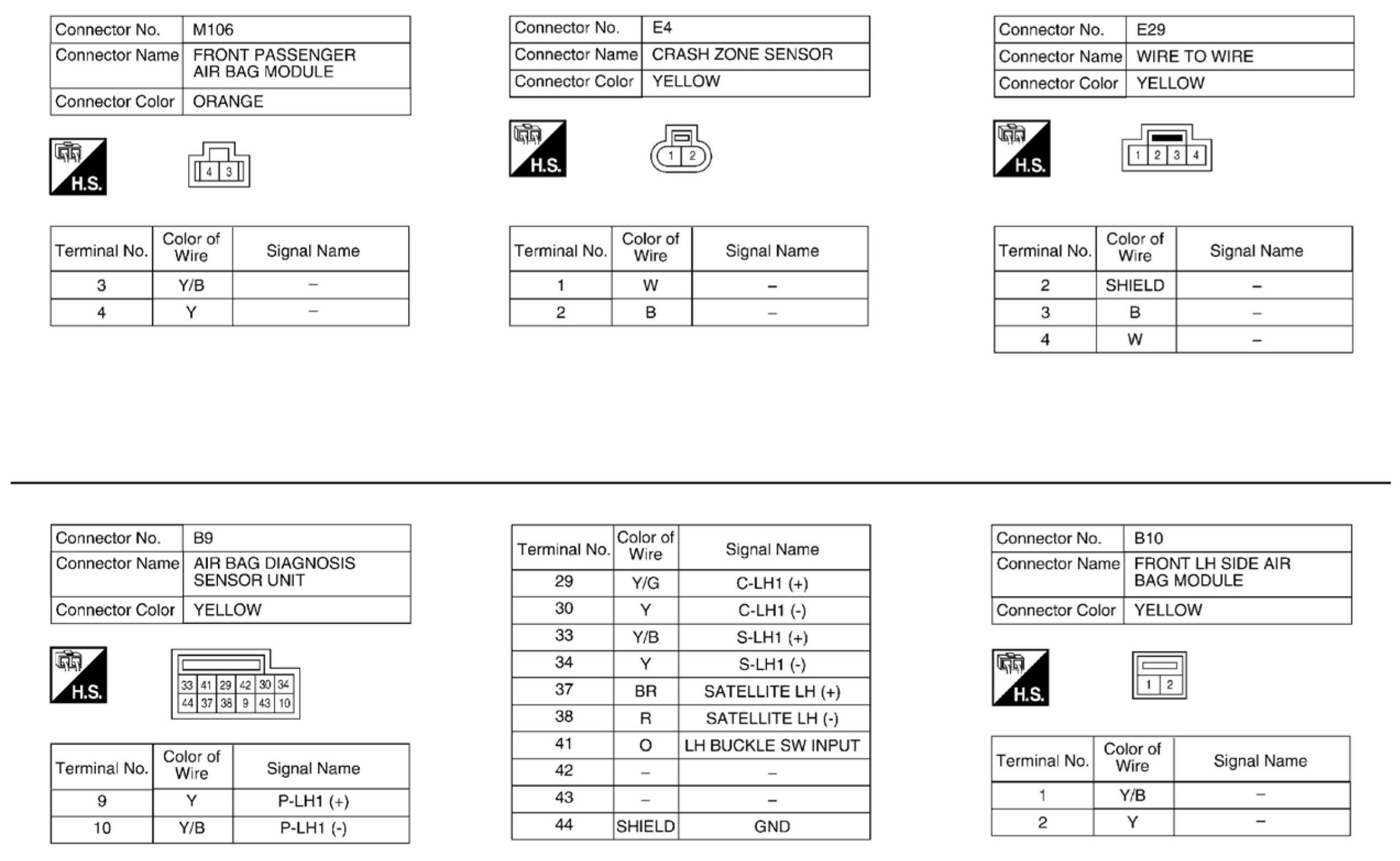

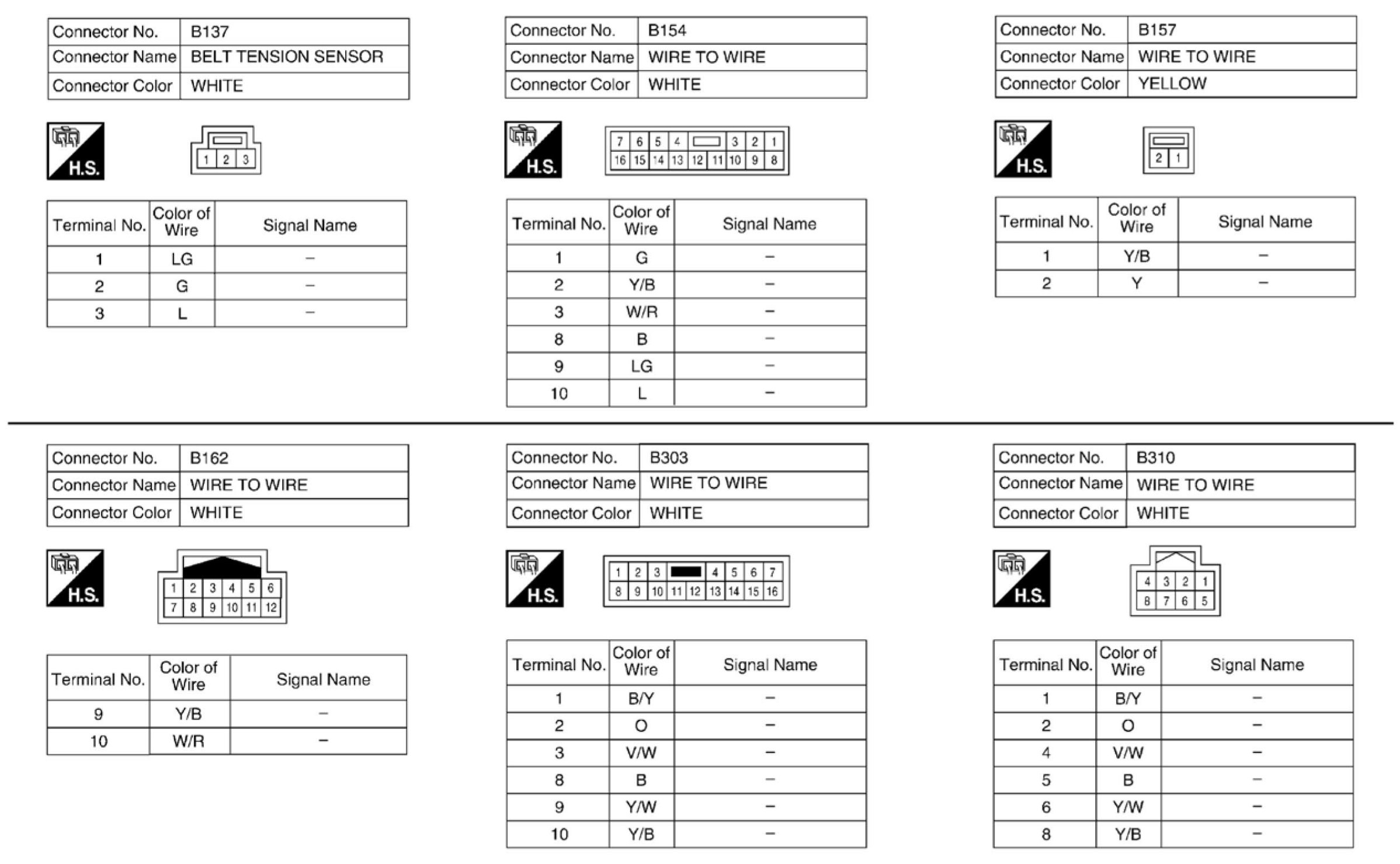

SRS Airbag Control System Connectors - With Power Seats

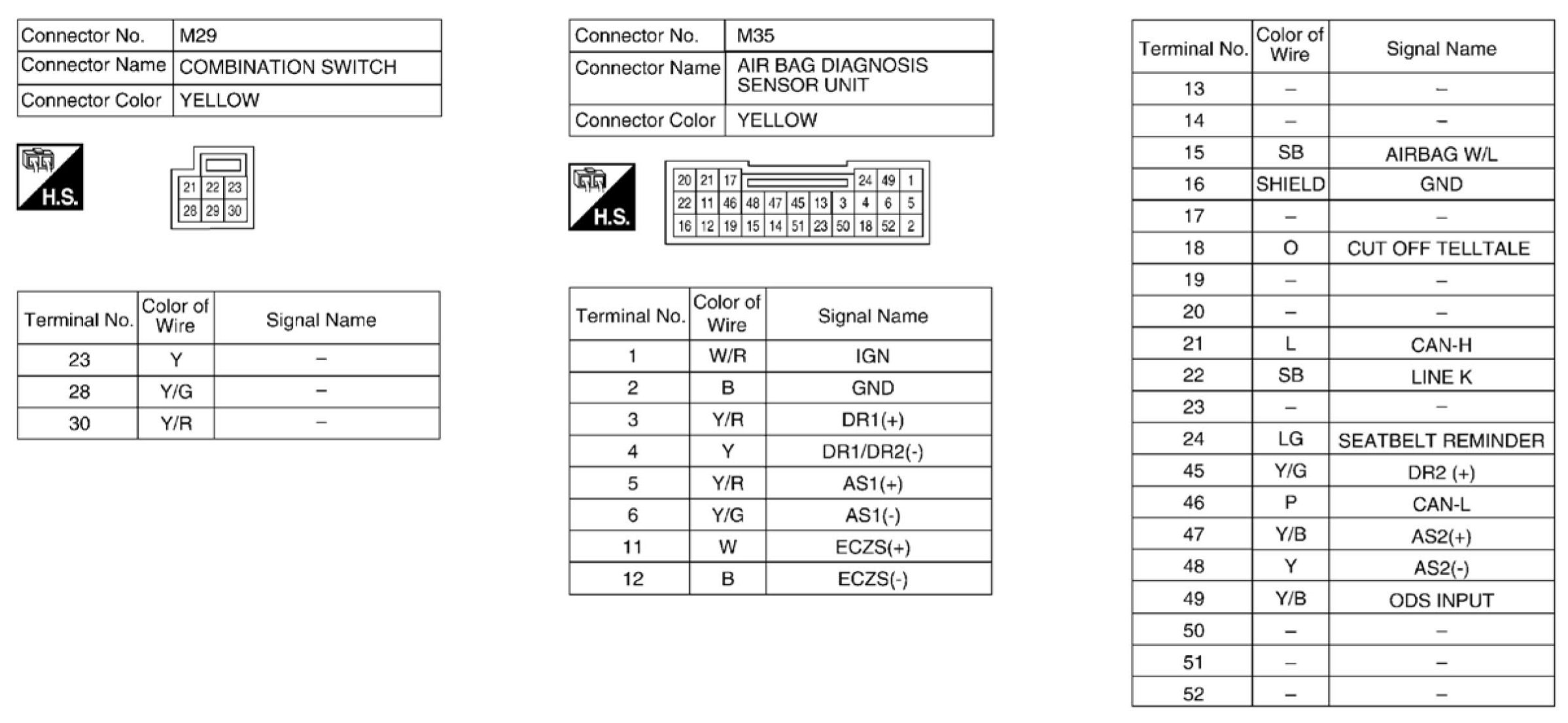

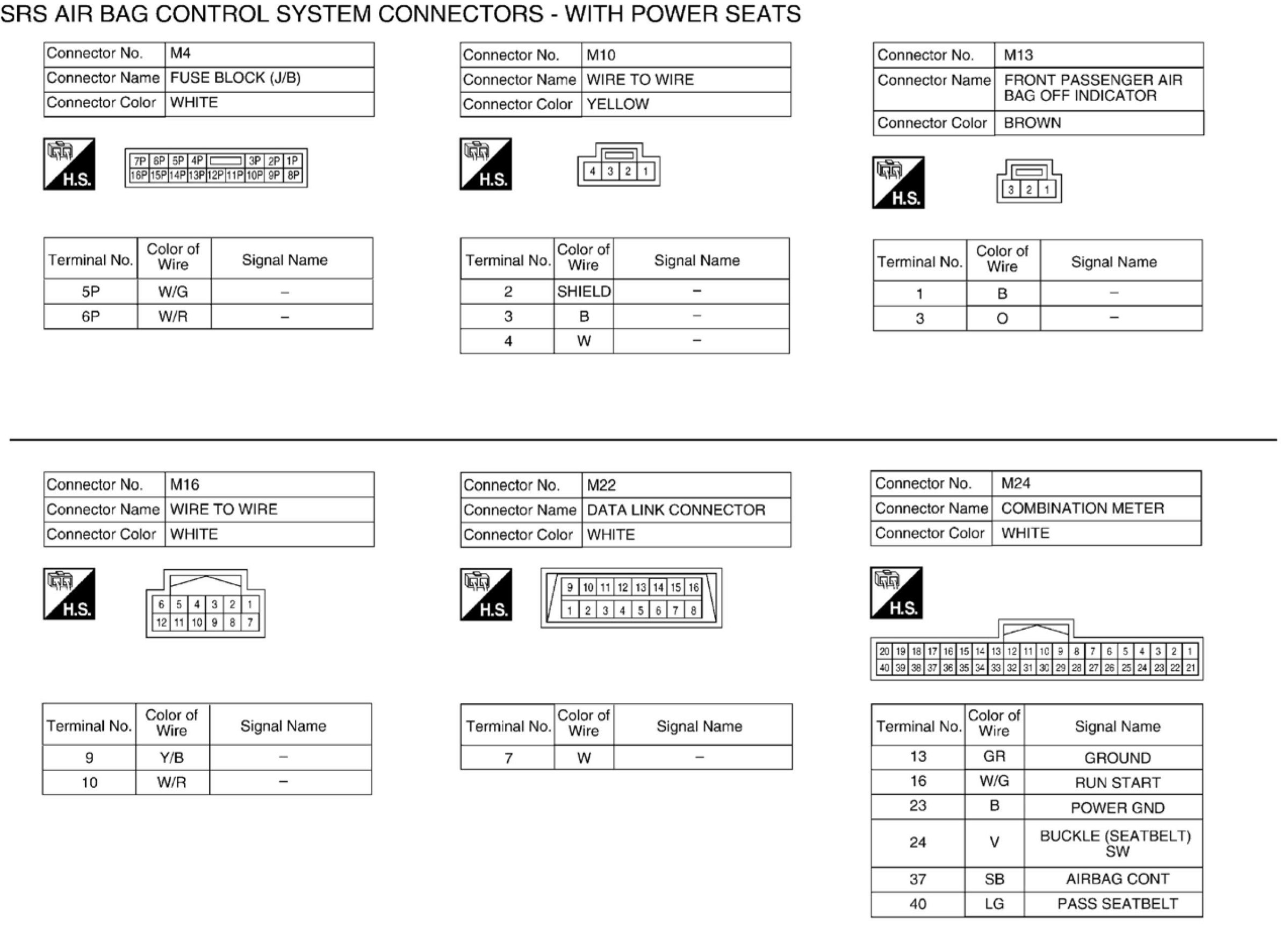

SRS Air Bag Control System Connectos - With Power Seats (Part 1):

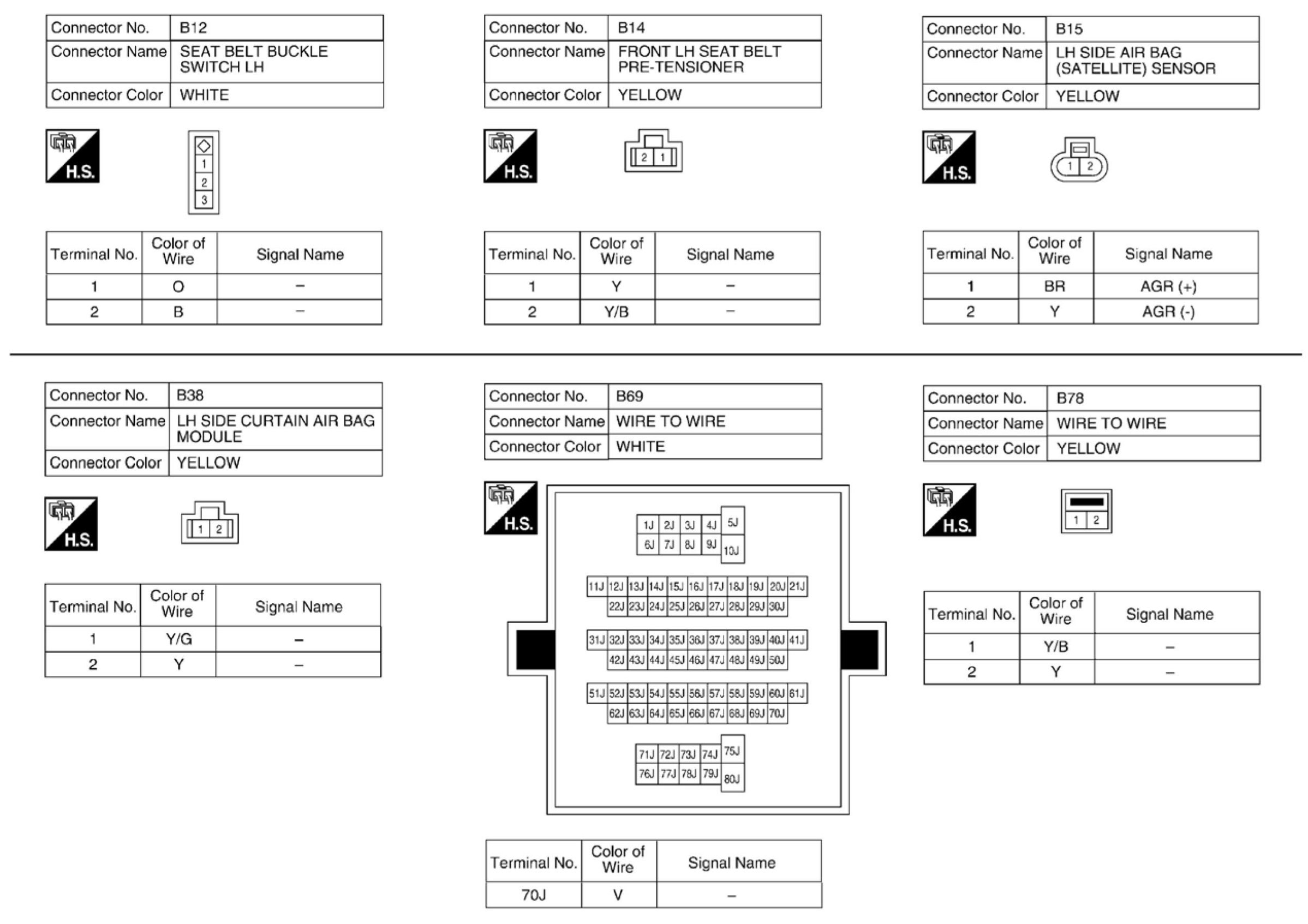

SRS Air Bag Control System Connectos - With Power Seats (Part 2):

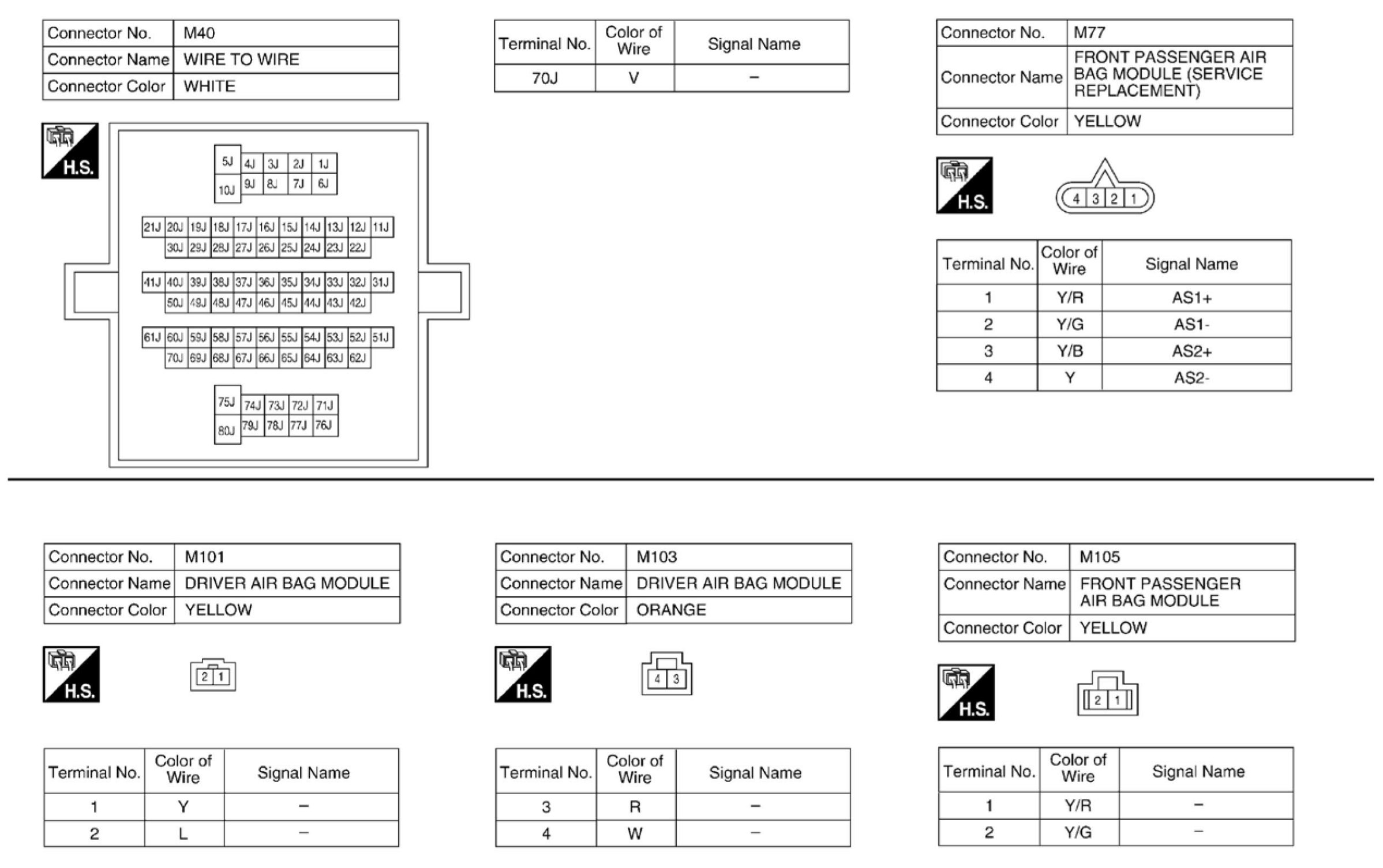

SRS Air Bag Control System Connectos - With Power Seats (Part 3):

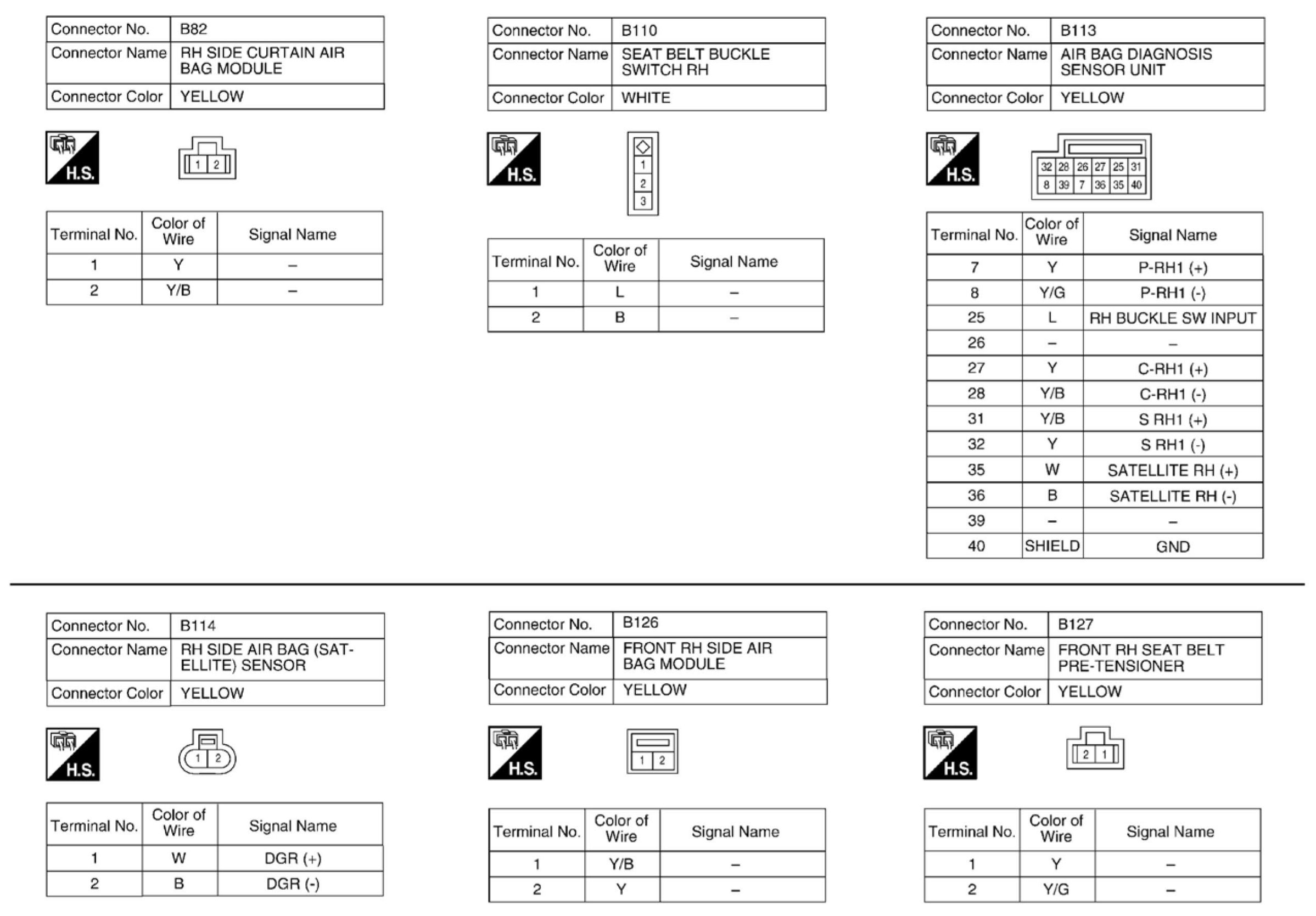

SRS Air Bag Control System Connectos - With Power Seats (Part 4):

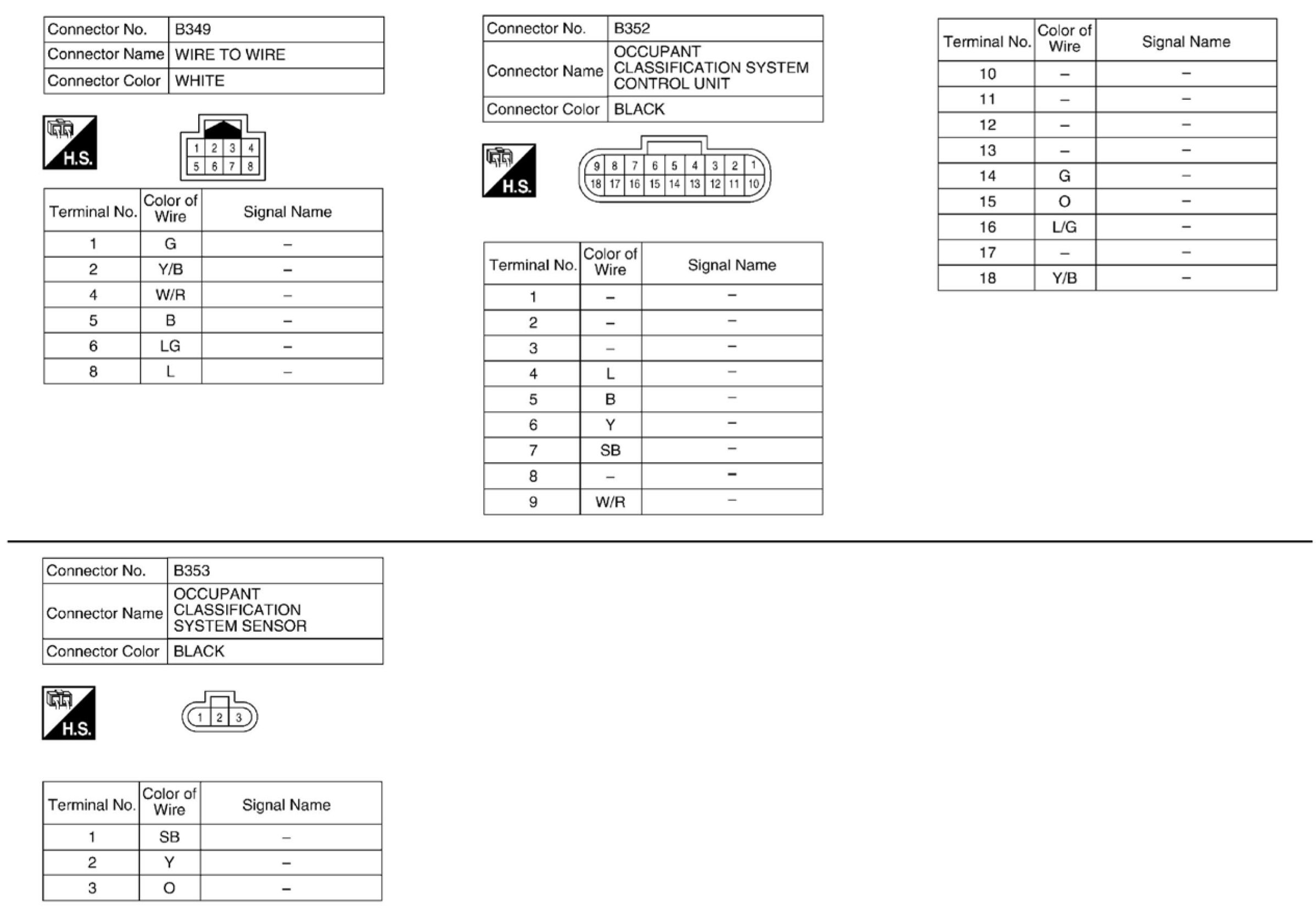

SRS Air Bag Control System Connectos - With Power Seats (Part 5):
SRS Air Bag Control System Connectos - With Power Seats (Part 6):
SRS Air Bag Control System Connectos - With Power Seats (Part 7):
SRS Air Bag Control System Connectos - With Power Seats (Part 8):
