Removal and Replacement

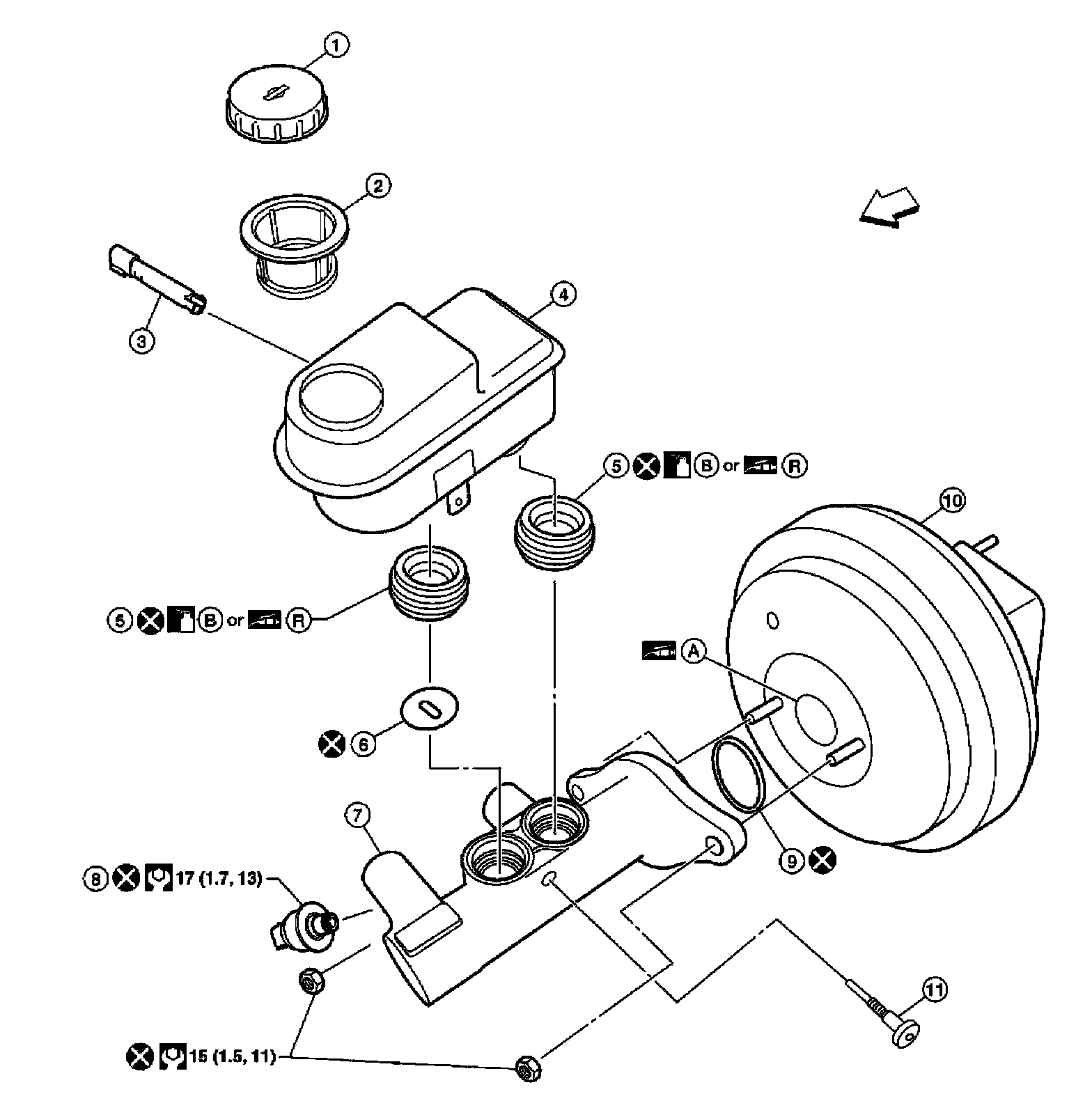

Brake Master Cylinder: Removal and Installation











CAUTION:
Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is splashed on painted areas, wash it away with water immediately.

REMOVAL
1) Drain the brake fluid.
2) Disconnect the harness connectors for the fluid level sensor and fluid pressure sensor.
3) Disconnect the brake pipes from the master cylinder assembly.
4) Remove the master cylinder assembly nuts and discard.

CAUTION:
Discard the nuts, do not reuse.

5) Remove the master cylinder assembly.

INSTALLATION
Installation is in the reverse order of removal.
^ Use new master cylinder assembly nuts for installation.

CAUTION:
Do not reuse the master cylinder assembly nuts.

^ Refill the brake fluid and bleed the air.

CAUTION:
^ Refill using recommended brake fluid.

^ Do not reuse drained brake fluid.

^ Adjust the brake pedal.

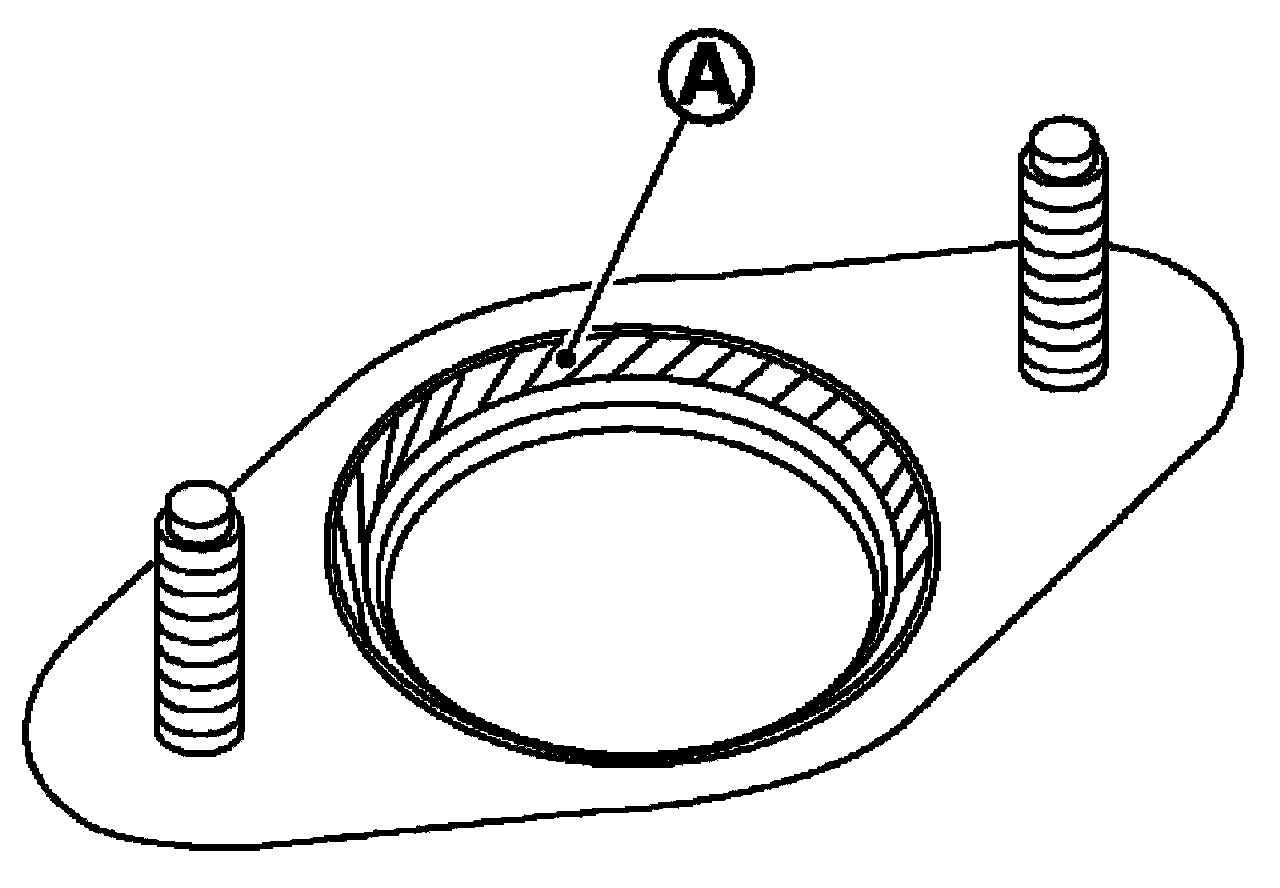

^ Apply silicon grease to the brake booster at position (A) as shown when installing the master cylinder assembly to the brake booster.
