Yaw Rate Sensor: Service and Repair
G Sensor: Removal and InstallationREMOVAL
1) Remove center console.

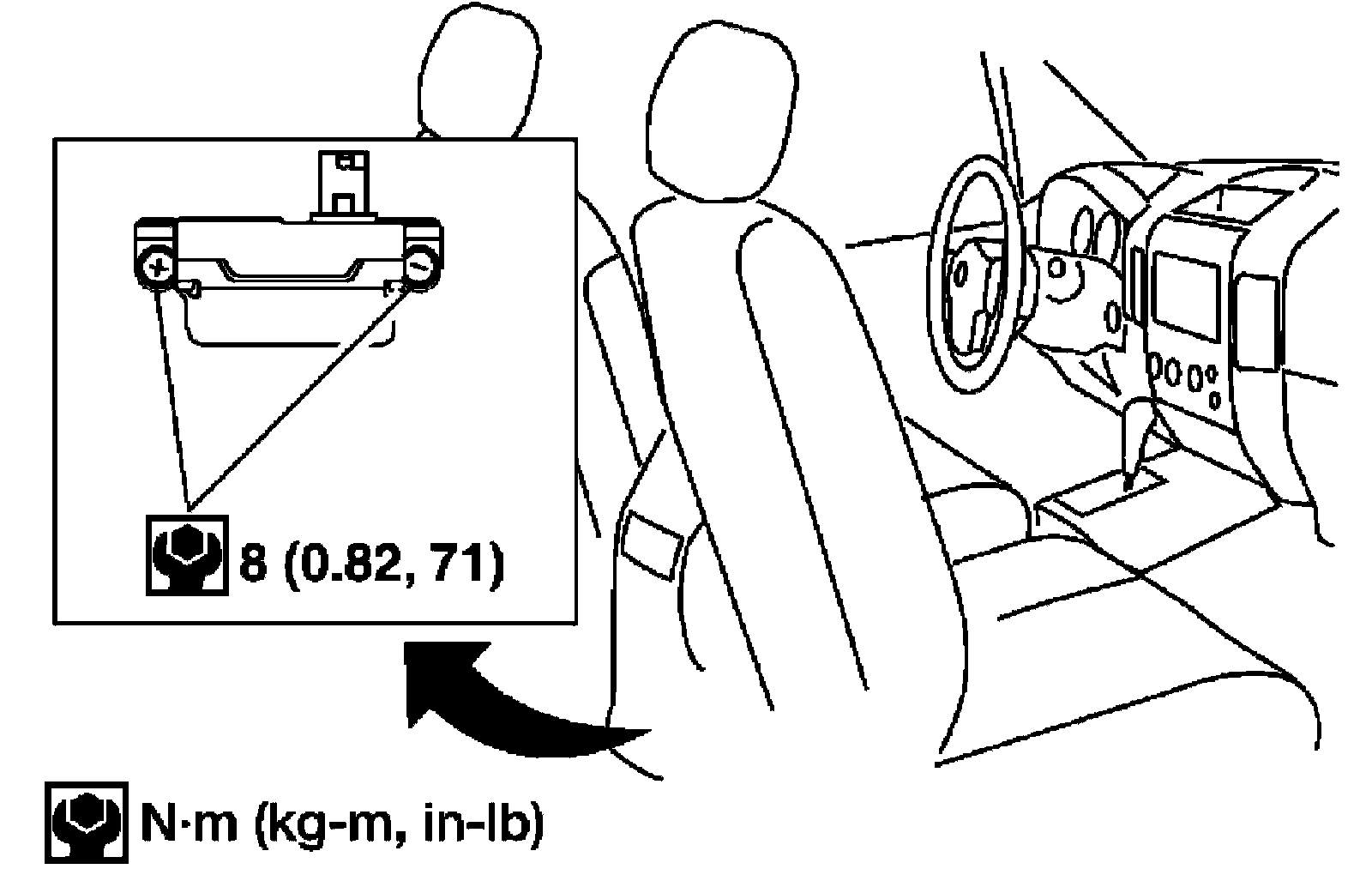

2) Remove yaw rate/side/decel G sensor attaching nuts as shown.
^ The location of the sensor is the same for all models.
CAUTION:
^ Do not use power tools to remove or install yaw rate/side/decel G sensor.
^ Do not drop or strike the yaw rate/side/decel G sensor.
3) Disconnect harness connector and remove the yaw rate/side/decel G sensor.
INSTALLATION
Installation is in the reverse order of removal.
NOTE:
After performing the above work, calibrate the yaw decel G sensor.
