Door Mirror Defogger Circuit Check [LH]

Door Mirror Defogger Circuit Check [LH]

Description

Heats the heating wire with the power supply from the rear window defogger relay to prevent the door mirror from fogging up.

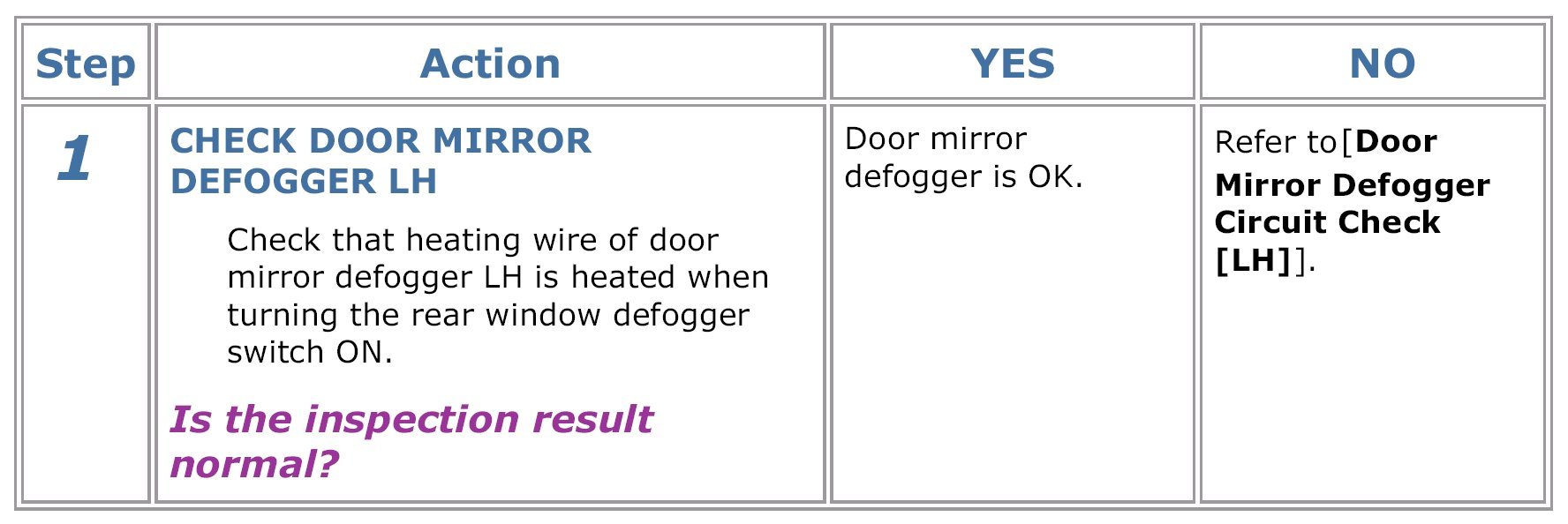

Component Function Check

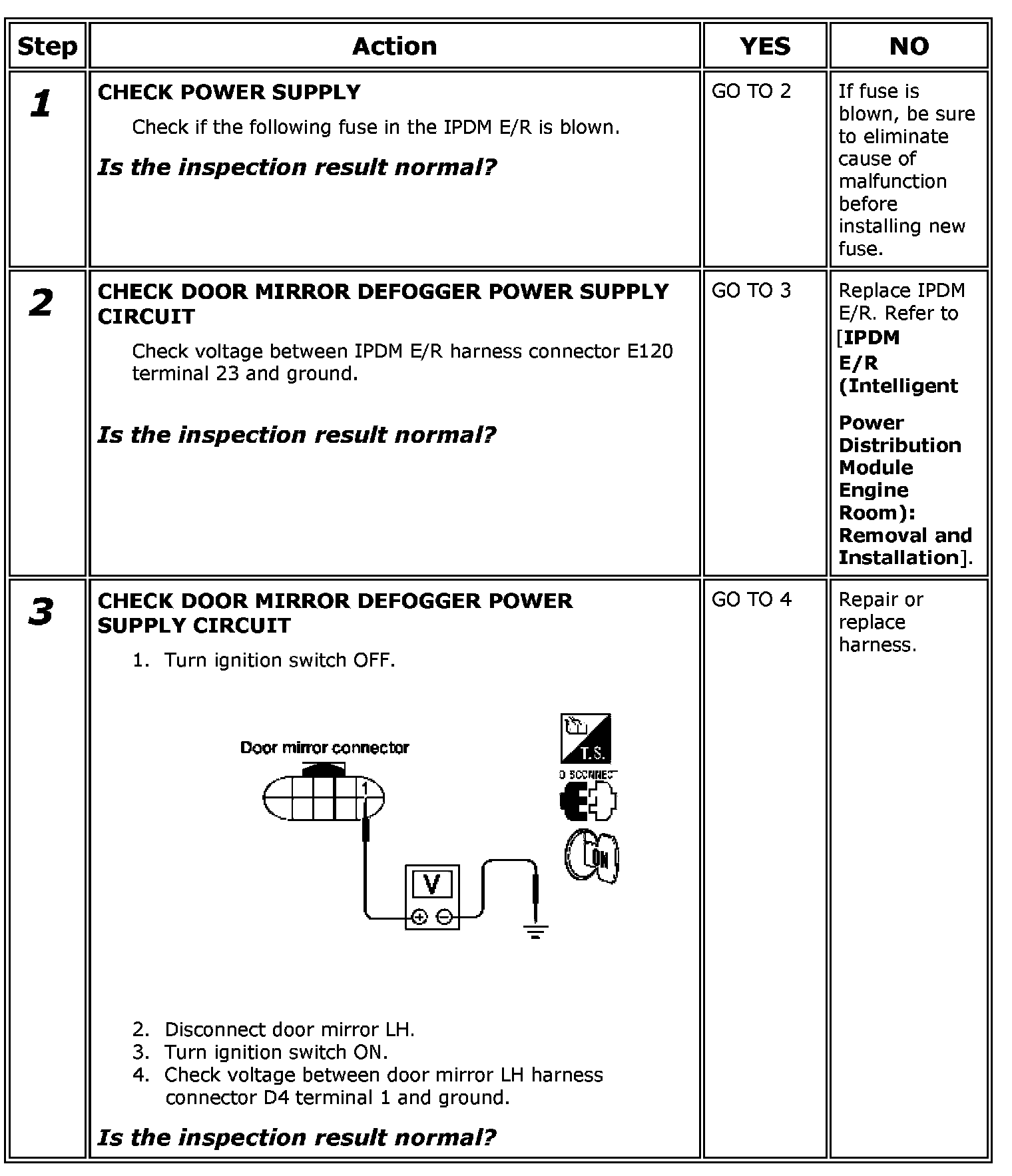

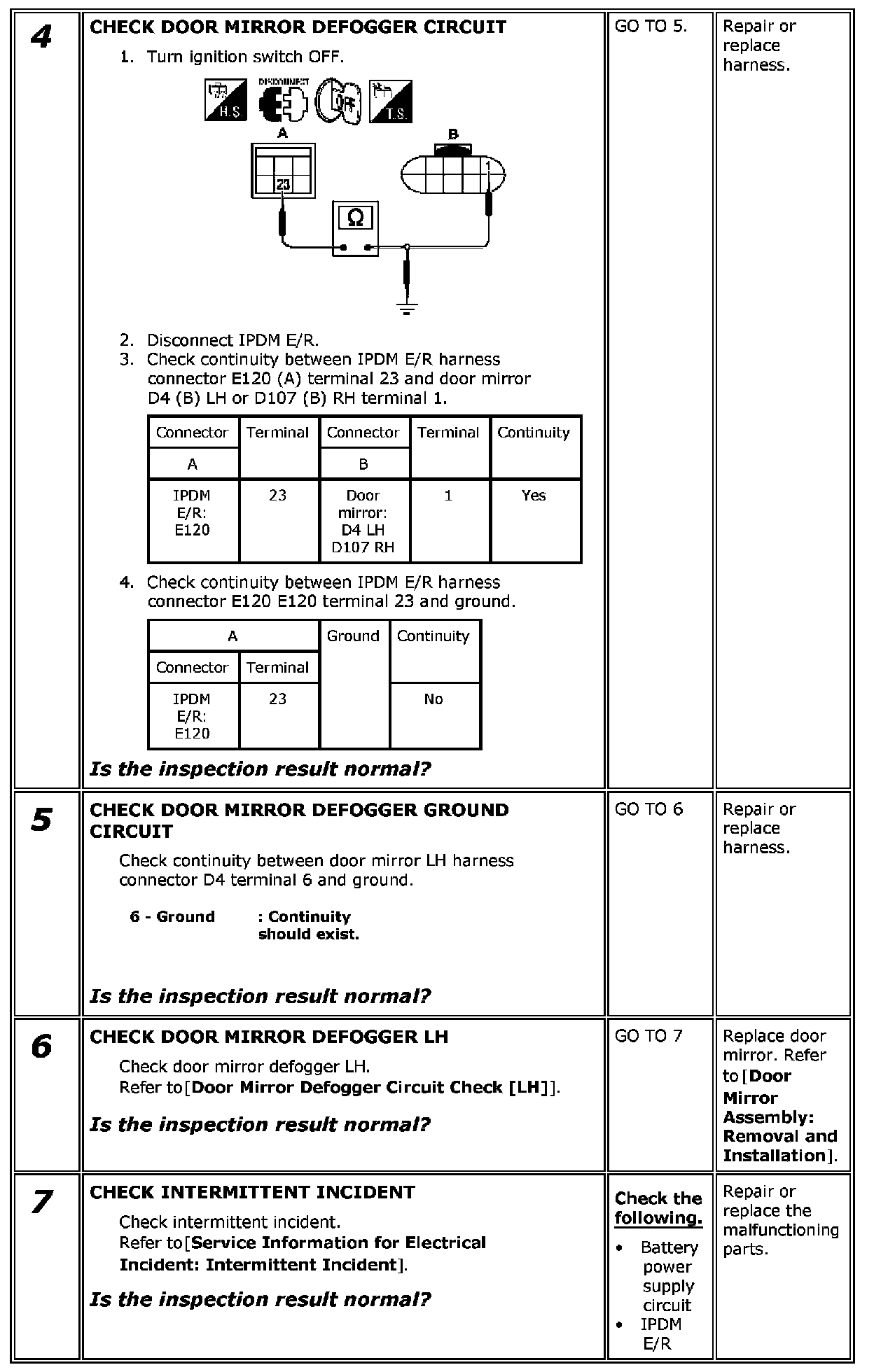

Diagnosis Procedure

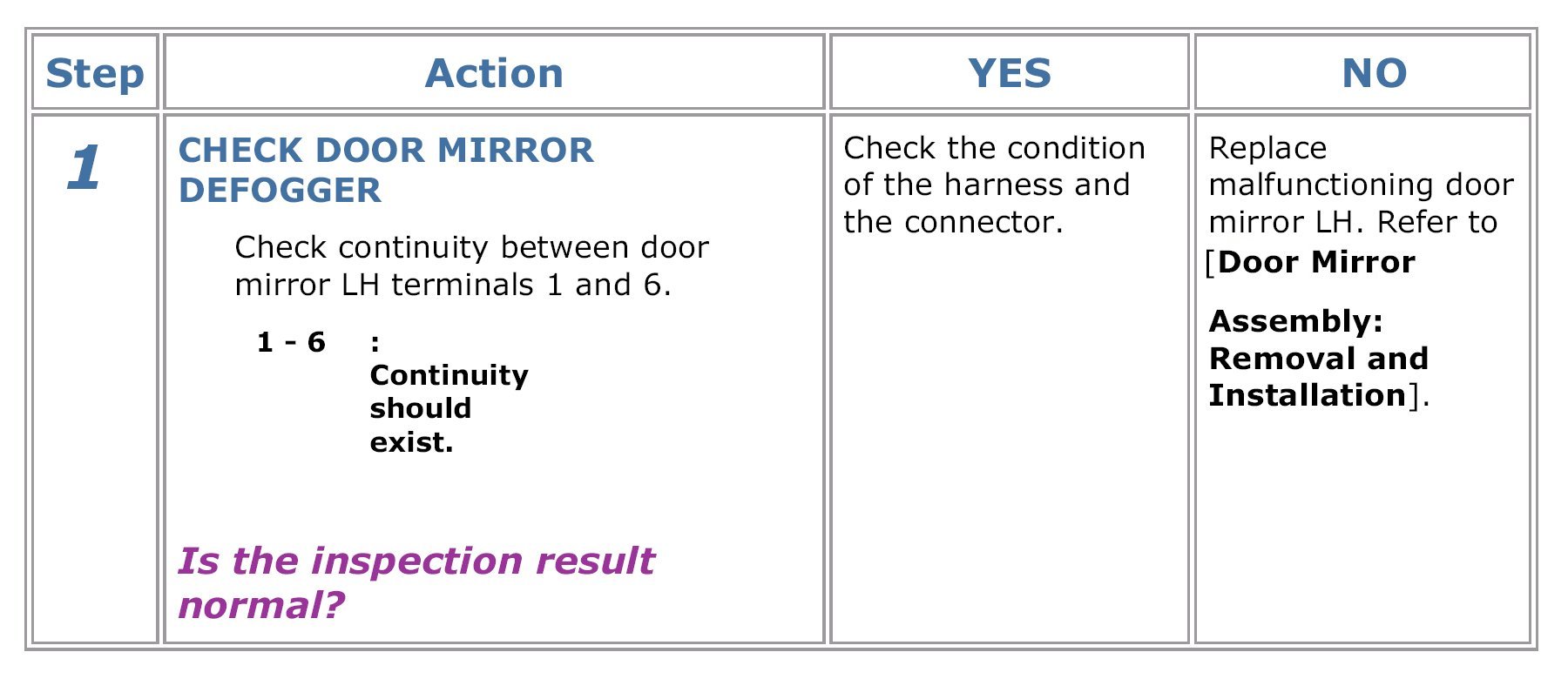

Component Inspection
