Inside Mirror: Removal and Installation

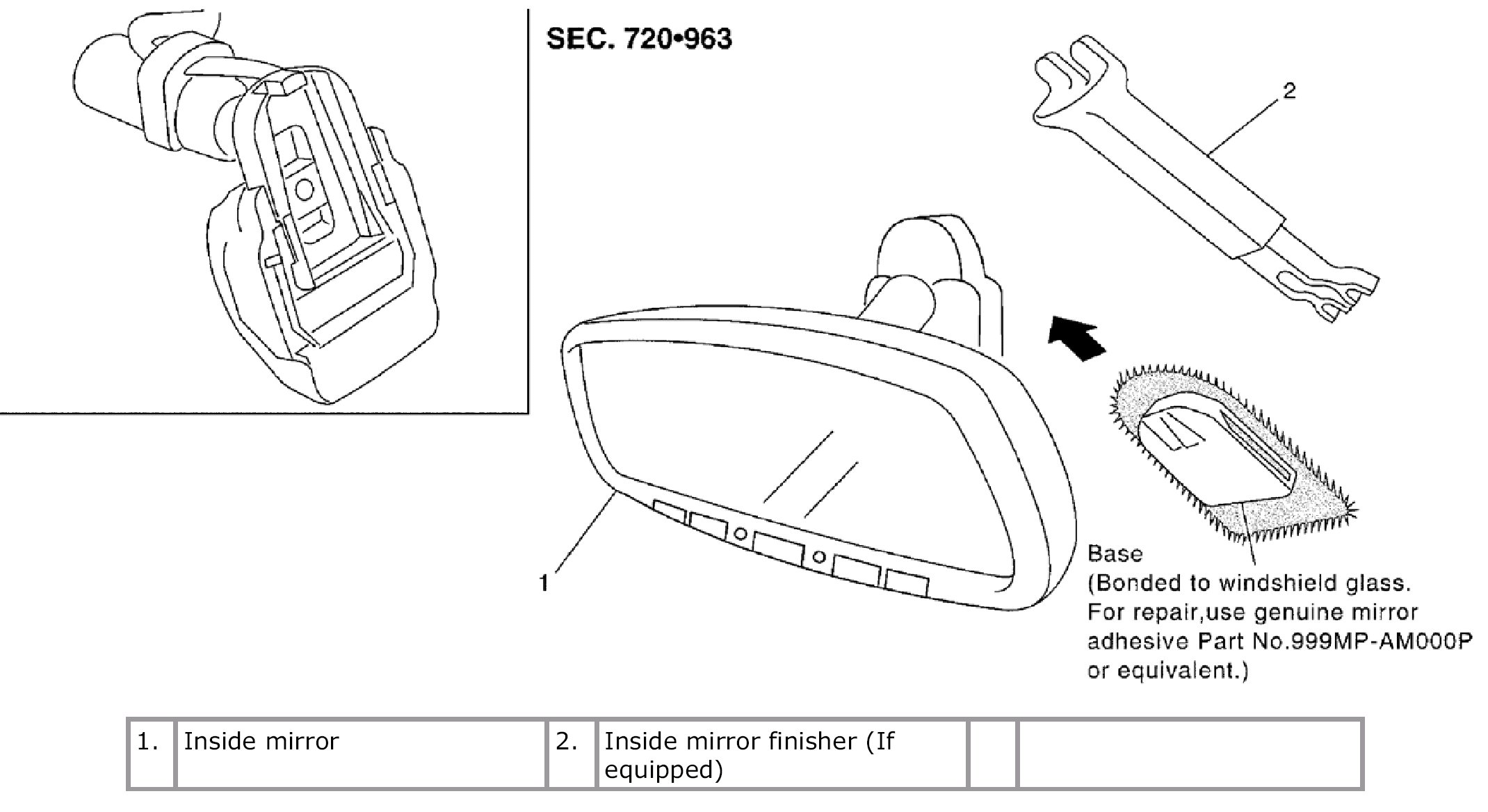

Inside Mirror: Removal

1. Remove the screw and the mirror finisher (if equipped).
2. Slide the mirror upward to remove.
3. Disconnect the connector (if equipped).







Inside Mirror: Installation

Installation is in the reverse order of removal.
