Symptom Related Diagnostic Procedures

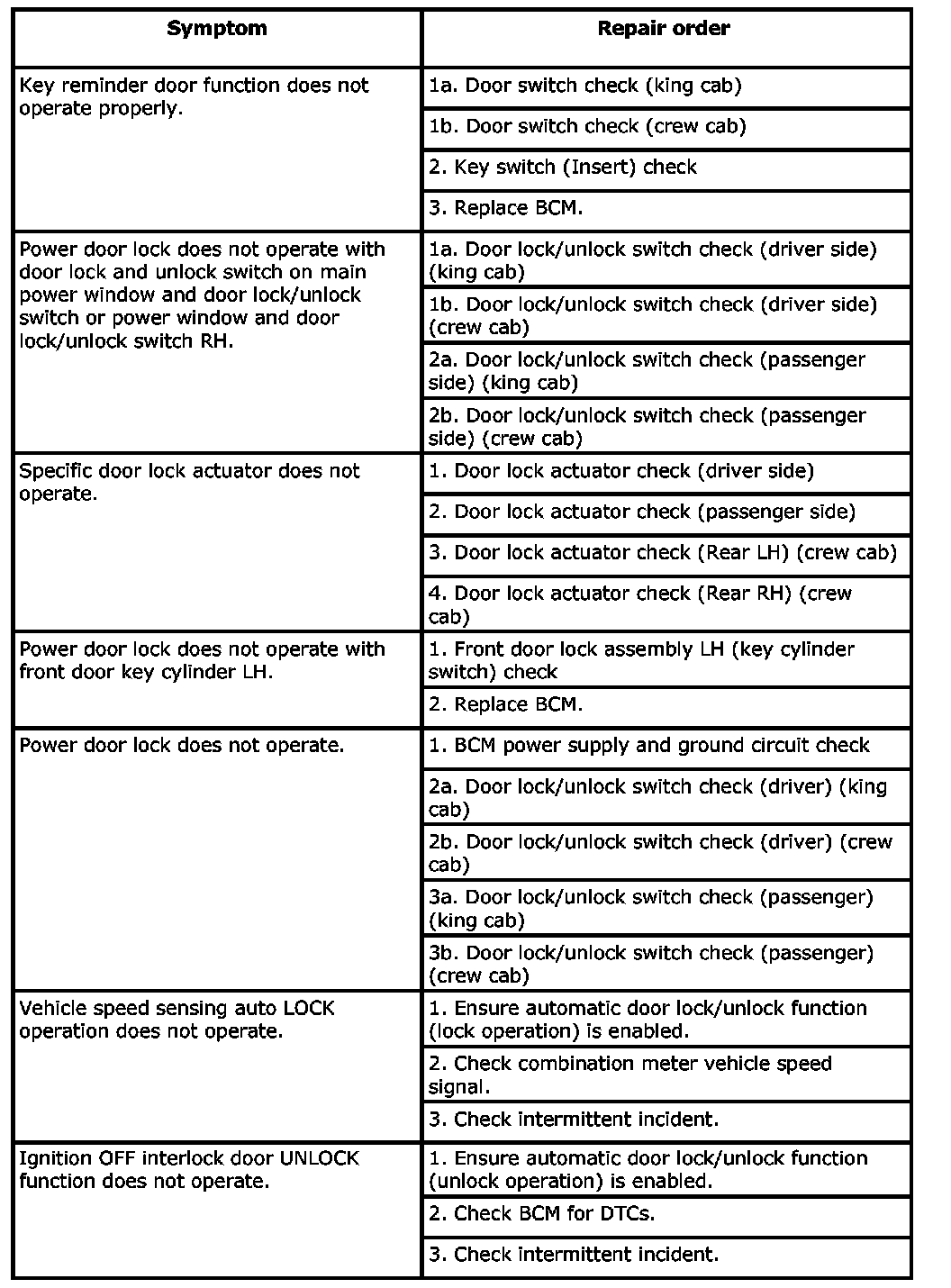

Door Lock: Symptom Table

DOOR LOCK SYSTEM

NOTE:
- Before performing the diagnosis in the following table, check "Work flow". Refer to [Diagnosis and Repair Workflow]. Initial Inspection and Diagnostic Overview
- If the following "symptoms" are detected, check systems shown in the "Diagnosis/service procedure" column in this order.
