Door Lock and Unlock Switch Circuit Check [Crew Cab]

Door Lock And Unlock Switch Circuit Check [Crew Cab]

Description

Transmits door lock/unlock operation to BCM.

Component Function Check

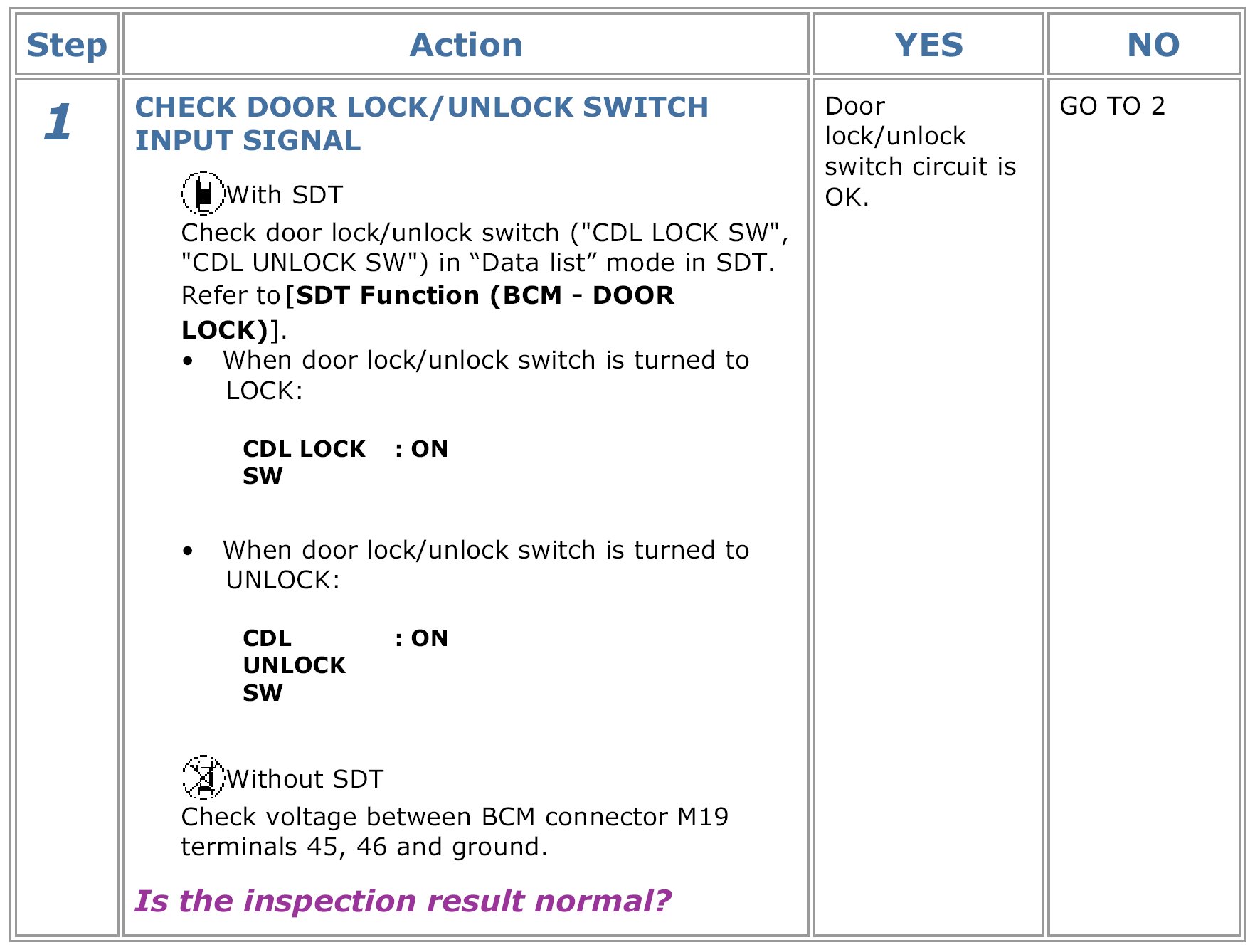

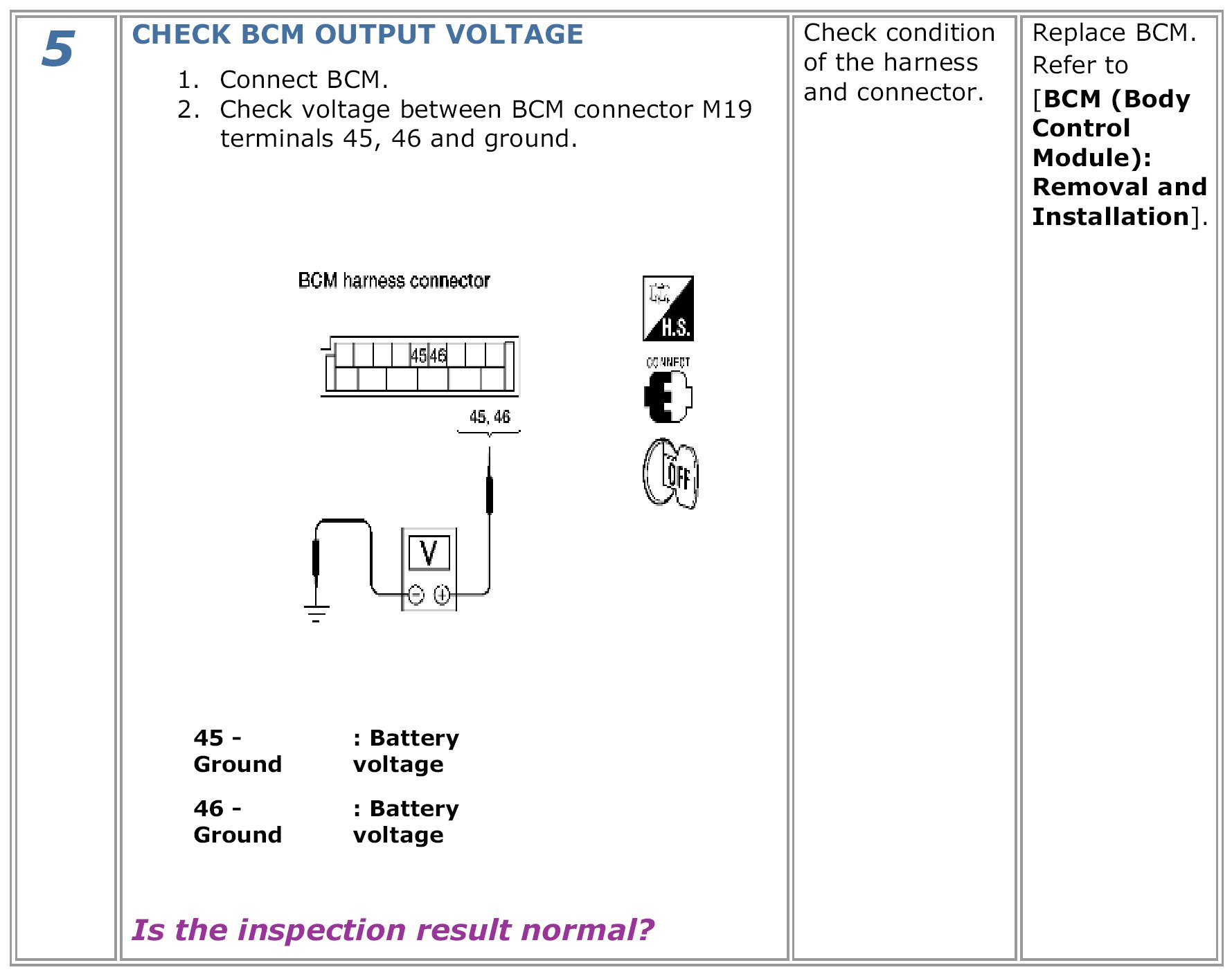

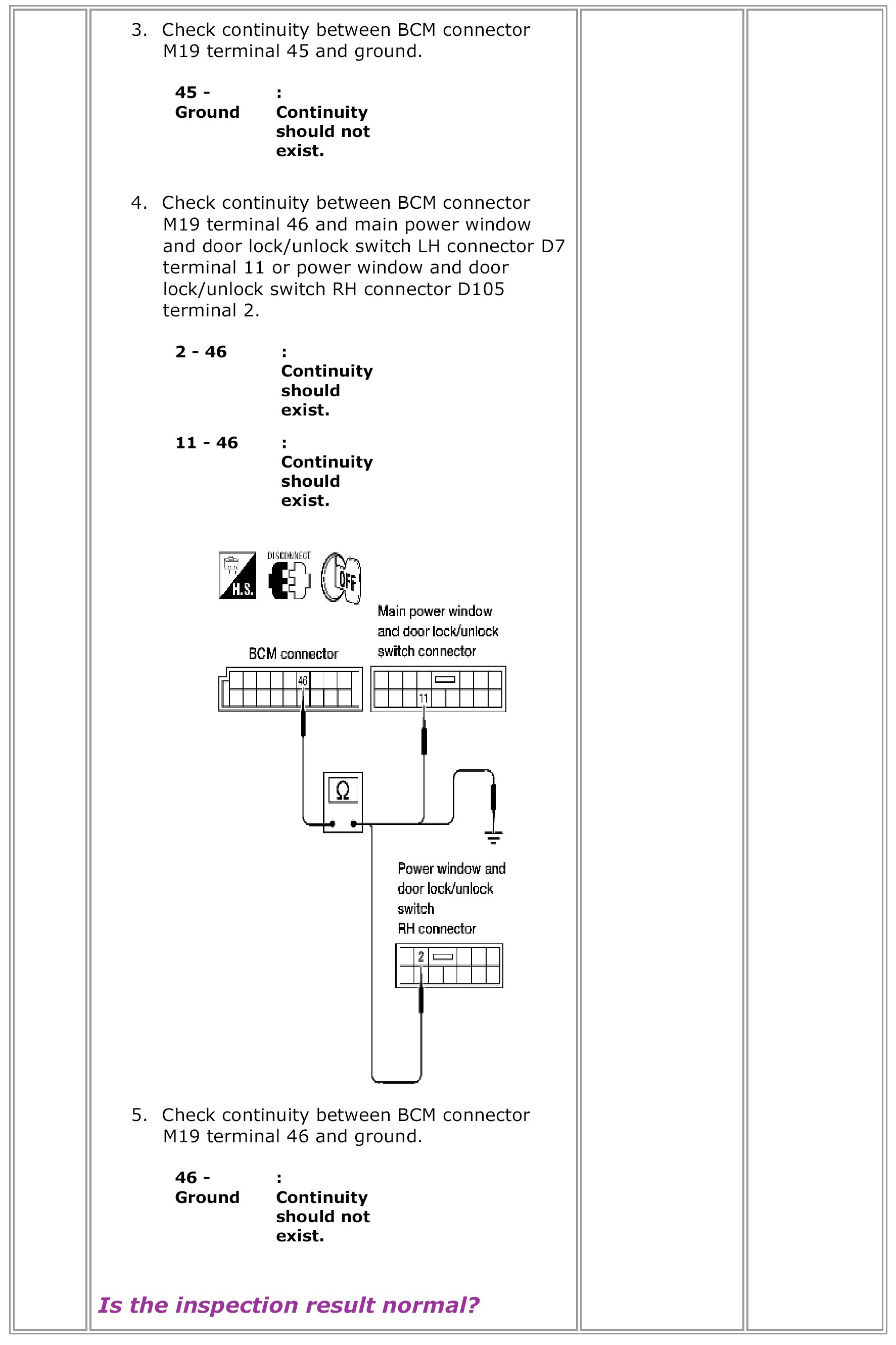

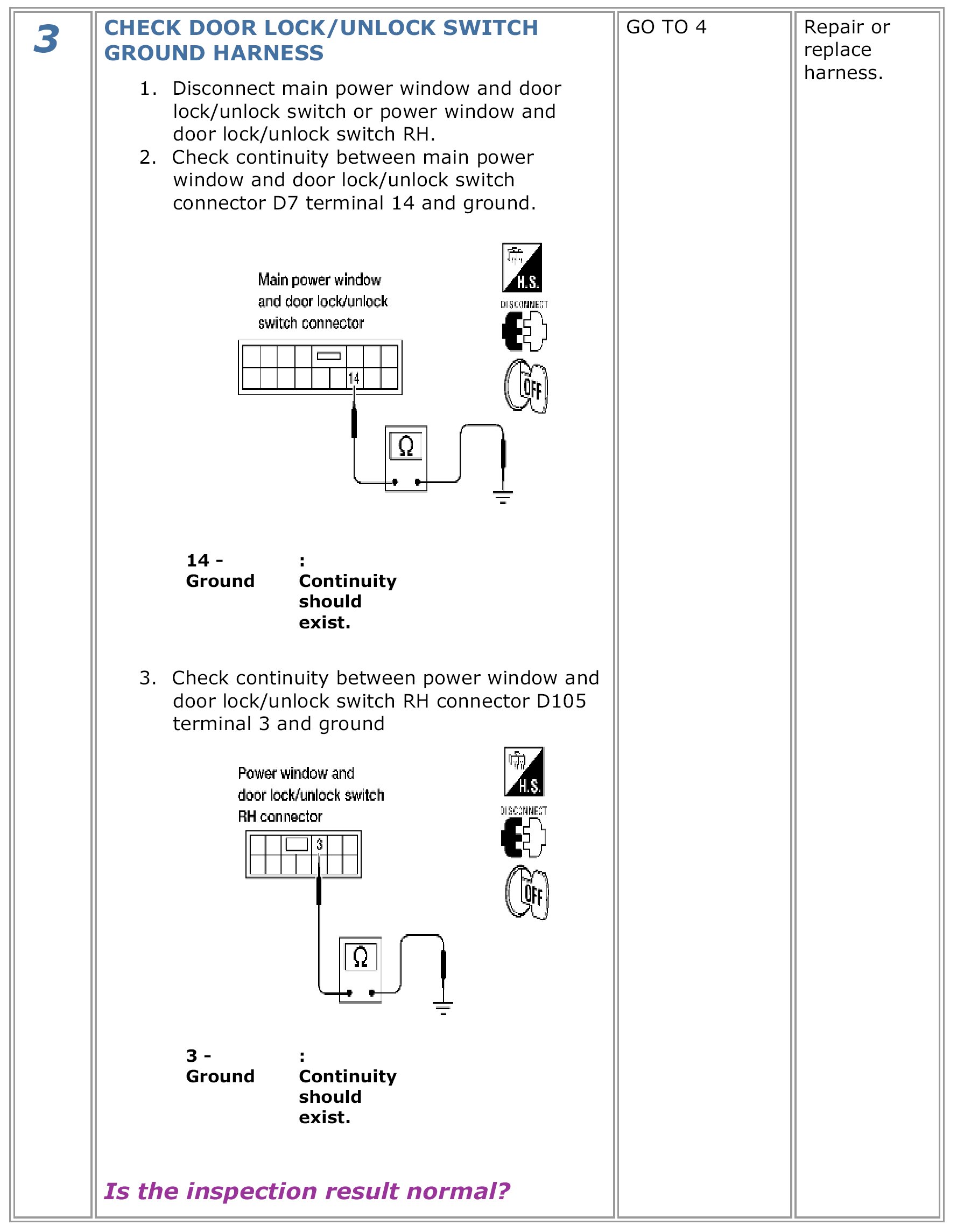

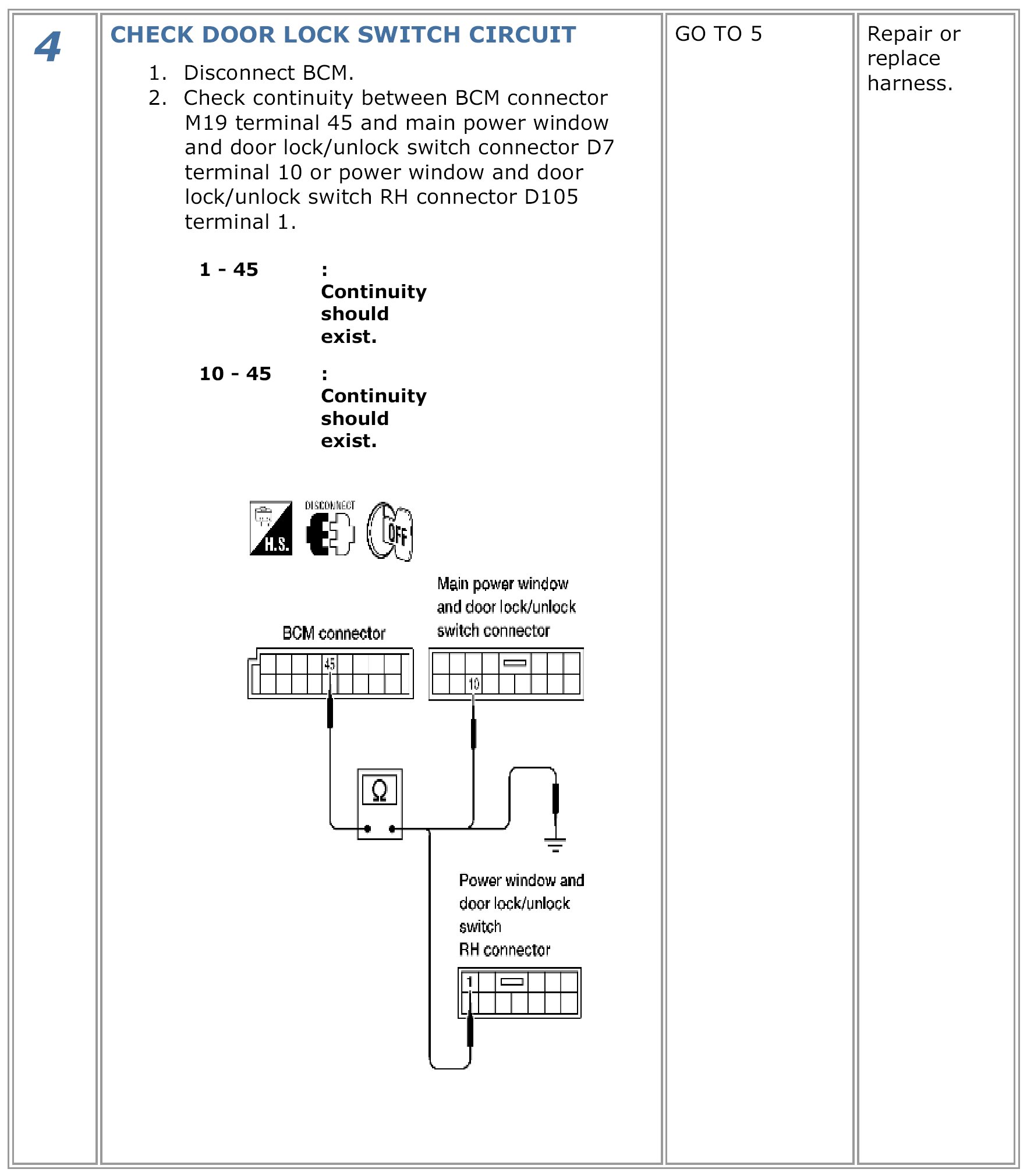

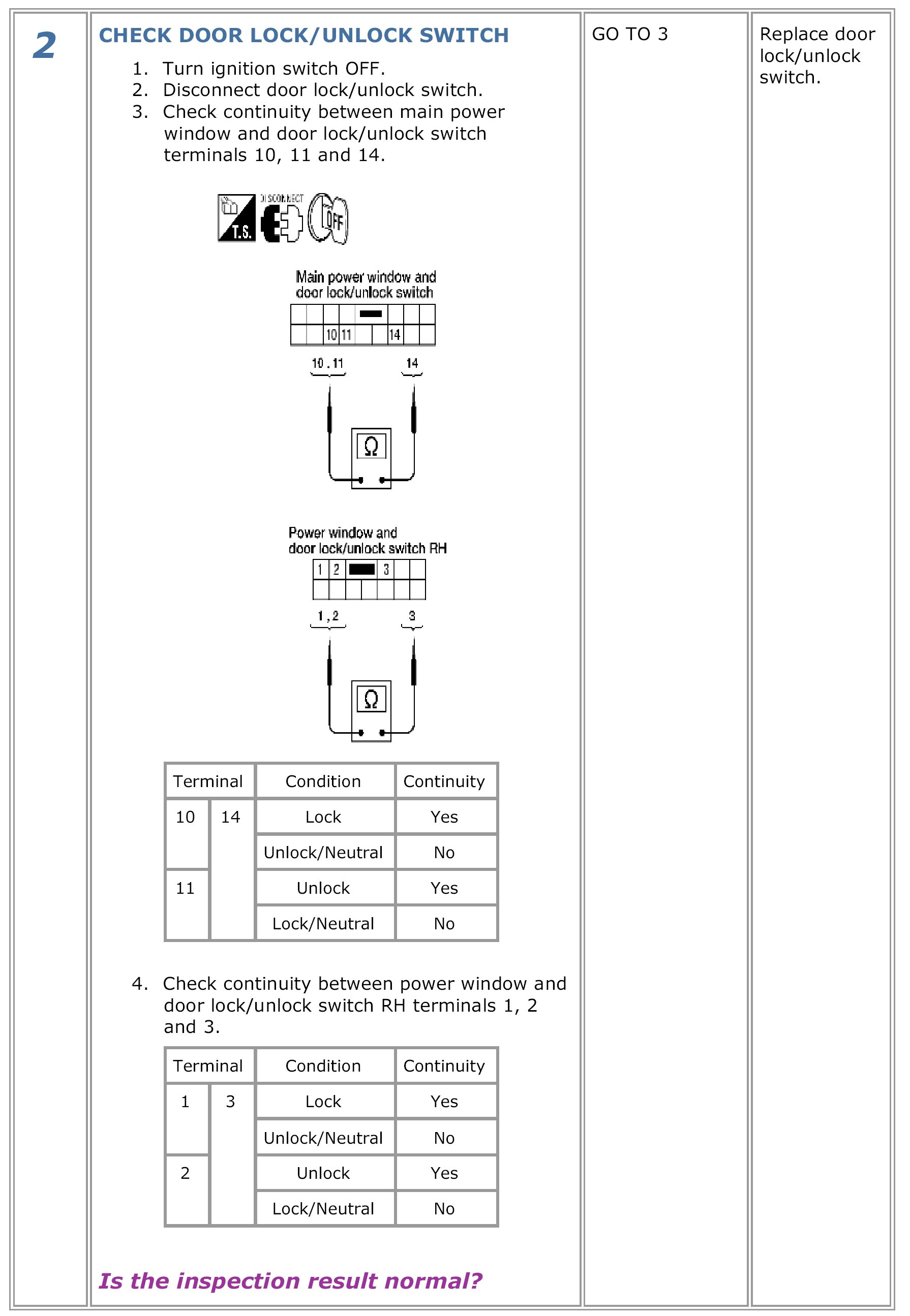

Diagnosis Procedure
