Component Tests and General Diagnostics

Remote Keyless Entry Receiver Circuit Check

Description

Receives keyfob operation and transmits to BCM.

Component Function Check

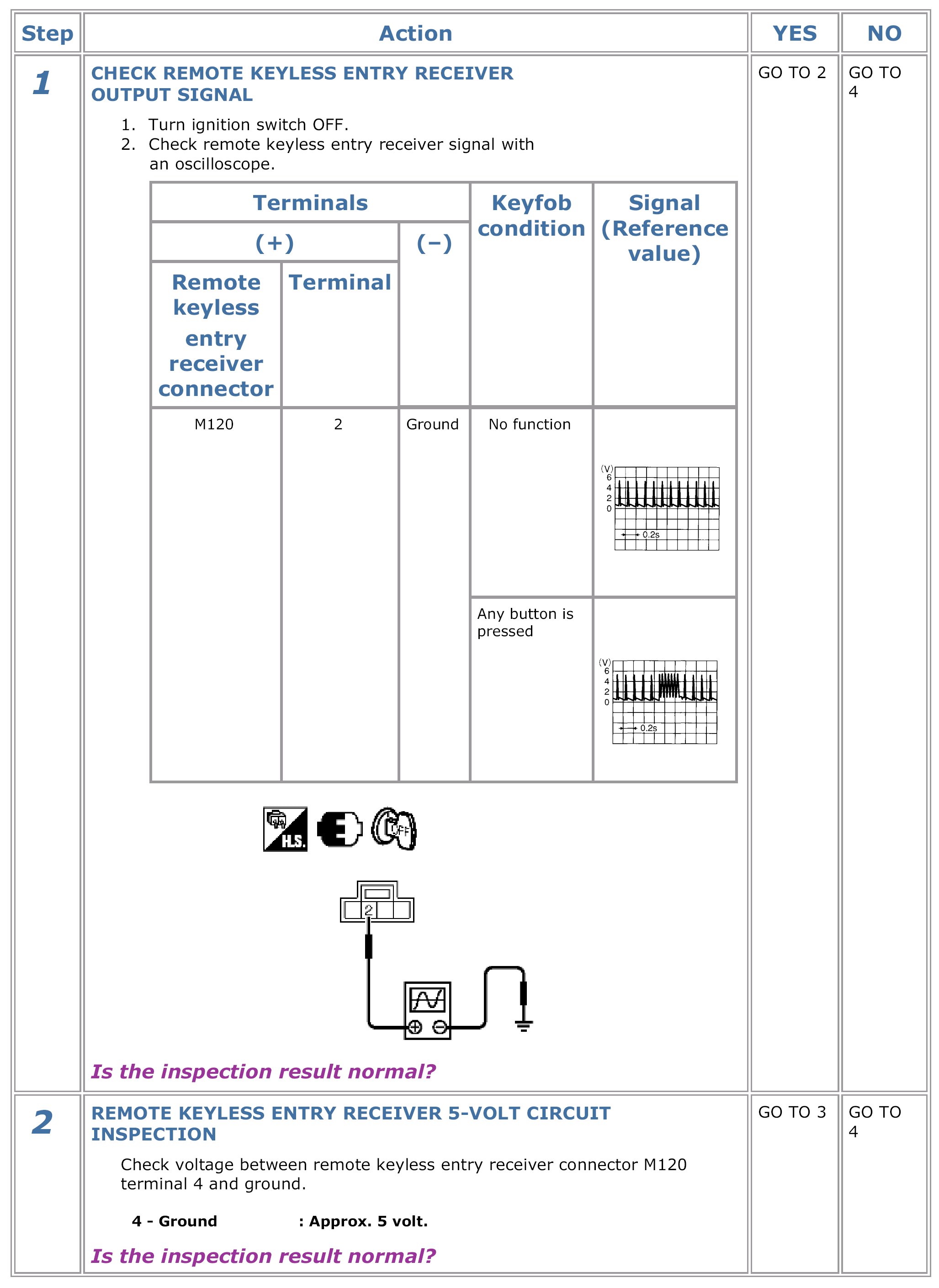

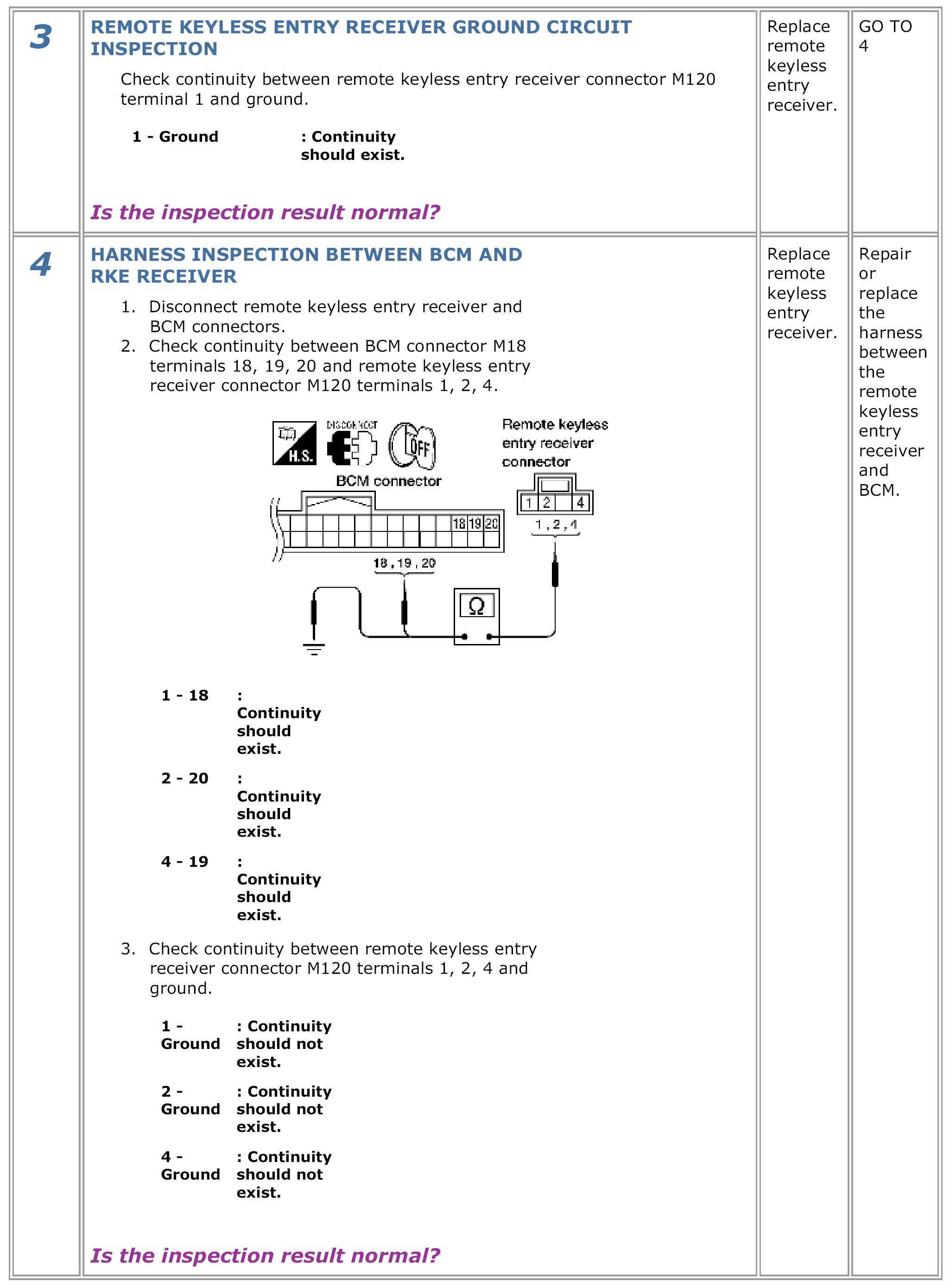

Diagnosis Procedure
